IslandPath Analysis: Mycoplasma penetrans HF-2

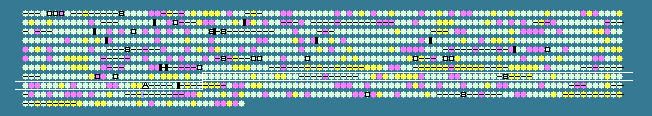

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
731	 23.57	0	953497..955299	-	600	26554183	-	MYPE7270	-	integral membrane protein
732	 23.82	0	955305..956261	-	318	26554184	-	MYPE7280	-	ABC transporter ATP-binding protein
733	 26.55	0	956939..957454	-	171	26554185	-	MYPE7290	-	hypothetical protein
734	 28.54	0	957596..960976	-	1126	26554186	-	MYPE7300	-	hypothetical protein
735	 27.09	0	961313..962641	+	442	26554187	-	MYPE7310	-	hypothetical protein
736	 29.30	0	962780..966100	-	1106	26554188	-	MYPE7320	-	hypothetical protein
737	 29.15	0	966342..967895	-	517	26554189	-	MYPE7330	-	P35 lipoprotein
738	 26.19	0	968615..968824	-	69	26554190	-	MYPE7340	-	hypothetical protein
739	 30.70	+1	968984..969325	-	113	26554191	-	MYPE7350	-	hypothetical protein
740	 28.35	0	969560..970021	-	153	26554192	-	MYPE7360	-	hypothetical protein
741	 28.69	0	970527..971624	-	365	26554193	-	MYPE7370	-	P35 lipoprotein
742	 29.23	0	971999..973144	-	381	26554194	-	MYPE7375	-	putative P35 lipoprotein
743	 33.33	+2	973092..973526	-	144	26554195	-	MYPE7380	-	putative P35 lipoprotein
744	 29.94	+1	973865..975013	-	382	26554196	-	MYPE7400	-	P35 lipoprotein
745	 28.68	0	975304..976701	-	465	26554197	-	MYPE7410	-	hypothetical protein
746	 24.83	0	976706..977152	-	148	26554198	-	MYPE7420	-	nitrogen fixation protein NifU
747	 26.16	0	977139..978365	-	408	26554199	-	MYPE7430	-	aminotransferase NifS
748	 23.03	0	978367..978987	-	206	26554200	-	MYPE7440	-	hypothetical protein
749	 27.44	0	979006..979752	-	248	26554201	-	MYPE7450	-	ABC transporter ATP-binding protein
750	 23.00	0	979900..980586	-	228	26554202	-	MYPE7460	-	acetyltransferase (GNAT) family protein
751	 21.10	-1	980991..983066	-	691	26554203	-	MYPE7470	-	ABC transporter ATP-binding protein
752	 25.29	0	983164..983673	-	169	26554204	-	MYPE7480	-	hypothetical protein
753	 25.53	0	984101..984664	-	187	26554205	-	MYPE7490	-	hypothetical protein
754	 25.41	0	985032..985574	-	180	26554206	-	MYPE7500	-	hypothetical protein
755	 25.05	0	986000..986542	-	180	26554207	-	MYPE7510	-	hypothetical protein
756	 26.14	0	986910..987368	-	152	26554208	-	MYPE7520	-	hypothetical protein
757	 27.20	0	987711..989504	-	597	26554209	-	MYPE7530	-	ABC transporter ATP-binding protein
758	 27.01	0	989507..991276	-	589	26554210	-	MYPE7540	-	ABC transporter ATP-binding protein
759	 30.54	+1	991633..992241	-	202	26554211	rpsD	MYPE7550	-	30S ribosomal protein S4
760	 18.82	-2	992543..993472	+	309	26554212	-	MYPE7560	-	hypothetical protein
761	 30.96	+1	993492..995807	-	771	26554213	-	MYPE7570	-	putative lipoprotein
762	 28.93	0	995770..996405	-	211	26554214	-	MYPE7580	-	putative lipoprotein
763	 30.25	+1	996518..999436	-	972	26554215	-	MYPE7590	-	putative lipoprotein
764	 29.99	+1	999563..1002460	-	965	26554216	-	MYPE7600	-	putative lipoprotein
765	 29.97	+1	1002603..1005635	-	1010	26554217	-	MYPE7610	-	putative lipoprotein
766	 30.04	+1	1005790..1008762	-	990	26554218	-	MYPE7620	-	putative lipoprotein
767	 20.68	-1	1008961..1009545	-	194	26554219	-	MYPE7630	-	hypothetical protein
768	 24.25	0	1009740..1010477	-	245	26554220	-	MYPE7640	-	hypothetical protein
769	 23.07	0	1010553..1011935	-	460	26554221	-	MYPE7650	-	hypothetical protein
770	 28.42	0	1012111..1015242	-	1043	26554222	-	MYPE7660	-	hypothetical protein
771	 28.22	0	1015884..1018013	-	709	26554223	-	MYPE7670	-	PTS system fructose-specific enzyme IIABC component
772	 19.70	-1	1018103..1018366	-	87	26554224	-	MYPE7680	-	hypothetical protein
773	 19.12	-2	1018351..1020285	-	644	26554225	-	MYPE7690	-	putative regulatory protein
774	 25.11	0	1020372..1021295	-	307	26554226	-	MYPE7700	-	mannose-6-phosphate isomerase
775	 28.22	0	1021478..1024606	-	1042	26554227	-	MYPE7710	-	hypothetical protein
776	 27.99	0	1024895..1028020	-	1041	26554228	-	MYPE7720	-	hypothetical protein
777	 28.78	0	1028231..1031242	-	1003	26554229	-	MYPE7730	-	hypothetical protein
778	 23.83	0	1031624..1032538	-	304	26554230	-	MYPE7750	-	1-phosphofructokinase
779	 29.59	+1	1032492..1034708	-	738	26554231	-	MYPE7760	-	PTS system fructose-specific IIABC component
780	 24.90	0	1034698..1035468	-	256	26554232	-	MYPE7770	-	transcriptional regulator DeoR family protein
781	 25.18	0	1035998..1037554	+	518	26554233	-	MYPE7780	-	IS1202 transposase
782	 29.96	+1	1037799..1041953	-	1384	26554234	-	MYPE7790	-	hypothetical protein
783	 29.73	+1	1042320..1046654	-	1444	26554235	-	MYPE7800	-	hypothetical protein
784	 29.55	0	1046891..1050640	-	1249	26554236	-	MYPE7810	-	hypothetical protein
785	 32.09	+1	1050844..1051245	-	133	26554237	-	MYPE7820	-	hypothetical protein
786	 23.92	0	1051528..1052781	+	417	26554238	-	MYPE7830	-	hypothetical protein
787	 25.24	0	1053118..1053747	-	209	26554239	-	MYPE7840	-	orotate phosphoribosyltransferase
788	 26.44	0	1053764..1054459	-	231	26554240	-	MYPE7850	-	orotidine-5-phosphate decarboxylase
789	 29.75	+1	1054461..1055381	-	306	26554241	-	MYPE7860	-	dihydroorotate dehydrogenase 1B
790	 26.19	0	1055385..1056182	-	265	26554242	-	MYPE7870	-	dihydroorotate dehydrogenase electron transfer subunit
791	 26.15	0	1056267..1057547	-	426	26554243	pyrC	MYPE7880	-	dihydroorotase
792	 26.58	0	1057556..1058458	-	300	26554244	pyrB	MYPE7890	-	aspartate carbamoyltransferase catalytic subunit
793	 27.39	0	1058458..1058979	-	173	26554245	-	MYPE7900	-	pyrimidine regulatory protein PyrR
794	 25.85	0	1059326..1062826	-	1166	26554246	-	MYPE7910	-	hypothetical protein
795	 27.01	0	1062987..1066511	-	1174	26554247	-	MYPE7920	-	hypothetical protein
796	 27.06	0	1066617..1070204	-	1195	26554248	-	MYPE7930	-	hypothetical protein
797	 27.24	0	1070374..1071849	-	491	26554249	-	MYPE7940	-	hypothetical protein
798	 31.28	+1	1071969..1072748	+	259	26554250	-	MYPE7950	-	hypothetical protein
799	 26.70	0	1072817..1074052	-	411	26554251	-	MYPE7960	-	tyrosyl-tRNA synthetase
800	 27.59	0	1074084..1074884	-	266	26554252	-	MYPE7970	-	aldo/keto reductase
801	 27.75	0	1075160..1075678	+	172	26554253	-	MYPE7980	-	hypothetical protein
802	 20.73	-1	1075683..1076396	+	237	26554254	-	MYPE7990	-	glucose-inhibited division protein GidB
803	 20.57	-1	1076383..1077048	+	221	26554255	-	MYPE8000	-	hypothetical protein
804	 25.62	0	1077052..1078464	-	470	26554256	-	MYPE8010	-	prolyl-tRNA synthetase
805	 27.58	0	1078466..1079212	-	248	26554257	-	MYPE8020	-	hypothetical protein
806	 24.16	0	1079214..1080587	-	457	26554258	-	MYPE8030	-	ATP-dependent RNA helicase
807	 30.14	+1	1080743..1081462	-	239	26554259	-	MYPE8040	-	hypothetical protein
808	 24.14	0	1081507..1083735	-	742	26554260	-	MYPE8050	-	hypothetical protein
809	 22.44	-1	1083834..1084439	-	201	26554261	recR	MYPE8060	-	recombination protein RecR
810	 25.61	0	1084442..1084726	-	94	26554262	-	MYPE8070	-	hypothetical protein
811	 23.93	0	1084733..1087147	-	804	26554263	-	MYPE8080	-	DNA polymerase III subunits gamma and tau
812	 25.77	0	1087299..1088012	-	237	26554264	-	MYPE8090	-	hypothetical protein
813	 24.16	0	1088005..1088658	-	217	26554265	-	MYPE8100	-	hypothetical protein
814	 24.90	0	1088734..1089516	-	260	26554266	-	MYPE8110	-	hypothetical protein
815	 21.57	-1	1089527..1090861	-	444	26554267	trmE	MYPE8120	-	tRNA modification GTPase TrmE
816	 19.93	-1	1090864..1091691	-	275	26554268	-	MYPE8130	-	DNA polymerase III subunit delta'
817	 28.22	0	1091701..1092345	-	214	26554269	-	MYPE8140	-	thymidylate kinase
818	 28.92	0	1092593..1093408	-	271	26554270	-	MYPE8150	-	hypothetical protein
819	 30.16	+1	1093589..1095004	-	471	26554271	-	MYPE8160	-	phosphoglycerate kinase
820	 31.94	+1	1095027..1096028	-	333	26554272	-	MYPE8170	-	glyceraladehyde-3-phosphate dehydrogenase
821	 25.64	0	1096291..1097109	-	272	26554273	-	MYPE8180	-	integrase
822	 24.04	0	1097228..1098475	+	415	26554274	-	MYPE8190	-	type I restriction-modification system S subunit
823	 24.81	0	1098599..1100158	-	519	26554275	-	MYPE8200	-	type I restriction-modification system S subunit
824	 27.22	0	1100165..1101637	-	490	26554276	-	MYPE8210	-	type I restriction-modification system M subunit
825	 27.39	0	1101659..1103527	-	622	26554277	-	MYPE8220	-	type I restriction-modification system R subunit
826	 29.12	0	1103478..1103999	-	173	26554278	-	MYPE8230	-	type I restriction-modification system R subunit, partial
827	 26.42	0	1104359..1105471	-	370	26554279	-	MYPE8250	-	tRNA-(5-methylaminomethyl-2-thiouridylate) methyltransferase
828	 31.37	+1	1105765..1105917	+	50	26554280	-	MYPE8260	-	hypothetical protein
829	 28.92	0	1106271..1106678	+	135	26554281	-	MYPE8270	-	hypothetical protein
830	 29.23	0	1106884..1107273	+	129	26554282	-	MYPE8280	-	hypothetical protein
26.11	MEAN

3.47	STD DEV
