IslandPath Analysis: Mycoplasma penetrans HF-2

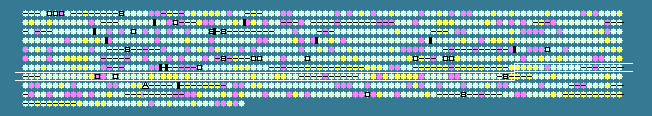

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
683	 29.84	+1	876041..877129	-	362	26554135	-	MYPE6810	-	P35 lipoprotein
684	 29.96	+1	877416..878543	-	375	26554136	-	MYPE6820	-	P35 lipoprotein homolog reported as IMP14
685	 30.02	+1	878839..879924	-	361	26554137	-	MYPE6830	-	P35 lipoprotein
686	 29.66	+1	880225..881313	-	362	26554138	-	MYPE6840	-	P35 lipoprotein
687	 28.20	0	881676..882512	-	278	26554139	-	MYPE6850	-	putative lipoprotein
688	 21.51	-1	882695..883159	-	154	26554140	-	MYPE6860	-	dihyrofolate reductase
689	 24.94	0	883159..884028	-	289	26554141	thyA	MYPE6870	-	thymidylate synthase
690	 26.27	0	884015..884863	-	282	26554142	-	MYPE6880	-	methylenetetrahydrofolate dehydrogenase
691	 26.92	0	885038..886675	-	545	26554143	-	MYPE6890	-	pyruvate decarboxylase
692	 27.73	0	886677..887837	-	386	26554144	-	MYPE6900	-	butanol dehydrogenas
693	 29.03	0	888037..890382	-	781	26554145	-	MYPE6910	-	ATP-dependent protease La
694	 25.64	0	890549..891886	-	445	26554146	-	MYPE6920	-	FKBP-type peptidyl-prolyl cis-transisomerase
695	 29.18	0	892031..893620	-	529	26554147	-	MYPE6930	-	amino acid permease
696	 22.37	-1	893795..895126	-	443	26554148	-	MYPE6940	-	integrated membrane protein
697	 27.91	0	895222..899115	-	1297	26554149	-	MYPE6950	-	hypothetical protein
698	 28.88	0	899148..902945	-	1265	26554150	-	MYPE6960	-	hypothetical protein
699	 28.12	0	902967..906821	-	1284	26554151	-	MYPE6970	-	hypothetical protein
700	 28.49	0	906983..910906	-	1307	26554152	-	MYPE6980	-	hypothetical protein
701	 29.25	0	910938..914219	-	1093	26554153	-	MYPE6990	-	hypothetical protein
702	 26.88	0	914220..914684	-	154	26554154	-	MYPE7000	-	hypothetical protein
703	 28.05	0	914706..918569	-	1287	26554155	-	MYPE7010	-	hypothetical protein
704	 28.84	0	918826..920919	-	697	26554156	-	MYPE7020	-	signal-peptide-less P35 lipoprotein
705	 28.73	0	921310..922656	-	448	26554157	-	MYPE7035	-	signal-peptide-less P35 lipoprotein
706	 26.67	0	922739..923353	-	204	26554158	-	MYPE7030	-	signal-peptide-less P35 lipoprotein
707	 28.62	0	923612..925753	-	713	26554159	-	MYPE7040	-	signal-peptide-less P35 lipoprotein
708	 28.38	0	925987..928065	-	692	26554160	-	MYPE7050	-	signal-peptide-less P35 lipoprotein
709	 29.16	0	928473..929957	-	494	26554161	-	MYPE7060	-	signal-peptide-less P35 lipoprotein
710	 27.89	0	930370..932427	-	685	26554162	-	MYPE7070	-	signal-peptide-less P35 lipoprotein
711	 26.43	0	932816..933148	-	110	26554163	-	MYPE7080	-	putative lipoprotein
712	 31.44	+1	933274..933642	-	122	26554164	-	MYPE7090	-	putative lipoprotein
713	 22.47	-1	934292..934558	-	88	26554165	-	MYPE7100	-	transposase for IS150-like insertion sequence element
714	 17.51	-2	935044..935220	-	58	26554166	-	MYPE7115	-	hypothetical protein
715	 29.36	0	935471..936325	-	284	26554167	-	MYPE7110	-	hypothetical protein
716	 26.11	0	936508..937920	+	470	26554168	-	MYPE7120	-	transposase for IS232-like insertion sequence element
717	 24.80	0	937922..938683	+	253	26554169	-	MYPE7130	-	insertion sequence IS232 putative ATP-binding protein
718	 29.10	0	939317..940048	-	243	26554170	-	MYPE7140	-	hypothetical protein
719	 22.85	0	940451..940927	-	158	26554171	-	MYPE7150	-	hypothetical protein
720	 28.69	0	940930..941661	-	243	26554172	araD	MYPE7160	-	L-ribulose-5-phosphate 4-epimerase
721	 26.26	0	941642..942532	-	296	161723282	-	MYPE7170	-	L-xylulose 5-phosphate 3-epimerase
722	 30.89	+1	942507..943160	-	217	26554174	ulaD	MYPE7180	-	3-keto-L-gulonate-6-phosphate decarboxylase
723	 24.66	0	943178..943546	-	122	26554175	-	MYPE7190	-	PTS system enzyme IIA component
724	 30.50	+1	943651..943932	-	93	26554176	-	MYPE7200	-	PTS system enzyme IIB component
725	 29.73	+1	943971..944192	-	73	26554177	-	MYPE7210	-	hypothetical protein
726	 32.88	+1	944315..945868	-	517	26554178	ulaA	MYPE7220	-	ascorbate-specific PTS system enzyme IIC
727	 26.55	0	945903..946079	-	58	26554179	-	MYPE7230	-	hypothetical protein
728	 33.62	+2	946265..946957	-	230	26554180	-	MYPE7240	-	phosphotriesterase family protein
729	 23.89	0	947297..949975	-	892	26554181	-	MYPE7250	-	hypothetical protein
730	 25.95	0	949978..953469	-	1163	26554182	-	MYPE7260	-	hypothetical protein
731	 23.57	0	953497..955299	-	600	26554183	-	MYPE7270	-	integral membrane protein
732	 23.82	0	955305..956261	-	318	26554184	-	MYPE7280	-	ABC transporter ATP-binding protein
733	 26.55	0	956939..957454	-	171	26554185	-	MYPE7290	-	hypothetical protein
734	 28.54	0	957596..960976	-	1126	26554186	-	MYPE7300	-	hypothetical protein
735	 27.09	0	961313..962641	+	442	26554187	-	MYPE7310	-	hypothetical protein
736	 29.30	0	962780..966100	-	1106	26554188	-	MYPE7320	-	hypothetical protein
737	 29.15	0	966342..967895	-	517	26554189	-	MYPE7330	-	P35 lipoprotein
738	 26.19	0	968615..968824	-	69	26554190	-	MYPE7340	-	hypothetical protein
739	 30.70	+1	968984..969325	-	113	26554191	-	MYPE7350	-	hypothetical protein
740	 28.35	0	969560..970021	-	153	26554192	-	MYPE7360	-	hypothetical protein
741	 28.69	0	970527..971624	-	365	26554193	-	MYPE7370	-	P35 lipoprotein
742	 29.23	0	971999..973144	-	381	26554194	-	MYPE7375	-	putative P35 lipoprotein
743	 33.33	+2	973092..973526	-	144	26554195	-	MYPE7380	-	putative P35 lipoprotein
744	 29.94	+1	973865..975013	-	382	26554196	-	MYPE7400	-	P35 lipoprotein
745	 28.68	0	975304..976701	-	465	26554197	-	MYPE7410	-	hypothetical protein
746	 24.83	0	976706..977152	-	148	26554198	-	MYPE7420	-	nitrogen fixation protein NifU
747	 26.16	0	977139..978365	-	408	26554199	-	MYPE7430	-	aminotransferase NifS
748	 23.03	0	978367..978987	-	206	26554200	-	MYPE7440	-	hypothetical protein
749	 27.44	0	979006..979752	-	248	26554201	-	MYPE7450	-	ABC transporter ATP-binding protein
750	 23.00	0	979900..980586	-	228	26554202	-	MYPE7460	-	acetyltransferase (GNAT) family protein
751	 21.10	-1	980991..983066	-	691	26554203	-	MYPE7470	-	ABC transporter ATP-binding protein
752	 25.29	0	983164..983673	-	169	26554204	-	MYPE7480	-	hypothetical protein
753	 25.53	0	984101..984664	-	187	26554205	-	MYPE7490	-	hypothetical protein
754	 25.41	0	985032..985574	-	180	26554206	-	MYPE7500	-	hypothetical protein
755	 25.05	0	986000..986542	-	180	26554207	-	MYPE7510	-	hypothetical protein
756	 26.14	0	986910..987368	-	152	26554208	-	MYPE7520	-	hypothetical protein
757	 27.20	0	987711..989504	-	597	26554209	-	MYPE7530	-	ABC transporter ATP-binding protein
758	 27.01	0	989507..991276	-	589	26554210	-	MYPE7540	-	ABC transporter ATP-binding protein
759	 30.54	+1	991633..992241	-	202	26554211	rpsD	MYPE7550	-	30S ribosomal protein S4
760	 18.82	-2	992543..993472	+	309	26554212	-	MYPE7560	-	hypothetical protein
761	 30.96	+1	993492..995807	-	771	26554213	-	MYPE7570	-	putative lipoprotein
762	 28.93	0	995770..996405	-	211	26554214	-	MYPE7580	-	putative lipoprotein
763	 30.25	+1	996518..999436	-	972	26554215	-	MYPE7590	-	putative lipoprotein
764	 29.99	+1	999563..1002460	-	965	26554216	-	MYPE7600	-	putative lipoprotein
765	 29.97	+1	1002603..1005635	-	1010	26554217	-	MYPE7610	-	putative lipoprotein
766	 30.04	+1	1005790..1008762	-	990	26554218	-	MYPE7620	-	putative lipoprotein
767	 20.68	-1	1008961..1009545	-	194	26554219	-	MYPE7630	-	hypothetical protein
768	 24.25	0	1009740..1010477	-	245	26554220	-	MYPE7640	-	hypothetical protein
769	 23.07	0	1010553..1011935	-	460	26554221	-	MYPE7650	-	hypothetical protein
770	 28.42	0	1012111..1015242	-	1043	26554222	-	MYPE7660	-	hypothetical protein
771	 28.22	0	1015884..1018013	-	709	26554223	-	MYPE7670	-	PTS system fructose-specific enzyme IIABC component
772	 19.70	-1	1018103..1018366	-	87	26554224	-	MYPE7680	-	hypothetical protein
773	 19.12	-2	1018351..1020285	-	644	26554225	-	MYPE7690	-	putative regulatory protein
774	 25.11	0	1020372..1021295	-	307	26554226	-	MYPE7700	-	mannose-6-phosphate isomerase
775	 28.22	0	1021478..1024606	-	1042	26554227	-	MYPE7710	-	hypothetical protein
776	 27.99	0	1024895..1028020	-	1041	26554228	-	MYPE7720	-	hypothetical protein
777	 28.78	0	1028231..1031242	-	1003	26554229	-	MYPE7730	-	hypothetical protein
778	 23.83	0	1031624..1032538	-	304	26554230	-	MYPE7750	-	1-phosphofructokinase
779	 29.59	+1	1032492..1034708	-	738	26554231	-	MYPE7760	-	PTS system fructose-specific IIABC component
780	 24.90	0	1034698..1035468	-	256	26554232	-	MYPE7770	-	transcriptional regulator DeoR family protein
781	 25.18	0	1035998..1037554	+	518	26554233	-	MYPE7780	-	IS1202 transposase
782	 29.96	+1	1037799..1041953	-	1384	26554234	-	MYPE7790	-	hypothetical protein
26.11	MEAN

3.47	STD DEV
