IslandPath Analysis: Mycoplasma penetrans HF-2

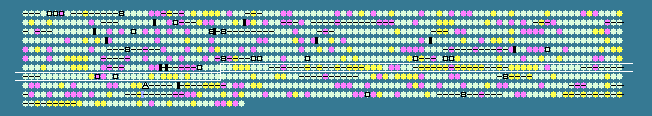

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
634	 24.77	0	809552..811384	-	610	26554086	-	MYPE6330	-	hypothetical protein
635	 22.72	0	811418..813085	-	555	26554087	-	MYPE6340	-	putative glycosyl transferase
636	 30.58	+1	813209..814732	-	507	26554088	glpK	MYPE6360	-	glycerol kinase
637	 31.41	+1	814757..815902	-	381	26554089	-	MYPE6370	-	glycerol-3-phosphate dehydrogenase
638	 35.04	+2	815954..816772	-	272	26554090	-	MYPE6380	-	glycerol uptake facilitator protein
639	 27.98	0	817045..818034	-	329	26554091	recA	MYPE6390	-	recombinase A
640	 28.31	0	818098..818595	-	165	26554092	-	MYPE6400	-	putative competence-damage inducible protein CinA
641	 29.44	0	819003..819542	-	179	26554093	-	MYPE6410	-	hypothetical protein
642	 24.81	0	819915..820442	+	175	26554094	-	MYPE6420	-	NADPH oxidoreductase
643	 26.75	0	820624..821352	+	242	26554095	-	MYPE6430	-	NADPH flavin oxidoreductase
644	 21.18	-1	821354..822439	-	361	26554096	-	MYPE6440	-	ATP/GTP-binding protein
645	 22.83	0	822420..823019	-	199	26554097	-	MYPE6450	-	hypothetical protein
646	 22.93	0	823023..823964	-	313	26554098	-	MYPE6460	-	hypothetical protein
647	 28.74	0	823988..828433	-	1481	26554099	-	MYPE6470	-	DNA topoisomerase IV subunit A
648	 30.01	+1	828439..830334	-	631	26554100	-	MYPE6480	-	DNA topoisomerase IV subunit B
649	 28.78	0	831015..832199	-	394	26554101	-	MYPE6490	-	P35 lipoprotein
650	 34.76	+2	832494..832703	-	69	26554102	-	MYPE6495	-	putative P35 lipoprotein
651	 28.48	0	832669..833658	-	329	26554103	-	MYPE6500	-	putative P35 lipoprotein
652	 29.20	0	833955..835139	-	394	26554104	-	MYPE6510	-	P35 lipoprotein
653	 30.00	+1	835456..835935	-	159	26554105	-	MYPE6525	-	putative P35 lipoprotein
654	 29.26	0	836106..836645	-	179	26554106	-	MYPE6520	-	putative P35 lipoprotein
655	 33.07	+2	836957..838117	-	386	26554107	-	MYPE6530	-	P35 lipoprotein
656	 32.37	+1	838407..839543	-	378	26554108	-	MYPE6540	-	P35 lipoprotein
657	 32.39	+1	839924..840985	-	353	26554109	-	MYPE6550	-	P35 lipoprotein
658	 30.27	+1	841270..842445	-	391	26554110	-	MYPE6560	-	P35 lipoprotein
659	 31.56	+1	842735..843859	-	374	26554111	-	MYPE6570	-	P35 lipoprotein
660	 31.83	+1	844164..845363	-	399	26554112	-	MYPE6580	-	P35 lipoprotein
661	 28.42	0	845665..846762	-	365	26554113	-	MYPE6590	-	P35 lipoprotein
662	 21.63	-1	847002..848744	-	580	26554114	-	MYPE6600	-	transport system permease
663	 21.41	-1	848734..849471	-	245	26554115	-	MYPE6610	-	ABC transporter ATP-binding protein
664	 25.23	0	849464..850672	-	402	26554116	-	MYPE6620	-	high affinity transport system protein
665	 28.56	0	850970..852142	-	390	26554117	-	MYPE6630	-	P35 lipoprotein homolog reported as putative lipoprotein IMP13
666	 29.48	0	852586..853752	-	388	26554118	-	MYPE6640	-	P35 lipoprotein
667	 30.49	+1	854049..855209	-	386	26554119	-	MYPE6650	-	P35 lipoprotein
668	 29.74	+1	855889..857058	-	389	26554120	-	MYPE6660	-	P35 lipoprotein
669	 30.08	+1	857352..858488	-	378	26554121	-	MYPE6670	-	P35 lipoprotein
670	 29.95	+1	858786..859937	-	383	26554122	-	MYPE6680	-	P35 lipoprotein
671	 30.68	+1	860232..861398	-	388	26554123	-	MYPE6690	-	P35 lipoprotein
672	 19.86	-1	861753..862316	-	187	26554124	-	MYPE6700	-	hypothetical protein
673	 31.57	+1	862483..863619	-	378	26554125	-	MYPE6710	-	P35 lipoprotein
674	 31.79	+1	863908..865074	-	388	26554126	-	MYPE6720	-	P35 lipoprotein
675	 31.17	+1	865362..866516	-	384	26554127	-	MYPE6730	-	P35 lipoprotein
676	 31.54	+1	866864..867925	-	353	26554128	-	MYPE6740	-	P35 lipoprotein
677	 31.34	+1	868230..869384	-	384	26554129	-	MYPE6750	-	P35 lipoprotein
678	 26.32	0	869979..870434	-	151	26554130	-	MYPE6760	-	hypothetical protein
679	 24.79	0	870598..871077	-	159	26554131	-	MYPE6770	-	flavodoxin
680	 30.73	+1	871412..872563	-	383	26554132	-	MYPE6780	-	P35 lipoprotein homolog reported as gene for P38 lipoprotein
681	 29.39	0	872868..874187	-	439	26554133	-	MYPE6790	-	P35 lipoprotein
682	 31.21	+1	874612..875742	-	376	26554134	-	MYPE6800	-	P35 lipoprotein homolog reported as gene for P33 lipoprotein
683	 29.84	+1	876041..877129	-	362	26554135	-	MYPE6810	-	P35 lipoprotein
684	 29.96	+1	877416..878543	-	375	26554136	-	MYPE6820	-	P35 lipoprotein homolog reported as IMP14
685	 30.02	+1	878839..879924	-	361	26554137	-	MYPE6830	-	P35 lipoprotein
686	 29.66	+1	880225..881313	-	362	26554138	-	MYPE6840	-	P35 lipoprotein
687	 28.20	0	881676..882512	-	278	26554139	-	MYPE6850	-	putative lipoprotein
688	 21.51	-1	882695..883159	-	154	26554140	-	MYPE6860	-	dihyrofolate reductase
689	 24.94	0	883159..884028	-	289	26554141	thyA	MYPE6870	-	thymidylate synthase
690	 26.27	0	884015..884863	-	282	26554142	-	MYPE6880	-	methylenetetrahydrofolate dehydrogenase
691	 26.92	0	885038..886675	-	545	26554143	-	MYPE6890	-	pyruvate decarboxylase
692	 27.73	0	886677..887837	-	386	26554144	-	MYPE6900	-	butanol dehydrogenas
693	 29.03	0	888037..890382	-	781	26554145	-	MYPE6910	-	ATP-dependent protease La
694	 25.64	0	890549..891886	-	445	26554146	-	MYPE6920	-	FKBP-type peptidyl-prolyl cis-transisomerase
695	 29.18	0	892031..893620	-	529	26554147	-	MYPE6930	-	amino acid permease
696	 22.37	-1	893795..895126	-	443	26554148	-	MYPE6940	-	integrated membrane protein
697	 27.91	0	895222..899115	-	1297	26554149	-	MYPE6950	-	hypothetical protein
698	 28.88	0	899148..902945	-	1265	26554150	-	MYPE6960	-	hypothetical protein
699	 28.12	0	902967..906821	-	1284	26554151	-	MYPE6970	-	hypothetical protein
700	 28.49	0	906983..910906	-	1307	26554152	-	MYPE6980	-	hypothetical protein
701	 29.25	0	910938..914219	-	1093	26554153	-	MYPE6990	-	hypothetical protein
702	 26.88	0	914220..914684	-	154	26554154	-	MYPE7000	-	hypothetical protein
703	 28.05	0	914706..918569	-	1287	26554155	-	MYPE7010	-	hypothetical protein
704	 28.84	0	918826..920919	-	697	26554156	-	MYPE7020	-	signal-peptide-less P35 lipoprotein
705	 28.73	0	921310..922656	-	448	26554157	-	MYPE7035	-	signal-peptide-less P35 lipoprotein
706	 26.67	0	922739..923353	-	204	26554158	-	MYPE7030	-	signal-peptide-less P35 lipoprotein
707	 28.62	0	923612..925753	-	713	26554159	-	MYPE7040	-	signal-peptide-less P35 lipoprotein
708	 28.38	0	925987..928065	-	692	26554160	-	MYPE7050	-	signal-peptide-less P35 lipoprotein
709	 29.16	0	928473..929957	-	494	26554161	-	MYPE7060	-	signal-peptide-less P35 lipoprotein
710	 27.89	0	930370..932427	-	685	26554162	-	MYPE7070	-	signal-peptide-less P35 lipoprotein
711	 26.43	0	932816..933148	-	110	26554163	-	MYPE7080	-	putative lipoprotein
712	 31.44	+1	933274..933642	-	122	26554164	-	MYPE7090	-	putative lipoprotein
713	 22.47	-1	934292..934558	-	88	26554165	-	MYPE7100	-	transposase for IS150-like insertion sequence element
714	 17.51	-2	935044..935220	-	58	26554166	-	MYPE7115	-	hypothetical protein
715	 29.36	0	935471..936325	-	284	26554167	-	MYPE7110	-	hypothetical protein
716	 26.11	0	936508..937920	+	470	26554168	-	MYPE7120	-	transposase for IS232-like insertion sequence element
717	 24.80	0	937922..938683	+	253	26554169	-	MYPE7130	-	insertion sequence IS232 putative ATP-binding protein
718	 29.10	0	939317..940048	-	243	26554170	-	MYPE7140	-	hypothetical protein
719	 22.85	0	940451..940927	-	158	26554171	-	MYPE7150	-	hypothetical protein
720	 28.69	0	940930..941661	-	243	26554172	araD	MYPE7160	-	L-ribulose-5-phosphate 4-epimerase
721	 26.26	0	941642..942532	-	296	161723282	-	MYPE7170	-	L-xylulose 5-phosphate 3-epimerase
722	 30.89	+1	942507..943160	-	217	26554174	ulaD	MYPE7180	-	3-keto-L-gulonate-6-phosphate decarboxylase
723	 24.66	0	943178..943546	-	122	26554175	-	MYPE7190	-	PTS system enzyme IIA component
724	 30.50	+1	943651..943932	-	93	26554176	-	MYPE7200	-	PTS system enzyme IIB component
725	 29.73	+1	943971..944192	-	73	26554177	-	MYPE7210	-	hypothetical protein
726	 32.88	+1	944315..945868	-	517	26554178	ulaA	MYPE7220	-	ascorbate-specific PTS system enzyme IIC
727	 26.55	0	945903..946079	-	58	26554179	-	MYPE7230	-	hypothetical protein
728	 33.62	+2	946265..946957	-	230	26554180	-	MYPE7240	-	phosphotriesterase family protein
729	 23.89	0	947297..949975	-	892	26554181	-	MYPE7250	-	hypothetical protein
730	 25.95	0	949978..953469	-	1163	26554182	-	MYPE7260	-	hypothetical protein
731	 23.57	0	953497..955299	-	600	26554183	-	MYPE7270	-	integral membrane protein
732	 23.82	0	955305..956261	-	318	26554184	-	MYPE7280	-	ABC transporter ATP-binding protein
733	 26.55	0	956939..957454	-	171	26554185	-	MYPE7290	-	hypothetical protein
26.11	MEAN

3.47	STD DEV
