IslandPath Analysis: Mycoplasma penetrans HF-2

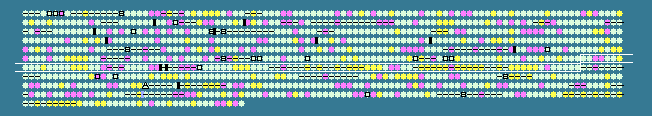

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
594	 23.68	0	751683..752252	-	189	26554046	-	MYPE5940	-	MerR family transcriptional regulator
595	 23.67	0	752638..754365	+	575	26554047	-	MYPE5950	-	hypothetical protein
596	 22.32	-1	754566..756707	+	713	26554048	-	MYPE5960	-	hypothetical protein
597	 22.61	-1	756800..757396	+	198	26554049	-	MYPE5970	-	hypothetical protein
598	 24.43	0	757404..758852	+	482	26554050	-	MYPE5980	-	hypothetical protein
599	 29.19	0	758954..761509	-	851	26554051	-	MYPE5990	-	lipase
600	 31.58	+1	761573..761800	-	75	26554052	-	MYPE6000	-	hypothetical protein
601	 26.50	0	761815..763527	-	570	26554053	-	MYPE6010	-	lipase
602	 26.10	0	763511..765403	-	630	26554054	-	MYPE6020	-	hypothetical protein
603	 29.57	0	765413..768070	-	885	26554055	-	MYPE6030	-	lipase
604	 33.33	+2	768384..768605	-	73	26554056	-	MYPE6040	-	hypothetical protein
605	 24.51	0	768615..770519	-	634	26554057	-	MYPE6050	-	integral membrane protein
606	 24.35	0	770657..773518	-	953	26554058	-	MYPE6060	-	integral membrane protein
607	 22.82	0	773667..776519	-	950	26554059	-	MYPE6070	-	hypothetical protein
608	 29.43	0	776690..778048	+	452	26554060	-	MYPE6080	-	arginine deiminase
609	 32.07	+1	778069..779097	+	342	26554061	-	MYPE6090	-	ornithine carbamoyltransferase
610	 32.69	+1	779123..780052	+	309	26554062	-	MYPE6100	-	carbamate kinase
611	 31.40	+1	780077..781780	+	567	26554063	-	MYPE6110	-	amino acid permeases
612	 26.90	0	781997..783691	+	564	26554064	argS	MYPE6120	-	arginyl-tRNA synthetase
613	 27.63	0	784352..789808	-	1818	26554065	-	MYPE6130	-	permease
614	 18.55	-2	790072..790389	-	105	26554066	-	MYPE6140	-	hypothetical protein
615	 21.72	-1	790534..790731	-	65	26554067	-	MYPE6155	-	hypothetical protein
616	 25.15	0	790872..791042	-	56	26554068	-	MYPE6160	-	hypothetical protein
617	 18.22	-2	791731..791955	-	74	26554069	-	MYPE6175	-	hypothetical protein
618	 23.99	0	792364..792909	+	181	26554070	-	MYPE6180	-	hypothetical protein
619	 28.82	0	793022..793309	+	95	26554071	-	MYPE6190	-	hypothetical protein
620	 27.99	0	793695..794237	+	180	26554072	-	MYPE6200	-	hypothetical protein
621	 27.99	0	794425..795603	-	392	26554073	-	MYPE6210	-	NADH-dependent butanol dehydrogenase
622	 14.20	-2	795885..796046	+	53	26554074	-	MYPE6220	-	hypothetical protein
623	 22.11	-1	796194..797627	+	477	26554075	-	MYPE6230	-	hypothetical protein
624	 26.14	0	798211..798891	+	226	26554076	-	MYPE6240	-	alpha-acetolactate decarboxylase
625	 27.84	0	799425..799679	+	84	26554077	-	MYPE6250	-	3-ketoacyl-acyl carrier protein reductase
626	 29.54	0	800167..801246	-	359	26554078	-	MYPE6260	-	formate/ nitrite transporter
627	 19.14	-2	801422..802168	+	248	26554079	-	MYPE6270	-	hypothetical protein
628	 16.37	-2	802271..802441	-	56	26554080	-	MYPE6275	-	hypothetical protein
629	 22.55	-1	802979..803803	+	274	26554081	-	MYPE6280	-	hypothetical protein
630	 25.97	0	804088..805500	+	470	26554082	-	MYPE6290	-	transposase for IS232-like insertion sequence element
631	 24.80	0	805502..806263	+	253	26554083	-	MYPE6300	-	IS232 putative ATP-binding protein IstB
632	 22.82	0	806513..807235	+	240	26554084	-	MYPE6310	-	hypothetical protein
633	 24.87	0	807241..809568	-	775	26554085	-	MYPE6320	-	hypothetical protein
634	 24.77	0	809552..811384	-	610	26554086	-	MYPE6330	-	hypothetical protein
635	 22.72	0	811418..813085	-	555	26554087	-	MYPE6340	-	putative glycosyl transferase
636	 30.58	+1	813209..814732	-	507	26554088	glpK	MYPE6360	-	glycerol kinase
637	 31.41	+1	814757..815902	-	381	26554089	-	MYPE6370	-	glycerol-3-phosphate dehydrogenase
638	 35.04	+2	815954..816772	-	272	26554090	-	MYPE6380	-	glycerol uptake facilitator protein
639	 27.98	0	817045..818034	-	329	26554091	recA	MYPE6390	-	recombinase A
640	 28.31	0	818098..818595	-	165	26554092	-	MYPE6400	-	putative competence-damage inducible protein CinA
641	 29.44	0	819003..819542	-	179	26554093	-	MYPE6410	-	hypothetical protein
642	 24.81	0	819915..820442	+	175	26554094	-	MYPE6420	-	NADPH oxidoreductase
643	 26.75	0	820624..821352	+	242	26554095	-	MYPE6430	-	NADPH flavin oxidoreductase
644	 21.18	-1	821354..822439	-	361	26554096	-	MYPE6440	-	ATP/GTP-binding protein
645	 22.83	0	822420..823019	-	199	26554097	-	MYPE6450	-	hypothetical protein
646	 22.93	0	823023..823964	-	313	26554098	-	MYPE6460	-	hypothetical protein
647	 28.74	0	823988..828433	-	1481	26554099	-	MYPE6470	-	DNA topoisomerase IV subunit A
648	 30.01	+1	828439..830334	-	631	26554100	-	MYPE6480	-	DNA topoisomerase IV subunit B
649	 28.78	0	831015..832199	-	394	26554101	-	MYPE6490	-	P35 lipoprotein
650	 34.76	+2	832494..832703	-	69	26554102	-	MYPE6495	-	putative P35 lipoprotein
651	 28.48	0	832669..833658	-	329	26554103	-	MYPE6500	-	putative P35 lipoprotein
652	 29.20	0	833955..835139	-	394	26554104	-	MYPE6510	-	P35 lipoprotein
653	 30.00	+1	835456..835935	-	159	26554105	-	MYPE6525	-	putative P35 lipoprotein
654	 29.26	0	836106..836645	-	179	26554106	-	MYPE6520	-	putative P35 lipoprotein
655	 33.07	+2	836957..838117	-	386	26554107	-	MYPE6530	-	P35 lipoprotein
656	 32.37	+1	838407..839543	-	378	26554108	-	MYPE6540	-	P35 lipoprotein
657	 32.39	+1	839924..840985	-	353	26554109	-	MYPE6550	-	P35 lipoprotein
658	 30.27	+1	841270..842445	-	391	26554110	-	MYPE6560	-	P35 lipoprotein
659	 31.56	+1	842735..843859	-	374	26554111	-	MYPE6570	-	P35 lipoprotein
660	 31.83	+1	844164..845363	-	399	26554112	-	MYPE6580	-	P35 lipoprotein
661	 28.42	0	845665..846762	-	365	26554113	-	MYPE6590	-	P35 lipoprotein
662	 21.63	-1	847002..848744	-	580	26554114	-	MYPE6600	-	transport system permease
663	 21.41	-1	848734..849471	-	245	26554115	-	MYPE6610	-	ABC transporter ATP-binding protein
664	 25.23	0	849464..850672	-	402	26554116	-	MYPE6620	-	high affinity transport system protein
665	 28.56	0	850970..852142	-	390	26554117	-	MYPE6630	-	P35 lipoprotein homolog reported as putative lipoprotein IMP13
666	 29.48	0	852586..853752	-	388	26554118	-	MYPE6640	-	P35 lipoprotein
667	 30.49	+1	854049..855209	-	386	26554119	-	MYPE6650	-	P35 lipoprotein
668	 29.74	+1	855889..857058	-	389	26554120	-	MYPE6660	-	P35 lipoprotein
669	 30.08	+1	857352..858488	-	378	26554121	-	MYPE6670	-	P35 lipoprotein
670	 29.95	+1	858786..859937	-	383	26554122	-	MYPE6680	-	P35 lipoprotein
671	 30.68	+1	860232..861398	-	388	26554123	-	MYPE6690	-	P35 lipoprotein
672	 19.86	-1	861753..862316	-	187	26554124	-	MYPE6700	-	hypothetical protein
673	 31.57	+1	862483..863619	-	378	26554125	-	MYPE6710	-	P35 lipoprotein
674	 31.79	+1	863908..865074	-	388	26554126	-	MYPE6720	-	P35 lipoprotein
675	 31.17	+1	865362..866516	-	384	26554127	-	MYPE6730	-	P35 lipoprotein
676	 31.54	+1	866864..867925	-	353	26554128	-	MYPE6740	-	P35 lipoprotein
677	 31.34	+1	868230..869384	-	384	26554129	-	MYPE6750	-	P35 lipoprotein
678	 26.32	0	869979..870434	-	151	26554130	-	MYPE6760	-	hypothetical protein
679	 24.79	0	870598..871077	-	159	26554131	-	MYPE6770	-	flavodoxin
680	 30.73	+1	871412..872563	-	383	26554132	-	MYPE6780	-	P35 lipoprotein homolog reported as gene for P38 lipoprotein
681	 29.39	0	872868..874187	-	439	26554133	-	MYPE6790	-	P35 lipoprotein
682	 31.21	+1	874612..875742	-	376	26554134	-	MYPE6800	-	P35 lipoprotein homolog reported as gene for P33 lipoprotein
683	 29.84	+1	876041..877129	-	362	26554135	-	MYPE6810	-	P35 lipoprotein
684	 29.96	+1	877416..878543	-	375	26554136	-	MYPE6820	-	P35 lipoprotein homolog reported as IMP14
685	 30.02	+1	878839..879924	-	361	26554137	-	MYPE6830	-	P35 lipoprotein
686	 29.66	+1	880225..881313	-	362	26554138	-	MYPE6840	-	P35 lipoprotein
687	 28.20	0	881676..882512	-	278	26554139	-	MYPE6850	-	putative lipoprotein
688	 21.51	-1	882695..883159	-	154	26554140	-	MYPE6860	-	dihyrofolate reductase
689	 24.94	0	883159..884028	-	289	26554141	thyA	MYPE6870	-	thymidylate synthase
690	 26.27	0	884015..884863	-	282	26554142	-	MYPE6880	-	methylenetetrahydrofolate dehydrogenase
691	 26.92	0	885038..886675	-	545	26554143	-	MYPE6890	-	pyruvate decarboxylase
692	 27.73	0	886677..887837	-	386	26554144	-	MYPE6900	-	butanol dehydrogenas
693	 29.03	0	888037..890382	-	781	26554145	-	MYPE6910	-	ATP-dependent protease La
26.11	MEAN

3.47	STD DEV
