IslandPathversion 1.0

IslandPath Analysis: Mycoplasma penetrans HF-2

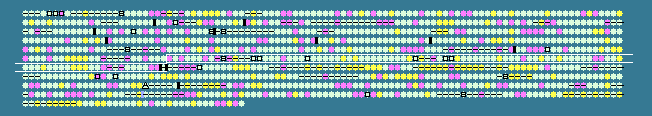

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
525	 22.13	-1	666500..666865	-	121	26553977	-	MYPE5250	-	hypothetical protein
526	 22.78	0	666988..668361	-	457	26553978	-	MYPE5260	-	hypothetical protein
527	 21.78	-1	668557..669318	-	253	26553979	-	MYPE5270	-	hypothetical protein
528	 24.98	0	669428..671569	-	713	26553980	-	MYPE5280	-	ppGpp 3'-pyrophosphohydrolase
529	 26.83	0	671800..673689	+	629	26553981	-	MYPE5290	-	hypothetical protein
530	 29.08	0	673823..674575	+	250	26553982	-	MYPE5300	-	hypothetical protein
531	 20.71	-1	674658..675275	-	205	26553983	-	MYPE5310	-	hypothetical protein
532	 23.86	0	675536..676063	+	175	26553984	-	MYPE5330	-	hypothetical protein
533	 19.09	-2	676182..676820	-	212	26553985	-	MYPE5340	-	hypothetical protein
534	 26.16	0	677235..678251	+	338	26553986	-	MYPE5350	-	IS1630-like transposase
535	 22.15	-1	678565..679449	-	294	26553987	-	MYPE5360	-	hypothetical protein
536	 33.99	+2	679713..680015	-	100	26553988	-	MYPE5370	-	hypothetical protein
537	 28.57	0	680107..680400	+	97	26553989	-	MYPE5380	-	hypothetical protein
538	 27.71	0	680663..681373	+	236	26553990	-	MYPE5390	-	hypothetical protein
539	 26.16	0	681538..682554	-	338	26553991	-	MYPE5400	-	IS1630-like transposase
540	 25.43	0	683254..684810	-	518	26553992	-	MYPE5410	-	IS1202-like transposase
541	 27.89	0	685162..685602	+	146	26553993	-	MYPE5420	-	hypothetical protein
542	 27.23	0	685866..686537	+	223	26553994	-	MYPE5430	-	hypothetical protein
543	 26.60	0	686657..688066	-	469	26553995	-	MYPE5440	-	hypothetical protein
544	 19.70	-1	688322..688519	-	65	26553996	-	MYPE5445	-	hypothetical protein
545	 28.56	0	688883..690622	-	579	26553997	-	MYPE5450	-	PTS system enzyme I
546	 24.23	0	690654..691598	-	314	26553998	-	MYPE5460	-	lipase-esterase related protein
547	 28.14	0	691782..695999	-	1405	26553999	-	MYPE5470	-	translocase
548	 26.91	0	696629..697702	+	357	26554000	-	MYPE5490	-	transposase for IS232-like insertion sequence element
549	 24.41	0	697704..698465	+	253	26554001	-	MYPE5500	-	IS232 putative ATP-binding protein IstB
550	 26.92	0	698899..699132	+	77	26554002	-	MYPE5505	-	hypothetical protein
551	 24.57	0	699666..700190	-	174	26554003	-	MYPE5510	-	hypothetical protein
552	 24.21	0	700280..702856	-	858	26554004	-	MYPE5520	-	oligopeptide transport ATP-binding protein OppF
553	 29.07	0	702868..704088	-	406	26554005	-	MYPE5530	-	oligopeptide transport ATP-binding protein OppD
554	 30.25	+1	704091..705323	-	410	26554006	-	MYPE5540	-	oligopeptide transport system permease protein OppC
555	 26.78	0	705316..706596	-	426	26554007	-	MYPE5550	-	oligopeptide transport system permease protein OppB
556	 31.76	+1	706606..709149	-	847	26554008	-	MYPE5560	-	hypothetical protein
557	 23.08	0	709425..710750	-	441	26554009	-	MYPE5570	-	glutamine transport ATP-binding protein
558	 25.58	0	710797..713286	-	829	26554010	-	MYPE5580	-	hypothetical protein
559	 28.10	0	713279..714826	-	515	26554011	-	MYPE5590	-	hypothetical protein
560	 22.90	0	714798..715439	-	213	26554012	-	MYPE5600	-	methylase
561	 25.26	0	716095..716577	+	160	26554013	-	MYPE5610	-	methionine sulfoxide reductase A
562	 24.31	0	716685..717482	-	265	26554014	-	MYPE5620	-	protein phosphatase
563	 24.65	0	717469..718527	-	352	26554015	-	MYPE5630	-	hypothetical protein
564	 25.55	0	718527..719117	-	196	26554016	-	MYPE5640	-	guanylate kinase
565	 29.77	+1	719197..719757	+	186	26554017	def	MYPE5650	-	peptide deformylase
566	 26.16	0	719924..720940	+	338	26554018	-	MYPE5660	-	IS1630-like transposase
567	 29.97	+1	721079..721435	-	118	26554019	-	MYPE5670	-	hypothetical protein
568	 27.71	0	721637..722152	-	171	26554020	-	MYPE5680	-	hypothetical protein
569	 18.11	-2	722136..722378	-	80	26554021	-	MYPE5690	-	hypothetical protein
570	 27.12	0	722714..723904	-	396	26554022	-	MYPE5700	-	acetate kinase
571	 25.28	0	724015..725703	+	562	26554023	-	MYPE5710	-	IS1202-like transposase
572	 25.07	0	725889..727304	+	471	26554024	-	MYPE5720	-	IS1202-like transposase
573	 36.07	+2	727527..727892	-	121	26554025	-	MYPE5730	-	ribosomal protein L7/L12
574	 25.63	0	727920..728477	-	185	26554026	rplJ	MYPE5740	-	50S ribosomal protein L10
575	 24.25	0	728692..729429	-	245	26554027	-	MYPE5750	-	glycerophosphoryl diester phosphodiesterase
576	 29.29	0	729422..730906	-	494	26554028	-	MYPE5760	-	permease
577	 28.26	0	730911..731363	-	150	26554029	-	MYPE5770	-	hypothetical protein
578	 25.20	0	731733..732728	-	331	26554030	-	MYPE5780	-	hypothetical protein
579	 25.78	0	732760..733620	-	286	26554031	-	MYPE5790	-	hypothetical protein
580	 30.05	+1	733653..734657	-	334	26554032	-	MYPE5800	-	AAA family ATPase
581	 24.82	0	734799..735350	-	183	26554033	-	MYPE5810	-	hypoxanthine-guanine phosphoribosyltransferase
582	 24.56	0	735350..736648	-	432	26554034	-	MYPE5820	-	adenylosuccinate lyase
583	 26.29	0	736658..737977	-	439	26554035	-	MYPE5830	-	adenylosuccinate synthetase
584	 19.64	-1	738045..738212	-	55	26554036	-	MYPE5840	-	hypothetical protein
585	 27.16	0	738267..739238	-	323	26554037	-	MYPE5850	-	phosphoesterase
586	 25.26	0	739245..740396	-	383	26554038	-	MYPE5860	-	thiamin biosynthesis protein
587	 30.97	+1	740575..741504	-	309	26554039	-	MYPE5870	-	sugar ABC transporter permease
588	 29.24	0	741504..743138	-	544	26554040	-	MYPE5880	-	sugar ABC transporter permease
589	 27.54	0	743138..745036	-	632	26554041	-	MYPE5890	-	sugar ABC transporter ATP-binding protein
590	 33.22	+2	745002..746816	-	604	26554042	-	MYPE5900	-	putative lipoprotein
591	 28.96	0	747077..749386	-	769	26554043	-	MYPE5910	-	PTS system enzyme IIABC component
592	 27.04	0	750031..750999	-	322	26554044	pfkA	MYPE5920	-	6-phosphofructokinase
593	 22.78	0	751077..751673	-	198	26554045	-	MYPE5930	-	hypothetical protein
594	 23.68	0	751683..752252	-	189	26554046	-	MYPE5940	-	MerR family transcriptional regulator
595	 23.67	0	752638..754365	+	575	26554047	-	MYPE5950	-	hypothetical protein
596	 22.32	-1	754566..756707	+	713	26554048	-	MYPE5960	-	hypothetical protein
597	 22.61	-1	756800..757396	+	198	26554049	-	MYPE5970	-	hypothetical protein
598	 24.43	0	757404..758852	+	482	26554050	-	MYPE5980	-	hypothetical protein
599	 29.19	0	758954..761509	-	851	26554051	-	MYPE5990	-	lipase
600	 31.58	+1	761573..761800	-	75	26554052	-	MYPE6000	-	hypothetical protein
601	 26.50	0	761815..763527	-	570	26554053	-	MYPE6010	-	lipase
602	 26.10	0	763511..765403	-	630	26554054	-	MYPE6020	-	hypothetical protein
603	 29.57	0	765413..768070	-	885	26554055	-	MYPE6030	-	lipase
604	 33.33	+2	768384..768605	-	73	26554056	-	MYPE6040	-	hypothetical protein
605	 24.51	0	768615..770519	-	634	26554057	-	MYPE6050	-	integral membrane protein
606	 24.35	0	770657..773518	-	953	26554058	-	MYPE6060	-	integral membrane protein
607	 22.82	0	773667..776519	-	950	26554059	-	MYPE6070	-	hypothetical protein
608	 29.43	0	776690..778048	+	452	26554060	-	MYPE6080	-	arginine deiminase
609	 32.07	+1	778069..779097	+	342	26554061	-	MYPE6090	-	ornithine carbamoyltransferase
610	 32.69	+1	779123..780052	+	309	26554062	-	MYPE6100	-	carbamate kinase
611	 31.40	+1	780077..781780	+	567	26554063	-	MYPE6110	-	amino acid permeases
612	 26.90	0	781997..783691	+	564	26554064	argS	MYPE6120	-	arginyl-tRNA synthetase
613	 27.63	0	784352..789808	-	1818	26554065	-	MYPE6130	-	permease
614	 18.55	-2	790072..790389	-	105	26554066	-	MYPE6140	-	hypothetical protein
615	 21.72	-1	790534..790731	-	65	26554067	-	MYPE6155	-	hypothetical protein
616	 25.15	0	790872..791042	-	56	26554068	-	MYPE6160	-	hypothetical protein
617	 18.22	-2	791731..791955	-	74	26554069	-	MYPE6175	-	hypothetical protein
618	 23.99	0	792364..792909	+	181	26554070	-	MYPE6180	-	hypothetical protein
619	 28.82	0	793022..793309	+	95	26554071	-	MYPE6190	-	hypothetical protein
620	 27.99	0	793695..794237	+	180	26554072	-	MYPE6200	-	hypothetical protein
621	 27.99	0	794425..795603	-	392	26554073	-	MYPE6210	-	NADH-dependent butanol dehydrogenase
622	 14.20	-2	795885..796046	+	53	26554074	-	MYPE6220	-	hypothetical protein
623	 22.11	-1	796194..797627	+	477	26554075	-	MYPE6230	-	hypothetical protein
624	 26.14	0	798211..798891	+	226	26554076	-	MYPE6240	-	alpha-acetolactate decarboxylase
26.11	MEAN

3.47	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
