IslandPath Analysis: Mycoplasma penetrans HF-2

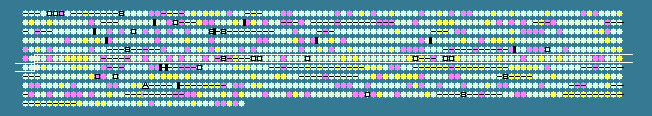

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
503	 28.72	0	640803..641777	-	324	26553955	eutD	MYPE5030	-	phosphotransacetylase
504	 23.04	0	641788..642438	-	216	26553956	-	MYPE5040	-	hypothetical protein
505	 22.60	-1	642888..644369	+	493	26553957	-	MYPE5050	-	BglG family transcription antiterminator
506	 29.38	0	644594..645859	+	421	26553958	-	MYPE5060	-	hypothetical protein
507	 26.29	0	645931..646725	-	264	26553959	-	MYPE5070	-	hypothetical protein
508	 32.22	+1	646995..648074	+	359	26553960	-	MYPE5080	-	pyruvate dehydrogenase E1 component subunit alpha
509	 34.13	+2	648074..649075	+	333	26553961	-	MYPE5090	-	pyruvate dehydrogenase E1 component subunit beta
510	 31.38	+1	649128..650564	+	478	26553962	-	MYPE5100	-	branched-chain alpha-keto acid dehydrogenase subunit E2
511	 29.74	+1	650595..651986	+	463	26553963	-	MYPE5110	-	dihydrolipoamide dehydrogenase of pyruvate dehydrogenase E3 component
512	 23.43	0	652172..652666	+	164	26553964	-	MYPE5120	-	gluthatione peroxidase
513	 28.68	0	653078..654109	-	343	26553965	-	MYPE5130	-	putative oxidoreductase
514	 21.88	-1	654228..654803	-	191	26553966	-	MYPE5140	-	AcrR family transcriptional regulator
515	 26.25	0	654895..655995	+	366	26553967	-	MYPE5150	-	hypothetical protein
516	 25.70	0	656178..657749	+	523	26553968	-	MYPE5160	-	hypothetical protein
517	 27.39	0	657867..659516	+	549	26553969	-	MYPE5170	-	amino acid permease
518	 20.68	-1	659570..660043	-	157	26553970	-	MYPE5180	-	hypothetical protein
519	 25.27	0	660052..660870	-	272	26553971	-	MYPE5190	-	putative haloacid dehalogenase-like hydrolase
520	 24.00	0	661025..662074	+	349	26553972	nadD	MYPE5200	-	putative nicotinate-nucleotide adenylyltransferase
521	 21.98	-1	662086..662772	+	228	26553973	-	MYPE5210	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
522	 23.12	0	662834..664165	-	443	26553974	-	MYPE5220	-	hypothetical protein
523	 29.20	0	664643..665731	+	362	26553975	-	MYPE5230	-	NADP-dependent alcohol dehydrogenase
524	 26.20	0	665788..666390	-	200	26553976	-	MYPE5240	-	xanthosine triphosphate pyrophosphatase
525	 22.13	-1	666500..666865	-	121	26553977	-	MYPE5250	-	hypothetical protein
526	 22.78	0	666988..668361	-	457	26553978	-	MYPE5260	-	hypothetical protein
527	 21.78	-1	668557..669318	-	253	26553979	-	MYPE5270	-	hypothetical protein
528	 24.98	0	669428..671569	-	713	26553980	-	MYPE5280	-	ppGpp 3'-pyrophosphohydrolase
529	 26.83	0	671800..673689	+	629	26553981	-	MYPE5290	-	hypothetical protein
530	 29.08	0	673823..674575	+	250	26553982	-	MYPE5300	-	hypothetical protein
531	 20.71	-1	674658..675275	-	205	26553983	-	MYPE5310	-	hypothetical protein
532	 23.86	0	675536..676063	+	175	26553984	-	MYPE5330	-	hypothetical protein
533	 19.09	-2	676182..676820	-	212	26553985	-	MYPE5340	-	hypothetical protein
534	 26.16	0	677235..678251	+	338	26553986	-	MYPE5350	-	IS1630-like transposase
535	 22.15	-1	678565..679449	-	294	26553987	-	MYPE5360	-	hypothetical protein
536	 33.99	+2	679713..680015	-	100	26553988	-	MYPE5370	-	hypothetical protein
537	 28.57	0	680107..680400	+	97	26553989	-	MYPE5380	-	hypothetical protein
538	 27.71	0	680663..681373	+	236	26553990	-	MYPE5390	-	hypothetical protein
539	 26.16	0	681538..682554	-	338	26553991	-	MYPE5400	-	IS1630-like transposase
540	 25.43	0	683254..684810	-	518	26553992	-	MYPE5410	-	IS1202-like transposase
541	 27.89	0	685162..685602	+	146	26553993	-	MYPE5420	-	hypothetical protein
542	 27.23	0	685866..686537	+	223	26553994	-	MYPE5430	-	hypothetical protein
543	 26.60	0	686657..688066	-	469	26553995	-	MYPE5440	-	hypothetical protein
544	 19.70	-1	688322..688519	-	65	26553996	-	MYPE5445	-	hypothetical protein
545	 28.56	0	688883..690622	-	579	26553997	-	MYPE5450	-	PTS system enzyme I
546	 24.23	0	690654..691598	-	314	26553998	-	MYPE5460	-	lipase-esterase related protein
547	 28.14	0	691782..695999	-	1405	26553999	-	MYPE5470	-	translocase
548	 26.91	0	696629..697702	+	357	26554000	-	MYPE5490	-	transposase for IS232-like insertion sequence element
549	 24.41	0	697704..698465	+	253	26554001	-	MYPE5500	-	IS232 putative ATP-binding protein IstB
550	 26.92	0	698899..699132	+	77	26554002	-	MYPE5505	-	hypothetical protein
551	 24.57	0	699666..700190	-	174	26554003	-	MYPE5510	-	hypothetical protein
552	 24.21	0	700280..702856	-	858	26554004	-	MYPE5520	-	oligopeptide transport ATP-binding protein OppF
553	 29.07	0	702868..704088	-	406	26554005	-	MYPE5530	-	oligopeptide transport ATP-binding protein OppD
554	 30.25	+1	704091..705323	-	410	26554006	-	MYPE5540	-	oligopeptide transport system permease protein OppC
555	 26.78	0	705316..706596	-	426	26554007	-	MYPE5550	-	oligopeptide transport system permease protein OppB
556	 31.76	+1	706606..709149	-	847	26554008	-	MYPE5560	-	hypothetical protein
557	 23.08	0	709425..710750	-	441	26554009	-	MYPE5570	-	glutamine transport ATP-binding protein
558	 25.58	0	710797..713286	-	829	26554010	-	MYPE5580	-	hypothetical protein
559	 28.10	0	713279..714826	-	515	26554011	-	MYPE5590	-	hypothetical protein
560	 22.90	0	714798..715439	-	213	26554012	-	MYPE5600	-	methylase
561	 25.26	0	716095..716577	+	160	26554013	-	MYPE5610	-	methionine sulfoxide reductase A
562	 24.31	0	716685..717482	-	265	26554014	-	MYPE5620	-	protein phosphatase
563	 24.65	0	717469..718527	-	352	26554015	-	MYPE5630	-	hypothetical protein
564	 25.55	0	718527..719117	-	196	26554016	-	MYPE5640	-	guanylate kinase
565	 29.77	+1	719197..719757	+	186	26554017	def	MYPE5650	-	peptide deformylase
566	 26.16	0	719924..720940	+	338	26554018	-	MYPE5660	-	IS1630-like transposase
567	 29.97	+1	721079..721435	-	118	26554019	-	MYPE5670	-	hypothetical protein
568	 27.71	0	721637..722152	-	171	26554020	-	MYPE5680	-	hypothetical protein
569	 18.11	-2	722136..722378	-	80	26554021	-	MYPE5690	-	hypothetical protein
570	 27.12	0	722714..723904	-	396	26554022	-	MYPE5700	-	acetate kinase
571	 25.28	0	724015..725703	+	562	26554023	-	MYPE5710	-	IS1202-like transposase
572	 25.07	0	725889..727304	+	471	26554024	-	MYPE5720	-	IS1202-like transposase
573	 36.07	+2	727527..727892	-	121	26554025	-	MYPE5730	-	ribosomal protein L7/L12
574	 25.63	0	727920..728477	-	185	26554026	rplJ	MYPE5740	-	50S ribosomal protein L10
575	 24.25	0	728692..729429	-	245	26554027	-	MYPE5750	-	glycerophosphoryl diester phosphodiesterase
576	 29.29	0	729422..730906	-	494	26554028	-	MYPE5760	-	permease
577	 28.26	0	730911..731363	-	150	26554029	-	MYPE5770	-	hypothetical protein
578	 25.20	0	731733..732728	-	331	26554030	-	MYPE5780	-	hypothetical protein
579	 25.78	0	732760..733620	-	286	26554031	-	MYPE5790	-	hypothetical protein
580	 30.05	+1	733653..734657	-	334	26554032	-	MYPE5800	-	AAA family ATPase
581	 24.82	0	734799..735350	-	183	26554033	-	MYPE5810	-	hypoxanthine-guanine phosphoribosyltransferase
582	 24.56	0	735350..736648	-	432	26554034	-	MYPE5820	-	adenylosuccinate lyase
583	 26.29	0	736658..737977	-	439	26554035	-	MYPE5830	-	adenylosuccinate synthetase
584	 19.64	-1	738045..738212	-	55	26554036	-	MYPE5840	-	hypothetical protein
585	 27.16	0	738267..739238	-	323	26554037	-	MYPE5850	-	phosphoesterase
586	 25.26	0	739245..740396	-	383	26554038	-	MYPE5860	-	thiamin biosynthesis protein
587	 30.97	+1	740575..741504	-	309	26554039	-	MYPE5870	-	sugar ABC transporter permease
588	 29.24	0	741504..743138	-	544	26554040	-	MYPE5880	-	sugar ABC transporter permease
589	 27.54	0	743138..745036	-	632	26554041	-	MYPE5890	-	sugar ABC transporter ATP-binding protein
590	 33.22	+2	745002..746816	-	604	26554042	-	MYPE5900	-	putative lipoprotein
591	 28.96	0	747077..749386	-	769	26554043	-	MYPE5910	-	PTS system enzyme IIABC component
592	 27.04	0	750031..750999	-	322	26554044	pfkA	MYPE5920	-	6-phosphofructokinase
593	 22.78	0	751077..751673	-	198	26554045	-	MYPE5930	-	hypothetical protein
594	 23.68	0	751683..752252	-	189	26554046	-	MYPE5940	-	MerR family transcriptional regulator
595	 23.67	0	752638..754365	+	575	26554047	-	MYPE5950	-	hypothetical protein
596	 22.32	-1	754566..756707	+	713	26554048	-	MYPE5960	-	hypothetical protein
597	 22.61	-1	756800..757396	+	198	26554049	-	MYPE5970	-	hypothetical protein
598	 24.43	0	757404..758852	+	482	26554050	-	MYPE5980	-	hypothetical protein
599	 29.19	0	758954..761509	-	851	26554051	-	MYPE5990	-	lipase
600	 31.58	+1	761573..761800	-	75	26554052	-	MYPE6000	-	hypothetical protein
601	 26.50	0	761815..763527	-	570	26554053	-	MYPE6010	-	lipase
602	 26.10	0	763511..765403	-	630	26554054	-	MYPE6020	-	hypothetical protein
26.11	MEAN

3.47	STD DEV
