IslandPath Analysis: Mycoplasma penetrans HF-2

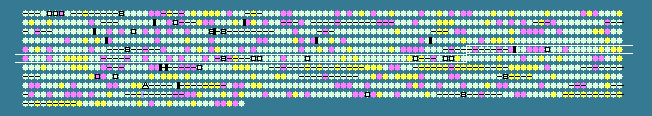

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 26.11   STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
475	 25.11	0	611374..611823	+	149	26553927	-	MYPE4760	-	hypothetical protein
476	 21.52	-1	612044..612280	+	78	26553928	-	MYPE4765	-	hypothetical protein
477	 23.97	0	612492..612950	+	152	26553929	-	MYPE4770	-	hypothetical protein
478	 25.90	0	613010..614233	+	407	26553930	-	MYPE4780	-	ATP/GTP-binding protein
479	 23.94	0	614238..615110	+	290	26553931	-	MYPE4790	-	ATP/GTP-binding protein
480	 22.22	-1	615123..616535	+	470	26553932	-	MYPE4800	-	ATP/GTP-binding protein
481	 26.67	0	616665..617534	-	289	26553933	-	MYPE4810	-	oxidoreductase
482	 21.95	-1	617656..618138	-	160	26553934	-	MYPE4820	-	hypothetical protein
483	 26.73	0	618467..621421	+	984	26553935	-	MYPE4830	-	structural maintenance of chromosomes SMC superfamily proteins
484	 27.14	0	621447..622511	+	354	26553936	-	MYPE4840	-	signal recognition particle GTPase FtsY
485	 20.06	-1	622513..622836	+	107	26553937	-	MYPE4850	-	hypothetical protein
486	 18.83	-2	622821..623399	+	192	26553938	-	MYPE4860	-	hypothetical protein
487	 22.43	-1	623606..624421	+	271	26553939	-	MYPE4870	-	hypothetical protein
488	 26.35	0	624803..625819	-	338	26553940	-	MYPE4880	-	IS1630-like transposase
489	 25.62	0	625954..626835	-	293	26553941	-	MYPE4890	-	hypothetical protein
490	 23.08	0	626965..627510	+	181	26553942	-	MYPE4900	-	hypothetical protein
491	 19.71	-1	627628..628464	+	278	26553943	-	MYPE4910	-	hypothetical protein
492	 29.44	0	628588..628818	+	76	26553944	-	MYPE4920	-	hypothetical protein
493	 23.67	0	628888..630201	-	437	26553945	-	MYPE4930	-	hypothetical protein
494	 24.33	0	630182..631369	-	395	26553946	-	MYPE4940	-	cytosine-specific DNA methyltransferase
495	 23.78	0	631567..632466	+	299	26553947	-	MYPE4950	-	haloacid dehalogenase-like hydrolase
496	 28.20	0	632713..634854	+	713	26553948	-	MYPE4960	-	anaerobic ribonucleoside-triphosphate reductase
497	 30.20	+1	634856..635365	+	169	26553949	-	MYPE4970	-	anaerobic ribonucleoside-triphosphate reductase activating protein NrdG
498	 24.85	0	635414..637357	+	647	26553950	-	MYPE4980	-	hypothetical protein
499	 30.52	+1	637864..638289	+	141	26553951	-	MYPE4990	-	hypothetical protein
500	 31.03	+1	638325..638585	+	86	26553952	-	MYPE5000	-	hypothetical protein
501	 22.16	-1	638675..639730	-	351	26553953	-	MYPE5010	-	coproporphyrinogen III oxidase
502	 22.78	0	639717..640616	-	299	26553954	-	MYPE5020	-	tRNA-isopentenyl pyrophosphate transferase
503	 28.72	0	640803..641777	-	324	26553955	eutD	MYPE5030	-	phosphotransacetylase
504	 23.04	0	641788..642438	-	216	26553956	-	MYPE5040	-	hypothetical protein
505	 22.60	-1	642888..644369	+	493	26553957	-	MYPE5050	-	BglG family transcription antiterminator
506	 29.38	0	644594..645859	+	421	26553958	-	MYPE5060	-	hypothetical protein
507	 26.29	0	645931..646725	-	264	26553959	-	MYPE5070	-	hypothetical protein
508	 32.22	+1	646995..648074	+	359	26553960	-	MYPE5080	-	pyruvate dehydrogenase E1 component subunit alpha
509	 34.13	+2	648074..649075	+	333	26553961	-	MYPE5090	-	pyruvate dehydrogenase E1 component subunit beta
510	 31.38	+1	649128..650564	+	478	26553962	-	MYPE5100	-	branched-chain alpha-keto acid dehydrogenase subunit E2
511	 29.74	+1	650595..651986	+	463	26553963	-	MYPE5110	-	dihydrolipoamide dehydrogenase of pyruvate dehydrogenase E3 component
512	 23.43	0	652172..652666	+	164	26553964	-	MYPE5120	-	gluthatione peroxidase
513	 28.68	0	653078..654109	-	343	26553965	-	MYPE5130	-	putative oxidoreductase
514	 21.88	-1	654228..654803	-	191	26553966	-	MYPE5140	-	AcrR family transcriptional regulator
515	 26.25	0	654895..655995	+	366	26553967	-	MYPE5150	-	hypothetical protein
516	 25.70	0	656178..657749	+	523	26553968	-	MYPE5160	-	hypothetical protein
517	 27.39	0	657867..659516	+	549	26553969	-	MYPE5170	-	amino acid permease
518	 20.68	-1	659570..660043	-	157	26553970	-	MYPE5180	-	hypothetical protein
519	 25.27	0	660052..660870	-	272	26553971	-	MYPE5190	-	putative haloacid dehalogenase-like hydrolase
520	 24.00	0	661025..662074	+	349	26553972	nadD	MYPE5200	-	putative nicotinate-nucleotide adenylyltransferase
521	 21.98	-1	662086..662772	+	228	26553973	-	MYPE5210	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
522	 23.12	0	662834..664165	-	443	26553974	-	MYPE5220	-	hypothetical protein
523	 29.20	0	664643..665731	+	362	26553975	-	MYPE5230	-	NADP-dependent alcohol dehydrogenase
524	 26.20	0	665788..666390	-	200	26553976	-	MYPE5240	-	xanthosine triphosphate pyrophosphatase
525	 22.13	-1	666500..666865	-	121	26553977	-	MYPE5250	-	hypothetical protein
526	 22.78	0	666988..668361	-	457	26553978	-	MYPE5260	-	hypothetical protein
527	 21.78	-1	668557..669318	-	253	26553979	-	MYPE5270	-	hypothetical protein
528	 24.98	0	669428..671569	-	713	26553980	-	MYPE5280	-	ppGpp 3'-pyrophosphohydrolase
529	 26.83	0	671800..673689	+	629	26553981	-	MYPE5290	-	hypothetical protein
530	 29.08	0	673823..674575	+	250	26553982	-	MYPE5300	-	hypothetical protein
531	 20.71	-1	674658..675275	-	205	26553983	-	MYPE5310	-	hypothetical protein
532	 23.86	0	675536..676063	+	175	26553984	-	MYPE5330	-	hypothetical protein
533	 19.09	-2	676182..676820	-	212	26553985	-	MYPE5340	-	hypothetical protein
534	 26.16	0	677235..678251	+	338	26553986	-	MYPE5350	-	IS1630-like transposase
535	 22.15	-1	678565..679449	-	294	26553987	-	MYPE5360	-	hypothetical protein
536	 33.99	+2	679713..680015	-	100	26553988	-	MYPE5370	-	hypothetical protein
537	 28.57	0	680107..680400	+	97	26553989	-	MYPE5380	-	hypothetical protein
538	 27.71	0	680663..681373	+	236	26553990	-	MYPE5390	-	hypothetical protein
539	 26.16	0	681538..682554	-	338	26553991	-	MYPE5400	-	IS1630-like transposase
540	 25.43	0	683254..684810	-	518	26553992	-	MYPE5410	-	IS1202-like transposase
541	 27.89	0	685162..685602	+	146	26553993	-	MYPE5420	-	hypothetical protein
542	 27.23	0	685866..686537	+	223	26553994	-	MYPE5430	-	hypothetical protein
543	 26.60	0	686657..688066	-	469	26553995	-	MYPE5440	-	hypothetical protein
544	 19.70	-1	688322..688519	-	65	26553996	-	MYPE5445	-	hypothetical protein
545	 28.56	0	688883..690622	-	579	26553997	-	MYPE5450	-	PTS system enzyme I
546	 24.23	0	690654..691598	-	314	26553998	-	MYPE5460	-	lipase-esterase related protein
547	 28.14	0	691782..695999	-	1405	26553999	-	MYPE5470	-	translocase
548	 26.91	0	696629..697702	+	357	26554000	-	MYPE5490	-	transposase for IS232-like insertion sequence element
549	 24.41	0	697704..698465	+	253	26554001	-	MYPE5500	-	IS232 putative ATP-binding protein IstB
550	 26.92	0	698899..699132	+	77	26554002	-	MYPE5505	-	hypothetical protein
551	 24.57	0	699666..700190	-	174	26554003	-	MYPE5510	-	hypothetical protein
552	 24.21	0	700280..702856	-	858	26554004	-	MYPE5520	-	oligopeptide transport ATP-binding protein OppF
553	 29.07	0	702868..704088	-	406	26554005	-	MYPE5530	-	oligopeptide transport ATP-binding protein OppD
554	 30.25	+1	704091..705323	-	410	26554006	-	MYPE5540	-	oligopeptide transport system permease protein OppC
555	 26.78	0	705316..706596	-	426	26554007	-	MYPE5550	-	oligopeptide transport system permease protein OppB
556	 31.76	+1	706606..709149	-	847	26554008	-	MYPE5560	-	hypothetical protein
557	 23.08	0	709425..710750	-	441	26554009	-	MYPE5570	-	glutamine transport ATP-binding protein
558	 25.58	0	710797..713286	-	829	26554010	-	MYPE5580	-	hypothetical protein
559	 28.10	0	713279..714826	-	515	26554011	-	MYPE5590	-	hypothetical protein
560	 22.90	0	714798..715439	-	213	26554012	-	MYPE5600	-	methylase
561	 25.26	0	716095..716577	+	160	26554013	-	MYPE5610	-	methionine sulfoxide reductase A
562	 24.31	0	716685..717482	-	265	26554014	-	MYPE5620	-	protein phosphatase
563	 24.65	0	717469..718527	-	352	26554015	-	MYPE5630	-	hypothetical protein
564	 25.55	0	718527..719117	-	196	26554016	-	MYPE5640	-	guanylate kinase
565	 29.77	+1	719197..719757	+	186	26554017	def	MYPE5650	-	peptide deformylase
566	 26.16	0	719924..720940	+	338	26554018	-	MYPE5660	-	IS1630-like transposase
567	 29.97	+1	721079..721435	-	118	26554019	-	MYPE5670	-	hypothetical protein
568	 27.71	0	721637..722152	-	171	26554020	-	MYPE5680	-	hypothetical protein
569	 18.11	-2	722136..722378	-	80	26554021	-	MYPE5690	-	hypothetical protein
570	 27.12	0	722714..723904	-	396	26554022	-	MYPE5700	-	acetate kinase
571	 25.28	0	724015..725703	+	562	26554023	-	MYPE5710	-	IS1202-like transposase
572	 25.07	0	725889..727304	+	471	26554024	-	MYPE5720	-	IS1202-like transposase
573	 36.07	+2	727527..727892	-	121	26554025	-	MYPE5730	-	ribosomal protein L7/L12
574	 25.63	0	727920..728477	-	185	26554026	rplJ	MYPE5740	-	50S ribosomal protein L10
26.11	MEAN

3.47	STD DEV
