IslandPath Analysis: Mycoplasma penetrans HF-2

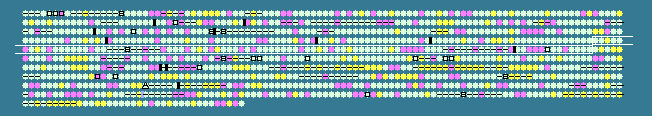

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
396	 26.24	0	518080..519546	+	488	26553848	-	MYPE3970	-	hypothetical protein
397	 27.65	0	519652..520161	+	169	26553849	-	MYPE3980	-	thiol peroxidase
398	 33.33	+2	520294..520491	-	65	26553850	-	MYPE3985	-	hypothetical protein
399	 23.36	0	520708..523365	+	885	26553851	-	MYPE3990	-	hypothetical protein
400	 28.57	0	523557..526139	+	860	26553852	-	MYPE4000	-	hypothetical protein
401	 21.15	-1	526614..527483	-	289	26553853	-	MYPE4010	-	hypothetical protein
402	 26.37	0	527560..528378	-	272	26553854	-	MYPE4020	-	putative integral membrane protein
403	 30.12	+1	528514..528762	-	82	26553855	-	MYPE4030	-	ribosomal protein L28
404	 28.27	0	528972..530333	+	453	26553856	asnC	MYPE4040	-	asparaginyl-tRNA synthetase
405	 22.32	-1	530361..531014	+	217	26553857	-	MYPE4050	-	phosphatidylglycerophosphate synthase
406	 25.92	0	531024..532304	+	426	26553858	-	MYPE4060	-	seryl-tRNA synthetase
407	 23.66	0	533074..536010	+	978	26553859	-	MYPE4070	-	hypothetical protein
408	 24.15	0	536291..538108	+	605	26553860	-	MYPE4080	-	hypothetical protein
409	 28.71	0	538342..540138	+	598	26553861	-	MYPE4090	-	ABC transporter ATP-binding protein
410	 28.11	0	540141..542132	+	663	26553862	-	MYPE4100	-	ABC transporter ATP-binding protein
411	 23.11	0	542141..543529	+	462	26553863	-	MYPE4110	-	aldehyde dehydrogenase
412	 20.79	-1	543652..543930	+	92	26553864	-	MYPE4120	-	hypothetical protein
413	 27.41	0	543945..545666	+	573	26553865	-	MYPE4130	-	dihydroacetone kinase
414	 29.43	0	545803..547926	+	707	26553866	-	MYPE4140	-	DNA topoisomerase I
415	 24.21	0	547974..548729	-	251	26553867	-	MYPE4150	-	hypothetical protein
416	 24.69	0	548811..549053	-	80	26553868	-	MYPE4160	-	acyl carrier protein
417	 22.81	0	549175..549516	-	113	26553869	-	MYPE4170	-	excinuclease
418	 25.97	0	549650..551062	+	470	26553870	-	MYPE4180	-	transposase for IS232-like insertion sequence element
419	 24.80	0	551064..551825	+	253	26553871	-	MYPE4190	-	insertion sequence IS232 putative ATP-binding protein
420	 23.73	0	551771..552676	-	301	26553872	-	MYPE4200	-	hypothetical protein
421	 21.64	-1	553029..554003	+	324	26553873	-	MYPE4210	-	hypothetical protein
422	 24.50	0	554182..555438	+	418	26553874	-	MYPE4220	-	hypothetical protein
423	 23.12	0	555574..556953	-	459	26553875	-	MYPE4230	-	hypothetical protein
424	 21.79	-1	557199..557510	+	103	26553876	-	MYPE4240	-	hypothetical protein
425	 22.84	0	557591..559162	+	523	26553877	-	MYPE4250	-	hypothetical protein
426	 22.98	0	559204..560130	+	308	26553878	-	MYPE4260	-	6-phosphogluconate dehydrogenase
427	 25.77	0	560260..561105	+	281	26553879	-	MYPE4270	-	hypothetical protein
428	 22.57	-1	561122..561688	+	188	26553880	-	MYPE4280	-	proline dipeptidase
429	 22.97	0	561795..562913	+	372	26553881	-	MYPE4290	-	adenylosuccinate synthetase
430	 30.27	+1	563054..564295	+	413	26553882	-	MYPE4300	-	hypothetical protein
431	 28.25	0	564326..566824	+	832	26553883	-	MYPE4310	-	putative integral membrane protein
432	 20.76	-1	566827..567645	+	272	26553884	-	MYPE4320	-	putative integral membrane protein
433	 31.38	+1	567854..569488	+	544	26553885	-	MYPE4330	-	hypothetical protein
434	 29.55	0	569953..571431	+	492	26553886	-	MYPE4340	-	hypothetical protein
435	 29.48	0	571884..573491	+	535	26553887	-	MYPE4350	-	hypothetical protein
436	 28.07	0	573754..575310	+	518	26553888	-	MYPE4360	-	hypothetical protein
437	 21.24	-1	575507..575845	+	112	26553889	-	MYPE4370	-	hypothetical protein
438	 25.53	0	575939..577297	+	452	26553890	-	MYPE4380	-	membrane nuclease
439	 22.32	-1	577350..577676	-	108	26553891	-	MYPE4390	-	hypothetical protein
440	 27.11	0	577744..578289	-	181	26553892	-	MYPE4400	-	inorganic pyrophosphatase
441	 27.63	0	578452..579363	+	303	26553893	-	MYPE4410	-	putative integral membrane protein
442	 27.72	0	579621..579923	+	100	26553894	rplU	MYPE4420	-	50S ribosomal protein L21
443	 24.60	0	579928..580236	+	102	26553895	-	MYPE4430	-	hypothetical protein
444	 27.43	0	580240..580527	+	95	26553896	rpmA	MYPE4440	-	50S ribosomal protein L27
445	 27.04	0	580606..581082	+	158	26553897	-	MYPE4450	-	hypothetical protein
446	 23.32	0	581220..581858	+	212	26553898	-	MYPE4460	-	d-ribulose-5-phosphate 3 epimerase
447	 19.39	-1	581933..583861	+	642	26553899	-	MYPE4470	-	BglG family transcriptional antiterminator
448	 27.82	0	583867..584301	+	144	26553900	-	MYPE4480	-	PTS system enzyme IIA component
449	 28.87	0	584304..584594	+	96	26553901	-	MYPE4490	-	hypothetical protein
450	 31.15	+1	584630..586141	+	503	26553902	ulaA	MYPE4500	-	ascorbate-specific PTS system enzyme IIC
451	 25.72	0	586141..588111	+	656	26553903	-	MYPE4510	-	transketolase
452	 21.08	-1	588098..588448	+	116	26553904	-	MYPE4520	-	HAD family phosphatase
453	 22.64	0	588429..588746	+	105	26553905	-	MYPE4530	-	hypothetical protein
454	 28.93	0	588932..591994	+	1020	26553906	-	MYPE4540	-	PTS system enzyme IIBC components
455	 30.26	+1	592078..593508	+	476	26553907	-	MYPE4550	-	beta glucosidase
456	 28.87	0	593532..594965	+	477	26553908	-	MYPE4560	-	beta glucosidase
457	 25.23	0	595023..595898	-	291	26553909	-	MYPE4570	-	hypothetical protein
458	 26.09	0	595901..596908	-	335	26553910	-	MYPE4580	-	tryptophanyl-tRNA synthetase
459	 23.41	0	597066..597569	+	167	26553911	-	MYPE4590	-	hypothetical protein
460	 23.53	0	597589..598353	+	254	26553912	-	MYPE4600	-	hypothetical protein
461	 25.66	0	598353..598730	+	125	26553913	-	MYPE4610	-	hypothetical protein
462	 33.70	+2	598846..599940	-	364	26553914	-	MYPE4620	-	alcohol dehydrogenase
463	 23.48	0	600204..601106	+	300	26553915	-	MYPE4630	-	hypothetical protein
464	 19.38	-1	601297..601554	+	85	26553916	-	MYPE4640	-	hypothetical protein
465	 21.32	-1	601547..602470	+	307	26553917	-	MYPE4650	-	hypothetical protein
466	 19.63	-1	602580..603440	+	286	26553918	-	MYPE4660	-	hypothetical protein
467	 20.56	-1	603698..604621	+	307	26553919	-	MYPE4680	-	hypothetical protein
468	 27.67	0	604747..606036	+	429	26553920	-	MYPE4690	-	glucose-6-phosphate isomerase
469	 28.64	0	606148..607233	+	361	26553921	-	MYPE4700	-	hypothetical protein
470	 29.30	0	607304..608740	+	478	26553922	-	MYPE4710	-	NADP-dependent glyceraldehyde-3-phosphate dehydrogenase
471	 26.56	0	608888..609787	-	299	26553923	-	MYPE4720	-	aldo/keto reductase family oxidoreductase
472	 19.51	-1	610069..610314	+	81	26553924	-	MYPE4730	-	hypothetical protein
473	 28.04	0	610298..610750	+	150	26553925	-	MYPE4740	-	hypothetical protein
474	 24.84	0	610827..611297	+	156	26553926	-	MYPE4750	-	hypothetical protein
475	 25.11	0	611374..611823	+	149	26553927	-	MYPE4760	-	hypothetical protein
476	 21.52	-1	612044..612280	+	78	26553928	-	MYPE4765	-	hypothetical protein
477	 23.97	0	612492..612950	+	152	26553929	-	MYPE4770	-	hypothetical protein
478	 25.90	0	613010..614233	+	407	26553930	-	MYPE4780	-	ATP/GTP-binding protein
479	 23.94	0	614238..615110	+	290	26553931	-	MYPE4790	-	ATP/GTP-binding protein
480	 22.22	-1	615123..616535	+	470	26553932	-	MYPE4800	-	ATP/GTP-binding protein
481	 26.67	0	616665..617534	-	289	26553933	-	MYPE4810	-	oxidoreductase
482	 21.95	-1	617656..618138	-	160	26553934	-	MYPE4820	-	hypothetical protein
483	 26.73	0	618467..621421	+	984	26553935	-	MYPE4830	-	structural maintenance of chromosomes SMC superfamily proteins
484	 27.14	0	621447..622511	+	354	26553936	-	MYPE4840	-	signal recognition particle GTPase FtsY
485	 20.06	-1	622513..622836	+	107	26553937	-	MYPE4850	-	hypothetical protein
486	 18.83	-2	622821..623399	+	192	26553938	-	MYPE4860	-	hypothetical protein
487	 22.43	-1	623606..624421	+	271	26553939	-	MYPE4870	-	hypothetical protein
488	 26.35	0	624803..625819	-	338	26553940	-	MYPE4880	-	IS1630-like transposase
489	 25.62	0	625954..626835	-	293	26553941	-	MYPE4890	-	hypothetical protein
490	 23.08	0	626965..627510	+	181	26553942	-	MYPE4900	-	hypothetical protein
491	 19.71	-1	627628..628464	+	278	26553943	-	MYPE4910	-	hypothetical protein
492	 29.44	0	628588..628818	+	76	26553944	-	MYPE4920	-	hypothetical protein
493	 23.67	0	628888..630201	-	437	26553945	-	MYPE4930	-	hypothetical protein
494	 24.33	0	630182..631369	-	395	26553946	-	MYPE4940	-	cytosine-specific DNA methyltransferase
495	 23.78	0	631567..632466	+	299	26553947	-	MYPE4950	-	haloacid dehalogenase-like hydrolase
26.11	MEAN

3.47	STD DEV
