IslandPath Analysis: Mycoplasma penetrans HF-2

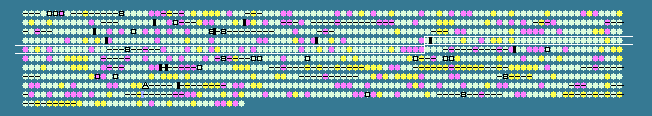

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
368	 29.01	0	478578..479063	+	161	26553820	greA	MYPE3670	-	transcription elongation factor GreA
369	 27.09	0	479674..480987	+	437	26553821	-	MYPE3700	-	hypothetical protein
370	 24.63	0	481048..481518	+	156	26553822	-	MYPE3710	-	NADH dehydrogenase
371	 25.83	0	481623..481862	+	79	26553823	-	MYPE3720	-	hypothetical protein
372	 27.62	0	482025..482777	+	250	26553824	-	MYPE3730	-	triose phosphate isomerase
373	 28.60	0	482767..484287	+	506	26553825	-	MYPE3740	-	phosphoglyceromutase
374	 32.15	+1	484414..485766	+	450	26553826	eno	MYPE3750	-	phosphopyruvate hydratase
375	 22.91	0	485853..486437	-	194	26553827	-	MYPE3760	-	hypothetical protein
376	 23.63	0	486573..487211	+	212	26553828	-	MYPE3770	-	hypothetical protein
377	 20.92	-1	487325..488299	+	324	26553829	-	MYPE3780	-	hypothetical protein
378	 27.29	0	488365..490482	-	705	26553830	-	MYPE3790	-	ATP-dependent protease binding subunit
379	 33.61	+2	490735..491457	+	240	26553831	-	MYPE3800	-	hypothetical protein
380	 30.19	+1	491758..492075	+	105	26553832	-	MYPE3810	-	hypothetical protein
381	 27.22	0	492101..493996	+	631	26553833	-	MYPE3820	-	hypothetical protein
382	 31.72	+1	494341..494712	+	123	26553834	-	MYPE3830	-	hypothetical protein
383	 27.51	0	494732..499027	+	1431	26553835	-	MYPE3840	-	hypothetical protein
384	 26.02	0	499041..502676	+	1211	26553836	-	MYPE3850	-	hypothetical protein
385	 27.82	0	502690..506826	+	1378	26553837	-	MYPE3860	-	hypothetical protein
386	 26.71	0	507117..508385	+	422	26553838	-	MYPE3870	-	dihydroorotase
387	 26.74	0	508626..508898	+	90	161723284	rpsO	MYPE3880	-	30S ribosomal protein S15
388	 27.00	0	508932..511331	+	799	26553840	leuS	MYPE3890	-	leucyl-tRNA synthetase
389	 25.93	0	511376..511537	+	53	161723283	rpmG	MYPE3900	-	50S ribosomal protein L33
390	 27.92	0	511583..512635	+	350	26553842	-	MYPE3910	-	aminopeptidase P
391	 24.96	0	512783..514168	+	461	26553843	-	MYPE3920	-	aldehyde dehydrogenase
392	 24.63	0	514177..514980	+	267	26553844	-	MYPE3930	-	esterase/lipase 1
393	 23.29	0	515030..515278	+	82	26553845	-	MYPE3940	-	hypothetical protein
394	 28.42	0	515414..516268	+	284	26553846	-	MYPE3950	-	hypothetical protein
395	 27.49	0	516292..518019	+	575	26553847	-	MYPE3960	-	putative two-component regulator
396	 26.24	0	518080..519546	+	488	26553848	-	MYPE3970	-	hypothetical protein
397	 27.65	0	519652..520161	+	169	26553849	-	MYPE3980	-	thiol peroxidase
398	 33.33	+2	520294..520491	-	65	26553850	-	MYPE3985	-	hypothetical protein
399	 23.36	0	520708..523365	+	885	26553851	-	MYPE3990	-	hypothetical protein
400	 28.57	0	523557..526139	+	860	26553852	-	MYPE4000	-	hypothetical protein
401	 21.15	-1	526614..527483	-	289	26553853	-	MYPE4010	-	hypothetical protein
402	 26.37	0	527560..528378	-	272	26553854	-	MYPE4020	-	putative integral membrane protein
403	 30.12	+1	528514..528762	-	82	26553855	-	MYPE4030	-	ribosomal protein L28
404	 28.27	0	528972..530333	+	453	26553856	asnC	MYPE4040	-	asparaginyl-tRNA synthetase
405	 22.32	-1	530361..531014	+	217	26553857	-	MYPE4050	-	phosphatidylglycerophosphate synthase
406	 25.92	0	531024..532304	+	426	26553858	-	MYPE4060	-	seryl-tRNA synthetase
407	 23.66	0	533074..536010	+	978	26553859	-	MYPE4070	-	hypothetical protein
408	 24.15	0	536291..538108	+	605	26553860	-	MYPE4080	-	hypothetical protein
409	 28.71	0	538342..540138	+	598	26553861	-	MYPE4090	-	ABC transporter ATP-binding protein
410	 28.11	0	540141..542132	+	663	26553862	-	MYPE4100	-	ABC transporter ATP-binding protein
411	 23.11	0	542141..543529	+	462	26553863	-	MYPE4110	-	aldehyde dehydrogenase
412	 20.79	-1	543652..543930	+	92	26553864	-	MYPE4120	-	hypothetical protein
413	 27.41	0	543945..545666	+	573	26553865	-	MYPE4130	-	dihydroacetone kinase
414	 29.43	0	545803..547926	+	707	26553866	-	MYPE4140	-	DNA topoisomerase I
415	 24.21	0	547974..548729	-	251	26553867	-	MYPE4150	-	hypothetical protein
416	 24.69	0	548811..549053	-	80	26553868	-	MYPE4160	-	acyl carrier protein
417	 22.81	0	549175..549516	-	113	26553869	-	MYPE4170	-	excinuclease
418	 25.97	0	549650..551062	+	470	26553870	-	MYPE4180	-	transposase for IS232-like insertion sequence element
419	 24.80	0	551064..551825	+	253	26553871	-	MYPE4190	-	insertion sequence IS232 putative ATP-binding protein
420	 23.73	0	551771..552676	-	301	26553872	-	MYPE4200	-	hypothetical protein
421	 21.64	-1	553029..554003	+	324	26553873	-	MYPE4210	-	hypothetical protein
422	 24.50	0	554182..555438	+	418	26553874	-	MYPE4220	-	hypothetical protein
423	 23.12	0	555574..556953	-	459	26553875	-	MYPE4230	-	hypothetical protein
424	 21.79	-1	557199..557510	+	103	26553876	-	MYPE4240	-	hypothetical protein
425	 22.84	0	557591..559162	+	523	26553877	-	MYPE4250	-	hypothetical protein
426	 22.98	0	559204..560130	+	308	26553878	-	MYPE4260	-	6-phosphogluconate dehydrogenase
427	 25.77	0	560260..561105	+	281	26553879	-	MYPE4270	-	hypothetical protein
428	 22.57	-1	561122..561688	+	188	26553880	-	MYPE4280	-	proline dipeptidase
429	 22.97	0	561795..562913	+	372	26553881	-	MYPE4290	-	adenylosuccinate synthetase
430	 30.27	+1	563054..564295	+	413	26553882	-	MYPE4300	-	hypothetical protein
431	 28.25	0	564326..566824	+	832	26553883	-	MYPE4310	-	putative integral membrane protein
432	 20.76	-1	566827..567645	+	272	26553884	-	MYPE4320	-	putative integral membrane protein
433	 31.38	+1	567854..569488	+	544	26553885	-	MYPE4330	-	hypothetical protein
434	 29.55	0	569953..571431	+	492	26553886	-	MYPE4340	-	hypothetical protein
435	 29.48	0	571884..573491	+	535	26553887	-	MYPE4350	-	hypothetical protein
436	 28.07	0	573754..575310	+	518	26553888	-	MYPE4360	-	hypothetical protein
437	 21.24	-1	575507..575845	+	112	26553889	-	MYPE4370	-	hypothetical protein
438	 25.53	0	575939..577297	+	452	26553890	-	MYPE4380	-	membrane nuclease
439	 22.32	-1	577350..577676	-	108	26553891	-	MYPE4390	-	hypothetical protein
440	 27.11	0	577744..578289	-	181	26553892	-	MYPE4400	-	inorganic pyrophosphatase
441	 27.63	0	578452..579363	+	303	26553893	-	MYPE4410	-	putative integral membrane protein
442	 27.72	0	579621..579923	+	100	26553894	rplU	MYPE4420	-	50S ribosomal protein L21
443	 24.60	0	579928..580236	+	102	26553895	-	MYPE4430	-	hypothetical protein
444	 27.43	0	580240..580527	+	95	26553896	rpmA	MYPE4440	-	50S ribosomal protein L27
445	 27.04	0	580606..581082	+	158	26553897	-	MYPE4450	-	hypothetical protein
446	 23.32	0	581220..581858	+	212	26553898	-	MYPE4460	-	d-ribulose-5-phosphate 3 epimerase
447	 19.39	-1	581933..583861	+	642	26553899	-	MYPE4470	-	BglG family transcriptional antiterminator
448	 27.82	0	583867..584301	+	144	26553900	-	MYPE4480	-	PTS system enzyme IIA component
449	 28.87	0	584304..584594	+	96	26553901	-	MYPE4490	-	hypothetical protein
450	 31.15	+1	584630..586141	+	503	26553902	ulaA	MYPE4500	-	ascorbate-specific PTS system enzyme IIC
451	 25.72	0	586141..588111	+	656	26553903	-	MYPE4510	-	transketolase
452	 21.08	-1	588098..588448	+	116	26553904	-	MYPE4520	-	HAD family phosphatase
453	 22.64	0	588429..588746	+	105	26553905	-	MYPE4530	-	hypothetical protein
454	 28.93	0	588932..591994	+	1020	26553906	-	MYPE4540	-	PTS system enzyme IIBC components
455	 30.26	+1	592078..593508	+	476	26553907	-	MYPE4550	-	beta glucosidase
456	 28.87	0	593532..594965	+	477	26553908	-	MYPE4560	-	beta glucosidase
457	 25.23	0	595023..595898	-	291	26553909	-	MYPE4570	-	hypothetical protein
458	 26.09	0	595901..596908	-	335	26553910	-	MYPE4580	-	tryptophanyl-tRNA synthetase
459	 23.41	0	597066..597569	+	167	26553911	-	MYPE4590	-	hypothetical protein
460	 23.53	0	597589..598353	+	254	26553912	-	MYPE4600	-	hypothetical protein
461	 25.66	0	598353..598730	+	125	26553913	-	MYPE4610	-	hypothetical protein
462	 33.70	+2	598846..599940	-	364	26553914	-	MYPE4620	-	alcohol dehydrogenase
463	 23.48	0	600204..601106	+	300	26553915	-	MYPE4630	-	hypothetical protein
464	 19.38	-1	601297..601554	+	85	26553916	-	MYPE4640	-	hypothetical protein
465	 21.32	-1	601547..602470	+	307	26553917	-	MYPE4650	-	hypothetical protein
466	 19.63	-1	602580..603440	+	286	26553918	-	MYPE4660	-	hypothetical protein
467	 20.56	-1	603698..604621	+	307	26553919	-	MYPE4680	-	hypothetical protein
26.11	MEAN

3.47	STD DEV
