IslandPath Analysis: Mycoplasma penetrans HF-2

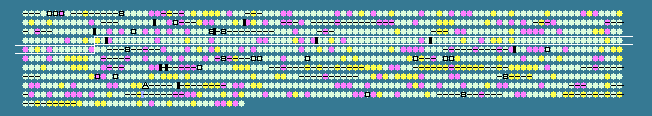

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
313	 31.43	+1	403080..403709	-	209	26553765	-	MYPE3110	-	hypothetical protein
314	 27.78	0	403859..404290	-	143	26553766	-	MYPE3120	-	hypothetical protein
315	 21.44	-1	404776..405624	+	282	26553767	-	MYPE3130	-	choline kinase
316	 27.73	0	406653..410201	+	1182	26553768	-	MYPE3140	-	hypothetical protein
317	 29.48	0	410394..411845	+	483	26553769	-	MYPE3150	-	inosine-5'-monophosphate dehydrogenase
318	 27.87	0	412385..412567	-	60	26553770	-	MYPE3155	-	hypothetical protein
319	 26.18	0	412846..413712	+	288	26553771	-	MYPE3160	-	3-hydroxyisobutyrate dehydrogenase
320	 23.53	0	413714..416050	+	778	26553772	-	MYPE3170	-	HAD family phosphatase
321	 27.96	0	416257..417504	+	415	26553773	-	MYPE3180	-	glucosamine-6-phosphate isomerase
322	 27.28	0	417731..420685	+	984	26553774	-	MYPE3190	-	integral membrane protein
323	 21.98	-1	420777..421331	-	184	26553775	-	MYPE3200	-	DNA-3-methyladenine glycosidase I
324	 27.98	0	421510..424515	+	1001	26553776	-	MYPE3210	-	integral membrane protein
325	 23.75	0	424743..425681	+	312	26553777	-	MYPE3220	-	methyltransferase
326	 23.26	0	425681..426841	+	386	26553778	-	MYPE3230	-	hypothetical protein
327	 27.43	0	427007..427531	+	174	26553779	-	MYPE3240	-	cation-transporting p-type ATPase
328	 30.93	+1	427627..430041	+	804	26553780	-	MYPE3250	-	cation-transporting p-type ATPase
329	 23.68	0	430065..430406	+	113	26553781	-	MYPE3260	-	thioredoxin
330	 24.38	0	430503..431150	-	215	26553782	-	MYPE3270	-	large-conductance mechanosensitive channel
331	 25.65	0	431282..431854	+	190	26553783	-	MYPE3280	-	hypothetical protein
332	 22.08	-1	431890..432795	+	301	26553784	-	MYPE3290	-	hypothetical protein
333	 27.27	0	432923..433153	+	76	26553785	secG	MYPE3300	-	preprotein translocase subunit SecG
334	 25.78	0	433163..435346	+	727	26553786	-	MYPE3310	-	3'-5' exoribonuclease RNase R
335	 28.21	0	435571..436566	+	331	26553787	-	MYPE3320	-	dihydroxyacetone kinase
336	 27.40	0	436575..437198	+	207	26553788	-	MYPE3330	-	dihydroxyacetone kinase
337	 24.88	0	437202..437603	+	133	26553789	-	MYPE3340	-	PTS system enzyme I
338	 24.50	0	437778..438230	+	150	26553790	-	MYPE3350	-	hypothetical protein
339	 26.72	0	438223..438615	+	130	26553791	-	MYPE3360	-	diacylglycerol kinase
340	 22.39	-1	438704..439516	+	270	26553792	-	MYPE3370	-	GTP-binding protein Era-like protein
341	 21.99	-1	439516..440220	+	234	26553793	-	MYPE3380	-	hypothetical protein
342	 25.13	0	440246..441634	+	462	26553794	-	MYPE3390	-	glycyl-tRNA synthetase
343	 23.75	0	441624..443690	+	688	26553795	-	MYPE3400	-	DNA primase
344	 27.26	0	444780..445322	+	180	26553796	-	MYPE3410	-	hypothetical protein
345	 26.30	0	445408..445848	+	146	26553797	-	MYPE3420	-	hypothetical protein
346	 30.04	+1	446130..446402	+	90	26553798	-	MYPE3430	-	hypothetical protein
347	 21.02	-1	446789..448453	-	554	26553799	-	MYPE3440	-	putative integral membrane protein
348	 25.97	0	448849..450246	+	465	26553800	-	MYPE3450	-	amino acid permease
349	 20.16	-1	450327..451229	-	300	26553801	-	MYPE3460	-	hypothetical protein
350	 26.58	0	452334..453665	+	443	26553802	-	MYPE3490	-	ABC transporter ATP-binding protein
351	 26.48	0	453677..454114	+	145	26553803	-	MYPE3500	-	histidine triad protein HIT
352	 31.43	+1	454200..454409	+	69	26553804	-	MYPE3510	-	hypothetical protein
353	 25.49	0	455243..455548	+	101	26553805	-	MYPE3520	-	hypothetical protein
354	 22.00	-1	455952..456392	+	146	26553806	smpB	MYPE3530	-	SsrA-binding protein
355	 27.04	0	456451..457626	+	391	26553807	-	MYPE3540	-	hippurate hydrolase
356	 24.16	0	457642..459048	+	468	26553808	-	MYPE3550	-	hypothetical protein
357	 25.89	0	459060..460013	+	317	26553809	-	MYPE3560	-	ABC transporter ATP-binding protein
358	 24.61	0	460360..461895	+	511	26553810	-	MYPE3570	-	ABC transporter ATP-binding protein
359	 28.37	0	462043..464679	+	878	26553811	-	MYPE3580	-	integral membrane protein
360	 28.15	0	464867..467509	+	880	26553812	-	MYPE3590	-	hypothetical protein
361	 28.83	0	467710..470352	+	880	26553813	-	MYPE3600	-	hypothetical protein
362	 28.31	0	470542..473187	+	881	26553814	-	MYPE3610	-	hypothetical protein
363	 27.32	0	473282..474910	+	542	26553815	-	MYPE3620	-	hypothetical protein
364	 26.24	0	475094..476080	+	328	26553816	-	MYPE3630	-	ABC transporter ATP-binding protein
365	 26.91	0	476233..477228	+	331	26553817	-	MYPE3640	-	putative glycerol-3-phosphate acyltransferase PlsX
366	 25.85	0	477203..477937	+	244	26553818	rnc	MYPE3650	-	ribonuclease III
367	 22.45	-1	477996..478436	-	146	26553819	-	MYPE3660	-	hypothetical protein
368	 29.01	0	478578..479063	+	161	26553820	greA	MYPE3670	-	transcription elongation factor GreA
369	 27.09	0	479674..480987	+	437	26553821	-	MYPE3700	-	hypothetical protein
370	 24.63	0	481048..481518	+	156	26553822	-	MYPE3710	-	NADH dehydrogenase
371	 25.83	0	481623..481862	+	79	26553823	-	MYPE3720	-	hypothetical protein
372	 27.62	0	482025..482777	+	250	26553824	-	MYPE3730	-	triose phosphate isomerase
373	 28.60	0	482767..484287	+	506	26553825	-	MYPE3740	-	phosphoglyceromutase
374	 32.15	+1	484414..485766	+	450	26553826	eno	MYPE3750	-	phosphopyruvate hydratase
375	 22.91	0	485853..486437	-	194	26553827	-	MYPE3760	-	hypothetical protein
376	 23.63	0	486573..487211	+	212	26553828	-	MYPE3770	-	hypothetical protein
377	 20.92	-1	487325..488299	+	324	26553829	-	MYPE3780	-	hypothetical protein
378	 27.29	0	488365..490482	-	705	26553830	-	MYPE3790	-	ATP-dependent protease binding subunit
379	 33.61	+2	490735..491457	+	240	26553831	-	MYPE3800	-	hypothetical protein
380	 30.19	+1	491758..492075	+	105	26553832	-	MYPE3810	-	hypothetical protein
381	 27.22	0	492101..493996	+	631	26553833	-	MYPE3820	-	hypothetical protein
382	 31.72	+1	494341..494712	+	123	26553834	-	MYPE3830	-	hypothetical protein
383	 27.51	0	494732..499027	+	1431	26553835	-	MYPE3840	-	hypothetical protein
384	 26.02	0	499041..502676	+	1211	26553836	-	MYPE3850	-	hypothetical protein
385	 27.82	0	502690..506826	+	1378	26553837	-	MYPE3860	-	hypothetical protein
386	 26.71	0	507117..508385	+	422	26553838	-	MYPE3870	-	dihydroorotase
387	 26.74	0	508626..508898	+	90	161723284	rpsO	MYPE3880	-	30S ribosomal protein S15
388	 27.00	0	508932..511331	+	799	26553840	leuS	MYPE3890	-	leucyl-tRNA synthetase
389	 25.93	0	511376..511537	+	53	161723283	rpmG	MYPE3900	-	50S ribosomal protein L33
390	 27.92	0	511583..512635	+	350	26553842	-	MYPE3910	-	aminopeptidase P
391	 24.96	0	512783..514168	+	461	26553843	-	MYPE3920	-	aldehyde dehydrogenase
392	 24.63	0	514177..514980	+	267	26553844	-	MYPE3930	-	esterase/lipase 1
393	 23.29	0	515030..515278	+	82	26553845	-	MYPE3940	-	hypothetical protein
394	 28.42	0	515414..516268	+	284	26553846	-	MYPE3950	-	hypothetical protein
395	 27.49	0	516292..518019	+	575	26553847	-	MYPE3960	-	putative two-component regulator
396	 26.24	0	518080..519546	+	488	26553848	-	MYPE3970	-	hypothetical protein
397	 27.65	0	519652..520161	+	169	26553849	-	MYPE3980	-	thiol peroxidase
398	 33.33	+2	520294..520491	-	65	26553850	-	MYPE3985	-	hypothetical protein
399	 23.36	0	520708..523365	+	885	26553851	-	MYPE3990	-	hypothetical protein
400	 28.57	0	523557..526139	+	860	26553852	-	MYPE4000	-	hypothetical protein
401	 21.15	-1	526614..527483	-	289	26553853	-	MYPE4010	-	hypothetical protein
402	 26.37	0	527560..528378	-	272	26553854	-	MYPE4020	-	putative integral membrane protein
403	 30.12	+1	528514..528762	-	82	26553855	-	MYPE4030	-	ribosomal protein L28
404	 28.27	0	528972..530333	+	453	26553856	asnC	MYPE4040	-	asparaginyl-tRNA synthetase
405	 22.32	-1	530361..531014	+	217	26553857	-	MYPE4050	-	phosphatidylglycerophosphate synthase
406	 25.92	0	531024..532304	+	426	26553858	-	MYPE4060	-	seryl-tRNA synthetase
407	 23.66	0	533074..536010	+	978	26553859	-	MYPE4070	-	hypothetical protein
408	 24.15	0	536291..538108	+	605	26553860	-	MYPE4080	-	hypothetical protein
409	 28.71	0	538342..540138	+	598	26553861	-	MYPE4090	-	ABC transporter ATP-binding protein
410	 28.11	0	540141..542132	+	663	26553862	-	MYPE4100	-	ABC transporter ATP-binding protein
411	 23.11	0	542141..543529	+	462	26553863	-	MYPE4110	-	aldehyde dehydrogenase
412	 20.79	-1	543652..543930	+	92	26553864	-	MYPE4120	-	hypothetical protein
26.11	MEAN

3.47	STD DEV
