IslandPath Analysis: Mycoplasma penetrans HF-2

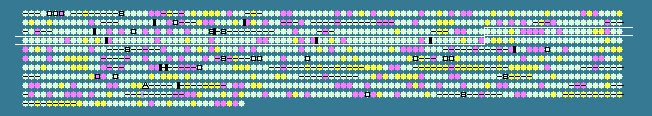

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
278	 22.92	0	363963..364634	+	223	26553730	-	MYPE2760	-	hypothetical protein
279	 24.20	0	364650..365372	+	240	26553731	-	MYPE2770	-	cytidine diphosphocholine pyrophosphorylase
280	 24.36	0	365412..366380	-	322	26553732	ruvB	MYPE2780	-	Holliday junction DNA helicase B
281	 23.64	0	366346..367005	-	219	26553733	-	MYPE2790	-	holliday junction DNA helicase
282	 30.68	+1	367157..367420	-	87	26553734	-	MYPE2800	-	phosphocarrier HPr protein
283	 24.15	0	367537..369093	-	518	26553735	-	MYPE2810	-	cardiolipin synthase
284	 21.54	-1	369209..371023	+	604	26553736	-	MYPE2820	-	oligoendopeptidase F
285	 18.65	-2	371025..371807	+	260	26553737	-	MYPE2830	-	hypothetical protein
286	 21.46	-1	371804..373588	-	594	26553738	-	MYPE2840	-	hypothetical protein
287	 19.37	-1	373629..373850	+	73	26553739	-	MYPE2850	-	hypothetical protein
288	 24.20	0	374053..375333	+	426	26553740	hisS	MYPE2860	-	histidyl-tRNA synthetase
289	 26.39	0	375348..377090	+	580	26553741	aspS	MYPE2870	-	aspartyl-tRNA synthetase
290	 22.02	-1	377096..377758	+	220	26553742	-	MYPE2880	-	S-adenosylmethionine-dependent methyltransferase
291	 29.26	0	377857..379401	+	514	26553743	-	MYPE2890	-	hypothetical protein
292	 25.33	0	379569..380330	+	253	26553744	-	MYPE2900	-	recombinase
293	 23.49	0	380395..381024	+	209	26553745	-	MYPE2910	-	hypothetical protein
294	 24.22	0	381103..383154	-	683	26553746	-	MYPE2920	-	hypothetical protein
295	 25.93	0	383474..384013	+	179	26553747	-	MYPE2930	-	ferritin-like protein Rsg
296	 38.33	+2	384145..384324	+	59	26553748	-	MYPE2940	-	hypothetical protein
297	 29.91	+1	384825..385379	+	184	26553749	-	MYPE2950	-	NADPH-dependent reductase
298	 21.57	-1	385404..385913	+	169	26553750	-	MYPE2960	-	MarR family transcriptional regulator
299	 23.91	0	385989..386561	-	190	26553751	-	MYPE2970	-	MutT-like hydrolase
300	 22.75	0	386784..387416	+	210	26553752	-	MYPE2980	-	hypothetical protein
301	 27.48	0	387437..388342	+	301	26553753	-	MYPE2990	-	HPr kinase/phosphorylase
302	 27.17	0	388329..389399	+	356	26553754	-	MYPE3000	-	prolipoprotein diacylglyceryl transferase
303	 25.11	0	389456..390160	-	234	26553755	-	MYPE3010	-	potassium uptake protein KtrA
304	 28.23	0	390365..392245	+	626	26553756	-	MYPE3020	-	putative integral membrane protein
305	 26.61	0	392248..394284	+	678	26553757	-	MYPE3030	-	ABC transporter ATP-binding protein
306	 24.26	0	394387..395235	+	282	26553758	-	MYPE3040	-	hypothetical protein
307	 24.27	0	395232..395882	-	216	26553759	-	MYPE3050	-	d-ribulose-5-phosphate 3 epimerase
308	 21.90	-1	395995..397560	+	521	26553760	-	MYPE3060	-	hypothetical protein
309	 24.37	0	397613..398605	+	330	26553761	-	MYPE3070	-	putative integral membrane protein
310	 24.60	0	398544..399470	+	308	26553762	-	MYPE3080	-	ABC transporter ATP-binding protein
311	 30.59	+1	399578..401251	+	557	26553763	-	MYPE3090	-	hypothetical protein
312	 27.26	0	401408..402544	+	378	26553764	-	MYPE3100	-	hypothetical protein
313	 31.43	+1	403080..403709	-	209	26553765	-	MYPE3110	-	hypothetical protein
314	 27.78	0	403859..404290	-	143	26553766	-	MYPE3120	-	hypothetical protein
315	 21.44	-1	404776..405624	+	282	26553767	-	MYPE3130	-	choline kinase
316	 27.73	0	406653..410201	+	1182	26553768	-	MYPE3140	-	hypothetical protein
317	 29.48	0	410394..411845	+	483	26553769	-	MYPE3150	-	inosine-5'-monophosphate dehydrogenase
318	 27.87	0	412385..412567	-	60	26553770	-	MYPE3155	-	hypothetical protein
319	 26.18	0	412846..413712	+	288	26553771	-	MYPE3160	-	3-hydroxyisobutyrate dehydrogenase
320	 23.53	0	413714..416050	+	778	26553772	-	MYPE3170	-	HAD family phosphatase
321	 27.96	0	416257..417504	+	415	26553773	-	MYPE3180	-	glucosamine-6-phosphate isomerase
322	 27.28	0	417731..420685	+	984	26553774	-	MYPE3190	-	integral membrane protein
323	 21.98	-1	420777..421331	-	184	26553775	-	MYPE3200	-	DNA-3-methyladenine glycosidase I
324	 27.98	0	421510..424515	+	1001	26553776	-	MYPE3210	-	integral membrane protein
325	 23.75	0	424743..425681	+	312	26553777	-	MYPE3220	-	methyltransferase
326	 23.26	0	425681..426841	+	386	26553778	-	MYPE3230	-	hypothetical protein
327	 27.43	0	427007..427531	+	174	26553779	-	MYPE3240	-	cation-transporting p-type ATPase
328	 30.93	+1	427627..430041	+	804	26553780	-	MYPE3250	-	cation-transporting p-type ATPase
329	 23.68	0	430065..430406	+	113	26553781	-	MYPE3260	-	thioredoxin
330	 24.38	0	430503..431150	-	215	26553782	-	MYPE3270	-	large-conductance mechanosensitive channel
331	 25.65	0	431282..431854	+	190	26553783	-	MYPE3280	-	hypothetical protein
332	 22.08	-1	431890..432795	+	301	26553784	-	MYPE3290	-	hypothetical protein
333	 27.27	0	432923..433153	+	76	26553785	secG	MYPE3300	-	preprotein translocase subunit SecG
334	 25.78	0	433163..435346	+	727	26553786	-	MYPE3310	-	3'-5' exoribonuclease RNase R
335	 28.21	0	435571..436566	+	331	26553787	-	MYPE3320	-	dihydroxyacetone kinase
336	 27.40	0	436575..437198	+	207	26553788	-	MYPE3330	-	dihydroxyacetone kinase
337	 24.88	0	437202..437603	+	133	26553789	-	MYPE3340	-	PTS system enzyme I
338	 24.50	0	437778..438230	+	150	26553790	-	MYPE3350	-	hypothetical protein
339	 26.72	0	438223..438615	+	130	26553791	-	MYPE3360	-	diacylglycerol kinase
340	 22.39	-1	438704..439516	+	270	26553792	-	MYPE3370	-	GTP-binding protein Era-like protein
341	 21.99	-1	439516..440220	+	234	26553793	-	MYPE3380	-	hypothetical protein
342	 25.13	0	440246..441634	+	462	26553794	-	MYPE3390	-	glycyl-tRNA synthetase
343	 23.75	0	441624..443690	+	688	26553795	-	MYPE3400	-	DNA primase
344	 27.26	0	444780..445322	+	180	26553796	-	MYPE3410	-	hypothetical protein
345	 26.30	0	445408..445848	+	146	26553797	-	MYPE3420	-	hypothetical protein
346	 30.04	+1	446130..446402	+	90	26553798	-	MYPE3430	-	hypothetical protein
347	 21.02	-1	446789..448453	-	554	26553799	-	MYPE3440	-	putative integral membrane protein
348	 25.97	0	448849..450246	+	465	26553800	-	MYPE3450	-	amino acid permease
349	 20.16	-1	450327..451229	-	300	26553801	-	MYPE3460	-	hypothetical protein
350	 26.58	0	452334..453665	+	443	26553802	-	MYPE3490	-	ABC transporter ATP-binding protein
351	 26.48	0	453677..454114	+	145	26553803	-	MYPE3500	-	histidine triad protein HIT
352	 31.43	+1	454200..454409	+	69	26553804	-	MYPE3510	-	hypothetical protein
353	 25.49	0	455243..455548	+	101	26553805	-	MYPE3520	-	hypothetical protein
354	 22.00	-1	455952..456392	+	146	26553806	smpB	MYPE3530	-	SsrA-binding protein
355	 27.04	0	456451..457626	+	391	26553807	-	MYPE3540	-	hippurate hydrolase
356	 24.16	0	457642..459048	+	468	26553808	-	MYPE3550	-	hypothetical protein
357	 25.89	0	459060..460013	+	317	26553809	-	MYPE3560	-	ABC transporter ATP-binding protein
358	 24.61	0	460360..461895	+	511	26553810	-	MYPE3570	-	ABC transporter ATP-binding protein
359	 28.37	0	462043..464679	+	878	26553811	-	MYPE3580	-	integral membrane protein
360	 28.15	0	464867..467509	+	880	26553812	-	MYPE3590	-	hypothetical protein
361	 28.83	0	467710..470352	+	880	26553813	-	MYPE3600	-	hypothetical protein
362	 28.31	0	470542..473187	+	881	26553814	-	MYPE3610	-	hypothetical protein
363	 27.32	0	473282..474910	+	542	26553815	-	MYPE3620	-	hypothetical protein
364	 26.24	0	475094..476080	+	328	26553816	-	MYPE3630	-	ABC transporter ATP-binding protein
365	 26.91	0	476233..477228	+	331	26553817	-	MYPE3640	-	putative glycerol-3-phosphate acyltransferase PlsX
366	 25.85	0	477203..477937	+	244	26553818	rnc	MYPE3650	-	ribonuclease III
367	 22.45	-1	477996..478436	-	146	26553819	-	MYPE3660	-	hypothetical protein
368	 29.01	0	478578..479063	+	161	26553820	greA	MYPE3670	-	transcription elongation factor GreA
369	 27.09	0	479674..480987	+	437	26553821	-	MYPE3700	-	hypothetical protein
370	 24.63	0	481048..481518	+	156	26553822	-	MYPE3710	-	NADH dehydrogenase
371	 25.83	0	481623..481862	+	79	26553823	-	MYPE3720	-	hypothetical protein
372	 27.62	0	482025..482777	+	250	26553824	-	MYPE3730	-	triose phosphate isomerase
373	 28.60	0	482767..484287	+	506	26553825	-	MYPE3740	-	phosphoglyceromutase
374	 32.15	+1	484414..485766	+	450	26553826	eno	MYPE3750	-	phosphopyruvate hydratase
375	 22.91	0	485853..486437	-	194	26553827	-	MYPE3760	-	hypothetical protein
376	 23.63	0	486573..487211	+	212	26553828	-	MYPE3770	-	hypothetical protein
377	 20.92	-1	487325..488299	+	324	26553829	-	MYPE3780	-	hypothetical protein
26.11	MEAN

3.47	STD DEV
