IslandPath Analysis: Mycoplasma penetrans HF-2

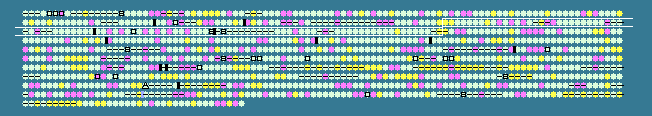

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
171	 29.76	+1	214628..215215	+	195	26553623	-	MYPE1700	-	acetyl transferase
172	 30.84	+1	215371..215691	+	106	26553624	-	MYPE1710	-	thioredoxin
173	 23.05	0	215896..216741	+	281	26553625	-	MYPE1720	-	transcriptional regulator
174	 28.35	0	216965..219310	+	781	26553626	-	MYPE1730	-	PTS system glucose-specific IIABC component
175	 26.70	0	219403..220095	+	230	26553627	-	MYPE1740	-	N-acetylmannosamine-6-phosphate 2-epimerase
176	 25.49	0	220295..221479	+	394	26553628	-	MYPE1750	-	N-acetylglucosamine 6-P deacetylase
177	 24.97	0	221487..222215	+	242	26553629	-	MYPE1760	-	N-acetylglucosamine 6-phosphate isomerase
178	 30.60	+1	222279..223340	-	353	26553630	-	MYPE1770	-	hypothetical protein
179	 23.44	0	223836..224876	+	346	26553631	-	MYPE1780	-	adenine-specific DNA methyltransferase
180	 21.90	-1	224839..225765	+	308	26553632	-	MYPE1790	-	adenine-specific DNA methyltransferase
181	 24.17	0	225777..227315	+	512	26553633	-	MYPE1800	-	hypothetical protein
182	 22.48	-1	227540..228442	-	300	26553634	-	MYPE1810	-	hypothetical protein
183	 29.22	0	228709..229584	+	291	26553635	-	MYPE1820	-	ABC transporter membrane protein
184	 21.07	-1	229692..231485	+	597	26553636	-	MYPE1830	-	hypothetical protein
185	 25.40	0	231463..233568	+	701	26553637	-	MYPE1840	-	NAD-dependent DNA ligase
186	 27.50	0	233602..234132	+	176	26553638	-	MYPE1850	-	6-O-methylguanine DNA methyltransferas
187	 31.72	+1	234225..234968	+	247	26553639	-	MYPE1860	-	hypothetical protein
188	 22.19	-1	235617..236549	+	310	26553640	-	MYPE1870	-	hypothetical protein
189	 21.84	-1	236559..237263	+	234	26553641	-	MYPE1880	-	ABC transporter ATP-binding protein
190	 27.86	0	237453..238091	+	212	26553642	acpD	MYPE1890	-	azoreductase
191	 27.76	0	238182..238952	+	256	26553643	-	MYPE1900	-	hypothetical protein
192	 27.33	0	238996..239478	-	160	26553644	-	MYPE1910	-	hypothetical protein
193	 22.65	0	239545..240162	+	205	26553645	-	MYPE1920	-	hypothetical protein
194	 26.36	0	240192..241481	+	429	26553646	obgE	MYPE1930	-	GTPase ObgE
195	 25.82	0	241494..242225	+	243	26553647	-	MYPE1940	-	NH(3)-dependent NAD+ synthetase
196	 27.25	0	242354..245491	+	1045	26553648	-	MYPE1950	-	putative integral membrane protein
197	 26.72	0	245654..248800	+	1048	26553649	-	MYPE1960	-	hypothetical protein
198	 18.68	-2	248978..249250	+	90	26553650	-	MYPE1970	-	hypothetical protein
199	 24.29	0	249228..252200	+	990	26553651	dnaE	MYPE1980	-	DNA polymerase III DnaE
200	 24.80	0	252208..253086	+	292	26553652	-	MYPE1990	-	DNA polymerase I: 5'-3' exonuclease
201	 23.98	0	253088..253921	+	277	26553653	-	MYPE2000	-	formamidopyrimidine-DNA glycosylase
202	 24.15	0	253894..254514	+	206	26553654	-	MYPE2010	-	hypothetical protein
203	 20.13	-1	254666..255922	+	418	26553655	-	MYPE2020	-	hypothetical protein
204	 23.16	0	255879..256910	+	343	26553656	-	MYPE2030	-	primosome component
205	 24.69	0	257095..257730	+	211	26553657	-	MYPE2040	-	hypothetical protein
206	 25.80	0	257827..259260	+	477	26553658	-	MYPE2050	-	replicative DNA helicase
207	 28.96	0	259334..260545	+	403	26553659	-	MYPE2060	-	hypothetical protein
208	 23.08	0	260583..261323	+	246	26553660	-	MYPE2070	-	uracil-DNA glycosylase
209	 27.09	0	261398..262471	+	357	26553661	-	MYPE2080	-	hypothetical protein
210	 26.16	0	262493..262771	+	92	26553662	-	MYPE2090	-	glutamyl-tRNA amidotransferase subunit C
211	 27.28	0	262774..264177	+	467	26553663	gatA	MYPE2100	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
212	 25.38	0	264155..265600	+	481	26553664	gatB	MYPE2110	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
213	 26.94	0	265777..266370	-	197	26553665	-	MYPE2120	-	hypothetical protein
214	 28.18	0	266507..269338	+	943	26553666	-	MYPE2130	-	cation-transporting P-type ATPase
215	 20.53	-1	269437..270303	+	288	26553667	-	MYPE2140	-	hypothetical protein
216	 23.38	0	270765..271658	+	297	26553668	-	MYPE2150	-	hypothetical protein
217	 21.52	-1	271714..272568	+	284	26553669	-	MYPE2160	-	hypothetical protein
218	 24.80	0	272771..273532	-	253	26553670	-	MYPE2170	-	insertion sequence IS232 putative ATP-binding protein
219	 25.97	0	273534..274946	-	470	26553671	-	MYPE2180	-	transposase for IS232-like insertion sequence element
220	 23.77	0	275215..276354	+	379	26553672	-	MYPE2190	-	hypothetical protein
221	 21.29	-1	276441..278084	-	547	26553673	-	MYPE2200	-	ABC transporter ATP-binding protein
222	 23.22	0	278077..279747	-	556	26553674	-	MYPE2210	-	ABC transporter ATP-binding protein
223	 19.82	-1	280126..282345	+	739	26553675	-	MYPE2220	-	hypothetical protein
224	 25.51	0	282399..282794	+	131	26553676	-	MYPE2230	-	hypothetical protein
225	 19.81	-1	282801..283628	-	275	26553677	-	MYPE2240	-	hypothetical protein
226	 25.73	0	283769..285043	-	424	26553678	-	MYPE2250	-	hypothetical protein
227	 28.17	0	285410..285835	+	141	26553679	-	MYPE2260	-	hypothetical protein
228	 20.00	-1	285919..286368	+	149	26553680	-	MYPE2270	-	hypothetical protein
229	 24.27	0	286413..287063	+	216	26553681	-	MYPE2280	-	cytidylate kinase
230	 25.39	0	287066..288400	+	444	26553682	engA	MYPE2290	-	GTP-binding protein EngA
231	 26.16	0	288390..289406	+	338	26553683	-	MYPE2300	-	NAD-dependent glycerol-3-phosphate dehydrogenase
232	 25.05	0	289619..291175	-	518	26553684	-	MYPE2310	-	IS1202-like transposase
233	 23.56	0	291534..292382	-	282	26553685	-	MYPE2330	-	hypothetical protein
234	 25.31	0	292522..294078	+	518	26553686	-	MYPE2340	-	transposase
235	 29.42	0	294686..295222	+	178	26553687	-	MYPE2350	-	integral membrane protein
236	 27.09	0	295417..296025	+	202	26553688	-	MYPE2360	-	integral membrane protein
237	 24.70	0	296149..296739	+	196	26553689	-	MYPE2370	-	integral membrane protein
238	 23.48	0	296876..297484	+	202	26553690	-	MYPE2380	-	integral membrane protein
239	 24.87	0	297729..298106	+	125	26553691	-	MYPE2390	-	hypothetical protein
240	 28.35	0	298054..298515	+	153	26553692	-	MYPE2400	-	integral membrane protein
241	 24.02	0	298660..299196	+	178	26553693	-	MYPE2410	-	integral membrane protein
242	 27.13	0	299403..300095	+	230	26553694	-	MYPE2420	-	integral membrane protein
243	 27.57	0	300102..301055	+	317	26553695	-	MYPE2430	-	integral membrane protein
244	 25.07	0	301605..302633	+	342	26553696	-	MYPE2440	-	hypothetical protein
245	 28.30	0	302904..303320	+	138	26553697	-	MYPE2450	-	integral membrane protein
246	 22.47	-1	303446..303979	+	177	26553698	-	MYPE2460	-	recombination protein U
247	 26.74	0	304156..305961	+	601	26553699	-	MYPE2470	-	ABC transporter ATP-binding protein
248	 29.10	0	305942..307879	+	645	26553700	-	MYPE2480	-	ABC transporter ATP-binding protein
249	 25.68	0	308014..308379	-	121	26553701	-	MYPE2490	-	DNA-binding histone-like protein HU-alpha
250	 27.64	0	308660..311680	+	1006	26553702	-	MYPE2500	-	integral membrane protein
251	 22.21	-1	311855..313894	+	679	26553703	-	MYPE2510	-	hypothetical protein
252	 23.08	0	313900..315948	+	682	26553704	-	MYPE2520	-	hypothetical protein
253	 29.52	0	316009..317346	+	445	26553705	-	MYPE2530	-	signal recognition particle GTPase
254	 27.91	0	317424..318161	+	245	26553706	-	MYPE2540	-	Zn-dependent protease
255	 25.81	0	318184..318369	+	61	26553707	-	MYPE2545	-	hypothetical protein
256	 28.68	0	318571..321945	+	1124	26553708	-	MYPE2550	-	hypothetical protein
257	 28.21	0	322127..325501	+	1124	26553709	-	MYPE2560	-	hypothetical protein
258	 26.26	0	325592..326920	-	442	26553710	-	MYPE2570	-	hypothetical protein
259	 27.73	0	327218..330610	+	1130	26553711	-	MYPE2580	-	hypothetical protein
260	 24.26	0	330665..331237	-	190	26553712	-	MYPE2590	-	acetyltransferase
261	 24.74	0	331244..331825	-	193	26553713	-	MYPE2600	-	acetyltransferase
262	 28.28	0	332074..335460	+	1128	26553714	-	MYPE2610	-	hypothetical protein
263	 29.68	+1	335914..337473	+	519	26553715	-	MYPE2620	-	P35 lipoprotein
264	 26.72	0	337750..339306	+	518	26553716	-	MYPE2630	-	P35 lipoprotein
265	 29.10	0	339473..340699	+	408	26553717	-	MYPE2640	-	permease
266	 26.32	0	340722..341705	+	327	26553718	-	MYPE2650	-	D-lactate dehydrogenase
267	 28.27	0	341814..345266	+	1150	26553719	-	MYPE2660	-	hypothetical protein
268	 27.69	0	345473..348841	+	1122	26553720	-	MYPE2670	-	hypothetical protein
269	 29.09	0	348982..352377	+	1131	26553721	-	MYPE2680	-	hypothetical protein
270	 30.17	+1	352719..353825	+	368	26553722	-	MYPE2690	-	P35 lipoprotein
26.11	MEAN

3.47	STD DEV
