IslandPathversion 1.0

IslandPath Analysis: Mycoplasma penetrans HF-2

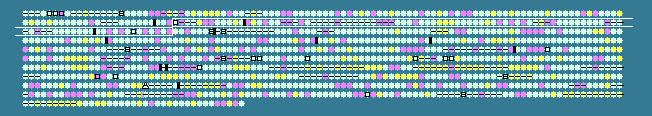

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
126	 26.25	0	151186..152202	-	338	26553578	-	MYPE1240	-	IS1630-like transposase
127	 20.28	-1	152337..152765	-	142	26553579	-	MYPE1250	-	hypothetical protein
128	 23.62	0	152798..154567	+	589	26553580	uvrC	MYPE1260	-	excinuclease ABC subunit C
129	 25.70	0	154628..155164	-	178	26553581	-	MYPE1270	-	exonuclease
130	 29.63	+1	155344..155856	+	170	26553582	-	MYPE1280	-	phosphoesterase
131	 20.32	-1	155840..156277	-	145	26553583	-	MYPE1290	-	ribosomal protein-alanine-acetyltransferase
132	 20.79	-1	156252..156833	-	193	26553584	-	MYPE1300	-	hypothetical protein
133	 23.75	0	156823..157719	-	298	26553585	-	MYPE1310	-	pseudouridine synthase
134	 23.51	0	157729..158451	-	240	26553586	-	MYPE1320	-	prolipoprotein signal peptidase
135	 25.11	0	158444..159343	-	299	26553587	-	MYPE1330	-	lytB protein
136	 32.55	+1	159648..162320	+	890	26553588	-	MYPE1340	-	PTS system glucose-specific enzyme IIABC component
137	 23.39	0	162389..163444	-	351	26553589	-	MYPE1350	-	hypothetical protein
138	 21.62	-1	164410..165459	+	349	26553590	-	MYPE1370	-	hypothetical protein
139	 29.63	+1	165706..167217	+	503	26553591	-	MYPE1380	-	hypothetical protein
140	 24.56	0	167290..168258	-	322	26553592	-	MYPE1390	-	thioredoxin reductase
141	 21.79	-1	168317..169165	+	282	26553593	-	MYPE1400	-	methyltransferase
142	 26.50	0	169188..169904	+	238	26553594	-	MYPE1410	-	hypothetical protein
143	 25.28	0	169907..171136	+	409	26553595	-	MYPE1420	-	recombination factor protein RarA
144	 21.27	-1	171184..172335	-	383	26553596	-	MYPE1430	-	hypothetical protein
145	 19.38	-1	172475..172954	+	159	26553597	-	MYPE1440	-	hypothetical protein
146	 26.24	0	172947..173510	+	187	26553598	-	MYPE1450	-	peptidyl-tRNA hydrolase
147	 21.17	-1	173513..174400	+	295	26553599	-	MYPE1460	-	cell cycle protein MesJ
148	 23.63	0	174394..175527	+	377	26553600	-	MYPE1470	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
149	 27.01	0	175640..176620	+	326	26553601	-	MYPE1480	-	asparagine synthetase AsnA
150	 25.41	0	176640..177800	-	386	26553602	-	MYPE1490	-	DNA-damage repair protein MucB
151	 22.81	0	177790..178530	-	246	26553603	-	MYPE1500	-	hemolysin
152	 26.67	0	178626..179390	-	254	26553604	-	MYPE1510	-	hypothetical protein
153	 22.58	-1	179569..182907	+	1112	26553605	-	MYPE1520	-	coiled-coil structure containing protein
154	 25.10	0	182921..186076	+	1051	26553606	-	MYPE1530	-	cytoskeletal protein
155	 23.08	0	186078..188564	+	828	26553607	-	MYPE1540	-	coiled-coil structure containing protein
156	 22.76	0	188576..198529	+	3317	26553608	-	MYPE1550	-	cytoskeletal protein
157	 24.72	0	198554..201118	+	854	26553609	-	MYPE1560	-	cytoskeletal protein
158	 26.18	0	201148..203553	+	801	26553610	-	MYPE1570	-	cytoskeletal protein
159	 29.10	0	203735..204301	+	188	26553611	-	MYPE1580	-	elongation factor P
160	 20.35	-1	204301..204585	+	94	26553612	-	MYPE1590	-	low similarity to ATP synthase subunit gamma
161	 22.44	-1	204575..205024	+	149	26553613	-	MYPE1600	-	transcription termination factor N-utilization substance protein B
162	 20.71	-1	205031..205735	+	234	26553614	-	MYPE1610	-	hypothetical protein
163	 22.64	0	205725..206276	+	183	26553615	-	MYPE1620	-	hypothetical protein
164	 24.53	0	206239..207567	+	442	26553616	-	MYPE1630	-	hypothetical protein
165	 29.54	0	207733..208101	+	122	26553617	-	MYPE1640	-	hypothetical protein
166	 20.42	-1	208269..208787	-	172	26553618	-	MYPE1650	-	hypothetical protein
167	 26.93	0	208836..210209	+	457	26553619	-	MYPE1660	-	hypothetical protein
168	 26.09	0	210312..212162	+	616	26553620	-	MYPE1670	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
169	 23.75	0	212334..212834	+	166	26553621	-	MYPE1680	-	hypothetical protein
170	 30.11	+1	213101..214465	+	454	26553622	-	MYPE1690	-	NADH oxidase
171	 29.76	+1	214628..215215	+	195	26553623	-	MYPE1700	-	acetyl transferase
172	 30.84	+1	215371..215691	+	106	26553624	-	MYPE1710	-	thioredoxin
173	 23.05	0	215896..216741	+	281	26553625	-	MYPE1720	-	transcriptional regulator
174	 28.35	0	216965..219310	+	781	26553626	-	MYPE1730	-	PTS system glucose-specific IIABC component
175	 26.70	0	219403..220095	+	230	26553627	-	MYPE1740	-	N-acetylmannosamine-6-phosphate 2-epimerase
176	 25.49	0	220295..221479	+	394	26553628	-	MYPE1750	-	N-acetylglucosamine 6-P deacetylase
177	 24.97	0	221487..222215	+	242	26553629	-	MYPE1760	-	N-acetylglucosamine 6-phosphate isomerase
178	 30.60	+1	222279..223340	-	353	26553630	-	MYPE1770	-	hypothetical protein
179	 23.44	0	223836..224876	+	346	26553631	-	MYPE1780	-	adenine-specific DNA methyltransferase
180	 21.90	-1	224839..225765	+	308	26553632	-	MYPE1790	-	adenine-specific DNA methyltransferase
181	 24.17	0	225777..227315	+	512	26553633	-	MYPE1800	-	hypothetical protein
182	 22.48	-1	227540..228442	-	300	26553634	-	MYPE1810	-	hypothetical protein
183	 29.22	0	228709..229584	+	291	26553635	-	MYPE1820	-	ABC transporter membrane protein
184	 21.07	-1	229692..231485	+	597	26553636	-	MYPE1830	-	hypothetical protein
185	 25.40	0	231463..233568	+	701	26553637	-	MYPE1840	-	NAD-dependent DNA ligase
186	 27.50	0	233602..234132	+	176	26553638	-	MYPE1850	-	6-O-methylguanine DNA methyltransferas
187	 31.72	+1	234225..234968	+	247	26553639	-	MYPE1860	-	hypothetical protein
188	 22.19	-1	235617..236549	+	310	26553640	-	MYPE1870	-	hypothetical protein
189	 21.84	-1	236559..237263	+	234	26553641	-	MYPE1880	-	ABC transporter ATP-binding protein
190	 27.86	0	237453..238091	+	212	26553642	acpD	MYPE1890	-	azoreductase
191	 27.76	0	238182..238952	+	256	26553643	-	MYPE1900	-	hypothetical protein
192	 27.33	0	238996..239478	-	160	26553644	-	MYPE1910	-	hypothetical protein
193	 22.65	0	239545..240162	+	205	26553645	-	MYPE1920	-	hypothetical protein
194	 26.36	0	240192..241481	+	429	26553646	obgE	MYPE1930	-	GTPase ObgE
195	 25.82	0	241494..242225	+	243	26553647	-	MYPE1940	-	NH(3)-dependent NAD+ synthetase
196	 27.25	0	242354..245491	+	1045	26553648	-	MYPE1950	-	putative integral membrane protein
197	 26.72	0	245654..248800	+	1048	26553649	-	MYPE1960	-	hypothetical protein
198	 18.68	-2	248978..249250	+	90	26553650	-	MYPE1970	-	hypothetical protein
199	 24.29	0	249228..252200	+	990	26553651	dnaE	MYPE1980	-	DNA polymerase III DnaE
200	 24.80	0	252208..253086	+	292	26553652	-	MYPE1990	-	DNA polymerase I: 5'-3' exonuclease
201	 23.98	0	253088..253921	+	277	26553653	-	MYPE2000	-	formamidopyrimidine-DNA glycosylase
202	 24.15	0	253894..254514	+	206	26553654	-	MYPE2010	-	hypothetical protein
203	 20.13	-1	254666..255922	+	418	26553655	-	MYPE2020	-	hypothetical protein
204	 23.16	0	255879..256910	+	343	26553656	-	MYPE2030	-	primosome component
205	 24.69	0	257095..257730	+	211	26553657	-	MYPE2040	-	hypothetical protein
206	 25.80	0	257827..259260	+	477	26553658	-	MYPE2050	-	replicative DNA helicase
207	 28.96	0	259334..260545	+	403	26553659	-	MYPE2060	-	hypothetical protein
208	 23.08	0	260583..261323	+	246	26553660	-	MYPE2070	-	uracil-DNA glycosylase
209	 27.09	0	261398..262471	+	357	26553661	-	MYPE2080	-	hypothetical protein
210	 26.16	0	262493..262771	+	92	26553662	-	MYPE2090	-	glutamyl-tRNA amidotransferase subunit C
211	 27.28	0	262774..264177	+	467	26553663	gatA	MYPE2100	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
212	 25.38	0	264155..265600	+	481	26553664	gatB	MYPE2110	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
213	 26.94	0	265777..266370	-	197	26553665	-	MYPE2120	-	hypothetical protein
214	 28.18	0	266507..269338	+	943	26553666	-	MYPE2130	-	cation-transporting P-type ATPase
215	 20.53	-1	269437..270303	+	288	26553667	-	MYPE2140	-	hypothetical protein
216	 23.38	0	270765..271658	+	297	26553668	-	MYPE2150	-	hypothetical protein
217	 21.52	-1	271714..272568	+	284	26553669	-	MYPE2160	-	hypothetical protein
218	 24.80	0	272771..273532	-	253	26553670	-	MYPE2170	-	insertion sequence IS232 putative ATP-binding protein
219	 25.97	0	273534..274946	-	470	26553671	-	MYPE2180	-	transposase for IS232-like insertion sequence element
220	 23.77	0	275215..276354	+	379	26553672	-	MYPE2190	-	hypothetical protein
221	 21.29	-1	276441..278084	-	547	26553673	-	MYPE2200	-	ABC transporter ATP-binding protein
222	 23.22	0	278077..279747	-	556	26553674	-	MYPE2210	-	ABC transporter ATP-binding protein
223	 19.82	-1	280126..282345	+	739	26553675	-	MYPE2220	-	hypothetical protein
224	 25.51	0	282399..282794	+	131	26553676	-	MYPE2230	-	hypothetical protein
225	 19.81	-1	282801..283628	-	275	26553677	-	MYPE2240	-	hypothetical protein
26.11	MEAN

3.47	STD DEV
