IslandPath Analysis: Mycoplasma penetrans HF-2

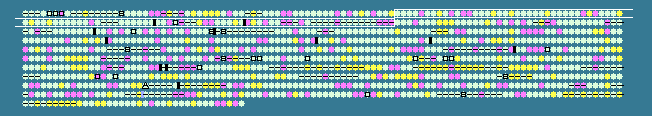

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.11 STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
63	 23.28	0	73649..74056	+	135	26553515	-	MYPE630	-	ATP synthase subunit epsilon
64	 27.78	0	74156..74443	+	95	161723285	rpmE	MYPE640	-	50S ribosomal protein L31
65	 28.98	0	74531..75610	+	359	26553517	prfA	MYPE650	-	peptide chain release factor 1
66	 23.94	0	75576..76448	+	290	26553518	-	MYPE660	-	S-adenosylmethionine-dependent methyltransferase
67	 22.12	-1	76451..77092	+	213	26553519	-	MYPE670	-	translation factor
68	 26.21	0	77058..77534	+	158	26553520	-	MYPE680	-	ribose 5-phosphate and galactose-6-phosphate isomerase
69	 23.79	0	77536..78258	+	240	26553521	-	MYPE690	-	putative two-component response regulator
70	 29.90	+1	78521..79102	+	193	26553522	-	MYPE700	-	intracellular protease
71	 26.35	0	79238..80254	+	338	26553523	hrcA	MYPE710	-	heat-inducible transcription repressor
72	 18.68	-2	80229..80774	+	181	26553524	-	MYPE720	-	hypothetical protein
73	 25.50	0	80780..82618	+	612	26553525	-	MYPE730	-	1-deoxy-D-xylulose-5-phosphate synthase
74	 21.32	-1	82797..83687	+	296	26553526	-	MYPE740	-	hypothetical protein
75	 22.42	-1	83702..84031	-	109	26553527	-	MYPE750	-	hypothetical protein
76	 27.78	0	84059..84310	+	83	26553528	-	MYPE760	-	nitrogen fixation protein
77	 28.64	0	84320..86344	+	674	26553529	-	MYPE770	-	transketolase
78	 28.79	0	86502..87998	+	498	26553530	-	MYPE780	-	pyruvate kinase
79	 29.70	+1	88217..92344	+	1375	26553531	rpoB	MYPE790	-	DNA-directed RNA polymerase subunit beta
80	 29.04	0	92365..96231	+	1288	26553532	-	MYPE800	-	DNA-directed RNA polymerase subunit beta'
81	 27.44	0	96331..96771	+	146	26553533	rplM	MYPE810	-	50S ribosomal protein L13
82	 30.53	+1	96789..97181	+	130	26553534	rpsI	MYPE820	-	30S ribosomal protein S9
83	 23.74	0	97919..98137	+	72	26553535	-	MYPE830	-	hypothetical protein
84	 22.69	0	98295..98510	+	71	26553536	-	MYPE835	-	hypothetical protein
85	 26.16	0	98853..99674	+	273	26553537	-	MYPE840	-	haloacid dehalogenase-like hydrolase
86	 28.74	0	100051..102228	-	725	26553538	-	MYPE850	-	ribonucleotide-diphosphate reductase subunit alpha
87	 26.44	0	102261..102710	-	149	26553539	nrdI	MYPE860	-	ribonucleotide reductase stimulatory protein
88	 30.10	+1	102713..103732	-	339	26553540	nrdF	MYPE870	-	ribonucleotide-diphosphate reductase subunit beta
89	 26.25	0	104027..109387	+	1786	26553541	-	MYPE880	-	permease
90	 26.77	0	109575..114956	+	1793	26553542	-	MYPE890	-	permease
91	 27.07	0	115033..116757	-	574	26553543	-	MYPE900	-	hypothetical protein
92	 24.01	0	116865..117722	-	285	26553544	-	MYPE910	-	putative membrane integrated oxidoreductase
93	 23.93	0	117724..118446	-	240	26553545	-	MYPE920	-	hypothetical protein
94	 20.62	-1	118459..118875	-	138	26553546	-	MYPE930	-	hypothetical protein
95	 29.99	+1	119066..120202	+	378	26553547	-	MYPE940	-	S-adenosylmethionine synthetase
96	 20.67	-1	120286..120885	-	199	26553548	-	MYPE950	-	hypothetical protein
97	 25.52	0	121160..122272	-	370	26553549	-	MYPE960	-	ABC transporter ATP-binding protein
98	 26.76	0	122274..124313	-	679	26553550	-	MYPE970	-	integral membrane protein
99	 26.74	0	124534..124806	+	90	26553551	-	MYPE980	-	chaperonin GroES
100	 29.98	+1	124836..126473	+	545	26553552	groEL	MYPE990	-	chaperonin GroEL
101	 27.64	0	126533..127024	-	163	26553553	-	MYPE1000	-	deoxyuridine 5'triphosphate nucleotidohydrolase dUTPase
102	 30.58	+1	127201..127599	+	132	26553554	-	MYPE1010	-	ribosomal protein S16
103	 24.96	0	127608..128288	+	226	26553555	-	MYPE1020	-	tRNA (guanine-N1)-methyltransferase
104	 29.22	0	128301..128738	+	145	26553556	rplS	MYPE1030	-	50S ribosomal protein L19
105	 37.43	+2	128879..129049	-	56	26553557	-	MYPE1035	-	hypothetical protein
106	 29.15	0	129290..130030	+	246	26553558	-	MYPE1040	-	purine nucleoside phosphorylase
107	 24.81	0	130032..131333	+	433	26553559	-	MYPE1050	-	thymidine phosphorylase
108	 26.48	0	131342..131764	+	140	26553560	-	MYPE1060	-	cytidine deaminase
109	 28.12	0	131768..133435	+	555	26553561	-	MYPE1070	-	phosphomannomutase
110	 27.49	0	133662..136535	+	957	26553562	-	MYPE1080	-	hypothetical protein
111	 27.65	0	136647..138440	+	597	26553563	nusA	MYPE1090	-	transcription elongation factor NusA
112	 18.68	-2	138433..138705	+	90	26553564	-	MYPE1100	-	hypothetical protein
113	 28.56	0	138728..140590	+	620	26553565	infB	MYPE1110	-	translation initiation factor IF-2
114	 23.65	0	140574..140924	+	116	26553566	rbfA	MYPE1120	-	ribosome-binding factor A
115	 26.81	0	140930..141619	+	229	26553567	-	MYPE1130	-	hypothetical protein
116	 26.94	0	141878..142315	+	145	26553568	rpsF	MYPE1140	-	30S ribosomal protein S6
117	 27.54	0	142348..142917	+	189	26553569	-	MYPE1150	-	single-strand DNA binding protein
118	 28.82	0	142944..143408	+	154	26553570	-	MYPE1160	-	ribosomal protein S18
119	 27.35	0	143508..144176	+	222	26553571	-	MYPE1170	-	deoxyribose-phosphate aldolase
120	 26.27	0	144185..144736	+	183	26553572	-	MYPE1180	-	hypothetical protein
121	 28.63	0	145140..146075	+	311	26553573	-	MYPE1190	-	endonuclease IV
122	 22.76	0	146063..146497	+	144	26553574	-	MYPE1200	-	ferric uptake regulation protein
123	 24.50	0	146703..148094	+	463	26553575	-	MYPE1210	-	transporter
124	 27.67	0	148181..149716	+	511	26553576	guaA	MYPE1220	-	bifunctional GMP synthase/glutamine amidotransferase protein
125	 22.13	-1	149987..151048	+	353	26553577	-	MYPE1230	-	adenine-specific DNA methyltransferase
126	 26.25	0	151186..152202	-	338	26553578	-	MYPE1240	-	IS1630-like transposase
127	 20.28	-1	152337..152765	-	142	26553579	-	MYPE1250	-	hypothetical protein
128	 23.62	0	152798..154567	+	589	26553580	uvrC	MYPE1260	-	excinuclease ABC subunit C
129	 25.70	0	154628..155164	-	178	26553581	-	MYPE1270	-	exonuclease
130	 29.63	+1	155344..155856	+	170	26553582	-	MYPE1280	-	phosphoesterase
131	 20.32	-1	155840..156277	-	145	26553583	-	MYPE1290	-	ribosomal protein-alanine-acetyltransferase
132	 20.79	-1	156252..156833	-	193	26553584	-	MYPE1300	-	hypothetical protein
133	 23.75	0	156823..157719	-	298	26553585	-	MYPE1310	-	pseudouridine synthase
134	 23.51	0	157729..158451	-	240	26553586	-	MYPE1320	-	prolipoprotein signal peptidase
135	 25.11	0	158444..159343	-	299	26553587	-	MYPE1330	-	lytB protein
136	 32.55	+1	159648..162320	+	890	26553588	-	MYPE1340	-	PTS system glucose-specific enzyme IIABC component
137	 23.39	0	162389..163444	-	351	26553589	-	MYPE1350	-	hypothetical protein
138	 21.62	-1	164410..165459	+	349	26553590	-	MYPE1370	-	hypothetical protein
139	 29.63	+1	165706..167217	+	503	26553591	-	MYPE1380	-	hypothetical protein
140	 24.56	0	167290..168258	-	322	26553592	-	MYPE1390	-	thioredoxin reductase
141	 21.79	-1	168317..169165	+	282	26553593	-	MYPE1400	-	methyltransferase
142	 26.50	0	169188..169904	+	238	26553594	-	MYPE1410	-	hypothetical protein
143	 25.28	0	169907..171136	+	409	26553595	-	MYPE1420	-	recombination factor protein RarA
144	 21.27	-1	171184..172335	-	383	26553596	-	MYPE1430	-	hypothetical protein
145	 19.38	-1	172475..172954	+	159	26553597	-	MYPE1440	-	hypothetical protein
146	 26.24	0	172947..173510	+	187	26553598	-	MYPE1450	-	peptidyl-tRNA hydrolase
147	 21.17	-1	173513..174400	+	295	26553599	-	MYPE1460	-	cell cycle protein MesJ
148	 23.63	0	174394..175527	+	377	26553600	-	MYPE1470	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
149	 27.01	0	175640..176620	+	326	26553601	-	MYPE1480	-	asparagine synthetase AsnA
150	 25.41	0	176640..177800	-	386	26553602	-	MYPE1490	-	DNA-damage repair protein MucB
151	 22.81	0	177790..178530	-	246	26553603	-	MYPE1500	-	hemolysin
152	 26.67	0	178626..179390	-	254	26553604	-	MYPE1510	-	hypothetical protein
153	 22.58	-1	179569..182907	+	1112	26553605	-	MYPE1520	-	coiled-coil structure containing protein
154	 25.10	0	182921..186076	+	1051	26553606	-	MYPE1530	-	cytoskeletal protein
155	 23.08	0	186078..188564	+	828	26553607	-	MYPE1540	-	coiled-coil structure containing protein
156	 22.76	0	188576..198529	+	3317	26553608	-	MYPE1550	-	cytoskeletal protein
157	 24.72	0	198554..201118	+	854	26553609	-	MYPE1560	-	cytoskeletal protein
158	 26.18	0	201148..203553	+	801	26553610	-	MYPE1570	-	cytoskeletal protein
159	 29.10	0	203735..204301	+	188	26553611	-	MYPE1580	-	elongation factor P
160	 20.35	-1	204301..204585	+	94	26553612	-	MYPE1590	-	low similarity to ATP synthase subunit gamma
161	 22.44	-1	204575..205024	+	149	26553613	-	MYPE1600	-	transcription termination factor N-utilization substance protein B
162	 20.71	-1	205031..205735	+	234	26553614	-	MYPE1610	-	hypothetical protein
26.11	MEAN

3.47	STD DEV
