IslandPath Analysis: Mycoplasma penetrans HF-2

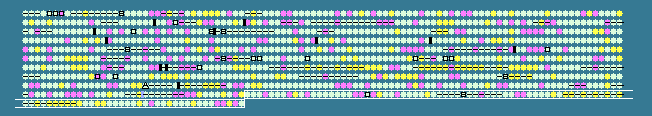

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 26.11   STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
938	 23.86	0	1262302..1262892	+	196	26554390	-	MYPE9410	-	hypothetical protein
939	 23.92	0	1262904..1263986	+	360	26554391	-	MYPE9420	-	nicotinate phosphoribosyltransferase
940	 26.00	0	1263983..1265659	-	558	26554392	-	MYPE9430	-	hypothetical protein
941	 21.68	-1	1265831..1266388	-	185	26554393	-	MYPE9440	-	nucleotidyltransferase
942	 28.43	0	1266376..1267374	-	332	26554394	-	MYPE9450	-	phosphoribosylpyrophosphate synthetase
943	 24.13	0	1267458..1268120	-	220	26554395	-	MYPE9460	-	ribonuclease H-related protein
944	 25.57	0	1268169..1268954	-	261	26554396	-	MYPE9470	-	hypothetical protein
945	 20.34	-1	1269032..1269847	-	271	26554397	-	MYPE9480	-	choline kinase
946	 29.85	+1	1269938..1271803	-	621	26554398	-	MYPE9490	-	HSP70 family molecular chaperone DnaK
947	 28.21	0	1271891..1272748	+	285	26554399	-	MYPE9500	-	oxidoreductase
948	 20.11	-1	1272807..1273169	-	120	26554400	-	MYPE9510	-	hypothetical protein
949	 23.90	0	1273174..1275345	-	723	26554401	-	MYPE9520	-	hypothetical protein
950	 23.74	0	1275510..1276583	+	357	26554402	-	MYPE9530	-	DNA polymerase III
951	 23.88	0	1276623..1277786	-	387	26554403	-	MYPE9540	-	CDP-diglyceride synthetase
952	 25.52	0	1277868..1278545	-	225	26554404	-	MYPE9550	-	undecaprenyl diphosphate synthase
953	 25.18	0	1278547..1279098	-	183	26554405	-	MYPE9560	-	ribosome recycling factor
954	 25.68	0	1279127..1280080	-	317	26554406	-	MYPE9570	-	uridylate kinase
955	 29.12	0	1280134..1281012	-	292	26554407	tsf	MYPE9580	-	elongation factor Ts
956	 19.88	-1	1281224..1282204	-	326	26554408	-	MYPE9600	-	hypothetical protein
957	 17.72	-2	1282338..1282670	-	110	26554409	-	MYPE9610	-	hypothetical protein
958	 25.72	0	1282913..1284121	-	402	26554410	-	MYPE9620	-	transposase
959	 21.79	-1	1284157..1284693	-	178	26554411	-	MYPE9630	-	hypothetical protein
960	 31.96	+1	1284919..1285866	-	315	26554412	-	MYPE9640	-	L-lactate dehydrogenase
961	 22.96	0	1285856..1286308	-	150	26554413	-	MYPE9650	-	putative lipopolysaccharide biosynthesis enzyme KdtB
962	 26.90	0	1286361..1287464	-	367	26554414	rpsB	MYPE9660	-	30S ribosomal protein S2
963	 21.18	-1	1287783..1288424	+	213	26554415	-	MYPE9670	-	transcription regulation proteins GntR
964	 29.00	0	1288515..1290821	+	768	26554416	-	MYPE9680	-	PTS system sucrose-specific IIABC component
965	 24.10	0	1290867..1292231	+	454	26554417	-	MYPE9690	-	sucrose-6-phosphate hydrolase
966	 26.33	0	1292235..1293119	+	294	26554418	-	MYPE9700	-	glucose kinase or transcriptional regulator
967	 24.17	0	1293280..1294512	+	410	26554419	-	MYPE9710	-	hypothetical protein
968	 40.26	+2	1294694..1295083	-	129	26554420	-	MYPE9720	-	hypothetical protein
969	 27.49	0	1295149..1295319	-	56	26554421	-	MYPE9730	-	hypothetical protein
970	 23.00	0	1295429..1296154	-	241	26554422	truA	MYPE9740	-	tRNA pseudouridine synthase A
971	 26.13	0	1296165..1297358	-	397	26554423	-	MYPE9750	-	cobalt transport membrane protein
972	 24.49	0	1297444..1298664	-	406	26554424	-	MYPE9760	-	cobalt transporter ATP-binding subunit
973	 25.93	0	1298649..1299512	-	287	26554425	-	MYPE9770	-	cobalt transporter ATP-binding subunit
974	 26.25	0	1299733..1300749	+	338	26554426	-	MYPE9780	-	IS1630-like transposase
975	 23.76	0	1301030..1302136	-	368	26554427	-	MYPE9790	-	hypothetical protein
976	 25.37	0	1302153..1303433	-	426	26554428	-	MYPE9800	-	cytosine-specific DNA methylase
977	 21.30	-1	1303628..1304566	-	312	26554429	-	MYPE9810	-	hypothetical protein
978	 26.45	0	1304594..1306759	-	721	26554430	-	MYPE9820	-	hypothetical protein
979	 26.16	0	1306761..1308293	-	510	26554431	-	MYPE9830	-	hypothetical protein
980	 23.29	0	1308740..1308988	-	82	26554432	-	MYPE9840	-	hypothetical protein
981	 29.24	0	1309225..1309395	-	56	26554433	-	MYPE9850	-	hypothetical protein
982	 26.90	0	1309632..1309973	-	113	26554434	-	MYPE9860	-	hypothetical protein
983	 21.61	-1	1310322..1311140	-	272	26554435	-	MYPE9870	-	short-chain alcohol dehydrogenase family enzyme
984	 19.61	-1	1311133..1311744	-	203	26554436	-	MYPE9880	-	hypothetical protein
985	 26.46	0	1311717..1313186	-	489	26554437	-	MYPE9890	-	aminopeptidase C
986	 23.75	0	1313188..1314732	-	514	26554438	-	MYPE9900	-	aminopeptidase C
987	 28.06	0	1314801..1315160	-	119	26554439	rplQ	MYPE9910	-	50S ribosomal protein L17
988	 27.31	0	1315171..1316166	-	331	26554440	-	MYPE9920	-	DNA-directed RNA polymerase subunit alpha
989	 34.95	+2	1316181..1316552	-	123	26554441	-	MYPE9930	-	30S ribosomal protein S11
990	 28.53	0	1316568..1316942	-	124	26554442	rpsM	MYPE9940	-	30S ribosomal protein S13
991	 31.51	+1	1317093..1317311	-	72	26554443	-	MYPE9950	-	translation initiation factor IF-1
992	 30.90	+1	1317319..1318059	-	246	26554444	-	MYPE9960	-	methionine aminopeptidase
993	 26.23	0	1318062..1318709	-	215	26554445	-	MYPE9970	-	adenylate kinase
994	 31.58	+1	1318721..1320142	-	473	26554446	secY	MYPE9980	-	preprotein translocase subunit SecY
995	 28.38	0	1320166..1320609	-	147	26554447	rplO	MYPE9990	-	50S ribosomal protein L15
996	 29.65	+1	1320613..1321317	-	234	26554448	rpsE	MYPE10000	-	30S ribosomal protein S5
997	 27.50	0	1321339..1321698	-	119	26554449	rplR	MYPE10010	-	50S ribosomal protein L18
998	 30.62	+1	1321714..1322265	-	183	26554450	rplF	MYPE10020	-	50S ribosomal protein L6
999	 25.76	0	1322276..1322671	-	131	26554451	rpsH	MYPE10030	-	30S ribosomal protein S8
1000	 32.26	+1	1322688..1322873	-	61	26554452	rpsN	MYPE10040	-	30S ribosomal protein S14
1001	 27.13	0	1322875..1323438	-	187	26554453	rplE	MYPE10050	-	50S ribosomal protein L5
1002	 27.78	0	1323447..1323770	-	107	26554454	-	MYPE10060	-	ribosomal protein L24
1003	 33.33	+2	1323783..1324151	-	122	26554455	rplN	MYPE10070	-	50S ribosomal protein L14
1004	 28.26	0	1324182..1324457	-	91	26554456	rpsQ	MYPE10080	-	30S ribosomal protein S17
1005	 30.22	+1	1324476..1325729	-	417	26554457	-	MYPE10090	-	ribosomal protein S3
1006	 34.29	+2	1325732..1326466	-	244	26554458	-	MYPE10100	-	ribosomal protein L29
1007	 34.52	+2	1326453..1326875	-	140	26554459	rplP	MYPE10110	-	50S ribosomal protein L16
1008	 29.92	+1	1326898..1327923	-	341	26554460	-	MYPE10120	-	fused 50S ribosomal protein L21/unknown domain-containing protein
1009	 29.91	+1	1327941..1328174	-	77	26554461	-	MYPE10130	-	ribosomal protein S19
1010	 33.33	+2	1328232..1329071	-	279	26554462	rplB	MYPE10150	-	50S ribosomal protein L2
1011	 25.66	0	1329106..1329522	-	138	26554463	rplW	MYPE10160	-	50S ribosomal protein L23
1012	 26.79	0	1329522..1330163	-	213	26554464	rplD	MYPE10170	-	50S ribosomal protein L4
1013	 32.80	+1	1330163..1331095	-	310	161723281	rplC	MYPE10180	-	50S ribosomal protein L3
1014	 29.74	+1	1331115..1331504	-	129	26554466	rpsJ	MYPE10190	-	30S ribosomal protein S10
1015	 24.79	0	1331694..1332524	-	276	26554467	-	MYPE10200	-	haloacid dehalogenase-like hydrolase
1016	 23.57	0	1332546..1333313	-	255	26554468	-	MYPE10210	-	transcriptional regulator
1017	 24.05	0	1333337..1333993	-	218	26554469	-	MYPE10220	-	ribonuclease HII
1018	 27.94	0	1334047..1334565	-	172	26554470	-	MYPE10230	-	adenine phosphoribosyltransferase
1019	 28.61	0	1334575..1337958	-	1127	26554471	-	MYPE10240	-	protein-export membrane protein SecD
1020	 31.02	+1	1338074..1340542	-	822	26554472	-	MYPE10250	-	cell division protein FtsH
1021	 26.03	0	1340596..1341129	-	177	26554473	-	MYPE10260	-	hypoxanthine-guanine phosphoribosyltransferase
1022	 22.09	-1	1341227..1341724	-	165	26554474	-	MYPE10270	-	putative enzyme of deoxy-xylulose pathway YgbB
1023	 24.85	0	1341772..1342632	-	286	26554475	-	MYPE10280	-	ABC transporter ATP-binding protein
1024	 27.43	0	1342637..1347094	-	1485	26554476	-	MYPE10290	-	ABC transporter membrane protein
1025	 29.79	+1	1347248..1347868	+	206	26554477	-	MYPE10300	-	uracil phosphoribosyltransferase
1026	 29.11	0	1347932..1349068	-	378	26554478	-	MYPE10310	-	guanosine 5'-monophosphate oxidoreductase
1027	 29.26	0	1349097..1349759	-	220	26554479	-	MYPE10320	-	thymidine kinase
1028	 25.87	0	1349771..1350868	-	365	26554480	-	MYPE10330	-	translation-associated GTPase
1029	 31.09	+1	1350944..1351834	-	296	26554481	-	MYPE10340	-	fructose-bisphosphate aldolase
1030	 28.65	0	1351913..1352425	-	170	26554482	-	MYPE10350	-	DNA-directed RNA polymerase subunit delta
1031	 23.35	0	1352460..1353731	-	423	26554483	-	MYPE10360	-	hypothetical protein
1032	 27.12	0	1353732..1355195	-	487	26554484	gltX	MYPE10370	-	glutamyl-tRNA synthetase
1033	 18.07	-2	1355211..1355996	-	261	26554485	-	MYPE10380	-	hypothetical protein
1034	 21.49	-1	1355977..1356795	-	272	26554486	ksgA	MYPE10390	-	dimethyladenosine transferase
1035	 29.65	+1	1356802..1357941	-	379	26554487	-	MYPE10400	-	putative inner membrane protein translocase component YidC
1036	 17.56	-2	1357973..1358308	-	111	26554488	-	MYPE10410	-	ribonuclease P protein component
1037	 27.08	0	1358320..1358463	-	47	26554489	-	MYPE10420	-	ribosomal protein L34
26.11	MEAN

3.47	STD DEV
