IslandPath Analysis: Methylobacterium populi BJ001

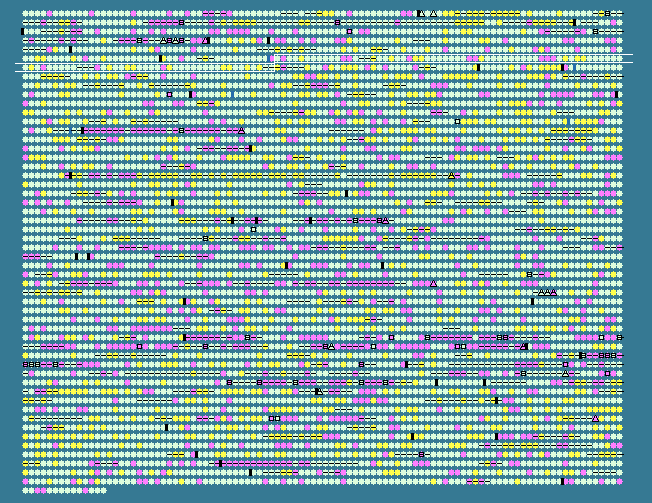

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.70 STD DEV: 4.03
Methylobacterium populi BJ001, complete genome - 1..5800441
5314 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
543	 68.80	0	609240..609941	+	233	188579829	-	Mpop_0561	-	endonuclease III
544	 62.77	-1	610132..610926	+	264	188579830	-	Mpop_0562	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
545	 72.96	0	610933..612600	-	555	188579831	-	Mpop_0563	-	glycosyl transferase family 2
546	 72.63	0	612597..614609	-	670	188579832	-	Mpop_0564	-	glycosyl transferase family 2
547	 74.77	+1	614694..615335	-	213	188579833	-	Mpop_0565	-	hypothetical protein
548	 68.41	0	615394..615966	-	190	188579834	-	Mpop_0566	-	Invasion associated locus B family protein
549	 72.62	0	616213..616632	+	139	188579835	-	Mpop_0567	-	hypothetical protein
550	 72.59	0	616747..617472	-	241	188579836	-	Mpop_0568	-	protein of unknown function DUF45
551	 68.84	0	617552..618796	-	414	188579837	-	Mpop_0569	-	polyhydroxyalkanoate depolymerase, intracellular
552	 70.04	0	618955..620349	+	464	188579838	-	Mpop_0570	-	integral membrane sensor signal transduction histidine kinase
553	 68.99	0	620386..620988	+	200	188579839	-	Mpop_0571	-	two component transcriptional regulator, Fis family
554	 65.78	0	621175..621399	+	74	188579840	-	Mpop_0572	-	putative exported protein of unknown function
555	 61.67	-1	621592..621831	+	79	188579841	-	Mpop_0573	-	phosphoribosylformylglycinamidine synthase, purS
556	 70.34	0	621831..622511	+	226	188579842	-	Mpop_0574	-	phosphoribosylformylglycinamidine synthase I
557	 67.77	0	622578..623123	-	181	188579843	-	Mpop_0575	-	adenine phosphoribosyltransferase
558	 69.94	0	623201..623995	-	264	188579844	-	Mpop_0576	-	Inositol-phosphate phosphatase
559	 76.21	+1	624127..624744	-	205	188579845	-	Mpop_0577	-	Thiamine-phosphate diphosphorylase
560	 70.62	0	624754..625563	-	269	188579846	-	Mpop_0578	-	thiazole biosynthesis family protein
561	 68.54	0	625568..625780	-	70	188579847	-	Mpop_0579	-	thiamine biosynthesis protein ThiS
562	 74.04	+1	625777..626997	-	406	188579848	-	Mpop_0580	-	glycine oxidase ThiO
563	 67.08	0	627437..629125	+	562	188579849	-	Mpop_0581	-	methyl-accepting chemotaxis sensory transducer
564	 69.17	0	629145..630422	-	425	188579850	-	Mpop_0582	-	adenylate/guanylate cyclase
565	 63.69	-1	630730..631098	+	122	188579851	-	Mpop_0583	-	hypothetical protein
566	 73.58	0	631252..632307	+	351	188579852	-	Mpop_0584	-	transcriptional regulator, AraC family
567	 75.70	+1	632313..633662	+	449	188579853	-	Mpop_0585	-	major facilitator superfamily MFS_1
568	 66.77	0	633707..635710	-	667	188579854	-	Mpop_0586	-	RNA polymerase, sigma 70 subunit, RpoD
569	 70.71	0	635917..637845	-	642	188579855	-	Mpop_0587	-	DNA primase
570	 72.43	0	638019..638990	+	323	188579856	-	Mpop_0588	-	Gluconolactonase
571	 71.72	0	639002..640168	+	388	188579857	-	Mpop_0589	-	major royal jelly protein
572	 67.97	0	640232..640690	-	152	188579858	-	Mpop_0590	-	GatB/YqeY
573	 69.06	0	640881..642131	+	416	188579859	-	Mpop_0591	-	carbamoyl-phosphate synthase, small subunit
574	 66.67	0	642272..642646	+	124	188579860	-	Mpop_0592	-	hypothetical protein
575	 62.63	-1	642653..642949	-	98	188579861	-	Mpop_0593	-	plasmid stabilization system
576	 65.94	0	642942..643217	-	91	188579862	-	Mpop_0594	-	putative addiction module antidote protein, CopG/Arc/MetJ family
577	 74.28	+1	643344..646010	-	888	188579863	-	Mpop_0595	-	hypothetical protein
578	 68.46	0	646169..646558	+	129	188579864	-	Mpop_0596	-	flagellar basal body rod protein
579	 69.06	0	646555..646971	+	138	188579865	-	Mpop_0597	-	flagellar basal-body rod protein FlgC
580	 69.77	0	646983..647336	+	117	188579866	-	Mpop_0598	-	flagellar hook-basal body complex protein FliE
581	 67.68	0	647363..648151	+	262	188579867	-	Mpop_0599	-	flagellar basal-body rod protein FlgG
582	 72.39	0	648190..648678	+	162	188579868	-	Mpop_0600	-	FlgA, flagellar basal-body P-ring formation protein
583	 70.28	0	648675..649808	+	377	188579869	-	Mpop_0601	-	flagellar P-ring protein
584	 71.97	0	649805..650389	+	194	188579870	-	Mpop_0602	-	conserved hypothetical proteinn
585	 69.90	0	650389..651099	+	236	188579871	-	Mpop_0603	-	flagellar L-ring protein
586	 68.74	0	651112..651594	+	160	188579872	-	Mpop_0604	-	flagellar basal body-associated protein FliL
587	 65.62	-1	651603..652364	+	253	188579873	-	Mpop_0605	-	flagellar biosynthetic protein FliP
588	 64.44	-1	652353..652667	-	104	188579874	-	Mpop_0606	-	plasmid stabilization system
589	 64.07	-1	652664..652894	-	76	188579875	-	Mpop_0607	-	hypothetical protein
590	 70.17	0	653158..654870	+	570	188579876	-	Mpop_0608	-	flagellar M-ring protein FliF
591	 77.51	+1	654870..655607	+	245	188579877	-	Mpop_0609	-	hypothetical protein
592	 71.41	0	655609..657021	+	470	188579878	-	Mpop_0610	-	OmpA/MotB domain protein
593	 73.88	+1	657018..658307	+	429	188579879	-	Mpop_0611	-	putative chemotaxis protein precursor
594	 77.44	+1	658347..660203	+	618	188579880	-	Mpop_0612	-	flagellar hook-length control protein
595	 67.34	0	660157..660750	+	197	188579881	-	Mpop_0613	-	Lytic transglycosylase catalytic
596	 66.95	0	660797..661495	-	232	188579882	-	Mpop_0614	-	two component transcriptional regulator, winged helix family
597	 66.67	0	661706..662152	-	148	188579883	-	Mpop_0615	-	hypothetical protein
598	 67.42	0	662149..663213	-	354	188579884	-	Mpop_0616	-	flagellar biosynthetic protein FlhB
599	 68.62	0	663251..664327	-	358	188579885	-	Mpop_0617	-	flagellar motor switch protein FliG
600	 70.03	0	664350..664676	-	108	188579886	-	Mpop_0618	-	flagellar motor switch protein FliN
601	 68.67	0	664873..665172	+	99	188579887	-	Mpop_0619	-	hypothetical protein
602	 73.74	+1	665186..665482	-	98	188579888	-	Mpop_0620	-	hypothetical protein
603	 70.54	0	665466..666473	-	335	188579889	-	Mpop_0621	-	flagellar motor switch protein FliM
604	 65.98	0	666486..667361	-	291	188579890	-	Mpop_0622	-	chemotaxis MotA protein
605	 68.92	0	667606..668226	+	206	188579891	-	Mpop_0623	-	20S proteasome A and B subunits
606	 68.49	0	668333..669646	+	437	188579892	-	Mpop_0624	-	heat shock protein HslVU, ATPase subunit HslU
607	 73.06	0	669649..670539	+	296	188579893	-	Mpop_0625	-	protein of unknown function DUF6 transmembrane
608	 71.19	0	670546..671607	-	353	188579894	-	Mpop_0626	-	beta-lactamase domain protein
609	 70.26	0	671657..672742	-	361	188579895	-	Mpop_0627	-	Rieske (2Fe-2S) domain protein
610	 71.48	0	673129..673647	-	172	188579896	-	Mpop_0628	-	hypothetical protein
611	 70.27	0	673934..674155	+	73	188579897	-	Mpop_0629	-	hypothetical protein
612	 69.80	0	674172..675734	+	520	188579898	-	Mpop_0630	-	signal recognition particle protein
613	 62.93	-1	675731..676078	+	115	188579899	-	Mpop_0631	-	chorismate mutase
614	 71.90	0	676078..676440	+	120	188579900	-	Mpop_0632	-	ribosomal protein S16
615	 73.19	0	676503..677177	+	224	188579901	-	Mpop_0633	-	16S rRNA processing protein RimM
616	 71.95	0	677221..678015	-	264	188579902	-	Mpop_0634	-	hypothetical protein
617	 72.93	0	678084..678818	-	244	188579903	-	Mpop_0635	-	Methyltransferase type 11
618	 75.64	+1	678926..679237	+	103	188579904	-	Mpop_0636	-	hypothetical protein
619	 73.19	0	679298..680017	+	239	188579905	-	Mpop_0637	-	tRNA (guanine-N1)-methyltransferase
620	 69.47	0	680192..681367	+	391	188579906	-	Mpop_0638	-	phosphoserine aminotransferase
621	 68.47	0	681529..683136	+	535	188579907	-	Mpop_0639	-	D-3-phosphoglycerate dehydrogenase
622	 70.30	0	683114..683443	+	109	188579908	-	Mpop_0640	-	hypothetical protein
623	 72.22	0	683521..684618	+	365	188579909	-	Mpop_0641	-	translation initiation factor, aIF-2BI family
624	 62.64	-1	684632..684979	-	115	188579910	-	Mpop_0642	-	putative DNA-binding protein
625	 73.78	+1	685025..686458	-	477	188579911	-	Mpop_0643	-	MATE efflux family protein
626	 69.35	0	686481..688421	-	646	188579912	-	Mpop_0644	-	ABC transporter related
627	 71.11	0	688466..688915	+	149	188579913	-	Mpop_0645	-	tRNA/rRNA methyltransferase (SpoU)
628	 68.62	0	689335..691332	+	665	188579914	-	Mpop_0646	-	TonB-dependent siderophore receptor
629	 69.70	0	691478..692401	+	307	188579915	-	Mpop_0647	-	Coproporphyrinogen oxidase
630	 69.62	0	692415..693533	+	372	188579916	-	Mpop_0648	-	conserved hypothetical protein; putative deoxyribonuclease
631	 70.97	0	693979..695256	-	425	188579917	-	Mpop_0649	-	putative transcriptional regulator, GntR family
632	 69.31	0	695649..696329	+	226	188579918	-	Mpop_0650	-	two component transcriptional regulator, winged helix family
633	 67.12	0	696451..698229	-	592	188579919	-	Mpop_0651	-	flagellin domain protein
634	 73.86	+1	698675..698980	-	101	188579920	-	Mpop_0652	-	type IV pilus assembly PilZ
635	 77.25	+1	699200..699766	+	188	188579921	-	Mpop_0653	-	hypothetical protein
636	 70.97	0	699912..701165	+	417	188579922	-	Mpop_0654	-	protein of unknown function DUF1217
637	 70.23	0	701170..701898	+	242	188579923	-	Mpop_0655	-	flagellar basal body rod protein
638	 73.59	0	701903..703231	+	442	188579924	-	Mpop_0656	-	ATPase, FliI/YscN family
639	 66.58	0	703314..704522	+	402	188579925	-	Mpop_0657	-	flagellar basal body FlaE domain protein
640	 73.88	+1	704625..706094	+	489	188579926	-	Mpop_0658	-	flagellar hook-associated protein FlgK
641	 70.09	0	706102..707154	+	350	188579927	-	Mpop_0659	-	flagellar hook-associated 3 family protein
642	 69.80	0	707196..707546	+	116	188579928	-	Mpop_0660	-	flagellar FlaF family protein
69.70	MEAN

4.03	STD DEV
