IslandPath Analysis: Methylobacterium populi BJ001

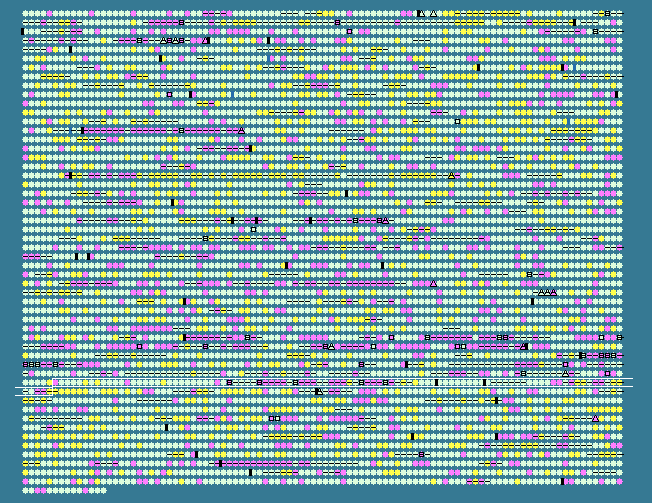

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.70 STD DEV: 4.03
Methylobacterium populi BJ001, complete genome - 1..5800441
5314 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4106	 65.38	-1	4476540..4476773	-	77	188583392	-	Mpop_4190	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
4107	 66.95	0	4476789..4478531	-	580	188583393	-	Mpop_4191	-	fumarate reductase/succinate dehydrogenase flavoprotein domain protein
4108	 72.67	0	4478543..4478842	-	99	188583394	-	Mpop_4192	-	protein of unknown function DUF971
4109	 68.88	0	4479108..4481144	+	678	188583395	-	Mpop_4193	-	Radical SAM domain protein
4110	 69.86	0	4481457..4482866	-	469	188583396	-	Mpop_4194	-	chromate transporter, chromate ion transporter (CHR) family
4111	 73.77	+1	4482869..4483699	-	276	188583397	-	Mpop_4195	-	Rhodanese domain protein
4112	 71.37	0	4484124..4486205	+	693	188583398	-	Mpop_4196	-	integral membrane sensor hybrid histidine kinase
4113	 73.42	0	4486303..4486524	-	73	188583399	-	Mpop_4197	-	hypothetical protein
4114	 69.26	0	4486667..4487593	-	308	188583400	-	Mpop_4198	-	periplasmic binding protein/LacI transcriptional regulator
4115	 69.07	0	4487620..4489326	-	568	188583401	-	Mpop_4199	-	methyl-accepting chemotaxis sensory transducer
4116	 67.63	0	4489437..4490885	-	482	188583402	-	Mpop_4200	-	Carbohydrate-selective porin OprB
4117	 69.06	0	4491376..4492710	-	444	188583403	-	Mpop_4201	-	Gluconate 2-dehydrogenase (acceptor)
4118	 65.65	-1	4492721..4494493	-	590	188583404	-	Mpop_4202	-	Gluconate 2-dehydrogenase (acceptor)
4119	 67.65	0	4494532..4495242	-	236	188583405	-	Mpop_4203	-	hypothetical protein
4120	 69.18	0	4495669..4496106	+	145	188583406	-	Mpop_4204	-	hypothetical protein
4121	 72.28	0	4496097..4497734	+	545	188583407	-	Mpop_4205	-	Glyoxalase/bleomycin resistance protein/dioxygenase
4122	 72.22	0	4497742..4498623	-	293	188583408	-	Mpop_4206	-	transcriptional regulator, IclR family
4123	 72.50	0	4498669..4499439	-	256	188583409	-	Mpop_4207	-	2-dehydro-3-deoxyglucarate aldolase
4124	 74.78	+1	4499635..4500768	+	377	188583410	-	Mpop_4208	-	peptidase M24
4125	 72.32	0	4500815..4502689	+	624	188583411	-	Mpop_4209	-	thiamine pyrophosphate protein central region
4126	 70.22	0	4502701..4503909	+	402	188583412	-	Mpop_4210	-	Mandelate racemase/muconate lactonizing protein
4127	 72.36	0	4503912..4504736	+	274	188583413	-	Mpop_4211	-	short-chain dehydrogenase/reductase SDR
4128	 66.67	0	4504799..4506232	+	477	188583414	-	Mpop_4212	-	sugar transporter
4129	 70.58	0	4506225..4507247	+	340	188583415	-	Mpop_4213	-	Xylose isomerase domain protein TIM barrel
4130	 72.35	0	4507307..4508221	-	304	188583416	-	Mpop_4214	-	transcriptional regulator, LysR family
4131	 70.40	0	4508362..4509861	+	499	188583417	-	Mpop_4215	-	methylmalonate-semialdehyde dehydrogenase
4132	 68.93	0	4510406..4511419	+	337	188583418	-	Mpop_4216	-	transcriptional regulator, LysR family
4133	 63.64	-1	4511443..4511739	-	98	188583419	-	Mpop_4217	-	hypothetical protein
4134	 70.59	0	4511939..4513339	+	466	188583420	-	Mpop_4218	-	amidohydrolase
4135	 63.12	-1	4514450..4514731	-	93	188583421	-	Mpop_4220	-	transposase IS3/IS911 family protein
4136	 70.33	0	4515061..4515825	-	254	188583422	-	Mpop_4222	-	ABC transporter related
4137	 70.89	0	4515822..4516862	-	346	188583423	-	Mpop_4223	-	transport system permease protein
4138	 69.84	0	4516859..4517836	-	325	188583424	-	Mpop_4224	-	periplasmic binding protein
4139	 67.29	0	4517944..4520013	-	689	188583425	-	Mpop_4225	-	TonB-dependent siderophore receptor
4140	 64.76	-1	4520160..4521368	+	402	188583426	-	Mpop_4226	-	transposase mutator type
4141	 62.84	-1	4521934..4522587	-	217	188583427	-	Mpop_4228	-	HupE/UreJ protein
4142	 60.72	-2	4522604..4522990	-	128	188583428	-	Mpop_4229	-	hypothetical protein
4143	 60.37	-2	4522987..4523748	-	253	188583429	-	Mpop_4230	-	Thiocyanate hydrolase
4144	 56.26	-2	4523782..4524636	-	284	188583430	-	Mpop_4231	-	hypothetical protein
4145	 68.94	0	4525027..4527270	-	747	188583431	-	Mpop_4232	-	TonB-dependent siderophore receptor
4146	 68.68	0	4527513..4528856	-	447	188583432	-	Mpop_4233	-	transposase IS4 family protein
4147	 56.58	-2	4530275..4531087	-	270	188583433	-	Mpop_4234	-	protein of unknown function DUF81
4148	 48.56	-2	4531730..4531972	+	80	188583434	-	Mpop_4236	-	hypothetical protein
4149	 50.00	-2	4531985..4532296	+	103	188583435	-	Mpop_4237	-	hypothetical protein
4150	 71.96	0	4533681..4534247	-	188	188583436	-	Mpop_4240	-	hypothetical protein
4151	 69.76	0	4534251..4534670	-	139	188583437	-	Mpop_4241	-	hypothetical protein
4152	 64.97	-1	4534744..4535982	+	412	188583438	-	Mpop_4242	-	hypothetical protein
4153	 65.74	0	4535963..4536178	+	71	188583439	-	Mpop_4243	-	hypothetical protein
4154	 58.06	-2	4536331..4537770	+	479	188583440	-	Mpop_4244	-	hypothetical protein
4155	 73.39	0	4537974..4538732	+	252	188583441	-	Mpop_4245	-	Peptidoglycan-binding domain 1 protein
4156	 69.27	0	4538736..4538927	+	63	188583442	-	Mpop_4246	-	hypothetical protein
4157	 68.68	0	4539239..4540582	+	447	188583443	-	Mpop_4247	-	transposase IS4 family protein
4158	 62.43	-1	4540749..4540937	+	62	188583444	-	Mpop_4248	-	hypothetical protein
4159	 64.81	-1	4540934..4541419	+	161	188583445	-	Mpop_4249	-	hypothetical protein
4160	 52.05	-2	4541647..4542843	-	398	188583446	-	Mpop_4250	-	Capsular polysaccharide biosynthesis protein-like protein
4161	 68.68	0	4543038..4544381	+	447	188583447	-	Mpop_4251	-	transposase IS4 family protein
4162	 50.53	-2	4544378..4545133	-	251	188583448	-	Mpop_4252	-	hypothetical protein
4163	 68.56	0	4545531..4546589	+	352	188583449	-	Mpop_4253	-	dTDP-glucose 4,6-dehydratase
4164	 73.74	+1	4546592..4547482	+	296	188583450	-	Mpop_4254	-	dTDP-4-dehydrorhamnose reductase
4165	 66.89	0	4547498..4548388	+	296	188583451	-	Mpop_4255	-	glucose-1-phosphate thymidylyltransferase
4166	 73.46	0	4548436..4548597	-	53	188583452	-	Mpop_4256	-	hypothetical protein
4167	 70.04	0	4548594..4548860	-	88	188583453	-	Mpop_4257	-	hypothetical protein
4168	 67.59	0	4548857..4549072	-	71	188583454	-	Mpop_4258	-	hypothetical protein
4169	 69.66	0	4549069..4549335	-	88	188583455	-	Mpop_4259	-	hypothetical protein
4170	 71.07	0	4549740..4550489	+	249	188583456	-	Mpop_4260	-	short-chain dehydrogenase/reductase SDR
4171	 67.59	0	4550595..4552214	+	539	188583457	-	Mpop_4261	-	peptide chain release factor 3
4172	 67.19	0	4552264..4552455	-	63	188583458	-	Mpop_4262	-	hypothetical protein
4173	 69.89	0	4552562..4552996	-	144	188583459	-	Mpop_4263	-	hypothetical protein
4174	 72.01	0	4553104..4553871	-	255	188583460	-	Mpop_4264	-	ABC transporter related
4175	 72.24	0	4553883..4554635	-	250	188583461	-	Mpop_4265	-	binding-protein-dependent transport systems inner membrane component
4176	 70.37	0	4554664..4555689	-	341	188583462	-	Mpop_4266	-	ABC-type nitrate/sulfonate/bicarbonate transport systems periplasmic components-like protein
4177	 66.44	0	4555888..4556325	+	145	188583463	-	Mpop_4267	-	hypothetical protein
4178	 71.35	0	4556746..4556937	-	63	188583464	-	Mpop_4268	-	hypothetical protein
4179	 72.30	0	4557121..4557333	+	70	188583465	-	Mpop_4269	-	hypothetical protein
4180	 71.57	0	4557371..4557574	-	67	188583466	-	Mpop_4270	-	hypothetical protein
4181	 68.93	0	4557676..4557984	-	102	188583467	-	Mpop_4271	-	hypothetical protein
4182	 71.51	0	4558029..4558544	-	171	188583468	-	Mpop_4272	-	iron (metal) dependent repressor, DtxR family
4183	 70.04	0	4558973..4560307	+	444	188583469	-	Mpop_4273	-	Mn2+/Fe2+ transporter, NRAMP family
4184	 71.81	0	4560320..4561213	-	297	188583470	-	Mpop_4274	-	transcriptional regulator, LysR family
4185	 70.29	0	4561387..4562712	+	441	188583471	-	Mpop_4275	-	sodium/sulphate symporter
4186	 68.41	0	4562846..4563247	+	133	188583472	-	Mpop_4276	-	succinate dehydrogenase, cytochrome b556 subunit
4187	 68.33	0	4563259..4563678	+	139	188583473	-	Mpop_4277	-	succinate dehydrogenase, hydrophobic membrane anchor protein
4188	 68.26	0	4563711..4565528	+	605	188583474	-	Mpop_4278	-	succinate dehydrogenase, flavoprotein subunit
4189	 62.60	-1	4565579..4565824	+	81	188583475	-	Mpop_4279	-	protein of unknown function DUF433
4190	 63.79	-1	4565839..4566186	+	115	188583476	-	Mpop_4280	-	hypothetical protein
4191	 72.42	0	4566190..4566780	+	196	188583477	-	Mpop_4281	-	hypothetical protein
4192	 64.97	-1	4566849..4567673	+	274	188583478	-	Mpop_4282	-	succinate dehydrogenase and fumarate reductase iron-sulfur protein
4193	 77.13	+1	4567943..4568506	+	187	188583479	-	Mpop_4283	-	outer membrane lipoprotein omp19
4194	 73.41	0	4568516..4570309	-	597	188583480	-	Mpop_4284	-	conserved hypothetical proteinn
4195	 72.90	0	4570593..4571618	+	341	188583481	-	Mpop_4285	-	KpsF/GutQ family protein
4196	 45.25	-2	4572706..4573578	+	290	188583482	-	Mpop_4286	-	hypothetical protein
4197	 42.88	-2	4573538..4574092	+	184	188583483	-	Mpop_4287	-	hypothetical protein
4198	 67.12	0	4574182..4574625	-	147	188583484	-	Mpop_4288	-	protein of unknown function DUF606
4199	 74.38	+1	4575065..4575829	+	254	188583485	-	Mpop_4289	-	Enoyl-CoA hydratase/isomerase
4200	 75.23	+1	4575837..4576688	+	283	188583486	-	Mpop_4290	-	short-chain dehydrogenase/reductase SDR
4201	 67.13	0	4576685..4577554	+	289	188583487	-	Mpop_4291	-	short-chain dehydrogenase/reductase SDR
4202	 67.16	0	4577580..4578584	+	334	188583488	-	Mpop_4292	-	Mg2 transporter protein CorA family protein
4203	 66.11	0	4578780..4579322	+	180	188583489	-	Mpop_4293	-	protein of unknown function DUF892
4204	 53.73	-2	4579749..4580606	-	285	188583490	-	Mpop_4294	-	hypothetical protein
4205	 74.11	+1	4581506..4581787	-	93	188583491	-	Mpop_4295	-	hypothetical protein
69.70	MEAN

4.03	STD DEV
