IslandPath Analysis: Methylobacterium populi BJ001

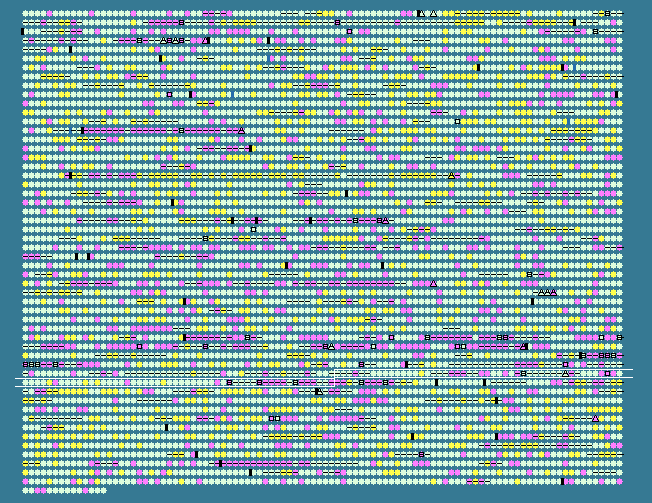

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.70 STD DEV: 4.03
Methylobacterium populi BJ001, complete genome - 1..5800441
5314 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4053	 69.89	0	4419730..4420443	-	237	188583339	-	Mpop_4134	-	hypothetical protein
4054	 71.33	0	4420588..4424019	-	1143	188583340	-	Mpop_4135	-	UvrD/REP helicase
4055	 70.62	0	4424006..4424638	-	210	188583341	-	Mpop_4136	-	hypothetical protein
4056	 64.47	-1	4424635..4425408	-	257	188583342	-	Mpop_4137	-	RNA polymerase, sigma-24 subunit, ECF subfamily
4057	 70.23	0	4425812..4426288	-	158	188583343	-	Mpop_4138	-	hypothetical protein
4058	 69.44	0	4427502..4427825	+	107	188583344	-	Mpop_4139	-	transcriptional regulator, ArsR family
4059	 70.31	0	4427832..4429148	-	438	188583345	-	Mpop_4140	-	integral membrane sensor signal transduction histidine kinase
4060	 69.98	0	4429145..4429807	-	220	188583346	-	Mpop_4141	-	two component transcriptional regulator, winged helix family
4061	 72.39	0	4429910..4431655	+	581	188583347	-	Mpop_4142	-	cytochrome c biogenesis protein transmembrane region
4062	 70.13	0	4431695..4432330	+	211	188583348	-	Mpop_4143	-	DSBA oxidoreductase
4063	 70.55	0	4432330..4433178	+	282	188583349	-	Mpop_4144	-	ErfK/YbiS/YcfS/YnhG family protein
4064	 67.75	0	4433165..4433626	+	153	188583350	-	Mpop_4145	-	protein of unknown function DUF1791
4065	 72.07	0	4433880..4434305	+	141	188583351	-	Mpop_4146	-	protein of unknown function DUF395 YeeE/YedE
4066	 72.71	0	4434309..4434755	+	148	188583352	-	Mpop_4147	-	protein of unknown function DUF395 YeeE/YedE
4067	 73.70	0	4434752..4435561	+	269	188583353	-	Mpop_4148	-	protein of unknown function DUF81
4068	 70.07	0	4435583..4436494	+	303	188583354	-	Mpop_4149	-	beta-lactamase domain protein
4069	 70.28	0	4436506..4436892	+	128	188583355	-	Mpop_4150	-	Rhodanese domain protein
4070	 68.19	0	4436987..4437709	+	240	188583356	-	Mpop_4151	-	RNA polymerase, sigma-24 subunit, ECF subfamily
4071	 66.48	0	4437743..4438786	+	347	188583357	-	Mpop_4152	-	protein of unknown function DUF395 YeeE/YedE
4072	 65.83	0	4438800..4439159	-	119	188583358	-	Mpop_4153	-	transcriptional regulator, ArsR family
4073	 64.58	-1	4439190..4439477	-	95	188583359	-	Mpop_4154	-	SoxS
4074	 63.19	-1	4439789..4440364	+	191	188583360	-	Mpop_4155	-	putative thioredoxin
4075	 67.09	0	4440532..4441008	+	158	188583361	-	Mpop_4156	-	cytochrome c class I
4076	 66.45	0	4441036..4441506	+	156	188583362	-	Mpop_4157	-	sulfur oxidation protein SoxY
4077	 57.58	-2	4441546..4441875	+	109	188583363	-	Mpop_4158	-	Sulphur oxidation protein SoxZ
4078	 66.09	0	4441934..4442800	+	288	188583364	-	Mpop_4159	-	putative sulfur oxidation protein (SoxA); cytochrome c precursor
4079	 68.15	0	4442816..4444495	+	559	188583365	-	Mpop_4160	-	5'-Nucleotidase domain protein
4080	 66.90	0	4444549..4445841	+	430	188583366	-	Mpop_4161	-	oxidoreductase molybdopterin binding
4081	 65.19	-1	4445825..4446502	+	225	188583367	-	Mpop_4162	-	putative sulfite oxidase cytochrome subunit (SoxD)
4082	 67.61	0	4446499..4447449	+	316	188583368	-	Mpop_4163	-	beta-lactamase domain protein
4083	 62.77	-1	4447512..4447973	+	153	188583369	-	Mpop_4164	-	protein of unknown function DUF1791
4084	 68.68	0	4449862..4451205	+	447	188583370	-	Mpop_4167	-	transposase IS4 family protein
4085	 67.46	0	4451815..4452066	+	83	188583371	-	Mpop_4168	-	hypothetical protein
4086	 72.27	0	4452067..4452762	-	231	188583372	-	Mpop_4169	-	protein of unknown function DUF125 transmembrane
4087	 69.60	0	4452768..4453313	-	181	188583373	-	Mpop_4170	-	cytochrome B561
4088	 68.41	0	4453681..4454538	-	285	188583374	-	Mpop_4171	-	Ferritin Dps family protein
4089	 70.61	0	4454802..4455029	+	75	188583375	-	Mpop_4172	-	hypothetical protein
4090	 72.00	0	4455550..4456449	-	299	188583376	-	Mpop_4173	-	hypothetical protein
4091	 67.29	0	4456797..4458239	-	480	188583377	-	Mpop_4174	-	integrase family protein
4092	 65.62	-1	4458820..4459491	+	223	188583378	-	Mpop_4175	-	hypothetical protein
4093	 67.12	0	4460309..4460968	-	219	188583379	-	Mpop_4176	-	protein of unknown function DUF159
4094	 66.38	0	4461787..4464981	-	1064	188583380	-	Mpop_4178	-	transporter, hydrophobe/amphiphile efflux-1 (HAE1) family
4095	 72.60	0	4465094..4466356	-	420	188583381	-	Mpop_4179	-	efflux transporter, RND family, MFP subunit
4096	 69.43	0	4466445..4467059	+	204	188583382	-	Mpop_4180	-	transcriptional regulator, TetR family
4097	 65.94	0	4467210..4467623	-	137	188583383	-	Mpop_4181	-	GreA/GreB family elongation factor
4098	 64.76	-1	4468536..4469744	-	402	188583384	-	Mpop_4182	-	transposase mutator type
4099	 64.00	-1	4469904..4470353	+	149	188583385	-	Mpop_4183	-	GreA/GreB family elongation factor
4100	 71.83	0	4470539..4471390	-	283	188583386	-	Mpop_4184	-	ABC transporter related
4101	 72.30	0	4471387..4472238	-	283	188583387	-	Mpop_4185	-	binding-protein-dependent transport systems inner membrane component
4102	 70.20	0	4472247..4473689	-	480	188583388	-	Mpop_4186	-	putative ABC transporter, substrate-binding protein
4103	 70.33	0	4473982..4474746	+	254	188583389	-	Mpop_4187	-	transcriptional regulator, Crp/Fnr family
4104	 71.18	0	4474915..4475535	+	206	188583390	-	Mpop_4188	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
4105	 77.08	+1	4475575..4476534	-	319	188583391	-	Mpop_4189	-	HEAT domain containing protein
4106	 65.38	-1	4476540..4476773	-	77	188583392	-	Mpop_4190	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
4107	 66.95	0	4476789..4478531	-	580	188583393	-	Mpop_4191	-	fumarate reductase/succinate dehydrogenase flavoprotein domain protein
4108	 72.67	0	4478543..4478842	-	99	188583394	-	Mpop_4192	-	protein of unknown function DUF971
4109	 68.88	0	4479108..4481144	+	678	188583395	-	Mpop_4193	-	Radical SAM domain protein
4110	 69.86	0	4481457..4482866	-	469	188583396	-	Mpop_4194	-	chromate transporter, chromate ion transporter (CHR) family
4111	 73.77	+1	4482869..4483699	-	276	188583397	-	Mpop_4195	-	Rhodanese domain protein
4112	 71.37	0	4484124..4486205	+	693	188583398	-	Mpop_4196	-	integral membrane sensor hybrid histidine kinase
4113	 73.42	0	4486303..4486524	-	73	188583399	-	Mpop_4197	-	hypothetical protein
4114	 69.26	0	4486667..4487593	-	308	188583400	-	Mpop_4198	-	periplasmic binding protein/LacI transcriptional regulator
4115	 69.07	0	4487620..4489326	-	568	188583401	-	Mpop_4199	-	methyl-accepting chemotaxis sensory transducer
4116	 67.63	0	4489437..4490885	-	482	188583402	-	Mpop_4200	-	Carbohydrate-selective porin OprB
4117	 69.06	0	4491376..4492710	-	444	188583403	-	Mpop_4201	-	Gluconate 2-dehydrogenase (acceptor)
4118	 65.65	-1	4492721..4494493	-	590	188583404	-	Mpop_4202	-	Gluconate 2-dehydrogenase (acceptor)
4119	 67.65	0	4494532..4495242	-	236	188583405	-	Mpop_4203	-	hypothetical protein
4120	 69.18	0	4495669..4496106	+	145	188583406	-	Mpop_4204	-	hypothetical protein
4121	 72.28	0	4496097..4497734	+	545	188583407	-	Mpop_4205	-	Glyoxalase/bleomycin resistance protein/dioxygenase
4122	 72.22	0	4497742..4498623	-	293	188583408	-	Mpop_4206	-	transcriptional regulator, IclR family
4123	 72.50	0	4498669..4499439	-	256	188583409	-	Mpop_4207	-	2-dehydro-3-deoxyglucarate aldolase
4124	 74.78	+1	4499635..4500768	+	377	188583410	-	Mpop_4208	-	peptidase M24
4125	 72.32	0	4500815..4502689	+	624	188583411	-	Mpop_4209	-	thiamine pyrophosphate protein central region
4126	 70.22	0	4502701..4503909	+	402	188583412	-	Mpop_4210	-	Mandelate racemase/muconate lactonizing protein
4127	 72.36	0	4503912..4504736	+	274	188583413	-	Mpop_4211	-	short-chain dehydrogenase/reductase SDR
4128	 66.67	0	4504799..4506232	+	477	188583414	-	Mpop_4212	-	sugar transporter
4129	 70.58	0	4506225..4507247	+	340	188583415	-	Mpop_4213	-	Xylose isomerase domain protein TIM barrel
4130	 72.35	0	4507307..4508221	-	304	188583416	-	Mpop_4214	-	transcriptional regulator, LysR family
4131	 70.40	0	4508362..4509861	+	499	188583417	-	Mpop_4215	-	methylmalonate-semialdehyde dehydrogenase
4132	 68.93	0	4510406..4511419	+	337	188583418	-	Mpop_4216	-	transcriptional regulator, LysR family
4133	 63.64	-1	4511443..4511739	-	98	188583419	-	Mpop_4217	-	hypothetical protein
4134	 70.59	0	4511939..4513339	+	466	188583420	-	Mpop_4218	-	amidohydrolase
4135	 63.12	-1	4514450..4514731	-	93	188583421	-	Mpop_4220	-	transposase IS3/IS911 family protein
4136	 70.33	0	4515061..4515825	-	254	188583422	-	Mpop_4222	-	ABC transporter related
4137	 70.89	0	4515822..4516862	-	346	188583423	-	Mpop_4223	-	transport system permease protein
4138	 69.84	0	4516859..4517836	-	325	188583424	-	Mpop_4224	-	periplasmic binding protein
4139	 67.29	0	4517944..4520013	-	689	188583425	-	Mpop_4225	-	TonB-dependent siderophore receptor
4140	 64.76	-1	4520160..4521368	+	402	188583426	-	Mpop_4226	-	transposase mutator type
4141	 62.84	-1	4521934..4522587	-	217	188583427	-	Mpop_4228	-	HupE/UreJ protein
4142	 60.72	-2	4522604..4522990	-	128	188583428	-	Mpop_4229	-	hypothetical protein
4143	 60.37	-2	4522987..4523748	-	253	188583429	-	Mpop_4230	-	Thiocyanate hydrolase
4144	 56.26	-2	4523782..4524636	-	284	188583430	-	Mpop_4231	-	hypothetical protein
4145	 68.94	0	4525027..4527270	-	747	188583431	-	Mpop_4232	-	TonB-dependent siderophore receptor
4146	 68.68	0	4527513..4528856	-	447	188583432	-	Mpop_4233	-	transposase IS4 family protein
4147	 56.58	-2	4530275..4531087	-	270	188583433	-	Mpop_4234	-	protein of unknown function DUF81
4148	 48.56	-2	4531730..4531972	+	80	188583434	-	Mpop_4236	-	hypothetical protein
4149	 50.00	-2	4531985..4532296	+	103	188583435	-	Mpop_4237	-	hypothetical protein
4150	 71.96	0	4533681..4534247	-	188	188583436	-	Mpop_4240	-	hypothetical protein
4151	 69.76	0	4534251..4534670	-	139	188583437	-	Mpop_4241	-	hypothetical protein
4152	 64.97	-1	4534744..4535982	+	412	188583438	-	Mpop_4242	-	hypothetical protein
69.70	MEAN

4.03	STD DEV
