IslandPath Analysis: Methylobacterium populi BJ001

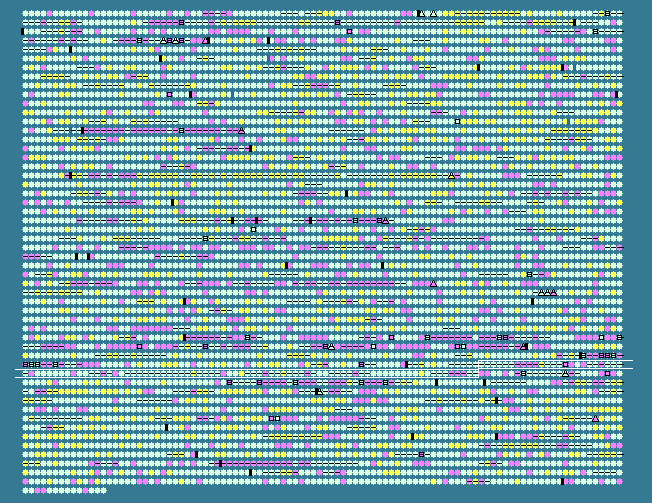

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.70 STD DEV: 4.03
Methylobacterium populi BJ001, complete genome - 1..5800441
5314 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3977	 69.01	0	4324918..4326198	-	426	188583263	-	Mpop_4051	-	major facilitator superfamily MFS_1
3978	 68.63	0	4326188..4327255	-	355	188583264	-	Mpop_4052	-	arsenical-resistance protein
3979	 71.36	0	4327263..4327688	-	141	188583265	-	Mpop_4053	-	arsenate reductase
3980	 70.45	0	4327688..4328215	-	175	188583266	-	Mpop_4054	-	protein tyrosine phosphatase
3981	 72.50	0	4328208..4328567	-	119	188583267	-	Mpop_4055	-	putative transcriptional regulator, ArsR family
3982	 67.87	0	4328618..4329364	+	248	188583268	-	Mpop_4056	-	arsenical resistance protein ArsH
3983	 63.83	-1	4329627..4330967	+	446	188583269	-	Mpop_4057	-	deoxyguanosinetriphosphate triphosphohydrolase
3984	 60.96	-2	4331273..4331710	+	145	188583270	-	Mpop_4058	-	protein of unknown function DUF6 transmembrane
3985	 64.31	-1	4331878..4334466	-	862	188583271	-	Mpop_4059	-	Resolvase domain
3986	 65.41	-1	4335737..4336453	-	238	188583272	-	Mpop_4060	-	hypothetical protein
3987	 73.20	0	4338436..4339032	-	198	188583273	-	Mpop_4062	-	hypothetical protein
3988	 72.47	0	4339302..4340318	-	338	188583274	-	Mpop_4063	-	metallophosphoesterase
3989	 72.47	0	4340506..4341780	-	424	188583275	-	Mpop_4064	-	metallophosphoesterase
3990	 72.49	0	4341914..4342891	-	325	188583276	-	Mpop_4065	-	hypothetical protein
3991	 64.76	-1	4344304..4345512	-	402	188583277	-	Mpop_4069	-	transposase mutator type
3992	 63.16	-1	4345553..4345951	-	132	188583278	-	Mpop_4070	-	transcriptional regulator, MerR family
3993	 72.04	0	4346177..4348315	-	712	188583279	-	Mpop_4071	-	heavy metal translocating P-type ATPase
3994	 66.19	0	4348380..4348802	+	140	188583280	-	Mpop_4072	-	transcriptional regulator, MerR family
3995	 67.82	0	4348940..4349896	+	318	188583281	-	Mpop_4073	-	cation diffusion facilitator family transporter
3996	 67.25	0	4349904..4350590	+	228	188583282	-	Mpop_4074	-	putative membrane protein of unknown function
3997	 60.53	-2	4350650..4350991	-	113	188583283	-	Mpop_4075	-	protein of unknown function DUF1078 domain protein
3998	 69.55	0	4351565..4352326	+	253	188583284	-	Mpop_4076	-	two component transcriptional regulator, winged helix family
3999	 71.10	0	4352323..4353654	+	443	188583285	-	Mpop_4077	-	integral membrane sensor signal transduction histidine kinase
4000	 67.24	0	4353663..4354358	-	231	188583286	-	Mpop_4078	-	protein of unknown function DUF1275
4001	 72.73	0	4354637..4354900	+	87	188583287	-	Mpop_4079	-	hypothetical protein
4002	 64.04	-1	4355124..4355351	-	75	188583288	-	Mpop_4080	-	hypothetical protein
4003	 69.33	0	4355506..4355880	+	124	188583289	-	Mpop_4081	-	hypothetical protein
4004	 68.05	0	4356006..4357379	+	457	188583290	-	Mpop_4082	-	efflux transporter, RND family, MFP subunit
4005	 67.53	0	4357391..4360639	+	1082	188583291	-	Mpop_4083	-	heavy metal efflux pump, CzcA family
4006	 70.34	0	4360645..4360998	+	117	188583292	-	Mpop_4084	-	putative exported protein of unknown function
4007	 72.19	0	4361026..4361568	+	180	188583293	-	Mpop_4085	-	hypothetical protein
4008	 69.11	0	4361611..4362552	+	313	188583294	-	Mpop_4086	-	cation diffusion facilitator family transporter
4009	 66.08	0	4362565..4362735	+	56	188583295	-	Mpop_4087	-	hypothetical protein
4010	 69.40	0	4362802..4363167	-	121	188583296	-	Mpop_4088	-	hypothetical protein
4011	 68.25	0	4363200..4366427	-	1075	188583297	-	Mpop_4089	-	acriflavin resistance protein
4012	 71.59	0	4366440..4368167	-	575	188583298	-	Mpop_4090	-	efflux transporter, RND family, MFP subunit
4013	 67.13	0	4369060..4370556	+	498	188583299	-	Mpop_4091	-	hypothetical protein
4014	 62.50	-1	4372771..4373082	+	103	188583300	-	Mpop_4094	-	hypothetical protein
4015	 67.59	0	4373085..4373192	+	35	188583301	-	Mpop_4095	-	hypothetical protein
4016	 66.22	0	4373385..4373606	+	73	188583302	-	Mpop_4096	-	hypothetical protein
4017	 67.65	0	4373781..4375415	+	544	188583303	-	Mpop_4097	-	filamentation induced by cAMP protein Fic
4018	 70.61	0	4375942..4376601	+	219	188583304	-	Mpop_4098	-	two component transcriptional regulator, winged helix family
4019	 72.84	0	4376598..4377893	+	431	188583305	-	Mpop_4099	-	integral membrane sensor signal transduction histidine kinase
4020	 70.66	0	4377986..4378762	+	258	188583306	-	Mpop_4100	-	protein of unknown function DUF347
4021	 71.32	0	4378831..4379238	+	135	188583307	-	Mpop_4101	-	hypothetical protein
4022	 69.88	0	4379268..4380107	+	279	188583308	-	Mpop_4102	-	protein of unknown function DUF347
4023	 68.98	0	4380080..4380856	+	258	188583309	-	Mpop_4103	-	protein of unknown function DUF347
4024	 68.60	0	4381155..4381928	+	257	188583310	-	Mpop_4104	-	phosphoesterase PA-phosphatase related
4025	 70.04	0	4381945..4384611	-	888	188583311	-	Mpop_4105	-	multi-sensor hybrid histidine kinase
4026	 68.14	0	4384741..4386102	-	453	188583312	-	Mpop_4106	-	signal transduction histidine kinase
4027	 66.67	0	4386771..4387004	+	77	188583313	-	Mpop_4107	-	hypothetical protein
4028	 69.07	0	4388112..4391399	+	1095	188583314	-	Mpop_4108	-	multi-sensor hybrid histidine kinase
4029	 73.75	+1	4391587..4391967	+	126	188583315	-	Mpop_4109	-	hypothetical protein
4030	 67.68	0	4392048..4392443	+	131	188583316	-	Mpop_4110	-	hypothetical protein
4031	 72.46	0	4392440..4393924	+	494	188583317	-	Mpop_4111	-	efflux transporter, RND family, MFP subunit
4032	 69.72	0	4393921..4397094	+	1057	188583318	-	Mpop_4112	-	heavy metal efflux pump, CzcA family
4033	 69.48	0	4397129..4397590	+	153	188583319	-	Mpop_4113	-	protein of unknown function DUF411
4034	 63.29	-1	4397604..4398344	-	246	188583320	-	Mpop_4114	-	hypothetical protein
4035	 71.69	0	4398587..4398805	+	72	188583321	-	Mpop_4115	-	hypothetical protein
4036	 70.90	0	4398824..4399225	-	133	188583322	-	Mpop_4116	-	transcriptional regulator, MerR family
4037	 74.04	+1	4399326..4401521	+	731	188583323	-	Mpop_4117	-	heavy metal translocating P-type ATPase
4038	 71.35	0	4401521..4402033	+	170	188583324	-	Mpop_4118	-	peptidase A8 signal peptidase II
4039	 71.72	0	4402122..4403189	+	355	188583325	-	Mpop_4119	-	protein of unknown function DUF949
4040	 71.09	0	4403226..4403948	+	240	188583326	-	Mpop_4120	-	cytochrome c biogenesis protein transmembrane region
4041	 65.12	-1	4404076..4404399	-	107	188583327	-	Mpop_4121	-	protein of unknown function UPF0060
4042	 68.64	0	4405421..4406785	-	454	188583328	-	Mpop_4123	-	efflux transporter, RND family, MFP subunit
4043	 66.37	0	4406917..4407258	-	113	188583329	-	Mpop_4124	-	hypothetical protein
4044	 73.79	+1	4408209..4409948	+	579	188583330	-	Mpop_4125	-	efflux transporter, RND family, MFP subunit
4045	 69.68	0	4409961..4413110	+	1049	188583331	-	Mpop_4126	-	heavy metal efflux pump, CzcA family
4046	 72.95	0	4413129..4413494	+	121	188583332	-	Mpop_4127	-	hypothetical protein
4047	 71.19	0	4413654..4413896	+	80	188583333	-	Mpop_4128	-	hypothetical protein
4048	 62.17	-1	4413988..4414365	+	125	188583334	-	Mpop_4129	-	protein of unknown function DUF305
4049	 71.83	0	4414514..4416913	+	799	188583335	-	Mpop_4130	-	copper-translocating P-type ATPase
4050	 67.50	0	4417141..4417620	+	159	188583336	-	Mpop_4131	-	hypothetical protein
4051	 69.91	0	4417996..4418334	-	112	188583337	-	Mpop_4132	-	hypothetical protein
4052	 71.18	0	4418334..4419728	-	464	188583338	-	Mpop_4133	-	UBA/THIF-type NAD/FAD binding protein
4053	 69.89	0	4419730..4420443	-	237	188583339	-	Mpop_4134	-	hypothetical protein
4054	 71.33	0	4420588..4424019	-	1143	188583340	-	Mpop_4135	-	UvrD/REP helicase
4055	 70.62	0	4424006..4424638	-	210	188583341	-	Mpop_4136	-	hypothetical protein
4056	 64.47	-1	4424635..4425408	-	257	188583342	-	Mpop_4137	-	RNA polymerase, sigma-24 subunit, ECF subfamily
4057	 70.23	0	4425812..4426288	-	158	188583343	-	Mpop_4138	-	hypothetical protein
4058	 69.44	0	4427502..4427825	+	107	188583344	-	Mpop_4139	-	transcriptional regulator, ArsR family
4059	 70.31	0	4427832..4429148	-	438	188583345	-	Mpop_4140	-	integral membrane sensor signal transduction histidine kinase
4060	 69.98	0	4429145..4429807	-	220	188583346	-	Mpop_4141	-	two component transcriptional regulator, winged helix family
4061	 72.39	0	4429910..4431655	+	581	188583347	-	Mpop_4142	-	cytochrome c biogenesis protein transmembrane region
4062	 70.13	0	4431695..4432330	+	211	188583348	-	Mpop_4143	-	DSBA oxidoreductase
4063	 70.55	0	4432330..4433178	+	282	188583349	-	Mpop_4144	-	ErfK/YbiS/YcfS/YnhG family protein
4064	 67.75	0	4433165..4433626	+	153	188583350	-	Mpop_4145	-	protein of unknown function DUF1791
4065	 72.07	0	4433880..4434305	+	141	188583351	-	Mpop_4146	-	protein of unknown function DUF395 YeeE/YedE
4066	 72.71	0	4434309..4434755	+	148	188583352	-	Mpop_4147	-	protein of unknown function DUF395 YeeE/YedE
4067	 73.70	0	4434752..4435561	+	269	188583353	-	Mpop_4148	-	protein of unknown function DUF81
4068	 70.07	0	4435583..4436494	+	303	188583354	-	Mpop_4149	-	beta-lactamase domain protein
4069	 70.28	0	4436506..4436892	+	128	188583355	-	Mpop_4150	-	Rhodanese domain protein
4070	 68.19	0	4436987..4437709	+	240	188583356	-	Mpop_4151	-	RNA polymerase, sigma-24 subunit, ECF subfamily
4071	 66.48	0	4437743..4438786	+	347	188583357	-	Mpop_4152	-	protein of unknown function DUF395 YeeE/YedE
4072	 65.83	0	4438800..4439159	-	119	188583358	-	Mpop_4153	-	transcriptional regulator, ArsR family
4073	 64.58	-1	4439190..4439477	-	95	188583359	-	Mpop_4154	-	SoxS
4074	 63.19	-1	4439789..4440364	+	191	188583360	-	Mpop_4155	-	putative thioredoxin
4075	 67.09	0	4440532..4441008	+	158	188583361	-	Mpop_4156	-	cytochrome c class I
4076	 66.45	0	4441036..4441506	+	156	188583362	-	Mpop_4157	-	sulfur oxidation protein SoxY
69.70	MEAN

4.03	STD DEV
