IslandPath Analysis: Methylobacterium populi BJ001

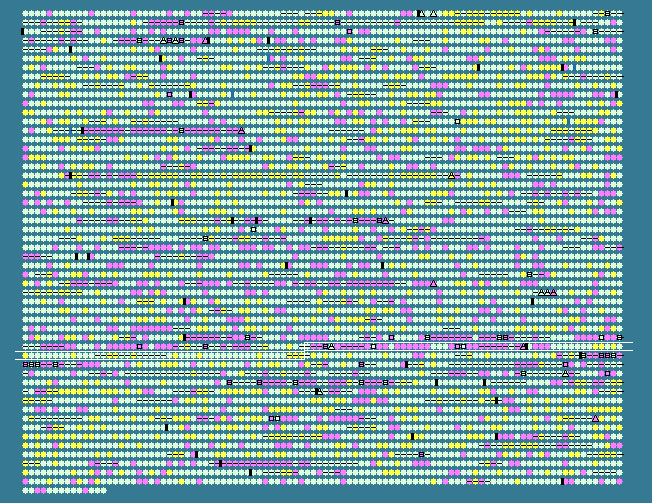

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.70 STD DEV: 4.03
Methylobacterium populi BJ001, complete genome - 1..5800441
5314 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3748	 71.35	0	4062146..4063534	+	462	188583034	-	Mpop_3812	-	ABC transporter related
3749	 62.48	-1	4064566..4065162	-	198	188583035	-	Mpop_3814	-	Glutathione S-transferase domain
3750	 64.29	-1	4065280..4065657	+	125	188583036	-	Mpop_3815	-	transcriptional regulator, HxlR family
3751	 63.77	-1	4065875..4066150	+	91	188583037	-	Mpop_3816	-	transposase IS3/IS911 family protein
3752	 66.55	0	4066189..4067058	+	289	188583038	-	Mpop_3817	-	Integrase catalytic region
3753	 57.75	-2	4067381..4068019	+	212	188583039	-	Mpop_3818	-	transcriptional regulator, TetR family
3754	 61.30	-2	4068231..4068863	+	210	188583040	-	Mpop_3819	-	Carboxymuconolactone decarboxylase
3755	 60.23	-2	4068860..4069822	+	320	188583041	-	Mpop_3820	-	superoxide dismutase (sodC), Cu-Zn family
3756	 60.46	-2	4069891..4070502	+	203	188583042	-	Mpop_3821	-	Glutathione S-transferase domain
3757	 57.00	-2	4070517..4070723	+	68	188583043	-	Mpop_3822	-	hypothetical protein
3758	 64.19	-1	4070830..4071597	+	255	188583044	-	Mpop_3823	-	hypothetical protein
3759	 67.64	0	4071817..4073253	+	478	188583045	-	Mpop_3824	-	transposase IS4 family protein
3760	 57.75	-2	4073526..4073996	-	156	188583046	-	Mpop_3825	-	hypothetical protein
3761	 64.22	-1	4074050..4074580	-	176	188583047	-	Mpop_3826	-	hypothetical protein
3762	 66.74	0	4074774..4076192	+	472	188583048	-	Mpop_3827	-	integral membrane sensor signal transduction histidine kinase
3763	 61.24	-2	4076189..4076851	+	220	188583049	-	Mpop_3828	-	two component transcriptional regulator, LuxR family
3764	 65.66	-1	4077120..4077515	+	131	188583050	-	Mpop_3829	-	hypothetical protein
3765	 62.61	-1	4077552..4077773	+	73	188583051	-	Mpop_3830	-	hypothetical protein
3766	 58.23	-2	4077933..4078169	+	78	188583052	-	Mpop_3831	-	hypothetical protein
3767	 63.69	-1	4078201..4078938	+	245	188583053	-	Mpop_3832	-	transcriptional regulator, Crp/Fnr family
3768	 62.92	-1	4079593..4079832	+	79	188583054	-	Mpop_3834	-	transcriptional regulator, XRE family
3769	 67.65	0	4080541..4081149	+	202	188583055	-	Mpop_3835	-	hypothetical protein
3770	 67.75	0	4081221..4082054	+	277	188583056	-	Mpop_3836	-	hypothetical protein
3771	 68.30	0	4082051..4084198	+	715	188583057	-	Mpop_3837	-	AAA ATPase central domain protein
3772	 65.38	-1	4084186..4084497	+	103	188583058	-	Mpop_3838	-	hypothetical protein
3773	 62.68	-1	4085136..4085411	+	91	188583059	-	Mpop_3840	-	transposase IS3/IS911 family protein
3774	 71.83	0	4085476..4085979	-	167	188583060	-	Mpop_3841	-	transposase IS4 family protein
3775	 59.12	-2	4086187..4088067	-	626	188583061	-	Mpop_3842	-	Resolvase domain
3776	 56.69	-2	4088182..4090305	-	707	188583062	-	Mpop_3843	-	Resolvase domain
3777	 62.77	-1	4091219..4091911	-	230	188583063	-	Mpop_3844	-	hypothetical protein
3778	 59.81	-2	4091895..4092521	-	208	188583064	-	Mpop_3845	-	hypothetical protein
3779	 60.39	-2	4094476..4095144	-	222	188583065	-	Mpop_3847	-	hypothetical protein
3780	 62.05	-1	4096270..4096875	+	201	188583066	-	Mpop_3849	-	protein of unknown function DUF433
3781	 65.29	-1	4096872..4097306	+	144	188583067	-	Mpop_3850	-	putative plasmid stabilization protein
3782	 66.96	0	4097599..4097940	-	113	188583068	-	Mpop_3851	-	hypothetical protein
3783	 59.07	-2	4097971..4098813	-	280	188583069	-	Mpop_3852	-	hypothetical protein
3784	 63.54	-1	4098810..4100312	-	500	188583070	-	Mpop_3853	-	integrase family protein
3785	 70.12	0	4100670..4102841	+	723	188583071	-	Mpop_3854	-	Tetratricopeptide TPR_2 repeat protein
3786	 64.34	-1	4102822..4104066	+	414	188583072	-	Mpop_3855	-	DegT/DnrJ/EryC1/StrS aminotransferase
3787	 56.32	-2	4104166..4104735	-	189	188583073	-	Mpop_3856	-	hypothetical protein
3788	 58.47	-2	4104761..4106053	-	430	188583074	-	Mpop_3857	-	protein of unknown function DUF201
3789	 70.86	0	4106466..4106942	+	158	188583075	-	Mpop_3858	-	hypothetical protein
3790	 71.89	0	4106964..4107212	-	82	188583076	-	Mpop_3859	-	hypothetical protein
3791	 68.35	0	4107212..4107925	-	237	188583077	-	Mpop_3860	-	cyclic nucleotide-binding protein
3792	 71.60	0	4108293..4108454	+	53	188583078	-	Mpop_3861	-	hypothetical protein
3793	 70.40	0	4108451..4109200	+	249	188583079	-	Mpop_3862	-	transcriptional regulator, Crp/Fnr family
3794	 69.53	0	4109300..4109578	-	92	188583080	-	Mpop_3863	-	hypothetical protein
3795	 73.11	0	4110105..4110368	+	87	188583081	-	Mpop_3864	-	hypothetical protein
3796	 76.06	+1	4110483..4110908	+	141	188583082	-	Mpop_3865	-	hypothetical protein
3797	 73.65	0	4110953..4112041	-	362	188583083	-	Mpop_3866	-	Acyl-CoA dehydrogenase type 2 domain
3798	 69.00	0	4112047..4112604	-	185	188583084	-	Mpop_3867	-	OsmC family protein
3799	 75.06	+1	4112615..4113472	-	285	188583085	-	Mpop_3868	-	binding-protein-dependent transport systems inner membrane component
3800	 69.85	0	4113469..4114695	-	408	188583086	-	Mpop_3869	-	twin-arginine translocation pathway signal
3801	 75.26	+1	4114719..4115474	-	251	188583087	-	Mpop_3870	-	ABC transporter related
3802	 67.70	0	4116119..4117573	+	484	188583088	-	Mpop_3871	-	Carbohydrate-selective porin OprB
3803	 68.02	0	4117634..4119037	+	467	188583089	-	Mpop_3872	-	putative monooxygenase
3804	 70.82	0	4119042..4119812	+	256	188583090	-	Mpop_3873	-	ABC transporter related
3805	 70.07	0	4119837..4120718	+	293	188583091	-	Mpop_3874	-	inner-membrane translocator
3806	 70.79	0	4120723..4121766	+	347	188583092	-	Mpop_3875	-	inner-membrane translocator
3807	 68.21	0	4121803..4123167	+	454	188583093	-	Mpop_3876	-	hypothetical protein
3808	 72.94	0	4123164..4123928	+	254	188583094	-	Mpop_3877	-	ABC transporter related
3809	 74.90	+1	4123959..4125209	+	416	188583095	-	Mpop_3878	-	Acyl-CoA dehydrogenase type 2 domain
3810	 68.86	0	4125445..4126449	+	334	188583096	-	Mpop_3879	-	hypothetical protein
3811	 69.31	0	4126572..4131260	-	1562	188583097	-	Mpop_3880	-	flagellin hook IN repeat protein
3812	 67.16	0	4131873..4132880	+	335	188583098	-	Mpop_3881	-	transcriptional regulator, AraC family
3813	 69.60	0	4133043..4133519	+	158	188583099	-	Mpop_3882	-	heat shock protein Hsp20
3814	 72.69	0	4133772..4134584	+	270	188583100	-	Mpop_3883	-	UspA domain protein
3815	 74.00	+1	4134689..4135138	+	149	188583101	-	Mpop_3884	-	hypothetical protein
3816	 75.25	+1	4135160..4135975	-	271	188583102	-	Mpop_3885	-	UspA domain protein
3817	 72.09	0	4136132..4136776	-	214	188583103	-	Mpop_3886	-	transport-associated
3818	 71.30	0	4136811..4137026	-	71	188583104	-	Mpop_3887	-	hypothetical protein
3819	 73.58	0	4137288..4138082	+	264	188583105	-	Mpop_3888	-	UspA domain protein
3820	 72.32	0	4138200..4138889	-	229	188583106	-	Mpop_3889	-	transcriptional regulator, Crp/Fnr family
3821	 72.61	0	4139187..4139741	-	184	188583107	-	Mpop_3890	-	response regulator receiver protein
3822	 71.03	0	4139777..4140418	-	213	188583108	-	Mpop_3891	-	two component transcriptional regulator, LuxR family
3823	 71.80	0	4140422..4141960	-	512	188583109	-	Mpop_3892	-	PAS/PAC sensor signal transduction histidine kinase
3824	 72.86	0	4142331..4143266	+	311	188583110	-	Mpop_3893	-	UspA domain protein
3825	 72.22	0	4143465..4144526	+	353	188583111	-	Mpop_3894	-	response regulator receiver modulated metal dependent phosphohydrolase
3826	 74.59	+1	4144625..4147387	-	920	188583112	-	Mpop_3895	-	multi-sensor hybrid histidine kinase
3827	 68.42	0	4147440..4148861	-	473	188583113	-	Mpop_3896	-	hypothetical protein
3828	 70.43	0	4149168..4149698	-	176	188583114	-	Mpop_3897	-	TadE family protein
3829	 70.04	0	4149794..4150327	-	177	188583115	-	Mpop_3898	-	TadE family protein
3830	 75.17	+1	4150710..4152521	-	603	188583116	-	Mpop_3899	-	allophanate hydrolase
3831	 72.32	0	4152838..4156377	-	1179	188583117	-	Mpop_3900	-	urea carboxylase
3832	 66.36	0	4156370..4157014	-	214	188583118	-	Mpop_3901	-	hypothetical protein
3833	 72.69	0	4157030..4157842	-	270	188583119	-	Mpop_3902	-	hypothetical protein
3834	 71.35	0	4158084..4158446	-	120	188583120	-	Mpop_3903	-	protein of unknown function DUF861 cupin_3
3835	 68.27	0	4158458..4159831	-	457	188583121	-	Mpop_3904	-	glutamine synthetase, type III
3836	 72.75	0	4159833..4160621	-	262	188583122	-	Mpop_3905	-	Creatininase
3837	 71.20	0	4160618..4161565	-	315	188583123	-	Mpop_3906	-	ABC transporter related
3838	 72.16	0	4161562..4162635	-	357	188583124	-	Mpop_3907	-	binding-protein-dependent transport systems inner membrane component
3839	 68.84	0	4162650..4163660	-	336	188583125	-	Mpop_3908	-	ABC transport system substrate-binding protein
3840	 74.48	+1	4164272..4165192	-	306	188583126	-	Mpop_3909	-	short-chain dehydrogenase/reductase SDR
3841	 68.70	0	4165579..4166415	+	278	188583127	-	Mpop_3910	-	alpha/beta hydrolase fold
3842	 72.54	0	4166426..4166953	-	175	188583128	-	Mpop_3911	-	glutathione-dependent formaldehyde-activating GFA
3843	 72.51	0	4167447..4167959	+	170	188583129	-	Mpop_3912	-	GAF domain protein
3844	 70.78	0	4168107..4168325	+	72	188583130	-	Mpop_3913	-	hypothetical protein
3845	 76.07	+1	4168516..4168749	+	77	188583131	-	Mpop_3914	-	hypothetical protein
3846	 75.72	+1	4168755..4168997	+	80	188583132	-	Mpop_3915	-	hypothetical protein
3847	 74.37	+1	4169112..4169825	+	237	188583133	-	Mpop_3916	-	molybdate ABC transporter, inner membrane subunit
69.70	MEAN

4.03	STD DEV
