IslandPath Analysis: Methylobacterium populi BJ001

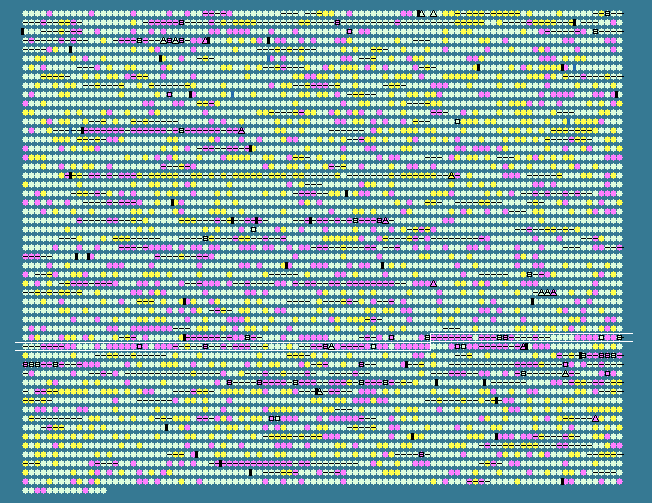

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.70 STD DEV: 4.03
Methylobacterium populi BJ001, complete genome - 1..5800441
5314 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3669	 58.33	-2	3970169..3970408	-	79	188582955	-	Mpop_3721	-	hypothetical protein
3670	 65.18	-1	3970931..3971266	-	111	188582956	-	Mpop_3722	-	hypothetical protein
3671	 64.71	-1	3971283..3971690	-	135	188582957	-	Mpop_3723	-	hypothetical protein
3672	 65.23	-1	3971804..3972361	-	185	188582958	-	Mpop_3724	-	heat shock protein Hsp20
3673	 63.77	-1	3972419..3972901	-	160	188582959	-	Mpop_3725	-	heat shock protein Hsp20
3674	 59.45	-2	3973361..3973831	-	156	188582960	-	Mpop_3727	-	Thioredoxin domain
3675	 62.65	-1	3974007..3975227	+	406	188582961	-	Mpop_3728	-	signal transduction histidine kinase
3676	 67.58	0	3975396..3978020	+	874	188582962	-	Mpop_3729	-	ATP-dependent chaperone ClpB
3677	 65.40	-1	3980198..3980434	-	78	188582963	-	Mpop_3732	-	hypothetical protein
3678	 64.10	-1	3983591..3984019	+	142	188582964	-	Mpop_3735	-	hypothetical protein
3679	 58.74	-2	3984680..3985171	+	163	188582965	-	Mpop_3736	-	sigma 54 modulation protein/ribosomal protein S30EA
3680	 68.68	0	3985567..3986910	+	447	188582966	-	Mpop_3737	-	transposase IS4 family protein
3681	 64.11	-1	3987079..3987833	-	251	188582967	-	Mpop_3738	-	Transposase and inactivated derivatives-like protein
3682	 65.06	-1	3989135..3989881	-	248	188582968	-	Mpop_3739	-	glutaredoxin
3683	 72.02	0	3990005..3990172	-	55	188582969	-	Mpop_3740	-	hypothetical protein
3684	 70.33	0	3990439..3990684	-	81	188582970	-	Mpop_3741	-	hypothetical protein
3685	 72.58	0	3991047..3991469	+	140	188582971	-	Mpop_3742	-	hypothetical protein
3686	 65.66	0	3991589..3992086	+	165	188582972	-	Mpop_3743	-	PRC-barrel domain protein
3687	 70.37	0	3992273..3992488	+	71	188582973	-	Mpop_3744	-	hypothetical protein
3688	 72.77	0	3992572..3992964	+	130	188582974	-	Mpop_3745	-	hypothetical protein
3689	 73.10	0	3992948..3995014	+	688	188582975	-	Mpop_3746	-	multi-sensor signal transduction histidine kinase
3690	 71.92	0	3995033..3995698	+	221	188582976	-	Mpop_3747	-	two component transcriptional regulator, LuxR family
3691	 71.13	0	3995783..3997081	-	432	188582977	-	Mpop_3748	-	hypothetical protein
3692	 70.28	0	3997148..3997507	-	119	188582978	-	Mpop_3749	-	MgtC/SapB transporter
3693	 61.48	-2	3997610..3998728	-	372	188582979	-	Mpop_3750	-	peptidase M50
3694	 65.05	-1	3999245..3999430	+	61	188582980	-	Mpop_3751	-	hypothetical protein
3695	 63.02	-1	3999499..4001910	-	803	188582981	-	Mpop_3752	-	ATP-dependent protease La
3696	 64.22	-1	4001924..4002331	-	135	188582982	-	Mpop_3753	-	hypothetical protein
3697	 68.68	0	4002482..4003825	+	447	188582983	-	Mpop_3754	-	transposase IS4 family protein
3698	 62.41	-1	4004056..4004337	-	93	188582984	-	Mpop_3755	-	hypothetical protein
3699	 64.91	-1	4004334..4005245	-	303	188582985	-	Mpop_3756	-	chaperone DnaJ domain protein
3700	 68.68	0	4005478..4006821	-	447	188582986	-	Mpop_3757	-	transposase IS4 family protein
3701	 68.43	0	4007010..4007576	+	188	188582987	-	Mpop_3758	-	hypothetical protein
3702	 69.44	0	4007861..4008112	+	83	188582988	-	Mpop_3759	-	hypothetical protein
3703	 67.18	0	4008096..4008488	+	130	188582989	-	Mpop_3760	-	hypothetical protein
3704	 63.00	-1	4008485..4008811	+	108	188582990	-	Mpop_3761	-	hypothetical protein
3705	 62.99	-1	4008742..4009149	-	135	188582991	-	Mpop_3762	-	transcriptional regulator, XRE family
3706	 62.90	-1	4009330..4009515	-	61	188582992	-	Mpop_3763	-	hypothetical protein
3707	 64.96	-1	4011219..4011452	-	77	188582993	-	Mpop_3765	-	hypothetical protein
3708	 62.72	-1	4011805..4012767	-	320	188582994	-	Mpop_3766	-	transcriptional regulator, LysR family
3709	 62.14	-1	4013070..4014263	+	397	188582995	-	Mpop_3767	-	Extracellular ligand-binding receptor
3710	 67.01	0	4014390..4015265	+	291	188582996	-	Mpop_3768	-	inner-membrane translocator
3711	 68.52	0	4015262..4017043	+	593	188582997	-	Mpop_3769	-	ABC transporter related
3712	 68.29	0	4017043..4017780	+	245	188582998	-	Mpop_3770	-	ABC transporter related
3713	 64.25	-1	4017862..4018563	+	233	188582999	-	Mpop_3771	-	cyclase family protein
3714	 69.43	0	4018616..4020025	+	469	188583000	-	Mpop_3772	-	Amidase
3715	 65.28	-1	4020516..4020803	-	95	188583001	-	Mpop_3773	-	nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
3716	 63.66	-1	4021069..4022433	+	454	188583002	-	Mpop_3774	-	putative nitrate transporter component, NrtA
3717	 61.21	-2	4022443..4022772	+	109	188583003	-	Mpop_3775	-	hypothetical protein
3718	 60.19	-2	4022965..4023072	+	35	188583004	-	Mpop_3776	-	hypothetical protein
3719	 64.09	-1	4023332..4024342	-	336	188583005	-	Mpop_3778	-	transcriptional regulator, LysR family
3720	 64.76	-1	4024529..4025737	+	402	188583006	-	Mpop_3779	-	transposase mutator type
3721	 60.49	-2	4026746..4027279	+	177	188583007	-	Mpop_3781	-	binding-protein-dependent transport systems inner membrane component
3722	 70.58	0	4027771..4028528	+	252	188583008	-	Mpop_3783	-	hypothetical protein
3723	 60.28	-2	4029140..4029937	+	265	188583009	-	Mpop_3784	-	ABC transporter related
3724	 58.97	-2	4029949..4030260	+	103	188583010	-	Mpop_3785	-	hypothetical protein
3725	 61.81	-1	4030260..4030547	+	95	188583011	-	Mpop_3786	-	putative ScnA-like protein
3726	 61.64	-1	4030540..4031196	+	218	188583012	-	Mpop_3787	-	Nitrile hydratase alpha chain
3727	 71.00	0	4031618..4032448	-	276	188583013	-	Mpop_3788	-	hypothetical protein
3728	 73.54	0	4032708..4033376	-	222	188583014	-	Mpop_3790	-	hypothetical protein
3729	 68.29	0	4033897..4035375	-	492	188583015	-	Mpop_3791	-	PAS/PAC sensor hybrid histidine kinase
3730	 69.78	0	4035397..4036617	-	406	188583016	-	Mpop_3792	-	putative PAS/PAC sensor protein
3731	 65.17	-1	4036674..4037431	-	252	188583017	-	Mpop_3793	-	Transposase and inactivated derivatives-like protein
3732	 69.68	0	4037751..4039877	+	708	188583018	-	Mpop_3794	-	integral membrane sensor hybrid histidine kinase
3733	 71.29	0	4040090..4042513	+	807	188583019	-	Mpop_3795	-	multi-sensor hybrid histidine kinase
3734	 63.55	-1	4042540..4042860	-	106	188583020	-	Mpop_3796	-	putative DNA-binding protein
3735	 67.06	0	4042951..4043463	-	170	188583021	-	Mpop_3797	-	protein of unknown function DUF892
3736	 62.77	-1	4043741..4043971	+	76	188583022	-	Mpop_3798	-	hypothetical protein
3737	 64.80	-1	4045624..4047762	-	712	188583023	-	Mpop_3800	-	TonB-dependent siderophore receptor
3738	 65.35	-1	4049564..4050094	-	176	188583024	-	Mpop_3802	-	hypothetical protein
3739	 71.43	0	4050106..4051071	-	321	188583025	-	Mpop_3803	-	hypothetical protein
3740	 72.18	0	4051049..4051864	-	271	188583026	-	Mpop_3804	-	ABC transporter related
3741	 73.83	+1	4051861..4052907	-	348	188583027	-	Mpop_3805	-	transport system permease protein
3742	 72.22	0	4052904..4053749	-	281	188583028	-	Mpop_3806	-	periplasmic binding protein
3743	 67.73	0	4053757..4055724	-	655	188583029	-	Mpop_3807	-	TonB-dependent receptor plug
3744	 68.37	0	4056564..4058789	+	741	188583030	-	Mpop_3808	-	TonB-dependent siderophore receptor
3745	 73.56	0	4058816..4060381	+	521	188583031	-	Mpop_3809	-	extracellular solute-binding protein family 5
3746	 72.63	0	4060378..4061316	+	312	188583032	-	Mpop_3810	-	binding-protein-dependent transport systems inner membrane component
3747	 69.65	0	4061313..4062149	+	278	188583033	-	Mpop_3811	-	binding-protein-dependent transport systems inner membrane component
3748	 71.35	0	4062146..4063534	+	462	188583034	-	Mpop_3812	-	ABC transporter related
3749	 62.48	-1	4064566..4065162	-	198	188583035	-	Mpop_3814	-	Glutathione S-transferase domain
3750	 64.29	-1	4065280..4065657	+	125	188583036	-	Mpop_3815	-	transcriptional regulator, HxlR family
3751	 63.77	-1	4065875..4066150	+	91	188583037	-	Mpop_3816	-	transposase IS3/IS911 family protein
3752	 66.55	0	4066189..4067058	+	289	188583038	-	Mpop_3817	-	Integrase catalytic region
3753	 57.75	-2	4067381..4068019	+	212	188583039	-	Mpop_3818	-	transcriptional regulator, TetR family
3754	 61.30	-2	4068231..4068863	+	210	188583040	-	Mpop_3819	-	Carboxymuconolactone decarboxylase
3755	 60.23	-2	4068860..4069822	+	320	188583041	-	Mpop_3820	-	superoxide dismutase (sodC), Cu-Zn family
3756	 60.46	-2	4069891..4070502	+	203	188583042	-	Mpop_3821	-	Glutathione S-transferase domain
3757	 57.00	-2	4070517..4070723	+	68	188583043	-	Mpop_3822	-	hypothetical protein
3758	 64.19	-1	4070830..4071597	+	255	188583044	-	Mpop_3823	-	hypothetical protein
3759	 67.64	0	4071817..4073253	+	478	188583045	-	Mpop_3824	-	transposase IS4 family protein
3760	 57.75	-2	4073526..4073996	-	156	188583046	-	Mpop_3825	-	hypothetical protein
3761	 64.22	-1	4074050..4074580	-	176	188583047	-	Mpop_3826	-	hypothetical protein
3762	 66.74	0	4074774..4076192	+	472	188583048	-	Mpop_3827	-	integral membrane sensor signal transduction histidine kinase
3763	 61.24	-2	4076189..4076851	+	220	188583049	-	Mpop_3828	-	two component transcriptional regulator, LuxR family
3764	 65.66	-1	4077120..4077515	+	131	188583050	-	Mpop_3829	-	hypothetical protein
3765	 62.61	-1	4077552..4077773	+	73	188583051	-	Mpop_3830	-	hypothetical protein
3766	 58.23	-2	4077933..4078169	+	78	188583052	-	Mpop_3831	-	hypothetical protein
3767	 63.69	-1	4078201..4078938	+	245	188583053	-	Mpop_3832	-	transcriptional regulator, Crp/Fnr family
3768	 62.92	-1	4079593..4079832	+	79	188583054	-	Mpop_3834	-	transcriptional regulator, XRE family
69.70	MEAN

4.03	STD DEV
