IslandPath Analysis: Methylobacterium populi BJ001

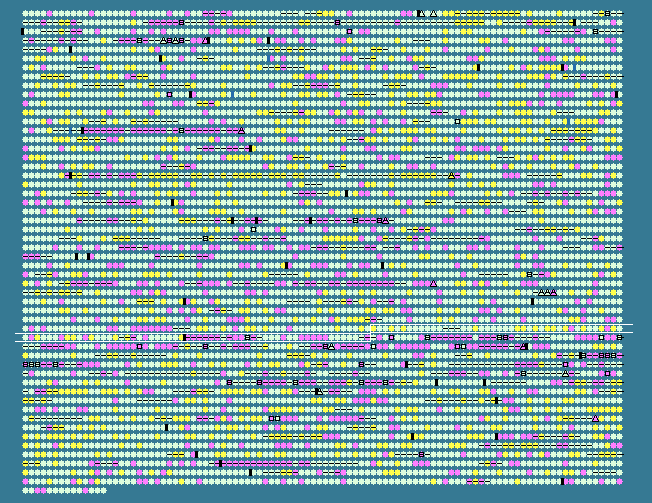

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.70 STD DEV: 4.03
Methylobacterium populi BJ001, complete genome - 1..5800441
5314 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3559	 73.65	0	3847381..3848067	+	228	188582845	-	Mpop_3606	-	conserved hypothetical proteinn
3560	 67.96	0	3848291..3849451	-	386	188582846	-	Mpop_3607	-	hypothetical protein
3561	 70.59	0	3849696..3853010	+	1104	188582847	-	Mpop_3608	-	transglutaminase domain protein
3562	 73.99	+1	3853007..3855547	+	846	188582848	-	Mpop_3609	-	protein of unknown function DUF404
3563	 72.69	0	3855544..3856440	+	298	188582849	-	Mpop_3610	-	transglutaminase domain protein
3564	 73.69	0	3856449..3857003	-	184	188582850	-	Mpop_3611	-	transcriptional regulator, TetR family
3565	 71.66	0	3857235..3857975	+	246	188582851	-	Mpop_3612	-	short-chain dehydrogenase/reductase SDR
3566	 69.84	0	3858015..3859181	-	388	188582852	-	Mpop_3613	-	major facilitator superfamily MFS_1
3567	 70.94	0	3859460..3860068	-	202	188582853	-	Mpop_3614	-	hypothetical protein
3568	 72.11	0	3860291..3862126	+	611	188582854	-	Mpop_3615	-	beta-lactamase
3569	 67.26	0	3862379..3863902	+	507	188582855	-	Mpop_3616	-	Aldehyde Dehydrogenase
3570	 70.90	0	3864010..3864387	+	125	188582856	-	Mpop_3617	-	hypothetical protein
3571	 69.50	0	3864423..3864704	+	93	188582857	-	Mpop_3618	-	hypothetical protein
3572	 66.91	0	3864814..3865230	+	138	188582858	-	Mpop_3619	-	protein of unknown function DUF1486
3573	 72.95	0	3865258..3866547	-	429	188582859	-	Mpop_3620	-	Orn/DAP/Arg decarboxylase 2
3574	 72.66	0	3866553..3868070	-	505	188582860	-	Mpop_3621	-	AMP-dependent synthetase and ligase
3575	 66.67	0	3868078..3868329	-	83	188582861	-	Mpop_3622	-	hypothetical protein
3576	 75.62	+1	3868538..3869062	+	174	188582862	-	Mpop_3623	-	DoxX family protein
3577	 71.19	0	3869019..3870500	-	493	188582863	-	Mpop_3624	-	major facilitator superfamily MFS_1
3578	 71.28	0	3870776..3871663	+	295	188582864	-	Mpop_3625	-	conserved hypothetical protein; putative exported protein
3579	 72.81	0	3871748..3873553	-	601	188582865	-	Mpop_3626	-	Adenine deaminase
3580	 71.16	0	3873638..3874372	-	244	188582866	-	Mpop_3627	-	ribosomal RNA methyltransferase RrmJ/FtsJ
3581	 66.23	0	3874628..3875083	+	151	188582867	-	Mpop_3628	-	calcium/calmodulin dependent protein kinase II association-domain protein
3582	 72.79	0	3875237..3876379	-	380	188582868	-	Mpop_3629	-	Ppx/GppA phosphatase
3583	 73.73	0	3876527..3877687	-	386	188582869	-	Mpop_3630	-	glycosyl transferase family 2
3584	 74.34	+1	3877684..3878439	-	251	188582870	-	Mpop_3631	-	phospholipid/glycerol acyltransferase
3585	 68.81	0	3878503..3880041	-	512	188582871	-	Mpop_3632	-	phytoene desaturase
3586	 74.60	+1	3880112..3880993	-	293	188582872	-	Mpop_3633	-	glutamine amidotransferase class-I
3587	 73.18	0	3881104..3882315	-	403	188582873	-	Mpop_3634	-	ABC-2 type transporter
3588	 76.78	+1	3882312..3883280	-	322	188582874	-	Mpop_3635	-	ABC transporter related
3589	 75.52	+1	3883288..3883716	-	142	188582875	-	Mpop_3636	-	hypothetical protein
3590	 68.17	0	3883716..3885308	-	530	188582876	-	Mpop_3637	-	phytoene desaturase
3591	 73.39	0	3885481..3886983	-	500	188582877	-	Mpop_3638	-	hypothetical protein
3592	 62.21	-1	3887083..3887643	-	186	188582878	-	Mpop_3639	-	hypothetical protein
3593	 66.67	0	3887656..3887970	-	104	188582879	-	Mpop_3640	-	hypothetical protein
3594	 74.32	+1	3888095..3888904	-	269	188582880	-	Mpop_3641	-	tRNA/rRNA methyltransferase (SpoU)
3595	 69.62	0	3888911..3889384	-	157	188582881	-	Mpop_3642	-	MaoC domain protein dehydratase
3596	 72.46	0	3889587..3890207	+	206	188582882	-	Mpop_3643	-	cation efflux protein
3597	 74.20	+1	3890260..3891108	+	282	188582883	-	Mpop_3644	-	metallophosphoesterase
3598	 64.41	-1	3891202..3891423	+	73	188582884	-	Mpop_3645	-	hypothetical protein
3599	 75.68	+1	3891549..3892691	+	380	188582885	-	Mpop_3646	-	hypothetical protein
3600	 72.22	0	3892726..3893337	+	203	188582886	-	Mpop_3647	-	Glutathione S-transferase domain
3601	 72.77	0	3893406..3893618	+	70	188582887	-	Mpop_3648	-	hypothetical protein
3602	 65.82	0	3893896..3895077	-	393	188582888	-	Mpop_3649	-	Non-specific serine/threonine protein kinase
3603	 73.28	0	3895289..3896422	+	377	188582889	-	Mpop_3650	-	membrane protein
3604	 68.76	0	3896413..3897033	+	206	188582890	-	Mpop_3651	-	toluene tolerance family protein
3605	 70.18	0	3897038..3897151	-	37	188582891	-	Mpop_3652	-	hypothetical protein
3606	 69.59	0	3897207..3898403	+	398	188582892	-	Mpop_3653	-	hopanoid biosynthesis associated glycosyl transferase protein HpnI
3607	 64.21	-1	3898457..3899881	+	474	188582893	-	Mpop_3654	-	hopanoid biosynthesis associated radical SAM protein HpnJ
3608	 75.92	+1	3900010..3900852	+	280	188582894	-	Mpop_3655	-	hopanoid biosynthesis associated protein HpnK
3609	 73.99	+1	3901004..3901522	+	172	188582895	-	Mpop_3656	-	hypothetical protein
3610	 69.57	0	3901554..3904202	-	882	188582896	-	Mpop_3657	-	hopanoid biosynthesis associated RND transporter like protein HpnN
3611	 63.57	-1	3904916..3906079	+	387	188582897	-	Mpop_3658	-	hopanoid biosynthesis associated radical SAM protein HpnH
3612	 76.90	+1	3906200..3906883	-	227	188582898	-	Mpop_3659	-	hypothetical protein
3613	 71.98	0	3906907..3908073	-	388	188582899	-	Mpop_3660	-	polysaccharide export protein
3614	 73.12	0	3908388..3908960	+	190	188582900	-	Mpop_3661	-	carbohydrate kinase, thermoresistant glucokinase family
3615	 73.01	0	3908980..3909783	+	267	188582901	-	Mpop_3662	-	Cof-like hydrolase
3616	 75.59	+1	3910026..3910955	+	309	188582902	-	Mpop_3663	-	Lytic transglycosylase catalytic
3617	 67.72	0	3911114..3911302	+	62	188582903	-	Mpop_3664	-	ribosomal protein L32
3618	 75.31	+1	3911337..3911579	-	80	188582904	-	Mpop_3665	-	hypothetical protein
3619	 65.68	0	3911766..3912374	-	202	188582905	-	Mpop_3666	-	polyhydroxyalkonate synthesis repressor, PhaR
3620	 69.87	0	3912698..3913882	+	394	188582906	-	Mpop_3667	-	acetyl-CoA acetyltransferase
3621	 65.57	-1	3914144..3914872	+	242	188582907	-	Mpop_3668	-	acetoacetyl-CoA reductase
3622	 71.79	0	3915034..3916008	+	324	188582908	-	Mpop_3669	-	lipid A biosynthesis acyltransferase
3623	 72.38	0	3916037..3917296	-	419	188582909	-	Mpop_3670	-	peptidase M29 aminopeptidase II
3624	 66.67	0	3917369..3917662	-	97	188582910	-	Mpop_3671	-	hypothetical protein
3625	 73.06	0	3918065..3919519	-	484	188582911	-	Mpop_3672	-	FAD linked oxidase domain protein
3626	 71.12	0	3919724..3920419	+	231	188582912	-	Mpop_3673	-	fumarylacetoacetate (FAA) hydrolase
3627	 74.24	+1	3920416..3920943	+	175	188582913	-	Mpop_3674	-	NUDIX hydrolase
3628	 62.88	-1	3921424..3921555	+	43	188582914	-	Mpop_3675	-	hypothetical protein
3629	 61.50	-2	3923217..3924242	-	341	188582915	-	Mpop_3678	-	hypothetical protein
3630	 63.77	-1	3924799..3925281	+	160	188582916	-	Mpop_3679	-	heat shock protein Hsp20
3631	 65.23	-1	3925339..3925896	+	185	188582917	-	Mpop_3680	-	heat shock protein Hsp20
3632	 62.62	-1	3926010..3926330	+	106	188582918	-	Mpop_3681	-	hypothetical protein
3633	 63.77	-1	3926429..3926773	+	114	188582919	-	Mpop_3682	-	hypothetical protein
3634	 66.67	0	3926799..3927551	+	250	188582920	-	Mpop_3683	-	ETC complex I subunit conserved region
3635	 61.63	-1	3927682..3928098	+	138	188582921	-	Mpop_3684	-	hypothetical protein
3636	 62.74	-1	3928206..3929402	+	398	188582922	-	Mpop_3685	-	efflux transporter, RND family, MFP subunit
3637	 63.28	-1	3929641..3930201	+	186	188582923	-	Mpop_3686	-	hypothetical protein
3638	 68.68	0	3930324..3931667	+	447	188582924	-	Mpop_3687	-	transposase IS4 family protein
3639	 62.73	-1	3932398..3932829	-	143	188582925	-	Mpop_3688	-	hypothetical protein
3640	 66.27	0	3934230..3934991	-	253	188582926	-	Mpop_3690	-	putative ubiquitin-activating enzyme
3641	 68.82	0	3934984..3936609	-	541	188582927	-	Mpop_3691	-	putative adenylate/guanylate cyclase
3642	 67.47	0	3936624..3937244	-	206	188582928	-	Mpop_3692	-	putative adenylate/guanylate cyclase
3643	 68.21	0	3937556..3938335	+	259	188582929	-	Mpop_3693	-	UBA/THIF-type NAD/FAD binding protein
3644	 65.93	0	3938519..3940549	-	676	188582930	-	Mpop_3694	-	integral membrane sensor signal transduction histidine kinase
3645	 68.20	0	3940537..3941907	-	456	188582931	-	Mpop_3695	-	two component, sigma54 specific, transcriptional regulator, Fis family
3646	 68.01	0	3942037..3943674	-	545	188582932	-	Mpop_3696	-	major facilitator superfamily MFS_1
3647	 62.61	-1	3944160..3946355	+	731	188582933	-	Mpop_3697	-	TonB-dependent receptor
3648	 63.70	-1	3946409..3946948	+	179	188582934	-	Mpop_3698	-	hypothetical protein
3649	 65.25	-1	3946945..3947931	+	328	188582935	-	Mpop_3699	-	Cytochrome-c peroxidase
3650	 65.91	0	3948016..3948939	+	307	188582936	-	Mpop_3700	-	transcriptional regulator, LysR family
3651	 64.18	-1	3949153..3950319	+	388	188582937	-	Mpop_3701	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
3652	 67.06	0	3950407..3950910	+	167	188582938	-	Mpop_3702	-	HPP family protein?
3653	 66.77	0	3952674..3953663	-	329	188582939	-	Mpop_3704	-	hypothetical protein
3654	 70.41	0	3953765..3955018	-	417	188582940	-	Mpop_3705	-	hypothetical protein
3655	 71.59	0	3955111..3955455	-	114	188582941	-	Mpop_3706	-	putative transcriptional regulator, ModE family
3656	 71.78	0	3955551..3956801	-	416	188582942	-	Mpop_3707	-	molybdenum cofactor synthesis domain protein
3657	 67.92	0	3958032..3958829	+	265	188582943	-	Mpop_3709	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
3658	 66.09	0	3958826..3959518	+	230	188582944	-	Mpop_3710	-	molybdate ABC transporter, inner membrane subunit
69.70	MEAN

4.03	STD DEV
