IslandPath Analysis: Methylobacterium populi BJ001

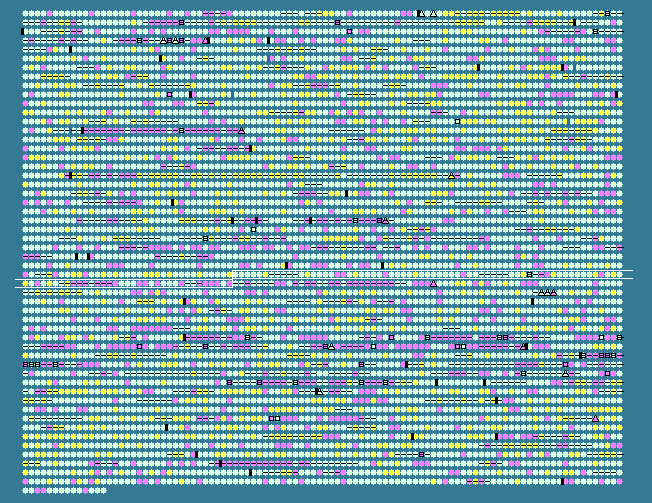

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 69.70 STD DEV: 4.03
Methylobacterium populi BJ001, complete genome - 1..5800441
5314 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2936	 70.54	0	3210177..3210692	+	171	188582222	-	Mpop_2977	-	TspO and MBR like protein
2937	 71.96	0	3210775..3212172	-	465	188582223	-	Mpop_2978	-	FAD linked oxidase domain protein
2938	 69.46	0	3212189..3213439	-	416	188582224	-	Mpop_2979	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
2939	 68.85	0	3213717..3214082	-	121	188582225	-	Mpop_2980	-	response regulator receiver protein
2940	 67.72	0	3214246..3214815	-	189	188582226	-	Mpop_2981	-	hypoxanthine phosphoribosyltransferase
2941	 74.29	+1	3215169..3215903	-	244	188582227	-	Mpop_2982	-	MJ0042 family finger-like protein
2942	 69.75	0	3216058..3216771	+	237	188582228	-	Mpop_2983	-	cell division ATP-binding protein FtsE
2943	 72.74	0	3216768..3217739	+	323	188582229	-	Mpop_2984	-	protein of unknown function DUF214
2944	 69.22	0	3217986..3218690	+	234	188582230	-	Mpop_2985	-	protein of unknown function DUF218
2945	 69.60	0	3218795..3219169	-	124	188582231	-	Mpop_2986	-	response regulator receiver protein
2946	 72.04	0	3219404..3220594	+	396	188582232	-	Mpop_2987	-	glutamate 5-kinase
2947	 71.98	0	3220743..3222041	+	432	188582233	-	Mpop_2988	-	gamma-glutamyl phosphate reductase
2948	 73.73	+1	3222205..3222657	+	150	188582234	-	Mpop_2989	-	cytidylyltransferase
2949	 68.14	0	3222672..3223145	+	157	188582235	-	Mpop_2990	-	iojap-like protein
2950	 72.75	0	3223149..3223838	-	229	188582236	-	Mpop_2991	-	hypothetical protein
2951	 67.56	0	3223883..3224443	-	186	188582237	-	Mpop_2992	-	conserved hypothetical protein; putative transcriptional regulatory protein
2952	 68.88	0	3224533..3225573	-	346	188582238	-	Mpop_2993	-	Aldose 1-epimerase
2953	 62.70	-1	3225658..3225783	-	41	188582239	-	Mpop_2994	-	hypothetical protein
2954	 62.35	-1	3225780..3226034	-	84	188582240	-	Mpop_2995	-	hypothetical protein
2955	 71.25	0	3226034..3227824	-	596	188582241	-	Mpop_2996	-	ABC transporter related
2956	 74.44	+1	3227915..3228454	-	179	188582242	-	Mpop_2997	-	conserved hypothetical protein; putative signal peptide
2957	 68.70	0	3228642..3229577	+	311	188582243	-	Mpop_2998	-	periplasmic solute binding protein
2958	 68.65	0	3229629..3229880	-	83	188582244	-	Mpop_2999	-	molybdopterin converting factor, subunit 1
2959	 69.50	0	3229935..3230534	-	199	188582245	-	Mpop_3000	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
2960	 68.33	0	3230620..3232722	-	700	188582246	-	Mpop_3001	-	excinuclease ABC, C subunit
2961	 64.74	-1	3232746..3233471	-	241	188582247	-	Mpop_3002	-	putative chemotaxis phosphatase, CheZ
2962	 72.18	0	3233701..3234426	+	241	188582248	-	Mpop_3003	-	ErfK/YbiS/YcfS/YnhG family protein
2963	 72.64	0	3234502..3235254	-	250	188582249	-	Mpop_3004	-	putative periplasmic ligand-binding sensor protein
2964	 69.53	0	3235480..3236352	-	290	188582250	-	Mpop_3005	-	porin
2965	 67.58	0	3236750..3237517	-	255	188582251	-	Mpop_3006	-	protein of unknown function DUF152
2966	 74.20	+1	3237544..3238632	-	362	188582252	-	Mpop_3007	-	protein of unknown function DUF185
2967	 68.91	0	3238635..3239525	-	296	188582253	-	Mpop_3008	-	prolipoprotein diacylglyceryl transferase
2968	 71.07	0	3239666..3240346	+	226	188582254	-	Mpop_3009	-	MgtC/SapB transporter
2969	 70.22	0	3240450..3242081	+	543	188582255	-	Mpop_3010	-	phosphoglucomutase/phosphomannomutase alpha/beta/alpha domain I
2970	 71.37	0	3242078..3243352	+	424	188582256	-	Mpop_3011	-	hypothetical protein
2971	 70.97	0	3243378..3244283	-	301	188582257	-	Mpop_3012	-	cell wall hydrolase SleB
2972	 69.38	0	3244390..3244647	-	85	188582258	-	Mpop_3013	-	hypothetical protein
2973	 67.53	0	3244864..3247530	-	888	188582259	-	Mpop_3014	-	pyruvate, phosphate dikinase
2974	 62.75	-1	3247806..3247958	-	50	188582260	-	Mpop_3015	-	hypothetical protein
2975	 67.39	0	3248066..3248761	-	231	188582261	-	Mpop_3016	-	ErfK/YbiS/YcfS/YnhG family protein
2976	 68.47	0	3248961..3249404	+	147	188582262	-	Mpop_3017	-	Glyoxalase/bleomycin resistance protein/dioxygenase
2977	 68.97	0	3249523..3249783	+	86	188582263	-	Mpop_3018	-	hypothetical protein
2978	 68.00	0	3249831..3250280	-	149	188582264	-	Mpop_3019	-	cyclic nucleotide-binding protein
2979	 69.08	0	3250454..3250702	-	82	188582265	-	Mpop_3020	-	hypothetical protein
2980	 68.03	0	3250948..3251094	+	48	188582266	-	Mpop_3021	-	hypothetical protein
2981	 68.57	0	3251215..3251688	-	157	188582267	-	Mpop_3022	-	transcriptional regulator, TrmB
2982	 71.41	0	3251807..3252586	+	259	188582268	-	Mpop_3023	-	hypothetical protein
2983	 72.67	0	3252599..3253531	-	310	188582269	-	Mpop_3024	-	beta-lactamase domain protein
2984	 74.25	+1	3253606..3254634	-	342	188582270	-	Mpop_3025	-	hypothetical protein
2985	 68.68	0	3255336..3256679	+	447	188582271	-	Mpop_3026	-	transposase IS4 family protein
2986	 66.67	0	3257106..3257282	+	58	188582272	-	Mpop_3027	-	protein of unknown function DUF1328
2987	 65.32	-1	3257356..3257577	-	73	188582273	-	Mpop_3028	-	hypothetical protein
2988	 66.04	0	3257757..3258560	+	267	188582274	-	Mpop_3029	-	response regulator receiver protein
2989	 74.38	+1	3259014..3259376	+	120	188582275	-	Mpop_3030	-	hypothetical protein
2990	 70.74	0	3259395..3259934	-	179	188582276	-	Mpop_3031	-	protein of unknown function UPF0153
2991	 68.75	0	3260054..3261445	+	463	188582277	-	Mpop_3032	-	aminotransferase class-III
2992	 72.69	0	3261779..3261994	+	71	188582278	-	Mpop_3033	-	hypothetical protein
2993	 71.58	0	3262032..3262946	+	304	188582279	-	Mpop_3034	-	metallophosphoesterase
2994	 72.15	0	3262959..3263177	-	72	188582280	-	Mpop_3035	-	hypothetical protein
2995	 68.24	0	3263234..3263488	-	84	188582281	-	Mpop_3036	-	GCN5-related N-acetyltransferase
2996	 73.65	0	3263485..3264615	-	376	188582282	-	Mpop_3037	-	AlkA domain protein
2997	 65.97	0	3264665..3264952	-	95	188582283	-	Mpop_3038	-	hypothetical protein
2998	 68.74	0	3265109..3266263	-	384	188582284	-	Mpop_3039	-	ribonuclease D
2999	 75.90	+1	3266358..3266747	-	129	188582285	-	Mpop_3040	-	hypothetical protein
3000	 69.77	0	3266917..3268173	+	418	188582286	-	Mpop_3041	-	Serine-type D-Ala-D-Ala carboxypeptidase
3001	 74.38	+1	3268402..3270306	-	634	188582287	-	Mpop_3042	-	AsmA family protein
3002	 66.80	0	3270642..3271409	+	255	188582288	-	Mpop_3043	-	3-oxoacid CoA-transferase, A subunit
3003	 65.15	-1	3271445..3272170	+	241	188582289	-	Mpop_3044	-	3-oxoacid CoA-transferase, B subunit
3004	 72.79	0	3272345..3272752	+	135	188582290	-	Mpop_3045	-	hypothetical protein
3005	 75.96	+1	3272857..3273222	+	121	188582291	-	Mpop_3046	-	hypothetical protein
3006	 72.21	0	3273261..3274631	+	456	188582292	-	Mpop_3047	-	PepSY-associated TM helix domain protein
3007	 69.46	0	3274694..3277018	+	774	188582293	-	Mpop_3048	-	TonB-dependent receptor
3008	 73.38	0	3277062..3278000	-	312	188582294	-	Mpop_3049	-	hypothetical protein
3009	 64.61	-1	3278146..3278388	+	80	188582295	-	Mpop_3050	-	prevent-host-death family protein
3010	 63.85	-1	3278388..3278813	+	141	188582296	-	Mpop_3051	-	PilT protein domain protein
3011	 62.19	-1	3279104..3279550	-	148	188582297	-	Mpop_3052	-	hypothetical protein
3012	 66.89	0	3279722..3280162	+	146	188582298	-	Mpop_3053	-	hypothetical protein
3013	 62.76	-1	3280181..3281077	-	298	188582299	-	Mpop_3054	-	Exonuclease RNase T and DNA polymerase III
3014	 59.50	-2	3281104..3282930	-	608	188582300	-	Mpop_3055	-	UvrD/REP helicase
3015	 58.21	-2	3282942..3284738	-	598	188582301	-	Mpop_3056	-	ATP-dependent endonuclease family protein
3016	 66.18	0	3284752..3285768	-	338	188582302	-	Mpop_3057	-	protein of unknown function DUF1814
3017	 69.36	0	3285761..3286354	-	197	188582303	-	Mpop_3058	-	hypothetical protein
3018	 68.03	0	3286588..3287538	+	316	188582304	-	Mpop_3059	-	protein of unknown function DUF1738
3019	 67.13	0	3287698..3289842	+	714	188582305	-	Mpop_3060	-	ParB domain protein nuclease
3020	 66.22	0	3289903..3290124	+	73	188582306	-	Mpop_3061	-	hypothetical protein
3021	 65.71	0	3290190..3290606	+	138	188582307	-	Mpop_3062	-	hypothetical protein
3022	 67.42	0	3290603..3290866	+	87	188582308	-	Mpop_3063	-	hypothetical protein
3023	 64.65	-1	3290863..3291159	+	98	188582309	-	Mpop_3064	-	hypothetical protein
3024	 68.21	0	3291308..3295654	+	1448	188582310	-	Mpop_3065	-	probably methylase/helicase
3025	 66.95	0	3295654..3296694	+	346	188582311	-	Mpop_3066	-	hypothetical protein
3026	 66.58	0	3296728..3297933	+	401	188582312	-	Mpop_3067	-	hypothetical protein
3027	 62.50	-1	3298218..3298385	+	55	188582313	-	Mpop_3068	-	hypothetical protein
3028	 66.44	0	3298529..3298969	+	146	188582314	-	Mpop_3069	-	hypothetical protein
3029	 66.98	0	3299541..3299864	+	107	188582315	-	Mpop_3070	-	protein of unknown function DUF736
3030	 61.96	-1	3300046..3300300	+	84	188582316	-	Mpop_3071	-	transcriptional regulator, XRE family
3031	 63.30	-1	3300399..3300665	+	88	188582317	-	Mpop_3072	-	hypothetical protein
3032	 60.84	-2	3300780..3301088	+	102	188582318	-	Mpop_3073	-	hypothetical protein
3033	 62.92	-1	3301021..3301554	+	177	188582319	-	Mpop_3074	-	hypothetical protein
3034	 69.86	0	3301694..3301975	+	93	188582320	-	Mpop_3075	-	putative transcriptional regulator
3035	 64.34	-1	3301994..3303154	+	386	188582321	-	Mpop_3076	-	replication protein A
69.70	MEAN

4.03	STD DEV
