IslandPath Analysis: Methanosarcina mazei Go1

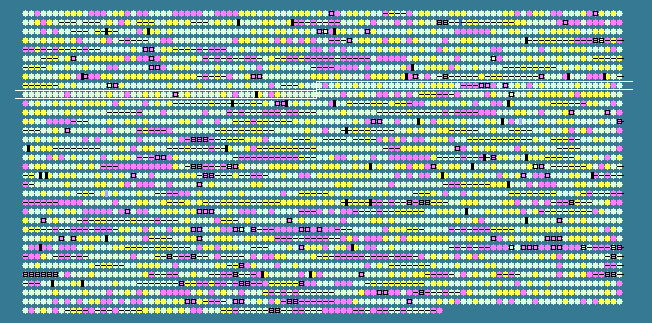

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
850	 44.44	0	1004285..1004518	-	77	21226952	-	MM_0850	-	hypothetical protein
851	 32.24	-2	1004835..1005200	-	121	21226953	-	MM_0851	-	hypothetical protein
852	 44.73	0	1005507..1006901	-	464	21226954	-	MM_0852	-	deoxyribodipyrimidine photolyase
853	 47.50	0	1007115..1007855	-	246	21226955	-	MM_0853	-	hypothetical protein
854	 45.38	0	1007852..1009138	-	428	21226956	cdc48	MM_0854	-	cell division cycle protein 48-like protein
855	 44.82	0	1009614..1010327	+	237	21226957	-	MM_0855	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
856	 48.00	0	1010574..1011800	-	408	21226958	-	MM_0856	-	hypothetical protein
857	 44.26	0	1011797..1012162	-	121	21226959	-	MM_0857	-	hypothetical protein
858	 42.39	0	1012361..1012669	-	102	21226960	-	MM_0858	-	translation initiation factor Sui1
859	 40.83	0	1013221..1013460	+	79	21226961	-	MM_0859	-	hypothetical protein
860	 49.67	+1	1014013..1016007	+	664	21226962	-	MM_0860	-	phosphoribosylformylglycinamidine synthase II
861	 46.97	0	1016498..1017634	+	378	21226963	-	MM_0861	-	Alpha-amylase
862	 45.28	0	1017631..1018827	+	398	21226964	-	MM_0862	-	Alpha-amylase
863	 43.99	0	1018878..1019684	+	268	21226965	-	MM_0863	-	hypothetical protein
864	 45.42	0	1019681..1021657	+	658	21226966	-	MM_0864	-	glucoamylase
865	 45.07	0	1021868..1023136	-	422	21226967	-	MM_0865	-	seryl-tRNA synthetase
866	 44.85	0	1023258..1024490	-	410	21226968	-	MM_0866	-	periplasmic serine protease
867	 48.84	+1	1024811..1026958	+	715	161485679	metG	MM_0867	-	methionyl-tRNA synthetase
868	 44.63	0	1027183..1027713	-	176	21226970	-	MM_0868	-	adenylate cyclase
869	 50.38	+1	1027827..1028225	-	132	21226971	-	MM_0869	-	hypothetical protein
870	 50.72	+1	1028232..1029404	-	390	21226972	-	MM_0870	-	acetyl-CoA acetyltransferase
871	 50.38	+1	1029422..1030471	-	349	21226973	-	MM_0871	-	hypothetical protein
872	 47.37	0	1030512..1031252	-	246	21226974	-	MM_0872	-	putative transcriptional regulator
873	 45.74	0	1031391..1032212	+	273	21226975	-	MM_0873	-	hypothetical protein
874	 33.07	-2	1032667..1033419	+	250	21226976	-	MM_0874	-	hypothetical protein
875	 38.40	-1	1033935..1034171	+	78	21226977	-	MM_0875	-	hypothetical protein
876	 37.80	-1	1035461..1036198	+	245	21226978	-	MM_0876	-	hypothetical protein
877	 35.14	-1	1036566..1036898	+	110	21226979	-	MM_0877	-	transposase
878	 32.00	-2	1036843..1036992	+	49	21226980	-	MM_0878	-	transposase
879	 32.38	-2	1037063..1037272	+	69	21226981	-	MM_0879	-	hypothetical protein
880	 42.44	0	1038618..1039397	+	259	21226982	-	MM_0880	-	hypothetical protein
881	 32.49	-2	1039984..1041288	-	434	21226983	-	MM_0881	-	transposase
882	 42.12	0	1041468..1042400	+	310	21226984	-	MM_0882	-	hypothetical protein
883	 49.61	+1	1042702..1044606	+	634	21226985	-	MM_0883	-	hypothetical protein
884	 45.10	0	1044767..1045021	-	84	21226986	-	MM_0884	-	hypothetical protein
885	 29.91	-2	1045229..1045462	-	77	21226987	-	MM_0885	-	hypothetical protein
886	 46.63	0	1045583..1046680	-	365	21226988	-	MM_0886	-	DNA polymerase IV
887	 48.78	+1	1046973..1047956	+	327	21226989	cbiO	MM_0887	-	cobalt transporter, ATP-binding protein
888	 46.84	0	1048009..1048815	+	268	21226990	cbiQ	MM_0888	-	cobalt transport protein
889	 40.34	0	1048887..1050470	-	527	21226991	-	MM_0889	-	hypothetical protein
890	 43.57	0	1050955..1051872	-	305	21226992	-	MM_0890	-	putative methyltransferase
891	 42.29	0	1051865..1052746	-	293	21226993	-	MM_0891	-	putative methyltransferase
892	 41.94	0	1053055..1053879	-	274	21226994	-	MM_0892	-	putative methyltransferase
893	 48.65	+1	1054360..1055025	+	221	21226995	-	MM_0893	-	cobalt transport protein CbiM
894	 46.08	0	1055022..1055327	+	101	21226996	-	MM_0894	-	cobalt transport protein CbiN
895	 43.97	0	1055481..1056185	-	234	21226997	-	MM_0895	-	endonuclease III
896	 43.71	0	1056333..1056650	-	105	21226998	-	MM_0896	-	hypothetical protein
897	 46.54	0	1056604..1057686	-	360	21226999	-	MM_0897	-	glutathione reductase
898	 48.11	0	1058082..1059698	+	538	21227000	-	MM_0898	-	IMP cyclohydrolase
899	 38.93	0	1060415..1061200	+	261	21227001	-	MM_0899	-	hypothetical protein
900	 40.93	0	1061540..1062460	-	306	21227002	ubiA	MM_0900	-	prenyltransferase
901	 46.51	0	1063538..1066375	+	945	21227003	-	MM_0901	-	cation-transporting ATPase
902	 44.64	0	1066415..1067254	-	279	21227004	-	MM_0902	-	putative methyltransferase
903	 43.95	0	1067609..1068211	-	200	21227005	-	MM_0903	-	transcriptional regulator
904	 46.04	0	1068439..1070004	+	521	21227006	-	MM_0904	-	phosphoglyceromutase
905	 46.50	0	1070316..1071272	+	318	21227007	-	MM_0905	-	hypothetical protein
906	 46.12	0	1071812..1072828	-	338	21227008	-	MM_0906	-	flap endonuclease-1
907	 41.91	0	1073436..1073738	-	100	21227009	-	MM_0907	-	hypothetical protein
908	 37.50	-1	1074707..1075042	-	111	21227010	-	MM_0908	-	hypothetical protein
909	 42.73	0	1075602..1076495	+	297	21227011	-	MM_0909	-	hypothetical protein
910	 43.95	0	1076614..1077414	+	266	21227012	-	MM_0910	-	potassium/copper-transporting ATPase
911	 45.11	0	1077662..1079275	+	537	21227013	-	MM_0911	-	ABC transporter, ATP-binding protein
912	 45.44	0	1079317..1080894	+	525	21227014	-	MM_0912	-	hypothetical protein
913	 45.05	0	1081063..1081506	+	147	21227015	-	MM_0913	-	hypothetical protein
914	 40.94	0	1081503..1082015	+	170	21227016	-	MM_0914	-	hypothetical protein
915	 48.88	+1	1082012..1083259	+	415	21227017	-	MM_0915	-	hypothetical protein
916	 46.33	0	1083267..1083866	+	199	21227018	-	MM_0916	-	hypothetical protein
917	 44.87	0	1083868..1084803	+	311	21227019	-	MM_0917	-	hypothetical protein
918	 39.96	0	1084945..1085442	+	165	21227020	-	MM_0918	-	4-carboxymuconolactone decarboxylase
919	 43.89	0	1085885..1086547	+	220	21227021	-	MM_0919	-	hypothetical protein
920	 46.35	0	1086581..1087018	-	145	21227022	-	MM_0920	-	MutT related protein
921	 47.46	0	1087157..1088890	+	577	21227023	-	MM_0921	-	aldehyde ferredoxin oxidoreductase
922	 42.89	0	1089329..1089715	+	128	21227024	-	MM_0922	-	translation initiation factor IF-5A
923	 47.26	0	1089822..1090697	+	291	21227025	-	MM_0923	-	agmatinase
924	 41.24	0	1090981..1091157	-	58	21227026	-	MM_0924	-	hypothetical protein
925	 41.67	0	1091374..1091553	-	59	21227027	-	MM_0925	-	hypothetical protein
926	 36.83	-1	1091936..1093564	-	542	21227028	-	MM_0926	-	transposase
927	 42.65	0	1093789..1093992	-	67	21227029	-	MM_0927	-	PbsX family transcriptional regulator
928	 47.92	0	1093994..1094377	-	127	21227030	-	MM_0928	-	hypothetical protein
929	 42.34	0	1095109..1097196	+	695	21227031	kefC	MM_0929	-	glutathione-regulated potassium-efflux system protein
930	 43.53	0	1097423..1097785	-	120	21227032	-	MM_0930	-	nitrogen regulatory protein P-II
931	 43.44	0	1097775..1098506	-	243	21227033	-	MM_0931	-	hypothetical protein
932	 45.31	0	1098503..1099195	-	230	21227034	-	MM_0932	-	hypothetical protein
933	 44.81	0	1099526..1101538	-	670	21227035	kefC	MM_0933	-	glutathione-regulated potassium-efflux system protein
934	 47.38	0	1102502..1103761	+	419	21227036	-	MM_0934	-	lysine 2,3-aminomutase
935	 42.52	0	1103966..1104781	+	271	21227037	-	MM_0935	-	Beta-lysine acetyltransferase
936	 39.48	0	1104803..1105420	-	205	21227038	-	MM_0936	-	hypothetical protein
937	 46.05	0	1105539..1107488	-	649	21227039	-	MM_0937	-	putative flagella related protein J
938	 43.40	0	1107501..1109198	-	565	21227040	-	MM_0938	-	putative flagella related protein FlaI
939	 44.21	0	1110367..1111083	-	238	21227041	-	MM_0939	-	putative flagella related protein H
940	 47.51	0	1112100..1113728	+	542	21227042	-	MM_0940	-	putative flavoprotein
941	 46.80	0	1115096..1116454	-	452	21227043	-	MM_0941	-	adenylosuccinate lyase
942	 35.98	-1	1116755..1117018	-	87	21227044	-	MM_0942	-	hypothetical protein
943	 48.25	0	1117122..1117865	+	247	21227045	-	MM_0943	-	geranylgeranylglyceryl phosphate synthase-like protein
944	 44.22	0	1118334..1120097	+	587	21227046	-	MM_0944	-	methyl coenzyme M reductase system, component A2
945	 43.70	0	1120251..1120925	-	224	21227047	-	MM_0945	-	iron-sulfur flavoprotein
946	 42.45	0	1121116..1121784	-	222	21227048	-	MM_0946	-	putative NADPH-flavin oxidoreductase
947	 44.69	0	1121914..1123119	-	401	21227049	-	MM_0947	-	hypothetical protein
948	 42.29	0	1123813..1125006	+	397	21227050	-	MM_0948	-	sensory transduction histidine kinase
949	 43.20	0	1125183..1126439	-	418	21227051	-	MM_0949	-	hypothetical protein
43.57	MEAN

4.98	STD DEV
