IslandPath Analysis: Methanosarcina mazei Go1

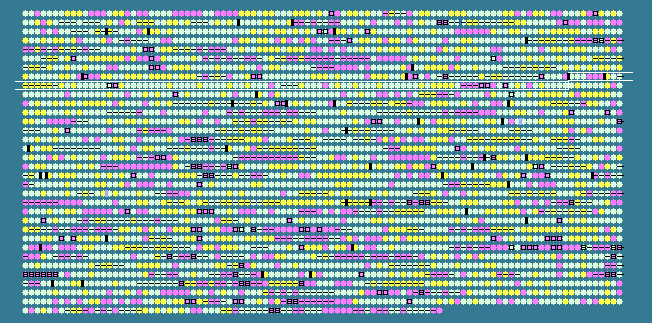

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
792	 44.31	0	945748..947277	-	509	21226894	-	MM_0792	-	hypothetical protein
793	 44.75	0	947430..947867	-	145	21226895	-	MM_0793	-	endonuclease III
794	 46.87	0	947883..948872	-	329	21226896	-	MM_0794	-	ADP-ribosylglycohydrolase
795	 35.61	-1	949121..949516	-	131	21226897	-	MM_0795	-	hypothetical protein
796	 36.69	-1	950198..950614	-	138	21226898	-	MM_0796	-	hypothetical protein
797	 36.32	-1	951126..951695	+	189	21226899	-	MM_0797	-	hypothetical protein
798	 51.37	+1	952052..953293	-	413	21226900	-	MM_0798	-	proteasome-activating nucleotidase
799	 41.06	0	954184..954429	+	81	21226901	-	MM_0799	-	hypothetical protein
800	 43.16	0	954552..954785	+	77	21226902	-	MM_0800	-	hypothetical protein
801	 48.07	0	954914..956053	+	379	21226903	-	MM_0801	-	adenylosuccinate synthetase
802	 50.00	+1	956480..956929	+	149	21226904	-	MM_0802	-	30S ribosomal protein S19e
803	 51.79	+1	957016..957378	+	120	21226905	-	MM_0803	-	hypothetical protein
804	 47.26	0	957384..957986	+	200	21226906	-	MM_0804	-	ATP-binding protein
805	 48.08	0	958253..958408	+	51	161485680	rpl39e	MM_0805	-	50S ribosomal protein L39e
806	 46.10	0	958415..958696	+	93	21226908	-	MM_0806	-	50S ribosomal protein L31e
807	 47.73	0	958725..959384	+	219	21226909	-	MM_0807	-	translation initiation factor IF-6
808	 40.86	0	959428..959613	+	61	21226910	rplX	MM_0808	-	50S ribosomal protein LX
809	 50.23	+1	959610..960047	+	145	21226911	-	MM_0809	-	prefoldin subunit alpha
810	 45.95	0	960228..961487	+	419	21226912	-	MM_0810	-	signal recognition particle subunit Ffh/SRP54
811	 43.89	0	961781..961960	-	59	21226913	-	MM_0811	-	stress-responsive transcriptional regulator
812	 45.37	0	962203..963249	-	348	21226914	-	MM_0812	-	hypothetical protein
813	 44.00	0	963330..964313	-	327	21226915	-	MM_0813	-	hypothetical protein
814	 44.09	0	964752..965411	+	219	21226916	-	MM_0814	-	peroxiredoxin
815	 40.45	0	965530..965838	+	102	21226917	-	MM_0815	-	transposase
816	 36.24	-1	965854..966987	+	377	21226918	-	MM_0816	-	transposase
817	 48.71	+1	967653..968465	-	270	21226919	-	MM_0817	-	pyrroline-5-carboxylate reductase
818	 45.68	0	968646..969803	-	385	21226920	-	MM_0818	-	gamma-glutamyl kinase
819	 45.76	0	969941..971284	-	447	21226921	-	MM_0819	-	gamma-glutamyl phosphate reductase
820	 41.48	0	972172..972576	+	134	21226922	-	MM_0820	-	hypothetical protein
821	 40.18	0	972683..973135	-	150	21226923	-	MM_0821	-	hypothetical protein
822	 43.43	0	973218..973544	-	108	21226924	-	MM_0822	-	hypothetical protein
823	 42.16	0	974188..975297	+	369	21226925	-	MM_0823	-	hypothetical protein
824	 46.41	0	975317..975775	+	152	21226926	-	MM_0824	-	universal stress protein
825	 48.71	+1	975846..976697	+	283	21226927	-	MM_0825	-	hypothetical protein
826	 44.69	0	976865..977551	+	228	21226928	-	MM_0826	-	hypothetical protein
827	 45.56	0	977671..978390	-	239	21226929	-	MM_0827	-	hypothetical protein
828	 45.53	0	979245..979613	-	122	21226930	-	MM_0828	-	hypothetical protein
829	 45.67	0	979617..979997	-	126	21226931	-	MM_0829	-	hypothetical protein
830	 49.96	+1	980136..981326	-	396	21226932	-	MM_0830	-	molybdopterin biosynthesis MoeA protein
831	 43.54	0	981348..981641	-	97	21226933	-	MM_0831	-	molybdopterin converting factor small subunit
832	 42.66	0	981722..983308	+	528	21226934	-	MM_0832	-	hypothetical protein
833	 42.21	0	983548..984144	+	198	21226935	-	MM_0833	-	hypothetical protein
834	 44.50	0	984394..985539	+	381	21226936	-	MM_0834	-	Na(+)/H(+) antiporter
835	 47.86	0	985716..988448	-	910	21226937	-	MM_0835	-	cation-transporting ATPase
836	 43.77	0	988734..990065	+	443	21226938	-	MM_0836	-	hypothetical protein
837	 45.56	0	990527..990796	+	89	21226939	-	MM_0837	-	hypothetical protein
838	 49.38	+1	990958..992397	-	479	21226940	-	MM_0838	-	succinate-semialdehyde dehydrogenase [NADP+]
839	 42.39	0	992939..995101	+	720	21226941	-	MM_0839	-	hypothetical protein
840	 46.19	0	995647..997101	+	484	21226942	-	MM_0840	-	putative glycosyltransferase
841	 44.54	0	997349..997714	+	121	21226943	-	MM_0841	-	ArsR family transcriptional regulator
842	 39.09	0	997812..998315	-	167	21226944	-	MM_0842	-	hypothetical protein
843	 47.02	0	998563..999921	-	452	21226945	-	MM_0843	-	coenzyme F390 synthetase/phenylacetyl-CoA ligase
844	 45.71	0	1000223..1000618	-	131	21226946	-	MM_0844	-	hypothetical protein
845	 46.36	0	1000637..1000966	-	109	21226947	-	MM_0845	-	hypothetical protein
846	 43.89	0	1001005..1001601	-	198	21226948	-	MM_0846	-	hypothetical protein
847	 49.09	+1	1001829..1002158	-	109	21226949	-	MM_0847	-	hypothetical protein
848	 46.14	0	1002315..1003376	+	353	21226950	-	MM_0848	-	hypothetical protein
849	 41.41	0	1003540..1004022	+	160	21226951	-	MM_0849	-	bacterioferritin comigratory protein
850	 44.44	0	1004285..1004518	-	77	21226952	-	MM_0850	-	hypothetical protein
851	 32.24	-2	1004835..1005200	-	121	21226953	-	MM_0851	-	hypothetical protein
852	 44.73	0	1005507..1006901	-	464	21226954	-	MM_0852	-	deoxyribodipyrimidine photolyase
853	 47.50	0	1007115..1007855	-	246	21226955	-	MM_0853	-	hypothetical protein
854	 45.38	0	1007852..1009138	-	428	21226956	cdc48	MM_0854	-	cell division cycle protein 48-like protein
855	 44.82	0	1009614..1010327	+	237	21226957	-	MM_0855	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
856	 48.00	0	1010574..1011800	-	408	21226958	-	MM_0856	-	hypothetical protein
857	 44.26	0	1011797..1012162	-	121	21226959	-	MM_0857	-	hypothetical protein
858	 42.39	0	1012361..1012669	-	102	21226960	-	MM_0858	-	translation initiation factor Sui1
859	 40.83	0	1013221..1013460	+	79	21226961	-	MM_0859	-	hypothetical protein
860	 49.67	+1	1014013..1016007	+	664	21226962	-	MM_0860	-	phosphoribosylformylglycinamidine synthase II
861	 46.97	0	1016498..1017634	+	378	21226963	-	MM_0861	-	Alpha-amylase
862	 45.28	0	1017631..1018827	+	398	21226964	-	MM_0862	-	Alpha-amylase
863	 43.99	0	1018878..1019684	+	268	21226965	-	MM_0863	-	hypothetical protein
864	 45.42	0	1019681..1021657	+	658	21226966	-	MM_0864	-	glucoamylase
865	 45.07	0	1021868..1023136	-	422	21226967	-	MM_0865	-	seryl-tRNA synthetase
866	 44.85	0	1023258..1024490	-	410	21226968	-	MM_0866	-	periplasmic serine protease
867	 48.84	+1	1024811..1026958	+	715	161485679	metG	MM_0867	-	methionyl-tRNA synthetase
868	 44.63	0	1027183..1027713	-	176	21226970	-	MM_0868	-	adenylate cyclase
869	 50.38	+1	1027827..1028225	-	132	21226971	-	MM_0869	-	hypothetical protein
870	 50.72	+1	1028232..1029404	-	390	21226972	-	MM_0870	-	acetyl-CoA acetyltransferase
871	 50.38	+1	1029422..1030471	-	349	21226973	-	MM_0871	-	hypothetical protein
872	 47.37	0	1030512..1031252	-	246	21226974	-	MM_0872	-	putative transcriptional regulator
873	 45.74	0	1031391..1032212	+	273	21226975	-	MM_0873	-	hypothetical protein
874	 33.07	-2	1032667..1033419	+	250	21226976	-	MM_0874	-	hypothetical protein
875	 38.40	-1	1033935..1034171	+	78	21226977	-	MM_0875	-	hypothetical protein
876	 37.80	-1	1035461..1036198	+	245	21226978	-	MM_0876	-	hypothetical protein
877	 35.14	-1	1036566..1036898	+	110	21226979	-	MM_0877	-	transposase
878	 32.00	-2	1036843..1036992	+	49	21226980	-	MM_0878	-	transposase
879	 32.38	-2	1037063..1037272	+	69	21226981	-	MM_0879	-	hypothetical protein
880	 42.44	0	1038618..1039397	+	259	21226982	-	MM_0880	-	hypothetical protein
881	 32.49	-2	1039984..1041288	-	434	21226983	-	MM_0881	-	transposase
882	 42.12	0	1041468..1042400	+	310	21226984	-	MM_0882	-	hypothetical protein
883	 49.61	+1	1042702..1044606	+	634	21226985	-	MM_0883	-	hypothetical protein
884	 45.10	0	1044767..1045021	-	84	21226986	-	MM_0884	-	hypothetical protein
885	 29.91	-2	1045229..1045462	-	77	21226987	-	MM_0885	-	hypothetical protein
886	 46.63	0	1045583..1046680	-	365	21226988	-	MM_0886	-	DNA polymerase IV
887	 48.78	+1	1046973..1047956	+	327	21226989	cbiO	MM_0887	-	cobalt transporter, ATP-binding protein
888	 46.84	0	1048009..1048815	+	268	21226990	cbiQ	MM_0888	-	cobalt transport protein
889	 40.34	0	1048887..1050470	-	527	21226991	-	MM_0889	-	hypothetical protein
890	 43.57	0	1050955..1051872	-	305	21226992	-	MM_0890	-	putative methyltransferase
891	 42.29	0	1051865..1052746	-	293	21226993	-	MM_0891	-	putative methyltransferase
43.57	MEAN

4.98	STD DEV
