IslandPath Analysis: Methanosarcina mazei Go1

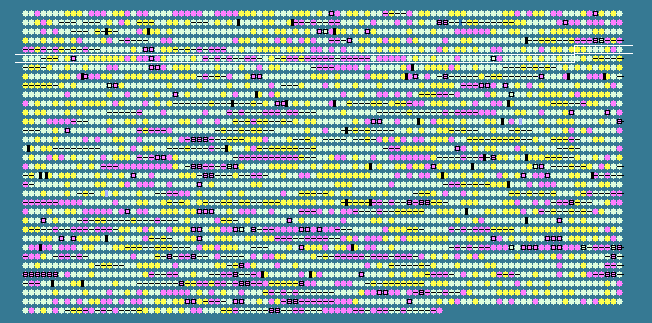

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
493	 47.54	0	615024..615776	-	250	21226595	-	MM_0493	-	Acetyl-CoA synthetase, beta subunit
494	 47.69	0	615943..616158	-	71	21226596	-	MM_0494	-	hypothetical protein
495	 46.35	0	616158..617402	-	414	21226597	-	MM_0495	-	acetate kinase
496	 47.01	0	617488..618489	-	333	21226598	-	MM_0496	-	phosphate acetyltransferase
497	 45.25	0	618824..619402	+	192	21226599	-	MM_0497	-	iron-sulfur flavoprotein
498	 50.23	+1	619683..621452	+	589	21226600	-	MM_0498	-	putative chloride channel protein
499	 38.70	0	621816..622169	+	117	21226601	-	MM_0499	-	hypothetical protein
500	 42.50	0	622615..623127	+	170	21226602	-	MM_0500	-	hypothetical protein
501	 43.46	0	623181..623654	+	157	21226603	-	MM_0501	-	3-demethylubiquinone-9 3-methyltransferase
502	 46.90	0	623772..624191	+	139	21226604	-	MM_0502	-	translation initiation inhibitor
503	 43.17	0	624322..625134	+	270	21226605	-	MM_0503	-	hypothetical protein
504	 45.26	0	625546..628974	+	1142	21226606	-	MM_0504	-	phycocyanin alpha-subunit phycocyanobilin lyase
505	 47.78	0	629118..630155	+	345	21226607	-	MM_0505	-	methylcobalamin:coenzyme M methyltransferase
506	 48.63	+1	630204..630569	-	121	21226608	-	MM_0506	-	hypothetical protein
507	 45.27	0	630618..631145	-	175	21226609	-	MM_0507	-	hypothetical protein
508	 48.05	0	631617..632309	-	230	21226610	-	MM_0508	-	isoleucyl-tRNA synthetase
509	 37.08	-1	632887..634515	-	542	21226611	-	MM_0509	-	transposase
510	 45.69	0	634643..635710	-	355	21226612	hflX	MM_0510	-	GTP-binding protein
511	 46.21	0	635932..636327	-	131	21226613	-	MM_0511	-	hypothetical protein
512	 47.55	0	636450..637511	-	353	21226614	-	MM_0512	-	tRNA splicing endonuclease
513	 50.90	+1	637715..639211	-	498	21226615	-	MM_0513	-	cobyrinic acid a,c-diamide synthase
514	 48.87	+1	639362..640159	-	265	21226616	nifH2	MM_0514	-	nitrogenase iron protein 2
515	 48.07	0	640248..641360	-	370	21226617	-	MM_0515	-	hypothetical protein
516	 49.38	+1	641771..643222	-	483	21226618	-	MM_0516	-	hypothetical protein
517	 49.62	+1	643249..643641	-	130	21226619	-	MM_0517	-	sirohydrochlorin cobaltochelatase
518	 39.36	0	644144..646849	-	901	21226620	-	MM_0518	-	sensory transduction histidine kinase
519	 47.58	0	647462..648451	-	329	21226621	-	MM_0519	-	hypothetical protein
520	 36.55	-1	648444..650030	-	528	21226622	-	MM_0520	-	hypothetical protein
521	 34.17	-1	649989..650228	+	79	21226623	-	MM_0521	-	hypothetical protein
522	 35.42	-1	650298..651542	+	414	21226624	-	MM_0522	-	transposase
523	 39.37	0	651555..651902	-	115	21226625	-	MM_0523	-	hypothetical protein
524	 49.27	+1	651915..653207	-	430	21226626	-	MM_0524	-	hypothetical protein
525	 44.79	0	653365..653844	-	159	21226627	-	MM_0525	-	hypothetical protein
526	 44.44	0	653926..654420	-	164	21226628	-	MM_0526	-	hypothetical protein
527	 41.52	0	654671..655501	-	276	21226629	-	MM_0527	-	hypothetical protein
528	 41.18	0	655835..656089	-	84	21226630	-	MM_0528	-	hypothetical protein
529	 48.09	0	656505..657317	-	270	21226631	-	MM_0529	-	hydrolase
530	 45.84	0	657372..659609	-	745	21226632	-	MM_0530	-	amino acid permease
531	 33.61	-2	660579..660938	-	119	21226633	-	MM_0531	-	hypothetical protein
532	 45.47	0	662139..662624	-	161	21226634	-	MM_0532	-	hypothetical protein
533	 35.03	-1	663360..663713	-	117	21226635	-	MM_0533	-	hypothetical protein
534	 42.18	0	664115..665290	-	391	21226636	-	MM_0534	-	hypothetical protein
535	 37.85	-1	665572..665859	-	95	21226637	-	MM_0535	-	hypothetical protein
536	 42.88	0	666425..667063	-	212	21226638	-	MM_0536	-	hypothetical protein
537	 46.32	0	667417..667824	+	135	21226639	-	MM_0537	-	hypothetical protein
538	 31.30	-2	668394..668639	+	81	21226640	-	MM_0538	-	hypothetical protein
539	 29.31	-2	668642..668815	+	57	21226641	-	MM_0539	-	hypothetical protein
540	 41.20	0	668796..669647	-	283	21226642	-	MM_0540	-	hypothetical protein
541	 46.49	0	670076..670417	-	113	21226643	-	MM_0541	-	hypothetical protein
542	 63.11	+2	670830..671420	+	196	21226644	-	MM_0542	-	hypothetical protein
543	 41.41	0	671844..672041	-	65	21226645	-	MM_0543	-	hypothetical protein
544	 50.66	+1	672401..674218	+	605	21226646	-	MM_0544	-	exoribonuclease II
545	 35.13	-1	674599..674877	+	92	21226647	-	MM_0545	-	hypothetical protein
546	 35.04	-1	674890..675240	+	116	21226648	-	MM_0546	-	hypothetical protein
547	 49.65	+1	675845..676567	+	240	21226649	-	MM_0547	-	hypothetical protein
548	 36.89	-1	676642..676866	+	74	21226650	-	MM_0548	-	hypothetical protein
549	 29.88	-2	676921..677325	-	134	21226651	-	MM_0549	-	hypothetical protein
550	 32.94	-2	677312..677563	-	83	21226652	-	MM_0550	-	hypothetical protein
551	 37.78	-1	678340..678564	-	74	21226653	-	MM_0551	-	hypothetical protein
552	 35.34	-1	678610..678858	-	82	21226654	-	MM_0552	-	hypothetical protein
553	 41.16	0	679897..680190	+	97	21226655	-	MM_0553	-	hypothetical protein
554	 38.82	0	680167..680421	-	84	21226656	-	MM_0554	-	hypothetical protein
555	 37.50	-1	680804..681043	+	79	21226657	-	MM_0555	-	hypothetical protein
556	 37.25	-1	682111..682161	+	16	21226658	-	MM_0556	-	hypothetical protein
557	 35.67	-1	682642..683241	-	199	21226659	-	MM_0557	-	hypothetical protein
558	 38.14	-1	683334..683624	-	96	21226660	-	MM_0558	-	hypothetical protein
559	 41.67	0	683642..684613	-	323	21226661	-	MM_0559	-	hypothetical protein
560	 34.25	-1	684626..685276	-	216	21226662	-	MM_0560	-	hypothetical protein
561	 31.57	-2	685292..687724	-	810	21226663	-	MM_0561	-	hypothetical protein
562	 35.19	-1	687681..688379	-	232	21226664	-	MM_0562	-	hypothetical protein
563	 37.79	-1	688397..689272	-	291	21226665	-	MM_0563	-	hypothetical protein
564	 33.09	-2	689273..690925	-	550	21226666	-	MM_0564	-	hypothetical protein
565	 42.95	0	691202..691804	+	200	21226667	-	MM_0565	-	transcriptional regulator
566	 47.22	0	692531..693250	-	239	21226668	-	MM_0566	-	hypothetical protein
567	 42.60	0	693485..693991	+	168	21226669	-	MM_0567	-	acetyltransferase
568	 41.18	0	694244..694600	-	118	21226670	-	MM_0568	-	hypothetical protein
569	 48.52	0	695188..695424	+	78	21226671	-	MM_0569	-	ABC transporter, ATP-binding protein
570	 44.08	0	695634..696452	-	272	21226672	-	MM_0570	-	ABC transporter, ATP-binding protein
571	 41.06	0	696789..697577	-	262	21226673	-	MM_0571	-	transcriptional regulator, Icc related protein
572	 44.18	0	697918..699669	-	583	21226674	-	MM_0572	-	alkaline phosphatase
573	 34.93	-1	700164..700664	+	166	21226675	-	MM_0573	-	hypothetical protein
574	 46.14	0	700824..701276	+	150	21226676	-	MM_0574	-	arsenate reductase
575	 41.39	0	702088..703080	-	330	21226677	-	MM_0575	-	putative phosphate regulatory protein
576	 41.06	0	703310..703969	-	219	21226678	phoU	MM_0576	-	phosphate transporter PhoU
577	 43.45	0	703966..704400	-	144	21226679	pstB	MM_0577	-	phosphate ABC transporter ATP-binding protein
578	 46.94	0	704446..705393	-	315	21226680	pstS	MM_0578	-	phosphate-binding protein
579	 41.99	0	706210..707283	-	357	21226681	-	MM_0579	-	transposase
580	 38.84	0	707646..708299	-	217	21226682	-	MM_0580	-	hypothetical protein
581	 43.94	0	708693..709691	-	332	21226683	-	MM_0581	-	hypothetical protein
582	 44.56	0	710372..711502	+	376	21226684	-	MM_0582	-	glycosyltransferase
583	 44.15	0	711909..712703	+	264	21226685	-	MM_0583	-	hypothetical protein
584	 46.10	0	712965..713771	+	268	21226686	-	MM_0584	-	hypothetical protein
585	 48.30	0	714201..716024	+	607	21226687	-	MM_0585	-	hypothetical protein
586	 45.02	0	716166..717158	+	330	21226688	-	MM_0586	-	Sulfate adenylyltransferase
587	 47.37	0	717511..718764	+	417	21226689	-	MM_0587	-	hypothetical protein
588	 46.07	0	718915..719550	-	211	21226690	-	MM_0588	-	hypothetical protein
589	 45.78	0	719622..720071	-	149	21226691	-	MM_0589	-	hypothetical protein
590	 51.17	+1	720368..721438	-	356	21226692	egsA	MM_0590	-	NAD(P)-dependent glycerol-1-phosphate dehydrogenase
591	 44.64	0	722397..723254	+	285	21226693	-	MM_0591	-	hypothetical protein
592	 46.29	0	723321..724061	+	246	21226694	-	MM_0592	-	integral membrane protein
43.57	MEAN

4.98	STD DEV
