IslandPath Analysis: Methanosarcina mazei Go1

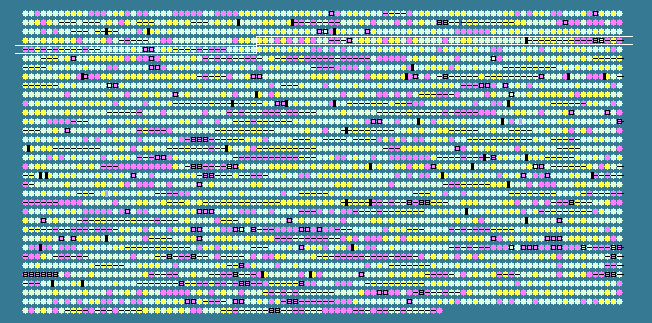

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
340	 47.95	0	447995..448165	+	56	21226442	rpl37e	MM_0340	-	50S ribosomal protein L37e
341	 48.83	+1	448215..449672	+	485	21226443	-	MM_0341	-	amidophosphoribosyltransferase
342	 46.12	0	449764..450162	-	132	21226444	-	MM_0342	-	hypothetical protein
343	 29.90	-2	450432..450635	-	67	21226445	-	MM_0343	-	hypothetical protein
344	 47.39	0	451470..452906	-	478	21226446	-	MM_0344	-	putative cation efflux pump
345	 39.70	0	452988..453317	-	109	21226447	-	MM_0345	-	transcriptional regulator
346	 41.24	0	453358..453825	-	155	21226448	-	MM_0346	-	MarR family transcriptional regulator
347	 37.91	-1	454209..454667	-	152	21226449	-	MM_0347	-	hypothetical protein
348	 47.41	0	454925..456394	-	489	21226450	-	MM_0348	-	putative cation efflux pump
349	 31.96	-2	456929..457147	+	72	21226451	-	MM_0349	-	hypothetical protein
350	 44.26	0	457470..458210	+	246	21226452	-	MM_0350	-	putative molybdopterin biosynthesis protein
351	 45.88	0	458507..459502	+	331	21226453	-	MM_0351	-	hypothetical protein
352	 37.32	-1	459465..459740	+	91	21226454	-	MM_0352	-	hypothetical protein
353	 33.05	-2	460059..460760	-	233	21226455	-	MM_0353	-	hypothetical protein
354	 44.14	0	461765..462097	+	110	21226456	-	MM_0354	-	hypothetical protein
355	 36.13	-1	462142..462606	-	154	21226457	-	MM_0355	-	transposase
356	 44.15	0	462764..463789	+	341	21226458	-	MM_0356	-	hypothetical protein
357	 47.11	0	464319..465443	+	374	21226459	-	MM_0357	-	glutamate dehydrogenase
358	 47.69	0	465615..467021	-	468	21226460	-	MM_0358	-	Acetyl-CoA synthetase, alpha subunit
359	 41.18	0	467228..467584	-	118	21226461	-	MM_0359	-	hypothetical protein
360	 48.71	+1	467707..468402	+	231	21226462	-	MM_0360	-	sulfite reductase, assimilatory-type
361	 37.54	-1	468460..468816	-	118	21226463	-	MM_0361	-	MarR family transcriptional regulator
362	 49.24	+1	469092..469751	+	219	21226464	-	MM_0362	-	sulfite reductase, assimilatory-type
363	 47.49	0	470083..470421	+	112	21226465	-	MM_0363	-	hypothetical protein
364	 44.93	0	470459..470803	+	114	21226466	-	MM_0364	-	hypothetical protein
365	 39.39	0	471016..471477	+	153	21226467	-	MM_0365	-	hypothetical protein
366	 47.43	0	471552..471920	+	122	21226468	-	MM_0366	-	ferredoxin
367	 42.16	0	472177..472731	-	184	21226469	-	MM_0367	-	hypothetical protein
368	 45.60	0	472947..473264	+	105	21226470	-	MM_0368	-	hypothetical protein
369	 45.08	0	473430..474272	+	280	21226471	-	MM_0369	-	hypothetical protein
370	 44.51	0	474376..475440	+	354	21226472	-	MM_0370	-	chorismate mutase
371	 38.63	0	475505..476392	+	295	21226473	-	MM_0371	-	hypothetical protein
372	 46.77	0	476651..477625	+	324	21226474	-	MM_0372	-	MoxR-like ATPase
373	 46.15	0	477794..478675	+	293	21226475	-	MM_0373	-	putative cytoplasmic protein
374	 47.23	0	478678..480555	+	625	21226476	-	MM_0374	-	hypothetical protein
375	 47.47	0	480552..483041	+	829	21226477	-	MM_0375	-	hypothetical protein
376	 42.04	0	483168..483764	-	198	21226478	-	MM_0376	-	hypothetical protein
377	 44.92	0	483864..484916	-	350	21226479	-	MM_0377	-	integral membrane protein
378	 45.89	0	485270..486448	-	392	21226480	-	MM_0378	-	sugar-phosphate nucleotydyl transferase
379	 45.10	0	486587..486943	-	118	21226481	-	MM_0379	-	hypothetical protein
380	 45.34	0	487168..487650	-	160	21226482	-	MM_0380	-	peptidyl-prolyl cis-trans isomerase
381	 46.91	0	487779..488279	-	166	21226483	-	MM_0381	-	peptidyl-prolyl cis-trans isomerase
382	 44.72	0	488339..488830	-	163	21226484	-	MM_0382	-	peptidyl-prolyl cis-trans isomerase
383	 41.59	0	489007..489648	-	213	21226485	-	MM_0383	-	hypothetical protein
384	 42.50	0	490071..492449	+	792	21226486	-	MM_0384	-	hypothetical protein
385	 44.93	0	493828..494241	-	137	21226487	-	MM_0385	-	hypothetical protein
386	 44.03	0	495242..495643	-	133	21226488	-	MM_0386	-	hypothetical protein
387	 47.60	0	496300..498717	+	805	21226489	-	MM_0387	-	heterodisulfide reductase subunit HdrA
388	 47.82	0	498714..499424	+	236	21226490	-	MM_0388	-	heterodisulfide reductase subunit HdrC
389	 47.20	0	499378..500322	+	314	21226491	-	MM_0389	-	heterodisulfide reductase subunit HdrB
390	 41.31	0	500539..501816	-	425	21226492	-	MM_0390	-	putative surface layer protein
391	 40.11	0	501994..504279	-	761	21226493	-	MM_0391	-	hypothetical protein
392	 48.41	0	504926..505177	+	83	21226494	-	MM_0392	-	hypothetical protein
393	 33.52	-2	505702..506238	-	178	21226495	-	MM_0393	-	hypothetical protein
394	 37.98	-1	506266..507105	-	279	21226496	-	MM_0394	-	hypothetical protein
395	 39.92	0	507430..508689	-	419	21226497	-	MM_0395	-	putative surface layer protein
396	 36.60	-1	508772..509905	-	377	21226498	-	MM_0396	-	transposase
397	 40.70	0	509921..510205	-	94	21226499	-	MM_0397	-	transposase
398	 39.43	0	510615..511763	-	382	21226500	-	MM_0398	-	hypothetical protein
399	 48.51	0	512355..512657	+	100	21226501	-	MM_0399	-	hypothetical protein
400	 36.82	-1	512752..513153	-	133	21226502	-	MM_0400	-	hypothetical protein
401	 31.84	-2	513577..514113	-	178	21226503	-	MM_0401	-	hypothetical protein
402	 36.81	-1	514140..515348	-	402	21226504	-	MM_0402	-	hypothetical protein
403	 47.52	0	515777..516079	+	100	21226505	-	MM_0403	-	hypothetical protein
404	 37.09	-1	516076..516288	-	70	21226506	-	MM_0404	-	hypothetical protein
405	 41.77	0	516267..517700	-	477	21226507	-	MM_0405	-	putative surface layer protein
406	 37.50	-1	517884..519059	-	391	21226508	-	MM_0406	-	hypothetical protein
407	 48.51	0	519541..519843	+	100	21226509	-	MM_0407	-	hypothetical protein
408	 46.43	0	519959..520378	-	139	21226510	-	MM_0408	-	hypothetical protein
409	 50.00	+1	520855..522030	+	391	21226511	-	MM_0409	-	3-isopropylmalate dehydratase
410	 40.10	0	522390..522581	+	63	21226512	-	MM_0410	-	hypothetical protein
411	 38.95	0	522693..523706	-	337	21226513	-	MM_0411	-	hypothetical protein
412	 44.70	0	523918..525465	-	515	21226514	-	MM_0412	-	flagellar assembly protein J
413	 44.05	0	525477..527324	-	615	21226515	-	MM_0413	-	flagella related protein FlaI
414	 44.15	0	527388..528182	-	264	21226516	-	MM_0414	-	flagellar accessory protein FlaH
415	 44.06	0	528444..528965	-	173	21226517	-	MM_0415	-	hypothetical protein
416	 46.34	0	528981..529472	-	163	21226518	-	MM_0416	-	hypothetical protein
417	 43.51	0	529797..530582	-	261	21226519	-	MM_0417	-	hypothetical protein
418	 43.82	0	530648..531238	-	196	21226520	-	MM_0418	-	Flagillin B1
419	 49.18	+1	531692..532543	-	283	21226521	-	MM_0419	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
420	 46.72	0	532530..534269	-	579	21226522	-	MM_0420	-	pyruvate synthase subunit alpha
421	 35.09	-1	535416..536555	-	379	21226523	-	MM_0421	-	transposase
422	 32.85	-2	536556..536969	+	137	21226524	-	MM_0422	-	transposase
423	 41.49	0	537162..537590	-	142	21226525	-	MM_0423	-	hypothetical protein
424	 47.24	0	537677..538978	-	433	21226526	hisD	MM_0424	-	histidinol dehydrogenase
425	 48.52	0	539592..541784	-	730	21226527	-	MM_0425	-	ski2-like helicase
426	 48.78	+1	541958..543724	-	588	21226528	-	MM_0426	-	putative ATPase RIL
427	 40.18	0	544069..544506	-	145	21226529	-	MM_0427	-	hypothetical protein
428	 48.73	+1	544639..545658	-	339	21226530	-	MM_0428	-	hypothetical protein
429	 46.27	0	546056..547786	+	576	21226531	-	MM_0429	-	type I restriction-modification system methylation subunit
430	 38.71	0	547779..549098	+	439	21226532	-	MM_0430	-	type I restriction-modification system specificity subunit
431	 46.63	0	549109..552267	+	1052	21226533	-	MM_0431	-	type I restriction-modification system restriction subnit
432	 38.86	0	552346..552924	+	192	21226534	-	MM_0432	-	transcriptional regulator
433	 37.22	-1	553033..553830	+	265	21226535	-	MM_0433	-	hypothetical protein
434	 38.00	-1	553883..554761	+	292	21226536	-	MM_0434	-	hypothetical protein
435	 40.44	0	554902..555309	-	135	21226537	-	MM_0435	-	hypothetical protein
436	 46.07	0	556054..556320	-	88	21226538	-	MM_0436	-	thioredoxin
437	 48.71	+1	556588..557400	-	270	21226539	-	MM_0437	-	hypothetical protein
438	 45.39	0	557737..558615	-	292	21226540	-	MM_0438	-	methylenetetrahydrofolate reductase
439	 46.99	0	558807..559421	-	204	21226541	-	MM_0439	-	zinc-finger protein
43.57	MEAN

4.98	STD DEV
