IslandPath Analysis: Methanosarcina mazei Go1

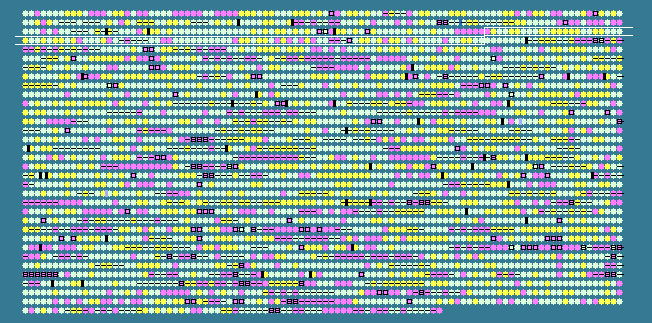

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
278	 37.34	-1	372834..374105	-	423	21226380	-	MM_0278	-	DNA-cytosine methyltransferase
279	 51.45	+1	374329..377325	+	998	21226381	-	MM_0279	-	membrane alanine aminopeptidase
280	 42.04	0	377774..378106	+	110	21226382	-	MM_0280	-	hypothetical protein
281	 40.52	0	378199..378546	+	115	21226383	-	MM_0281	-	hypothetical protein
282	 49.01	+1	378966..380183	+	405	21226384	-	MM_0282	-	threonine synthase
283	 50.07	+1	380460..383375	+	971	21226385	leuS	MM_0283	-	leucyl-tRNA synthetase
284	 43.76	0	383733..384653	-	306	21226386	-	MM_0284	-	putative amidohydrolase
285	 46.39	0	384738..385388	-	216	21226387	-	MM_0285	-	hypothetical protein
286	 42.97	0	386031..386528	+	165	21226388	-	MM_0286	-	pyruvoyl-dependent arginine decarboxylase
287	 48.57	+1	386949..387998	+	349	21226389	-	MM_0287	-	putative deoxyhypusine synthase
288	 42.15	0	388062..388583	+	173	21226390	-	MM_0288	-	ArsR family transcriptional regulator
289	 49.56	+1	388583..389371	+	262	21226391	-	MM_0289	-	transcriptional regulator
290	 48.27	0	389639..390187	+	182	21226392	-	MM_0290	-	hypothetical protein
291	 47.75	0	390339..390560	-	73	21226393	-	MM_0291	-	hypothetical protein
292	 50.18	+1	390887..391456	-	189	21226394	-	MM_0292	-	hypothetical protein
293	 47.95	0	391457..392722	-	421	21226395	-	MM_0293	-	replication factor A
294	 45.56	0	393471..395261	-	596	21226396	-	MM_0294	-	Na(+)/H(+) antiporter, putative
295	 45.41	0	395574..396194	-	206	21226397	-	MM_0295	-	glycine betaine transport system, permease protein
296	 47.81	0	396185..396847	-	220	21226398	-	MM_0296	-	glycine betaine transport system, permease protein
297	 47.38	0	397083..398207	-	374	21226399	-	MM_0297	-	glycine betaine transporter, ATP-binding protein
298	 46.04	0	398232..399152	-	306	21226400	-	MM_0298	-	glycine betaine-binding protein
299	 43.88	0	399676..400908	+	410	21226401	-	MM_0299	-	glucose-1-phosphate thymidylyltransferase
300	 46.85	0	400931..402787	+	618	21226402	-	MM_0300	-	glucosamine--fructose-6-phosphate aminotransferase [isomerizing]
301	 48.99	+1	402843..404177	+	444	21226403	-	MM_0301	-	phosphoglucomutase
302	 46.31	0	404174..405367	+	397	21226404	-	MM_0302	-	glucose-1-phosphate thymidylyltransferase
303	 42.29	0	405545..406024	-	159	21226405	-	MM_0303	-	hypothetical protein
304	 47.36	0	407340..408458	+	372	21226406	-	MM_0304	-	AAA ATPase family protein
305	 41.76	0	408712..408972	+	86	21226407	-	MM_0305	-	hypothetical protein
306	 49.35	+1	409242..410159	-	305	21226408	-	MM_0306	-	ribonuclease Z
307	 49.48	+1	410613..411380	+	255	21226409	-	MM_0307	-	uroporphyrin-III C-methyltransferase
308	 45.56	0	411390..412199	+	269	21226410	hemD	MM_0308	-	uroporphyrinogen-III synthase
309	 48.83	+1	412310..413509	+	399	21226411	-	MM_0309	-	metallo cofactor biosynthesis protein
310	 39.26	0	413671..414480	-	269	21226412	-	MM_0310	-	hypothetical protein
311	 43.43	0	415207..416157	+	316	21226413	-	MM_0311	-	hypothetical protein
312	 44.84	0	416242..417006	+	254	21226414	-	MM_0312	-	hypothetical protein
313	 45.41	0	417424..418077	+	217	21226415	-	MM_0313	-	hypothetical protein
314	 49.54	+1	418656..421265	+	869	21226416	valS	MM_0314	-	valyl-tRNA synthetase
315	 34.67	-1	421724..422695	-	323	21226417	-	MM_0315	-	hypothetical protein
316	 40.84	0	422697..424322	-	541	21226418	-	MM_0316	-	flagellar assembly protein J
317	 42.77	0	424335..426188	-	617	21226419	-	MM_0317	-	flagella related protein FlaI
318	 39.75	0	426226..426942	-	238	21226420	-	MM_0318	-	flagellar accessory protein FlaH
319	 44.30	0	426944..427417	-	157	21226421	-	MM_0319	-	hypothetical protein
320	 44.60	0	427422..427838	-	138	21226422	-	MM_0320	-	hypothetical protein
321	 40.81	0	427911..428579	-	222	21226423	-	MM_0321	-	hypothetical protein
322	 42.88	0	428659..429255	-	198	21226424	-	MM_0322	-	flagellin B1 precursor
323	 43.52	0	429267..429914	-	215	21226425	-	MM_0323	-	flagellin B1 precursor
324	 23.87	-2	430324..430545	-	73	21226426	-	MM_0324	-	hypothetical protein
325	 39.61	0	430668..431480	-	270	21226427	cheR	MM_0325	-	chemotaxis protein methyltransferase
326	 45.65	0	431471..432136	-	221	21226428	cheD	MM_0326	-	chemoreceptor glutamine deamidase CheD
327	 43.30	0	432133..432744	-	203	21226429	cheC	MM_0327	-	chemotaxis protein
328	 43.12	0	432728..435373	-	881	21226430	cheA	MM_0328	-	chemotaxis protein
329	 44.44	0	435363..436415	-	350	161485682	-	MM_0329	-	chemotaxis-specific methylesterase
330	 42.42	0	436429..436791	-	120	21226432	cheY	MM_0330	-	chemotaxis protein
331	 41.07	0	436817..437617	-	266	21226433	-	MM_0331	-	hypothetical protein
332	 40.62	0	437614..438093	-	159	21226434	cheW	MM_0332	-	chemotaxis protein
333	 42.29	0	438177..440174	-	665	21226435	-	MM_0333	-	methyl-accepting chemotaxis protein
334	 41.19	0	440699..441067	+	122	21226436	-	MM_0334	-	hypothetical protein
335	 46.86	0	441695..442951	+	418	21226437	-	MM_0335	-	3-hydroxy-3-methylglutaryl-coenzyme A reductase
336	 37.47	-1	443363..443773	+	136	21226438	-	MM_0336	-	hypothetical protein
337	 49.58	+1	443958..445256	-	432	161485681	-	MM_0337	-	tryptophan synthase subunit beta
338	 48.20	0	445717..447075	-	452	21226440	-	MM_0338	-	hydroxymethylpyrimidine kinase
339	 44.29	0	447635..447853	+	72	21226441	-	MM_0339	-	small nuclear ribonucleoprotein
340	 47.95	0	447995..448165	+	56	21226442	rpl37e	MM_0340	-	50S ribosomal protein L37e
341	 48.83	+1	448215..449672	+	485	21226443	-	MM_0341	-	amidophosphoribosyltransferase
342	 46.12	0	449764..450162	-	132	21226444	-	MM_0342	-	hypothetical protein
343	 29.90	-2	450432..450635	-	67	21226445	-	MM_0343	-	hypothetical protein
344	 47.39	0	451470..452906	-	478	21226446	-	MM_0344	-	putative cation efflux pump
345	 39.70	0	452988..453317	-	109	21226447	-	MM_0345	-	transcriptional regulator
346	 41.24	0	453358..453825	-	155	21226448	-	MM_0346	-	MarR family transcriptional regulator
347	 37.91	-1	454209..454667	-	152	21226449	-	MM_0347	-	hypothetical protein
348	 47.41	0	454925..456394	-	489	21226450	-	MM_0348	-	putative cation efflux pump
349	 31.96	-2	456929..457147	+	72	21226451	-	MM_0349	-	hypothetical protein
350	 44.26	0	457470..458210	+	246	21226452	-	MM_0350	-	putative molybdopterin biosynthesis protein
351	 45.88	0	458507..459502	+	331	21226453	-	MM_0351	-	hypothetical protein
352	 37.32	-1	459465..459740	+	91	21226454	-	MM_0352	-	hypothetical protein
353	 33.05	-2	460059..460760	-	233	21226455	-	MM_0353	-	hypothetical protein
354	 44.14	0	461765..462097	+	110	21226456	-	MM_0354	-	hypothetical protein
355	 36.13	-1	462142..462606	-	154	21226457	-	MM_0355	-	transposase
356	 44.15	0	462764..463789	+	341	21226458	-	MM_0356	-	hypothetical protein
357	 47.11	0	464319..465443	+	374	21226459	-	MM_0357	-	glutamate dehydrogenase
358	 47.69	0	465615..467021	-	468	21226460	-	MM_0358	-	Acetyl-CoA synthetase, alpha subunit
359	 41.18	0	467228..467584	-	118	21226461	-	MM_0359	-	hypothetical protein
360	 48.71	+1	467707..468402	+	231	21226462	-	MM_0360	-	sulfite reductase, assimilatory-type
361	 37.54	-1	468460..468816	-	118	21226463	-	MM_0361	-	MarR family transcriptional regulator
362	 49.24	+1	469092..469751	+	219	21226464	-	MM_0362	-	sulfite reductase, assimilatory-type
363	 47.49	0	470083..470421	+	112	21226465	-	MM_0363	-	hypothetical protein
364	 44.93	0	470459..470803	+	114	21226466	-	MM_0364	-	hypothetical protein
365	 39.39	0	471016..471477	+	153	21226467	-	MM_0365	-	hypothetical protein
366	 47.43	0	471552..471920	+	122	21226468	-	MM_0366	-	ferredoxin
367	 42.16	0	472177..472731	-	184	21226469	-	MM_0367	-	hypothetical protein
368	 45.60	0	472947..473264	+	105	21226470	-	MM_0368	-	hypothetical protein
369	 45.08	0	473430..474272	+	280	21226471	-	MM_0369	-	hypothetical protein
370	 44.51	0	474376..475440	+	354	21226472	-	MM_0370	-	chorismate mutase
371	 38.63	0	475505..476392	+	295	21226473	-	MM_0371	-	hypothetical protein
372	 46.77	0	476651..477625	+	324	21226474	-	MM_0372	-	MoxR-like ATPase
373	 46.15	0	477794..478675	+	293	21226475	-	MM_0373	-	putative cytoplasmic protein
374	 47.23	0	478678..480555	+	625	21226476	-	MM_0374	-	hypothetical protein
375	 47.47	0	480552..483041	+	829	21226477	-	MM_0375	-	hypothetical protein
376	 42.04	0	483168..483764	-	198	21226478	-	MM_0376	-	hypothetical protein
377	 44.92	0	483864..484916	-	350	21226479	-	MM_0377	-	integral membrane protein
43.57	MEAN

4.98	STD DEV
