IslandPath Analysis: Methanosarcina mazei Go1

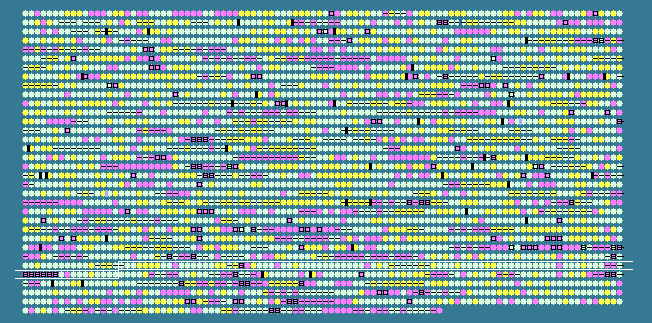

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2817	 43.21	0	3380313..3380960	-	215	21228919	-	MM_2817	-	anthranilate synthase component II
2818	 44.48	0	3380961..3382799	-	612	21228920	-	MM_2818	-	anthranilate synthase component I
2819	 46.24	0	3382786..3383490	-	234	21228921	-	MM_2819	-	N-(5'-phosphoribosyl)anthranilate isomerase
2820	 48.07	0	3383487..3384599	-	370	21228922	-	MM_2820	-	anthranilate phosphoribosyltransferase
2821	 47.67	0	3384632..3385447	-	271	21228923	trpA	MM_2821	-	tryptophan synthase subunit alpha
2822	 50.66	+1	3385449..3386660	-	403	161485666	-	MM_2822	-	tryptophan synthase subunit beta
2823	 50.00	+1	3386809..3387612	-	267	21228925	-	MM_2823	-	indole-3-glycerol phosphate synthase
2824	 44.94	0	3388292..3389092	+	266	21228926	-	MM_2824	-	glucose-6-phosphate dehydrogenase
2825	 40.88	0	3389284..3389919	+	211	21228927	-	MM_2825	-	hypothetical protein
2826	 36.44	-1	3390107..3390814	+	235	21228928	-	MM_2826	-	hypothetical protein
2827	 42.71	0	3390790..3392175	+	461	21228929	-	MM_2827	-	hypothetical protein
2828	 43.56	0	3392325..3392891	-	188	21228930	-	MM_2828	-	hypothetical protein
2829	 46.15	0	3393854..3394321	+	155	21228931	-	MM_2829	-	peptidyl-prolyl cis-trans isomerase
2830	 44.77	0	3394904..3396565	+	553	21228932	-	MM_2830	-	ribonucleoside-diphosphate
2831	 43.48	0	3396724..3397689	+	321	21228933	-	MM_2831	-	ABC-Type transporter, permease protein
2832	 45.21	0	3397793..3398710	+	305	21228934	-	MM_2832	-	ABC-Type transporter, permease protein
2833	 47.08	0	3398933..3399616	+	227	21228935	-	MM_2833	-	ABC transporter, ATP-binding protein
2834	 47.81	0	3399626..3400081	+	151	21228936	-	MM_2834	-	hypothetical protein
2835	 42.82	0	3400242..3400631	-	129	21228937	-	MM_2835	-	hypothetical protein
2836	 47.55	0	3401314..3402600	+	428	21228938	-	MM_2836	-	enolase
2837	 35.58	-1	3402783..3404027	-	414	21228939	-	MM_2837	-	transposase
2838	 33.73	-1	3404097..3404345	-	82	21228940	-	MM_2838	-	hypothetical protein
2839	 47.43	0	3404768..3406363	+	531	21228941	-	MM_2839	-	MoxR-like ATPase
2840	 45.90	0	3406635..3408281	+	548	21228942	-	MM_2840	-	hypothetical protein
2841	 45.13	0	3408360..3410114	-	584	21228943	-	MM_2841	-	acetolactate synthase
2842	 44.44	0	3410547..3411014	+	155	21228944	-	MM_2842	-	5-nitroimidazole antibiotic resistance protein
2843	 32.61	-2	3411741..3412979	+	412	21228945	-	MM_2843	-	hypothetical protein
2844	 40.42	0	3413437..3414255	-	272	21228946	-	MM_2844	-	hypothetical protein
2845	 42.96	0	3414573..3414977	-	134	21228947	-	MM_2845	-	hypothetical protein
2846	 47.42	0	3415261..3416637	-	458	21228948	-	MM_2846	-	putrescine-ornithine antiporter
2847	 45.78	0	3416743..3418092	-	449	21228949	-	MM_2847	-	amino acid permease
2848	 45.33	0	3419380..3420021	-	213	21228950	-	MM_2848	-	hypothetical protein
2849	 45.88	0	3420445..3421257	+	270	21228951	-	MM_2849	-	permease
2850	 45.81	0	3421346..3422563	-	405	21228952	-	MM_2850	-	ABC transporter, permease protein
2851	 42.18	0	3423038..3423523	+	161	21228953	-	MM_2851	-	MarR family transcriptional regulator
2852	 44.84	0	3423705..3426050	+	781	21228954	-	MM_2852	-	membrane protein related to SecD/SecF
2853	 41.30	0	3426755..3427231	+	158	21228955	-	MM_2853	-	hypothetical protein
2854	 40.83	0	3427376..3427735	+	119	21228956	-	MM_2854	-	hypothetical protein
2855	 42.82	0	3428574..3429416	+	280	21228957	-	MM_2855	-	ABC transporter, permease protein
2856	 43.27	0	3429734..3430498	+	254	21228958	-	MM_2856	-	ABC transporter, ATP-binding protein
2857	 42.13	0	3430522..3431964	+	480	21228959	-	MM_2857	-	hypothetical protein
2858	 35.93	-1	3432177..3432599	+	140	21228960	-	MM_2858	-	potassium channel protein
2859	 45.89	0	3433573..3434424	-	283	21228961	-	MM_2859	-	hypothetical protein
2860	 49.58	+1	3434719..3434958	-	79	21228962	-	MM_2860	-	hypothetical protein
2861	 44.44	0	3435258..3436130	-	290	21228963	-	MM_2861	-	ArsR family transcriptional regulator
2862	 48.65	+1	3437044..3437892	-	282	21228964	-	MM_2862	-	hypothetical protein
2863	 43.16	0	3438135..3438368	-	77	21228965	-	MM_2863	-	hypothetical protein
2864	 43.92	0	3438733..3439629	+	298	21228966	-	MM_2864	-	hypothetical protein
2865	 45.44	0	3440533..3442002	+	489	21228967	-	MM_2865	-	hypothetical protein
2866	 45.58	0	3442709..3444178	+	489	21228968	-	MM_2866	-	hypothetical protein
2867	 48.69	+1	3444562..3445863	-	433	21228969	-	MM_2867	-	coenzyme F390 synthetase/phenylacetyl-CoA ligase
2868	 41.60	0	3446895..3447293	+	132	21228970	-	MM_2868	-	hypothetical protein
2869	 47.96	0	3448149..3448784	+	211	21228971	-	MM_2869	-	hypothetical protein
2870	 46.79	0	3448925..3449407	+	160	21228972	-	MM_2870	-	hypothetical protein
2871	 45.65	0	3449557..3449832	+	91	21228973	-	MM_2871	-	hypothetical protein
2872	 40.70	0	3450835..3451119	-	94	21228974	-	MM_2872	-	methyltransferase
2873	 51.92	+1	3451251..3452396	-	381	21228975	-	MM_2873	-	L-sorbosone dehydrogenase
2874	 45.32	0	3452415..3452831	-	138	21228976	-	MM_2874	-	hypothetical protein
2875	 44.60	0	3453320..3453976	+	218	21228977	-	MM_2875	-	hypothetical protein
2876	 45.95	0	3454126..3455235	+	369	21228978	-	MM_2876	-	DNA polymerase IV
2877	 40.33	0	3455326..3456369	+	347	21228979	-	MM_2877	-	hypothetical protein
2878	 49.32	+1	3456677..3457408	-	243	21228980	-	MM_2878	-	hypothetical protein
2879	 47.81	0	3457745..3458794	-	349	21228981	-	MM_2879	-	TPR repeat-containing protein
2880	 41.55	0	3460071..3460484	+	137	21228982	-	MM_2880	-	response regulator
2881	 43.39	0	3460711..3463275	+	854	21228983	-	MM_2881	-	sensor histidine kinase/response regulator
2882	 43.17	0	3463624..3464721	-	365	21228984	-	MM_2882	-	hypothetical protein
2883	 41.67	0	3465018..3465701	-	227	21228985	-	MM_2883	-	hypothetical protein
2884	 44.18	0	3465819..3466814	-	331	21228986	-	MM_2884	-	hypothetical protein
2885	 44.55	0	3467434..3468039	-	201	21228987	-	MM_2885	-	putative metalloendopeptidase
2886	 41.06	0	3469077..3471083	-	668	21228988	-	MM_2886	-	sensory transduction histidine kinase
2887	 44.60	0	3471568..3471780	+	70	21228989	-	MM_2887	-	hypothetical protein
2888	 42.97	0	3472165..3472911	-	248	21228990	-	MM_2888	-	endonuclease III
2889	 43.97	0	3473108..3473596	-	162	21228991	-	MM_2889	-	hypothetical protein
2890	 26.26	-2	3473636..3473833	-	65	21228992	-	MM_2890	-	hypothetical protein
2891	 44.32	0	3473826..3474653	-	275	21228993	-	MM_2891	-	ABC transporter, permease protein
2892	 45.70	0	3474732..3475184	-	150	21228994	-	MM_2892	-	ABC transporter, permease protein
2893	 42.65	0	3475210..3476562	-	450	21228995	-	MM_2893	-	hypothetical protein
2894	 47.76	0	3476716..3477429	-	237	21228996	-	MM_2894	-	ABC transporter, ATP-binding protein
2895	 43.96	0	3477662..3477868	-	68	21228997	-	MM_2895	-	transcriptional regulator
2896	 40.43	0	3477889..3478212	-	107	21228998	-	MM_2896	-	hypothetical protein
2897	 46.73	0	3478774..3479706	-	310	21228999	-	MM_2897	-	Pirin
2898	 35.01	-1	3480666..3481142	-	158	21229000	-	MM_2898	-	hypothetical protein
2899	 36.79	-1	3482476..3483255	-	259	21229001	-	MM_2899	-	hypothetical protein
2900	 41.31	0	3483456..3484496	-	346	21229002	-	MM_2900	-	hypothetical protein
2901	 37.37	-1	3485042..3485536	+	164	21229003	-	MM_2901	-	transposase
2902	 38.62	0	3485550..3486173	+	207	21229004	-	MM_2902	-	transposase
2903	 34.60	-1	3486296..3487396	+	366	21229005	-	MM_2903	-	transposase
2904	 38.62	0	3487367..3487990	-	207	21229006	-	MM_2904	-	transposase
2905	 37.37	-1	3488004..3488498	-	164	21229007	-	MM_2905	-	transposase
2906	 36.13	-1	3489046..3489510	-	154	21229008	-	MM_2906	-	transposase
2907	 46.07	0	3489704..3490669	-	321	21229009	-	MM_2907	-	Pirin
2908	 38.24	-1	3491164..3491856	+	230	21229010	-	MM_2908	-	hypothetical protein
2909	 43.81	0	3493046..3493627	+	193	21229011	-	MM_2909	-	hypothetical protein
2910	 46.10	0	3493687..3495354	-	555	21229012	-	MM_2910	-	adenine deaminase
2911	 44.74	0	3495669..3496781	+	370	21229013	-	MM_2911	-	phosphoserine aminotransferase
2912	 49.05	+1	3497146..3500898	+	1250	21229014	-	MM_2912	-	5-oxoprolinase
2913	 44.63	0	3500927..3501997	-	356	21229015	purP	MM_2913	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase
2914	 44.38	0	3502489..3502995	-	168	21229016	-	MM_2914	-	hypothetical protein
2915	 42.48	0	3503015..3503626	-	203	21229017	-	MM_2915	-	hypothetical protein
2916	 44.44	0	3504011..3504577	+	188	21229018	-	MM_2916	-	flavoredoxin
43.57	MEAN

4.98	STD DEV
