IslandPath Analysis: Methanosarcina mazei Go1

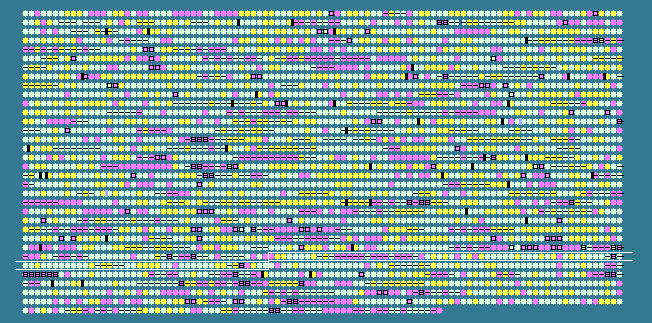

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2742	 36.15	-1	3280567..3282873	-	768	21228844	-	MM_2742	-	hypothetical protein
2743	 49.51	+1	3283563..3283871	+	102	21228845	-	MM_2743	-	hypothetical protein
2744	 47.34	0	3283991..3285082	-	363	21228846	-	MM_2744	-	hypothetical protein
2745	 44.74	0	3285315..3286436	-	373	21228847	-	MM_2745	-	hypothetical protein
2746	 40.35	0	3286936..3288189	-	417	21228848	-	MM_2746	-	hypothetical protein
2747	 46.94	0	3288741..3289967	+	408	21228849	-	MM_2747	-	hypothetical protein
2748	 44.86	0	3290910..3293798	+	962	21228850	-	MM_2748	-	sensory transduction histidine kinase
2749	 48.04	0	3294005..3295534	+	509	21228851	-	MM_2749	-	aminoacyl-histidine dipeptidase
2750	 41.58	0	3295617..3296174	-	185	21228852	-	MM_2750	-	hypothetical protein
2751	 47.65	0	3296298..3296786	-	162	21228853	-	MM_2751	-	hypothetical protein
2752	 45.27	0	3297188..3298276	-	362	21228854	-	MM_2752	-	hypothetical protein
2753	 34.31	-1	3298724..3299956	+	410	21228855	-	MM_2753	-	hypothetical protein
2754	 32.74	-2	3300817..3303024	+	735	21228856	-	MM_2754	-	hypothetical protein
2755	 34.75	-1	3304162..3304656	+	164	21228857	-	MM_2755	-	hypothetical protein
2756	 36.08	-1	3304813..3305430	+	205	21228858	-	MM_2756	-	hypothetical protein
2757	 32.66	-2	3305636..3305932	+	98	21228859	-	MM_2757	-	hypothetical protein
2758	 40.49	0	3305933..3306463	+	176	21228860	-	MM_2758	-	hypothetical protein
2759	 38.99	0	3306939..3307256	+	105	21228861	-	MM_2759	-	hypothetical protein
2760	 39.53	0	3307425..3312317	+	1630	21228862	-	MM_2760	-	hypothetical protein
2761	 38.07	-1	3312354..3312944	+	196	21228863	-	MM_2761	-	hypothetical protein
2762	 41.86	0	3313280..3313537	+	85	21228864	-	MM_2762	-	hypothetical protein
2763	 33.89	-1	3314653..3315192	+	179	21228865	-	MM_2763	-	putative DNA recombinase
2764	 38.70	0	3315583..3316029	+	148	21228866	-	MM_2764	-	hypothetical protein
2765	 38.48	-1	3316030..3316398	+	122	21228867	-	MM_2765	-	hypothetical protein
2766	 40.65	0	3316406..3316870	+	154	21228868	-	MM_2766	-	hypothetical protein
2767	 38.83	0	3316871..3317779	+	302	21228869	-	MM_2767	-	hypothetical protein
2768	 42.06	0	3318706..3319026	-	106	21228870	-	MM_2768	-	hypothetical protein
2769	 47.92	0	3319284..3320558	-	424	21228871	-	MM_2769	-	Iron-containing alcohol dehydrogenase
2770	 46.52	0	3320721..3322700	+	659	21228872	-	MM_2770	-	glycogen debranching protein
2771	 48.24	0	3322785..3323804	+	339	21228873	-	MM_2771	-	hypothetical protein
2772	 42.20	0	3324088..3324369	+	93	21228874	-	MM_2772	-	hypothetical protein
2773	 40.02	0	3324730..3327153	-	807	21228875	-	MM_2773	-	two component system histidine kinase
2774	 46.09	0	3327606..3328091	+	161	21228876	-	MM_2774	-	hypothetical protein
2775	 51.05	+1	3328177..3329079	+	300	21228877	-	MM_2775	-	hypothetical protein
2776	 33.85	-1	3329294..3329488	-	64	21228878	-	MM_2776	-	hypothetical protein
2777	 47.87	0	3329961..3330242	+	93	21228879	-	MM_2777	-	acylphosphatase
2778	 44.69	0	3330318..3331391	-	357	21228880	-	MM_2778	-	cobalt-zinc-cadmium resistance protein
2779	 45.26	0	3331814..3333247	-	477	21228881	-	MM_2779	-	putative phosphoglycerate mutase
2780	 43.88	0	3333574..3334455	+	293	21228882	-	MM_2780	-	hypothetical protein
2781	 43.92	0	3334587..3334775	+	62	21228883	-	MM_2781	-	hypothetical protein
2782	 46.53	0	3335707..3336714	+	335	21228884	-	MM_2782	-	glyceraldehyde-3-phosphate dehydrogenase
2783	 48.01	0	3336891..3337694	+	267	21228885	-	MM_2783	-	bifunctional inositol-1 monophosphatase/fructose-1,6-bisphosphatase
2784	 45.52	0	3337654..3338523	+	289	21228886	-	MM_2784	-	hypothetical protein
2785	 46.12	0	3338845..3340197	+	450	21228887	aksA	MM_2785	-	trans-homoaconitate synthase
2786	 44.03	0	3340405..3340890	-	161	21228888	-	MM_2786	-	hypothetical protein
2787	 47.51	0	3341286..3343571	-	761	21228889	-	MM_2787	-	hypothetical protein
2788	 45.72	0	3344517..3346268	-	583	21228890	-	MM_2788	-	indolepyruvate ferredoxin oxidoreductase, subunit alpha
2789	 47.17	0	3346334..3347374	-	346	21228891	-	MM_2789	-	hypothetical protein
2790	 38.86	0	3347703..3348281	-	192	21228892	-	MM_2790	-	iron-sulfur flavoprotein
2791	 43.77	0	3348596..3349285	-	229	21228893	radC	MM_2791	-	DNA repair protein RadC
2792	 48.51	0	3349614..3350450	+	278	21228894	-	MM_2792	-	molybdopterin converting factor, subunit 2
2793	 45.63	0	3350576..3351250	+	224	21228895	-	MM_2793	-	molybdopterin-guanine dinucleotide biosynthesis protein
2794	 48.61	+1	3351456..3352031	-	191	21228896	-	MM_2794	-	hypothetical protein
2795	 44.26	0	3352234..3353139	+	301	21228897	-	MM_2795	-	hypothetical protein
2796	 46.53	0	3353520..3354428	-	302	21228898	-	MM_2796	-	hypothetical protein
2797	 43.12	0	3354760..3355617	+	285	21228899	-	MM_2797	-	Pirin
2798	 44.54	0	3357284..3358693	+	469	21228900	-	MM_2798	-	hypothetical protein
2799	 36.13	-1	3359095..3359559	+	154	21228901	-	MM_2799	-	transposase
2800	 44.51	0	3359988..3360497	+	169	21228902	-	MM_2800	-	hypothetical protein
2801	 46.30	0	3360696..3361775	+	359	21228903	-	MM_2801	-	hypothetical protein
2802	 44.27	0	3361979..3362554	+	191	21228904	-	MM_2802	-	hypothetical protein
2803	 48.95	+1	3362679..3363344	-	221	21228905	cooC	MM_2803	-	carbon monoxide dehydrogenase accessory protein
2804	 43.00	0	3363661..3365832	-	723	21228906	-	MM_2804	-	hypothetical protein
2805	 44.94	0	3366239..3367720	-	493	21228907	-	MM_2805	-	asparagine synthetase [glutamine-hydrolyzing]
2806	 45.24	0	3368918..3369169	+	83	21228908	-	MM_2806	-	phosphoribosylformylglycinamidine synthase subunit PurS
2807	 45.78	0	3369255..3369953	+	232	21228909	-	MM_2807	-	phosphoribosylformylglycinamidine synthase subunit I
2808	 42.36	0	3370598..3371716	-	372	21228910	-	MM_2808	-	hypothetical protein
2809	 42.40	0	3372099..3372947	+	282	21228911	-	MM_2809	-	hypothetical protein
2810	 43.69	0	3373033..3373824	-	263	21228912	-	MM_2810	-	hypothetical protein
2811	 41.79	0	3373995..3374621	+	208	21228913	-	MM_2811	-	hypothetical protein
2812	 48.29	0	3374674..3376311	-	545	21228914	pheT	MM_2812	-	phenylalanyl-tRNA synthetase subunit beta
2813	 44.58	0	3376602..3377357	+	251	21228915	-	MM_2813	-	hypothetical protein
2814	 48.27	0	3377458..3378120	+	220	21228916	rnhB	MM_2814	-	ribonuclease HII
2815	 48.87	+1	3378246..3379088	-	280	21228917	-	MM_2815	-	metal dependent hydrolase
2816	 44.04	0	3379428..3380174	+	248	21228918	-	MM_2816	-	hypothetical protein
2817	 43.21	0	3380313..3380960	-	215	21228919	-	MM_2817	-	anthranilate synthase component II
2818	 44.48	0	3380961..3382799	-	612	21228920	-	MM_2818	-	anthranilate synthase component I
2819	 46.24	0	3382786..3383490	-	234	21228921	-	MM_2819	-	N-(5'-phosphoribosyl)anthranilate isomerase
2820	 48.07	0	3383487..3384599	-	370	21228922	-	MM_2820	-	anthranilate phosphoribosyltransferase
2821	 47.67	0	3384632..3385447	-	271	21228923	trpA	MM_2821	-	tryptophan synthase subunit alpha
2822	 50.66	+1	3385449..3386660	-	403	161485666	-	MM_2822	-	tryptophan synthase subunit beta
2823	 50.00	+1	3386809..3387612	-	267	21228925	-	MM_2823	-	indole-3-glycerol phosphate synthase
2824	 44.94	0	3388292..3389092	+	266	21228926	-	MM_2824	-	glucose-6-phosphate dehydrogenase
2825	 40.88	0	3389284..3389919	+	211	21228927	-	MM_2825	-	hypothetical protein
2826	 36.44	-1	3390107..3390814	+	235	21228928	-	MM_2826	-	hypothetical protein
2827	 42.71	0	3390790..3392175	+	461	21228929	-	MM_2827	-	hypothetical protein
2828	 43.56	0	3392325..3392891	-	188	21228930	-	MM_2828	-	hypothetical protein
2829	 46.15	0	3393854..3394321	+	155	21228931	-	MM_2829	-	peptidyl-prolyl cis-trans isomerase
2830	 44.77	0	3394904..3396565	+	553	21228932	-	MM_2830	-	ribonucleoside-diphosphate
2831	 43.48	0	3396724..3397689	+	321	21228933	-	MM_2831	-	ABC-Type transporter, permease protein
2832	 45.21	0	3397793..3398710	+	305	21228934	-	MM_2832	-	ABC-Type transporter, permease protein
2833	 47.08	0	3398933..3399616	+	227	21228935	-	MM_2833	-	ABC transporter, ATP-binding protein
2834	 47.81	0	3399626..3400081	+	151	21228936	-	MM_2834	-	hypothetical protein
2835	 42.82	0	3400242..3400631	-	129	21228937	-	MM_2835	-	hypothetical protein
2836	 47.55	0	3401314..3402600	+	428	21228938	-	MM_2836	-	enolase
2837	 35.58	-1	3402783..3404027	-	414	21228939	-	MM_2837	-	transposase
2838	 33.73	-1	3404097..3404345	-	82	21228940	-	MM_2838	-	hypothetical protein
2839	 47.43	0	3404768..3406363	+	531	21228941	-	MM_2839	-	MoxR-like ATPase
2840	 45.90	0	3406635..3408281	+	548	21228942	-	MM_2840	-	hypothetical protein
2841	 45.13	0	3408360..3410114	-	584	21228943	-	MM_2841	-	acetolactate synthase
43.57	MEAN

4.98	STD DEV
