IslandPath Analysis: Methanosarcina mazei Go1

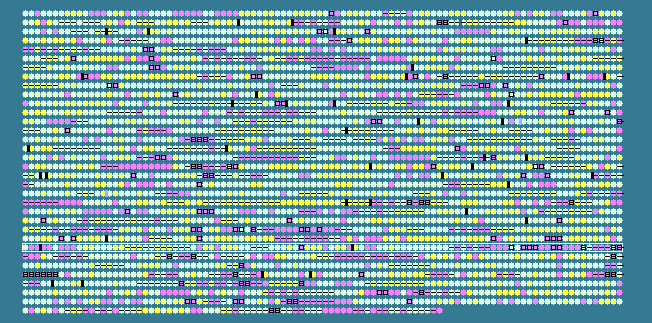

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2601	 45.53	0	3097259..3097996	+	245	21228703	-	MM_2601	-	Zinc metalloprotease
2602	 35.23	-1	3098738..3099475	-	245	21228704	-	MM_2602	-	hypothetical protein
2603	 36.85	-1	3100278..3100703	-	141	21228705	-	MM_2603	-	hypothetical protein
2604	 34.90	-1	3102338..3102529	+	63	21228706	-	MM_2604	-	hypothetical protein
2605	 33.69	-1	3102529..3102807	+	92	21228707	-	MM_2605	-	hypothetical protein
2606	 43.43	0	3102945..3104024	+	359	21228708	-	MM_2606	-	hypothetical protein
2607	 36.47	-1	3104448..3104798	-	116	21228709	-	MM_2607	-	nucleotidyltransferase
2608	 38.01	-1	3104795..3105115	-	106	21228710	-	MM_2608	-	nucleotidyltransferase
2609	 38.83	0	3105529..3105837	+	102	21228711	-	MM_2609	-	nucleotidyltransferase
2610	 46.44	0	3105788..3106687	-	299	21228712	-	MM_2610	-	Type I restriction enzyme
2611	 49.04	+1	3108670..3110133	-	487	21228713	-	MM_2611	-	hypothetical protein
2612	 48.81	+1	3110849..3113587	-	912	21228714	-	MM_2612	-	putative ATP-dependent helicase
2613	 42.80	0	3114108..3114614	-	168	21228715	-	MM_2613	-	LemA protein
2614	 44.01	0	3114765..3116618	-	617	21228716	-	MM_2614	-	hypothetical protein
2615	 41.33	0	3116875..3118887	-	670	21228717	-	MM_2615	-	hypothetical protein
2616	 53.17	+1	3119379..3119978	+	199	21228718	-	MM_2616	-	50S ribosomal protein L15e
2617	 48.87	+1	3119975..3120418	+	147	21228719	-	MM_2617	-	hypothetical protein
2618	 48.19	0	3120411..3121130	+	239	21228720	-	MM_2618	-	ribonuclease P protein component 3
2619	 50.14	+1	3121127..3121477	+	116	21228721	-	MM_2619	-	hypothetical protein
2620	 49.60	+1	3122919..3123668	+	249	21228722	-	MM_2620	-	proteasome subunit alpha
2621	 46.75	0	3123747..3124439	+	230	21228723	-	MM_2621	-	putative RNA-associated protein
2622	 46.10	0	3124451..3125233	+	260	21228724	-	MM_2622	-	exosome complex RNA-binding protein Rrp4
2623	 47.37	0	3125312..3126793	+	493	21228725	-	MM_2623	-	exosome complex exonuclease 1
2624	 48.44	0	3126777..3127577	+	266	21228726	-	MM_2624	-	exosome complex RNA-binding protein Rrp42
2625	 52.28	+1	3127741..3128025	+	94	21228727	rpl37ae	MM_2625	-	50S ribosomal protein L37Ae
2626	 42.75	0	3128055..3128192	+	45	21228728	-	MM_2626	-	DNA-directed RNA polymerase subunit P
2627	 44.09	0	3128996..3129469	+	157	21228729	-	MM_2627	-	hypothetical protein
2628	 46.18	0	3129580..3129828	+	82	21228730	-	MM_2628	-	hypothetical protein
2629	 40.86	0	3130077..3132227	+	716	21228731	-	MM_2629	-	sensory transduction histidine kinase
2630	 39.20	0	3132747..3135560	+	937	21228732	-	MM_2630	-	hypothetical protein
2631	 47.22	0	3136376..3136771	-	131	21228733	-	MM_2631	-	hypothetical protein
2632	 48.41	0	3137032..3138351	+	439	21228734	-	MM_2632	-	NAD-dependent malic enzyme
2633	 38.05	-1	3139499..3140176	+	225	21228735	-	MM_2633	-	hypothetical protein
2634	 50.64	+1	3140930..3142801	+	623	21228736	-	MM_2634	-	putative pyruvate:ferredoxin oxidoreductase
2635	 48.20	0	3142798..3143490	+	230	21228737	-	MM_2635	-	indolepyruvate oxidoreductase subunit B
2636	 49.08	+1	3143483..3144790	+	435	21228738	-	MM_2636	-	coenzyme F390 synthetase
2637	 43.94	0	3145209..3146321	-	370	21228739	-	MM_2637	-	hypothetical protein
2638	 46.06	0	3146673..3148832	-	719	21228740	-	MM_2638	-	hypothetical protein
2639	 44.63	0	3150428..3151348	-	306	21228741	-	MM_2639	-	hypothetical protein
2640	 43.60	0	3151632..3152702	+	356	21228742	-	MM_2640	-	magnesium/cobalt transporter CorA
2641	 43.55	0	3153400..3154143	+	247	21228743	-	MM_2641	-	hypothetical protein
2642	 43.92	0	3154140..3155084	+	314	21228744	-	MM_2642	-	hypothetical protein
2643	 46.05	0	3155266..3155847	-	193	21228745	-	MM_2643	-	hypothetical protein
2644	 46.32	0	3156001..3156285	-	94	21228746	-	MM_2644	-	putative molybdopterin converting factor
2645	 49.92	+1	3156303..3158129	-	608	21228747	-	MM_2645	-	aldehyde ferredoxin oxidoreductase
2646	 41.89	0	3158469..3161120	-	883	21228748	-	MM_2646	-	sensory transduction protein kinase
2647	 32.26	-2	3161691..3162995	-	434	21228749	-	MM_2647	-	transposase
2648	 50.71	+1	3163288..3164058	-	256	21228750	-	MM_2648	-	hypothetical protein
2649	 48.89	+1	3164334..3165503	-	389	21228751	-	MM_2649	-	aspartate aminotransferase
2650	 51.45	+1	3165905..3166699	+	264	21228752	-	MM_2650	-	hydrolase
2651	 35.47	-1	3166989..3167315	+	108	21228753	-	MM_2651	-	hypothetical protein
2652	 44.44	0	3167640..3168107	-	155	21228754	-	MM_2652	-	hypothetical protein
2653	 47.62	0	3168334..3169299	-	321	21228755	-	MM_2653	-	N(5),N(10)-methenyltetrahydromethanopterin cyclohydrolase
2654	 47.62	0	3169657..3170853	-	398	21228756	-	MM_2654	-	hypothetical protein
2655	 37.61	-1	3171814..3173052	+	412	21228757	-	MM_2655	-	hypothetical protein
2656	 49.27	+1	3174328..3175080	-	250	21228758	-	MM_2656	-	peptidyl-prolyl cis-trans isomerase
2657	 40.66	0	3175787..3176209	+	140	21228759	-	MM_2657	-	transcriptional regulator
2658	 34.39	-1	3176501..3177070	+	189	21228760	-	MM_2658	-	acetyltransferase
2659	 36.43	-1	3177337..3177852	+	171	21228761	-	MM_2659	-	acetyltransferase
2660	 40.80	0	3178006..3179184	+	392	21228762	-	MM_2660	-	sodium-calcium exchanger protein
2661	 43.12	0	3179273..3179701	-	142	21228763	-	MM_2661	-	hypothetical protein
2662	 48.42	0	3179943..3181334	+	463	21228764	-	MM_2662	-	Na(+)-linked D-alanine glycine permease
2663	 45.65	0	3181471..3182745	+	424	21228765	-	MM_2663	-	hypothetical protein
2664	 45.27	0	3182808..3184013	+	401	21228766	-	MM_2664	-	hypothetical protein
2665	 44.36	0	3184026..3184823	+	265	21228767	-	MM_2665	-	ABC transporter, ATP-binding protein
2666	 43.00	0	3185349..3186176	+	275	21228768	-	MM_2666	-	hypothetical protein
2667	 44.11	0	3186251..3187252	+	333	21228769	-	MM_2667	-	MoxR-like ATPase
2668	 43.65	0	3187293..3188174	+	293	21228770	-	MM_2668	-	hypothetical protein
2669	 44.25	0	3188183..3190069	+	628	21228771	-	MM_2669	-	hypothetical protein
2670	 45.09	0	3190066..3192651	+	861	21228772	-	MM_2670	-	hypothetical protein
2671	 42.62	0	3194277..3195482	-	401	21228773	-	MM_2671	-	hypothetical protein
2672	 41.40	0	3195931..3196116	-	61	21228774	-	MM_2672	-	hypothetical protein
2673	 38.89	0	3196278..3196583	-	101	21228775	-	MM_2673	-	hypothetical protein
2674	 46.31	0	3196660..3199650	-	996	21228776	-	MM_2674	-	hypothetical protein
2675	 38.49	-1	3199762..3201042	-	426	21228777	-	MM_2675	-	Serine protease inhibitor
2676	 42.51	0	3201412..3202752	+	446	21228778	-	MM_2676	-	hypothetical protein
2677	 40.00	0	3202956..3203135	-	59	21228779	-	MM_2677	-	hypothetical protein
2678	 36.71	-1	3203467..3203703	+	78	21228780	-	MM_2678	-	hypothetical protein
2679	 34.38	-1	3204091..3204954	+	287	21228781	-	MM_2679	-	hypothetical protein
2680	 27.20	-2	3205117..3205377	-	86	21228782	-	MM_2680	-	hypothetical protein
2681	 32.62	-2	3205365..3205646	-	93	21228783	-	MM_2681	-	hypothetical protein
2682	 42.32	0	3206043..3206732	+	229	21228784	-	MM_2682	-	transposase
2683	 40.53	0	3207154..3208653	+	499	21228785	-	MM_2683	-	reverse transcriptase
2684	 38.10	-1	3209431..3209619	+	62	21228786	-	MM_2684	-	transposase
2685	 37.24	-1	3209616..3210203	+	195	21228787	-	MM_2685	-	transposase
2686	 34.57	-1	3210237..3210641	-	134	21228788	-	MM_2686	-	transposase
2687	 25.90	-2	3210982..3211923	-	313	21228789	-	MM_2687	-	hypothetical protein
2688	 30.99	-2	3212077..3213354	-	425	21228790	-	MM_2688	-	hypothetical protein
2689	 40.00	0	3213768..3214052	+	94	21228791	-	MM_2689	-	transposase
2690	 36.95	-1	3214068..3215201	+	377	21228792	-	MM_2690	-	transposase
2691	 38.56	-1	3215724..3216125	+	133	21228793	-	MM_2691	-	hypothetical protein
2692	 33.48	-2	3216274..3217665	-	463	21228794	-	MM_2692	-	hypothetical protein
2693	 31.34	-2	3218252..3219307	+	351	21228795	-	MM_2693	-	hypothetical protein
2694	 43.04	0	3220398..3221087	+	229	21228796	-	MM_2694	-	transposase
2695	 42.32	0	3221510..3222121	+	203	21228797	-	MM_2695	-	reverse transcriptase
2696	 33.33	-2	3222199..3222423	-	74	21228798	-	MM_2696	-	hypothetical protein
2697	 39.29	0	3222462..3222881	-	139	21228799	-	MM_2697	-	hypothetical protein
2698	 38.65	0	3223005..3223757	+	250	21228800	-	MM_2698	-	reverse transcriptase
2699	 40.80	0	3223789..3224538	+	249	21228801	-	MM_2699	-	transposase
2700	 36.47	-1	3224535..3225332	+	265	21228802	-	MM_2700	-	transposase
43.57	MEAN

4.98	STD DEV
