IslandPath Analysis: Methanosarcina mazei Go1

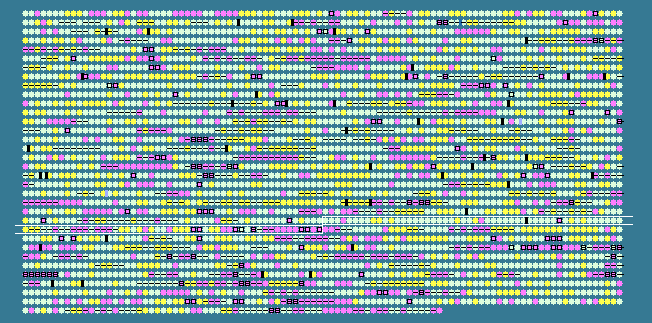

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2351	 40.74	0	2810718..2811230	-	170	21228453	-	MM_2351	-	transcriptional regulator
2352	 41.13	0	2811477..2811758	+	93	21228454	-	MM_2352	-	hypothetical protein
2353	 45.97	0	2812084..2813001	-	305	21228455	-	MM_2353	-	thioredoxin reductase
2354	 39.82	0	2813055..2813393	-	112	21228456	-	MM_2354	-	thioredoxin
2355	 45.57	0	2813461..2814261	+	266	21228457	-	MM_2355	-	diphthine synthase
2356	 43.62	0	2814326..2814607	+	93	21228458	-	MM_2356	-	hypothetical protein
2357	 45.13	0	2814849..2815238	+	129	21228459	-	MM_2357	-	hypothetical protein
2358	 44.78	0	2815505..2816404	+	299	21228460	-	MM_2358	-	6-phosphofructokinase
2359	 48.67	+1	2816531..2817208	+	225	21228461	-	MM_2359	-	hypothetical protein
2360	 48.23	0	2817676..2818071	-	131	21228462	-	MM_2360	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
2361	 40.62	0	2818093..2818380	-	95	21228463	-	MM_2361	-	chorismate mutase
2362	 48.64	+1	2818377..2819258	-	293	21228464	-	MM_2362	-	shikimate kinase
2363	 45.17	0	2819580..2820500	+	306	21228465	-	MM_2363	-	hypothetical protein
2364	 44.20	0	2821477..2822148	+	223	21228466	-	MM_2364	-	GTP-binding protein
2365	 42.22	0	2822154..2822513	+	119	21228467	-	MM_2365	-	hypothetical protein
2366	 43.27	0	2822527..2823039	+	170	21228468	-	MM_2366	-	hypothetical protein
2367	 42.27	0	2823290..2823949	+	219	21228469	-	MM_2367	-	hexulose-6-phosphate isomerase
2368	 45.58	0	2824002..2825201	+	399	21228470	-	MM_2368	-	aspartate aminotransferase
2369	 45.14	0	2825620..2826483	+	287	21228471	-	MM_2369	-	cytochrome c-type biogenesis protein
2370	 45.82	0	2826593..2827609	-	338	21228472	-	MM_2370	-	GTP-binding protein
2371	 44.41	0	2828110..2828985	+	291	21228473	-	MM_2371	-	hypothetical protein
2372	 42.59	0	2829197..2829520	-	107	21228474	-	MM_2372	-	phosphoribosyl-ATP pyrophosphatase
2373	 48.02	0	2829592..2830953	-	453	21228475	-	MM_2373	-	3-isopropylmalate dehydratase
2374	 42.82	0	2831044..2831886	-	280	21228476	-	MM_2374	-	hypothetical protein
2375	 45.44	0	2832077..2832580	+	167	21228477	-	MM_2375	-	hypothetical protein
2376	 47.58	0	2833426..2834169	-	247	21228478	-	MM_2376	-	hypothetical protein
2377	 38.42	-1	2834393..2834785	-	130	21228479	-	MM_2377	-	hypothetical protein
2378	 46.61	0	2835346..2836482	+	378	21228480	-	MM_2378	-	transmembrane protein
2379	 45.30	0	2836547..2837323	+	258	21228481	-	MM_2379	-	5'-methylthioadenosine phosphorylase
2380	 46.35	0	2838031..2840511	+	826	21228482	-	MM_2380	-	ATP-dependent DNA helicase
2381	 43.78	0	2840688..2841089	+	133	21228483	-	MM_2381	-	hypothetical protein
2382	 42.65	0	2841298..2841576	+	92	21228484	-	MM_2382	-	hypothetical protein
2383	 41.78	0	2841563..2841787	+	74	21228485	-	MM_2383	-	small nuclear riboprotein-like protein
2384	 45.31	0	2841817..2842242	+	141	21228486	-	MM_2384	-	hypothetical protein
2385	 45.98	0	2843385..2844341	-	318	21228487	-	MM_2385	-	hypothetical protein
2386	 44.00	0	2844698..2845222	+	174	21228488	-	MM_2386	-	hypothetical protein
2387	 46.23	0	2845226..2846722	+	498	21228489	cbiO	MM_2387	-	cobalt transport ATP-binding protein
2388	 46.51	0	2846719..2847507	+	262	21228490	cbiQ	MM_2388	-	cobalt transport protein
2389	 44.47	0	2847669..2849984	-	771	21228491	-	MM_2389	-	hypothetical protein
2390	 38.93	0	2850591..2851769	-	392	21228492	-	MM_2390	-	transposase
2391	 43.21	0	2851975..2852379	-	134	21228493	-	MM_2391	-	hypothetical protein
2392	 47.44	0	2853452..2855089	-	545	21228494	-	MM_2392	-	acyl-CoA synthetase
2393	 45.61	0	2855186..2855641	-	151	21228495	-	MM_2393	-	hypothetical protein
2394	 49.57	+1	2855752..2856330	-	192	21228496	-	MM_2394	-	MerR family transcriptional regulator
2395	 46.81	0	2856716..2857813	-	365	21228497	-	MM_2395	-	NADH:flavin oxidoreductase
2396	 46.50	0	2857959..2858672	-	237	21228498	-	MM_2396	-	Heme exporter, protein C
2397	 45.08	0	2859076..2859756	-	226	21228499	-	MM_2397	-	Heme exporter, protein B
2398	 45.10	0	2859936..2860649	-	237	21228500	-	MM_2398	-	ABC transporter, ATP-binding protein
2399	 42.92	0	2860819..2861454	-	211	21228501	-	MM_2399	-	methionine sulfoxide reductase A
2400	 45.13	0	2861550..2862134	-	194	21228502	-	MM_2400	-	hypothetical protein
2401	 47.83	0	2862509..2862715	-	68	21228503	-	MM_2401	-	hypothetical protein
2402	 47.55	0	2862852..2863730	-	292	21228504	-	MM_2402	-	hypothetical protein
2403	 48.33	0	2864249..2865448	-	399	21228505	-	MM_2403	-	potassium channel protein
2404	 45.03	0	2865600..2866112	-	170	21228506	-	MM_2404	-	cation transporter
2405	 46.89	0	2866175..2866801	-	208	21228507	-	MM_2405	-	cation transporter
2406	 33.91	-1	2867470..2868168	+	232	21228508	-	MM_2406	-	hypothetical protein
2407	 41.29	0	2868971..2869636	+	221	21228509	-	MM_2407	-	hypothetical protein
2408	 43.81	0	2869821..2870030	-	69	21228510	-	MM_2408	-	hypothetical protein
2409	 36.78	-1	2870639..2871538	+	299	21228511	-	MM_2409	-	hypothetical protein
2410	 36.33	-1	2871673..2871939	+	88	21228512	-	MM_2410	-	hypothetical protein
2411	 37.86	-1	2872306..2872548	+	80	21228513	-	MM_2411	-	hypothetical protein
2412	 42.47	0	2873262..2873852	+	196	21228514	-	MM_2412	-	hypothetical protein
2413	 39.78	0	2873854..2874303	+	149	21228515	-	MM_2413	-	hypothetical protein
2414	 32.38	-2	2874396..2874917	+	173	21228516	-	MM_2414	-	hypothetical protein
2415	 35.42	-1	2876133..2876372	-	79	21228517	-	MM_2415	-	hypothetical protein
2416	 43.66	0	2876691..2876903	+	70	21228518	-	MM_2416	-	AsnC family transcriptional regulator
2417	 47.75	0	2877339..2879204	+	621	21228519	-	MM_2417	-	DNA topoisomerase VI subunit B
2418	 48.74	+1	2879206..2880315	+	369	21228520	-	MM_2418	-	DNA topoisomerase VI subunit A
2419	 47.03	0	2881210..2883114	+	634	21228521	-	MM_2419	-	DNA gyrase, subunit B
2420	 49.02	+1	2883276..2885978	+	900	21228522	-	MM_2420	-	DNA gyrase, subunit A
2421	 33.84	-1	2886629..2889577	+	982	21228523	htpG	MM_2421	-	chaperone protein
2422	 47.40	0	2889708..2890766	-	352	21228524	-	MM_2422	-	hypothetical protein
2423	 43.13	0	2891414..2892046	+	210	21228525	-	MM_2423	-	superoxide dismutase
2424	 43.61	0	2892344..2893501	-	385	21228526	-	MM_2424	-	hypothetical protein
2425	 39.67	0	2893796..2894821	-	341	21228527	-	MM_2425	-	hypothetical protein
2426	 49.43	+1	2895200..2896081	-	293	21228528	-	MM_2426	-	dienelactone hydrolase
2427	 51.18	+1	2896878..2897981	+	367	21228529	mtsA	MM_2427	-	methylcobalamin:coenzyme M methyltransferase
2428	 47.58	0	2897978..2898805	+	275	21228530	mtsB	MM_2428	-	methylthiol:coenzyme M methyltransferase
2429	 40.00	0	2898944..2899228	+	94	21228531	-	MM_2429	-	transposase
2430	 36.95	-1	2899244..2900377	+	377	21228532	-	MM_2430	-	transposase
2431	 45.09	0	2900807..2901580	+	257	21228533	-	MM_2431	-	hypothetical protein
2432	 51.55	+1	2901968..2902873	+	301	21228534	-	MM_2432	-	pyridoxine biosynthesis protein
2433	 50.65	+1	2903175..2903786	+	203	21228535	-	MM_2433	-	glutamine amidotransferase subunit PdxT
2434	 30.60	-2	2904079..2904261	+	60	21228536	-	MM_2434	-	hypothetical protein
2435	 39.99	0	2906493..2909150	+	885	21228537	-	MM_2435	-	sensory transduction histidine kinase
2436	 36.60	-1	2909176..2910309	-	377	21228538	-	MM_2436	-	transposase
2437	 40.70	0	2910325..2910609	-	94	21228539	-	MM_2437	-	transposase
2438	 42.65	0	2912093..2912500	+	135	21228540	-	MM_2438	-	hypothetical protein
2439	 36.13	-1	2912834..2913298	+	154	21228541	-	MM_2439	-	transposase
2440	 42.37	0	2913514..2913978	+	154	21228542	-	MM_2440	-	hypothetical protein
2441	 36.73	-1	2913938..2914702	+	254	21228543	-	MM_2441	-	ArsR family transcriptional regulator
2442	 38.13	-1	2915444..2916172	+	242	21228544	-	MM_2442	-	hypothetical protein
2443	 29.45	-2	2916541..2917209	+	222	21228545	-	MM_2443	-	hypothetical protein
2444	 30.66	-2	2917371..2917856	+	161	21228546	-	MM_2444	-	hypothetical protein
2445	 38.08	-1	2918091..2918954	+	287	21228547	-	MM_2445	-	hypothetical protein
2446	 34.03	-1	2919355..2920071	+	238	21228548	-	MM_2446	-	ArsR family transcriptional regulator
2447	 39.35	0	2920417..2920848	+	143	21228549	-	MM_2447	-	transposase
2448	 37.58	-1	2920854..2921513	+	219	21228550	-	MM_2448	-	transposase
2449	 37.04	-1	2921987..2922553	+	188	21228551	-	MM_2449	-	hypothetical protein
2450	 38.93	0	2923106..2924284	-	392	21228552	-	MM_2450	-	transposase
43.57	MEAN

4.98	STD DEV
