IslandPath Analysis: Methanosarcina mazei Go1

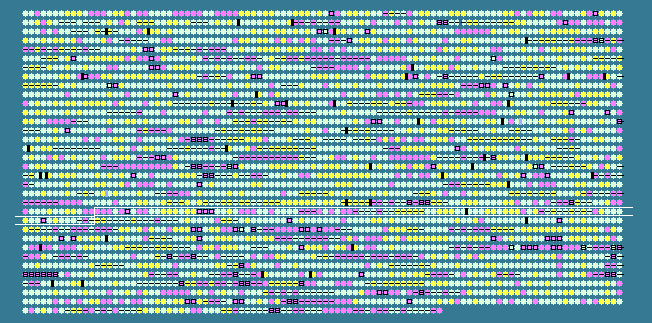

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2213	 33.55	-2	2634042..2638184	-	1380	21228315	-	MM_2213	-	putative glycosyltransferase
2214	 36.24	-1	2638189..2639703	-	504	21228316	-	MM_2214	-	polysaccharide ABC transporter ATP-binding protein
2215	 37.53	-1	2639707..2640468	-	253	21228317	-	MM_2215	-	polysaccharide ABC transporter permease
2216	 41.23	0	2640482..2641228	-	248	21228318	-	MM_2216	-	glucose-1-phosphate thymidylyltransferase
2217	 37.99	-1	2642360..2643304	+	314	21228319	-	MM_2217	-	hypothetical protein
2218	 37.67	-1	2643372..2644478	-	368	21228320	-	MM_2218	-	transposase
2219	 40.48	0	2644938..2645525	-	195	21228321	-	MM_2219	-	hypothetical protein
2220	 38.37	-1	2645883..2646776	-	297	21228322	-	MM_2220	-	hypothetical protein
2221	 36.62	-1	2646754..2647695	-	313	21228323	-	MM_2221	-	glycosyltransferase
2222	 43.90	0	2648169..2649341	-	390	21228324	-	MM_2222	-	galactosyltransferase
2223	 45.81	0	2649351..2650496	-	381	21228325	-	MM_2223	-	dolichyl-phosphate glucose synthetase
2224	 49.52	+1	2650713..2651342	+	209	21228326	-	MM_2224	-	TrpR binding protein WrbA
2225	 47.82	0	2652173..2653711	+	512	21228327	-	MM_2225	-	glucoamylase
2226	 50.75	+1	2653471..2654199	+	242	21228328	-	MM_2226	-	glucoamylase
2227	 42.92	0	2654349..2654786	-	145	21228329	-	MM_2227	-	acetyltransferase
2228	 48.02	0	2654828..2656114	-	428	21228330	-	MM_2228	-	putative amidohydrolase
2229	 47.56	0	2656499..2657440	+	313	21228331	-	MM_2229	-	hypothetical protein
2230	 38.94	0	2657472..2658095	-	207	21228332	-	MM_2230	-	transposase
2231	 38.53	-1	2658305..2658997	-	230	21228333	-	MM_2231	-	transposase
2232	 35.45	-1	2659152..2659481	-	109	21228334	-	MM_2232	-	transposase
2233	 45.89	0	2661186..2662682	-	498	21228335	-	MM_2233	-	hypothetical protein
2234	 46.94	0	2662946..2664466	+	506	21228336	-	MM_2234	-	hypothetical protein
2235	 48.49	0	2665106..2666464	+	452	21228337	-	MM_2235	-	hypothetical protein
2236	 40.27	0	2667116..2667490	+	124	21228338	-	MM_2236	-	hypothetical protein
2237	 39.18	0	2667663..2668004	-	113	21228339	-	MM_2237	-	ArsR family transcriptional regulator
2238	 33.33	-2	2668086..2668475	-	129	21228340	-	MM_2238	-	hypothetical protein
2239	 32.21	-2	2668784..2669230	-	148	21228341	-	MM_2239	-	hypothetical protein
2240	 41.92	0	2669541..2670122	+	193	21228342	-	MM_2240	-	hypothetical protein
2241	 42.17	0	2670126..2670770	+	214	21228343	-	MM_2241	-	cytochrome c-type biogenesis protein CcdA
2242	 38.36	-1	2670925..2671362	+	145	21228344	-	MM_2242	-	ArsR family transcriptional regulator
2243	 43.91	0	2671417..2672163	+	248	21228345	arsM	MM_2243	-	arsenite S-adenosylmethyltransferase
2244	 42.78	0	2672430..2672789	+	119	21228346	-	MM_2244	-	arsenate reductase
2245	 45.22	0	2672873..2673772	-	299	21228347	-	MM_2245	-	hypothetical protein
2246	 40.82	0	2673949..2674389	-	146	21228348	-	MM_2246	-	ArsR family transcriptional regulator
2247	 33.65	-1	2675235..2675546	+	103	21228349	-	MM_2247	-	hypothetical protein
2248	 38.48	-1	2676033..2677004	+	323	21228350	-	MM_2248	-	hypothetical protein
2249	 35.50	-1	2677089..2677319	+	76	21228351	-	MM_2249	-	hypothetical protein
2250	 37.07	-1	2677352..2677672	+	106	21228352	-	MM_2250	-	hypothetical protein
2251	 46.99	0	2677688..2678236	-	182	21228353	-	MM_2251	-	tetrahydromethanopterin S-methyltransferase subunit A
2252	 38.40	-1	2678452..2679852	-	466	21228354	-	MM_2252	-	hypothetical protein
2253	 45.78	0	2679995..2681923	-	642	21228355	-	MM_2253	-	dihydropyrimidinase
2254	 38.01	-1	2682145..2682465	+	106	21228356	-	MM_2254	-	hypothetical protein
2255	 37.50	-1	2682531..2683082	-	183	21228357	-	MM_2255	-	hypothetical protein
2256	 39.63	0	2683364..2684062	-	232	21228358	-	MM_2256	-	hypothetical protein
2257	 41.03	0	2684699..2684932	-	77	21228359	-	MM_2257	-	hypothetical protein
2258	 45.79	0	2685037..2685333	-	98	21228360	-	MM_2258	-	hypothetical protein
2259	 42.03	0	2685349..2685693	-	114	21228361	-	MM_2259	-	hypothetical protein
2260	 39.86	0	2685716..2686159	-	147	21228362	-	MM_2260	-	hypothetical protein
2261	 40.89	0	2686134..2686940	-	268	21228363	-	MM_2261	-	hypothetical protein
2262	 42.48	0	2687244..2688041	-	265	21228364	-	MM_2262	-	hypothetical protein
2263	 48.22	0	2688720..2689028	-	102	21228365	rps10p	MM_2263	-	30S ribosomal protein S10P
2264	 50.51	+1	2689067..2690335	-	422	21228366	-	MM_2264	-	elongation factor 1-alpha
2265	 50.02	+1	2690690..2692882	-	730	21228367	-	MM_2265	-	elongation factor EF-2
2266	 49.30	+1	2692946..2693515	-	189	21228368	-	MM_2266	-	30S ribosomal protein S7P
2267	 49.18	+1	2693512..2693940	-	142	21228369	rps12P	MM_2267	-	30S ribosomal protein S12P
2268	 42.49	0	2694046..2694471	-	141	21228370	nusA	MM_2268	-	transcription elongation factor NusA-like protein
2269	 43.91	0	2694492..2694803	-	103	21228371	-	MM_2269	-	50S ribosomal protein L30e
2270	 47.92	0	2695038..2696264	-	408	21228372	-	MM_2270	-	DNA-directed RNA polymerase subunit A''
2271	 50.51	+1	2696261..2698903	-	880	21228373	-	MM_2271	-	DNA-directed RNA polymerase subunit alpha
2272	 48.82	+1	2698917..2700731	-	604	21228374	-	MM_2272	-	DNA-directed RNA polymerase subunit B'
2273	 46.80	0	2700746..2702341	-	531	21228375	-	MM_2273	-	DNA-directed RNA polymerase subunit beta''
2274	 40.43	0	2702561..2702884	-	107	21228376	rpoH	MM_2274	-	DNA-directed RNA polymerase subunit H
2275	 42.24	0	2703485..2707000	-	1171	21228377	-	MM_2275	-	sensory transduction histidine kinase
2276	 43.59	0	2707585..2710908	-	1107	21228378	-	MM_2276	-	sensory transduction histidine kinase
2277	 41.88	0	2711444..2715223	-	1259	21228379	-	MM_2277	-	sensory transduction histidine kinase
2278	 48.79	+1	2715977..2717212	-	411	21228380	-	MM_2278	-	S-adenosyl-L-homocysteine hydrolase
2279	 48.47	0	2717501..2718874	-	457	21228381	-	MM_2279	-	N-ethylammeline chlorohydrolase
2280	 46.94	0	2719363..2720016	-	217	21228382	-	MM_2280	-	hypothetical protein
2281	 49.34	+1	2720047..2720808	-	253	21228383	-	MM_2281	-	hypothetical protein
2282	 50.94	+1	2721219..2722121	-	300	21228384	-	MM_2282	-	hypothetical protein
2283	 49.32	+1	2722300..2723700	-	466	21228385	-	MM_2283	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
2284	 38.41	-1	2724078..2724629	+	183	21228386	-	MM_2284	-	hypothetical protein
2285	 41.89	0	2724332..2724553	-	73	21228387	-	MM_2285	-	hypothetical protein
2286	 47.60	0	2725064..2725960	+	298	21228388	-	MM_2286	-	hypothetical protein
2287	 40.05	0	2726470..2727303	+	277	21228389	-	MM_2287	-	hypothetical protein
2288	 45.85	0	2727361..2728167	+	268	21228390	ftsJ	MM_2288	-	methyltransferase
2289	 50.08	+1	2728321..2728965	+	214	21228391	-	MM_2289	-	hypothetical protein
2290	 41.34	0	2729681..2731054	+	457	21228392	-	MM_2290	-	cell surface protein
2291	 45.19	0	2731443..2732159	-	238	21228393	-	MM_2291	-	Zinc metalloprotease
2292	 49.03	+1	2732159..2735287	-	1042	21228394	-	MM_2292	-	type I restriction-modification system restriction subunit
2293	 45.78	0	2735284..2736504	-	406	21228395	-	MM_2293	-	type I restriction-modification system specificity subunit
2294	 49.48	+1	2736501..2738927	-	808	21228396	-	MM_2294	-	type I restriction-modification system specificity subunit
2295	 42.06	0	2740105..2742408	+	767	21228397	-	MM_2295	-	surface layer protein B
2296	 38.85	0	2742809..2743987	-	392	21228398	-	MM_2296	-	hypothetical protein
2297	 47.52	0	2744419..2746356	-	645	21228399	-	MM_2297	-	hypothetical protein
2298	 46.00	0	2746370..2749228	-	952	21228400	-	MM_2298	-	hypothetical protein
2299	 45.20	0	2749527..2750714	-	395	21228401	-	MM_2299	-	hypothetical protein
2300	 44.88	0	2750918..2751610	+	230	21228402	-	MM_2300	-	metal-dependent hydrolase
2301	 50.08	+1	2751912..2753816	-	634	21228403	-	MM_2301	-	carbon monoxide dehydrogenase
2302	 45.53	0	2754351..2755613	+	420	21228404	-	MM_2302	-	hypothetical protein
2303	 46.50	0	2755749..2757047	+	432	21228405	-	MM_2303	-	transcriptional regulator
2304	 36.13	-1	2757397..2757861	+	154	21228406	-	MM_2304	-	transposase
2305	 46.61	0	2758132..2759796	-	554	21228407	-	MM_2305	-	sodium/proline symporter
2306	 48.20	0	2760600..2761877	-	425	21228408	-	MM_2306	-	glutamyl-tRNA(Gln) amidotransferase subunit D
2307	 46.95	0	2762194..2763669	-	491	21228409	-	MM_2307	-	argininosuccinate lyase
2308	 44.17	0	2763886..2764494	+	202	21228410	-	MM_2308	-	methyltransferase
2309	 42.20	0	2764567..2765502	-	311	21228411	-	MM_2309	-	hypothetical protein
2310	 44.80	0	2765668..2767341	+	557	21228412	-	MM_2310	-	ubiquinone biosynthesis protein
2311	 38.46	-1	2767603..2767719	+	38	21228413	-	MM_2311	-	COP associated protein
2312	 43.38	0	2768283..2769098	-	271	21228414	vhoC	MM_2312	-	F420-nonreducing hydrogenase I, cytochrome B subunit
43.57	MEAN

4.98	STD DEV
