IslandPath Analysis: Methanosarcina mazei Go1

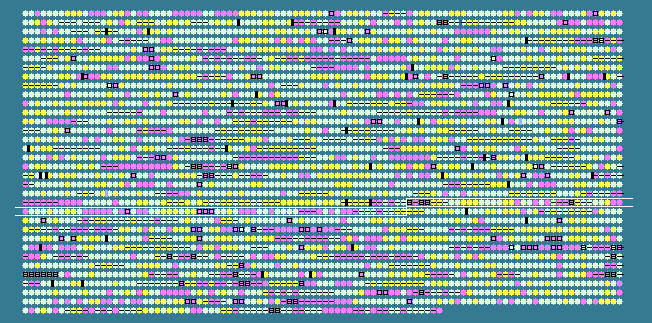

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2165	 34.91	-1	2567938..2568444	+	168	21228267	-	MM_2165	-	transposase
2166	 29.52	-2	2568410..2568724	+	104	21228268	-	MM_2166	-	hypothetical protein
2167	 32.68	-2	2568799..2570025	+	408	21228269	-	MM_2167	-	transposase
2168	 34.50	-1	2570318..2570575	+	85	21228270	-	MM_2168	-	transposase
2169	 48.41	0	2571365..2572525	+	386	21228271	vhtG	MM_2169	-	F420-nonreducing hydrogenase II precursor
2170	 47.35	0	2572533..2574308	+	591	21228272	vhtA	MM_2170	-	F420-nonreducing hydrogenase II, large subunit
2171	 44.77	0	2574334..2575146	+	270	21228273	vhtC	MM_2171	-	F420-nonreducing hydrogenase II, subunit cytochrome B
2172	 45.47	0	2575265..2575750	+	161	21228274	vhtD	MM_2172	-	hydrogenase expression/formation protein
2173	 43.97	0	2576273..2576554	+	93	21228275	-	MM_2173	-	hypothetical protein
2174	 47.53	0	2576580..2577509	-	309	21228276	-	MM_2174	-	hypothetical protein
2175	 47.44	0	2577889..2579100	+	403	21228277	-	MM_2175	-	F420-nonreducing hydrogenase III precursor, small subunit
2176	 47.68	0	2579100..2580890	+	596	21228278	-	MM_2176	-	F420-nonreducing hydrogenase III, large subunit
2177	 42.56	0	2580905..2581717	+	270	21228279	-	MM_2177	-	F420-nonreducing hydrogenase III, subunit cytochrome B
2178	 41.89	0	2582321..2584762	-	813	21228280	-	MM_2178	-	two component system histidine kinase
2179	 43.81	0	2585093..2585617	+	174	21228281	-	MM_2179	-	hypothetical protein
2180	 45.23	0	2585728..2586450	-	240	21228282	-	MM_2180	-	GMP synthase [glutamine-hydrolyzing]
2181	 50.78	+1	2586726..2587814	+	362	21228283	glpX	MM_2181	-	fructose 1,6-bisphosphatase II
2182	 47.32	0	2588166..2589473	+	435	21228284	-	MM_2182	-	hypothetical protein
2183	 34.11	-1	2589664..2589921	-	85	21228285	-	MM_2183	-	hypothetical protein
2184	 43.91	0	2590004..2590561	-	185	21228286	-	MM_2184	-	transcription factor
2185	 44.31	0	2590758..2594903	+	1381	21228287	-	MM_2185	-	hypothetical protein
2186	 33.00	-2	2594906..2595514	+	202	21228288	-	MM_2186	-	hypothetical protein
2187	 42.18	0	2595591..2596370	+	259	21228289	-	MM_2187	-	hypothetical protein
2188	 39.33	0	2596377..2596976	+	199	21228290	-	MM_2188	-	hypothetical protein
2189	 45.54	0	2597135..2597683	-	182	21228291	-	MM_2189	-	rubrerythrin
2190	 39.23	0	2598268..2599098	-	276	21228292	-	MM_2190	-	hypothetical protein
2191	 32.92	-2	2599509..2599991	+	160	21228293	-	MM_2191	-	hypothetical protein
2192	 35.49	-1	2600181..2601665	+	494	21228294	-	MM_2192	-	transposase
2193	 48.33	0	2601848..2603701	+	617	21228295	-	MM_2193	-	DNA repair protein
2194	 45.50	0	2603698..2606910	+	1070	21228296	-	MM_2194	-	chromosome segregation protein
2195	 46.95	0	2607117..2608115	-	332	21228297	-	MM_2195	-	F420-dependent glucose-6-phosphate dehydrogenase
2196	 44.98	0	2608535..2609350	-	271	21228298	-	MM_2196	-	hypothetical protein
2197	 44.99	0	2609707..2610504	-	265	21228299	-	MM_2197	-	hypothetical protein
2198	 47.69	0	2611111..2612628	+	505	21228300	-	MM_2198	-	type I restriction-modification system specificity subunit
2199	 39.65	0	2612756..2613910	+	384	21228301	-	MM_2199	-	type I restriction-modification system specificity subunit
2200	 26.21	-2	2614093..2614527	+	144	21228302	-	MM_2200	-	hypothetical protein
2201	 26.56	-2	2614484..2615443	+	319	21228303	-	MM_2201	-	hypothetical protein
2202	 43.94	0	2615446..2615775	+	109	21228304	-	MM_2202	-	hypothetical protein
2203	 46.57	0	2615782..2616816	+	344	21228305	-	MM_2203	-	hypothetical protein
2204	 43.56	0	2616803..2620048	+	1081	21228306	-	MM_2204	-	hypothetical protein
2205	 49.10	+1	2620308..2621195	-	295	21228307	-	MM_2205	-	ribose-phosphate pyrophosphokinase
2206	 47.05	0	2621265..2621738	-	157	21228308	moaC	MM_2206	-	putative molybdenum cofactor biosynthesis protein C
2207	 42.47	0	2621941..2622126	-	61	21228309	-	MM_2207	-	hypothetical protein
2208	 49.57	+1	2622323..2623825	-	500	21228310	-	MM_2208	-	putative sugar kinase
2209	 47.58	0	2624641..2626107	+	488	21228311	-	MM_2209	-	hypothetical protein
2210	 43.18	0	2626426..2628924	-	832	21228312	-	MM_2210	-	oligosaccharyl transferase
2211	 33.04	-2	2630338..2632047	+	569	21228313	-	MM_2211	-	hypothetical protein
2212	 25.35	-2	2632447..2633598	+	383	21228314	-	MM_2212	-	hypothetical protein
2213	 33.55	-2	2634042..2638184	-	1380	21228315	-	MM_2213	-	putative glycosyltransferase
2214	 36.24	-1	2638189..2639703	-	504	21228316	-	MM_2214	-	polysaccharide ABC transporter ATP-binding protein
2215	 37.53	-1	2639707..2640468	-	253	21228317	-	MM_2215	-	polysaccharide ABC transporter permease
2216	 41.23	0	2640482..2641228	-	248	21228318	-	MM_2216	-	glucose-1-phosphate thymidylyltransferase
2217	 37.99	-1	2642360..2643304	+	314	21228319	-	MM_2217	-	hypothetical protein
2218	 37.67	-1	2643372..2644478	-	368	21228320	-	MM_2218	-	transposase
2219	 40.48	0	2644938..2645525	-	195	21228321	-	MM_2219	-	hypothetical protein
2220	 38.37	-1	2645883..2646776	-	297	21228322	-	MM_2220	-	hypothetical protein
2221	 36.62	-1	2646754..2647695	-	313	21228323	-	MM_2221	-	glycosyltransferase
2222	 43.90	0	2648169..2649341	-	390	21228324	-	MM_2222	-	galactosyltransferase
2223	 45.81	0	2649351..2650496	-	381	21228325	-	MM_2223	-	dolichyl-phosphate glucose synthetase
2224	 49.52	+1	2650713..2651342	+	209	21228326	-	MM_2224	-	TrpR binding protein WrbA
2225	 47.82	0	2652173..2653711	+	512	21228327	-	MM_2225	-	glucoamylase
2226	 50.75	+1	2653471..2654199	+	242	21228328	-	MM_2226	-	glucoamylase
2227	 42.92	0	2654349..2654786	-	145	21228329	-	MM_2227	-	acetyltransferase
2228	 48.02	0	2654828..2656114	-	428	21228330	-	MM_2228	-	putative amidohydrolase
2229	 47.56	0	2656499..2657440	+	313	21228331	-	MM_2229	-	hypothetical protein
2230	 38.94	0	2657472..2658095	-	207	21228332	-	MM_2230	-	transposase
2231	 38.53	-1	2658305..2658997	-	230	21228333	-	MM_2231	-	transposase
2232	 35.45	-1	2659152..2659481	-	109	21228334	-	MM_2232	-	transposase
2233	 45.89	0	2661186..2662682	-	498	21228335	-	MM_2233	-	hypothetical protein
2234	 46.94	0	2662946..2664466	+	506	21228336	-	MM_2234	-	hypothetical protein
2235	 48.49	0	2665106..2666464	+	452	21228337	-	MM_2235	-	hypothetical protein
2236	 40.27	0	2667116..2667490	+	124	21228338	-	MM_2236	-	hypothetical protein
2237	 39.18	0	2667663..2668004	-	113	21228339	-	MM_2237	-	ArsR family transcriptional regulator
2238	 33.33	-2	2668086..2668475	-	129	21228340	-	MM_2238	-	hypothetical protein
2239	 32.21	-2	2668784..2669230	-	148	21228341	-	MM_2239	-	hypothetical protein
2240	 41.92	0	2669541..2670122	+	193	21228342	-	MM_2240	-	hypothetical protein
2241	 42.17	0	2670126..2670770	+	214	21228343	-	MM_2241	-	cytochrome c-type biogenesis protein CcdA
2242	 38.36	-1	2670925..2671362	+	145	21228344	-	MM_2242	-	ArsR family transcriptional regulator
2243	 43.91	0	2671417..2672163	+	248	21228345	arsM	MM_2243	-	arsenite S-adenosylmethyltransferase
2244	 42.78	0	2672430..2672789	+	119	21228346	-	MM_2244	-	arsenate reductase
2245	 45.22	0	2672873..2673772	-	299	21228347	-	MM_2245	-	hypothetical protein
2246	 40.82	0	2673949..2674389	-	146	21228348	-	MM_2246	-	ArsR family transcriptional regulator
2247	 33.65	-1	2675235..2675546	+	103	21228349	-	MM_2247	-	hypothetical protein
2248	 38.48	-1	2676033..2677004	+	323	21228350	-	MM_2248	-	hypothetical protein
2249	 35.50	-1	2677089..2677319	+	76	21228351	-	MM_2249	-	hypothetical protein
2250	 37.07	-1	2677352..2677672	+	106	21228352	-	MM_2250	-	hypothetical protein
2251	 46.99	0	2677688..2678236	-	182	21228353	-	MM_2251	-	tetrahydromethanopterin S-methyltransferase subunit A
2252	 38.40	-1	2678452..2679852	-	466	21228354	-	MM_2252	-	hypothetical protein
2253	 45.78	0	2679995..2681923	-	642	21228355	-	MM_2253	-	dihydropyrimidinase
2254	 38.01	-1	2682145..2682465	+	106	21228356	-	MM_2254	-	hypothetical protein
2255	 37.50	-1	2682531..2683082	-	183	21228357	-	MM_2255	-	hypothetical protein
2256	 39.63	0	2683364..2684062	-	232	21228358	-	MM_2256	-	hypothetical protein
2257	 41.03	0	2684699..2684932	-	77	21228359	-	MM_2257	-	hypothetical protein
2258	 45.79	0	2685037..2685333	-	98	21228360	-	MM_2258	-	hypothetical protein
2259	 42.03	0	2685349..2685693	-	114	21228361	-	MM_2259	-	hypothetical protein
2260	 39.86	0	2685716..2686159	-	147	21228362	-	MM_2260	-	hypothetical protein
2261	 40.89	0	2686134..2686940	-	268	21228363	-	MM_2261	-	hypothetical protein
2262	 42.48	0	2687244..2688041	-	265	21228364	-	MM_2262	-	hypothetical protein
2263	 48.22	0	2688720..2689028	-	102	21228365	rps10p	MM_2263	-	30S ribosomal protein S10P
2264	 50.51	+1	2689067..2690335	-	422	21228366	-	MM_2264	-	elongation factor 1-alpha
43.57	MEAN

4.98	STD DEV
