IslandPath Analysis: Methanosarcina mazei Go1

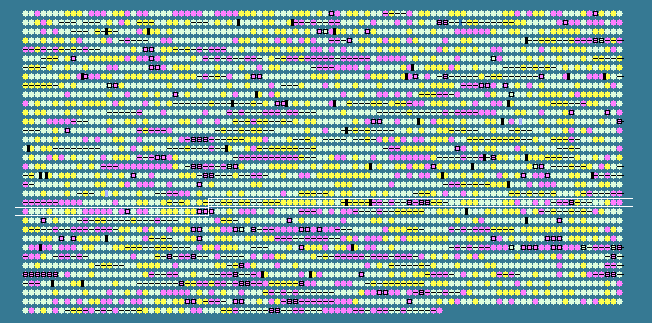

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2132	 43.24	0	2543264..2543596	+	110	21228234	-	MM_2132	-	ribonuclease P protein component 1
2133	 44.55	0	2543601..2543930	+	109	161485670	rps17p	MM_2133	-	30S ribosomal protein S17P
2134	 50.38	+1	2543927..2544325	+	132	161485669	rpl14p	MM_2134	-	50S ribosomal protein L14P
2135	 50.14	+1	2544318..2544686	+	122	21228237	rpl24p	MM_2135	-	50S ribosomal protein L24P
2136	 46.33	0	2544700..2545407	+	235	21228238	-	MM_2136	-	30S ribosomal protein S4e
2137	 49.80	+1	2545400..2545909	+	169	21228239	rpl5p	MM_2137	-	50S ribosomal protein L5P
2138	 48.37	0	2545910..2546062	+	50	21228240	rps14P	MM_2138	-	30S ribosomal protein S14P
2139	 46.56	0	2546073..2546465	+	130	21228241	rps8p	MM_2139	-	30S ribosomal protein S8P
2140	 45.57	0	2546480..2547010	+	176	21228242	rpl6p	MM_2140	-	50S ribosomal protein L6P
2141	 47.82	0	2547021..2547455	+	144	21228243	rpl32e	MM_2141	-	50S ribosomal protein L32e
2142	 48.92	+1	2547448..2547909	+	153	21228244	rpl19e	MM_2142	-	50S ribosomal protein L19e
2143	 48.19	0	2547926..2548450	+	174	161485668	rpl18p	MM_2143	-	50S ribosomal protein L18P
2144	 50.95	+1	2548460..2549089	+	209	21228246	rps5p	MM_2144	-	30S ribosomal protein S5P
2145	 48.48	0	2549091..2549552	+	153	21228247	rpl30p	MM_2145	-	50S ribosomal protein L30P
2146	 49.65	+1	2549563..2549985	+	140	21228248	rpl15p	MM_2146	-	50S ribosomal protein L15P
2147	 47.56	0	2550126..2551601	+	491	21228249	-	MM_2147	-	preprotein translocase subunit SecY
2148	 47.84	0	2551694..2552341	+	215	21228250	adk	MM_2148	-	adenylate kinase
2149	 48.04	0	2552548..2553057	+	169	21228251	-	MM_2149	-	phosphoribosylaminoimidazole carboxylase
2150	 41.94	0	2553465..2553743	+	92	21228252	-	MM_2150	-	hypothetical protein
2151	 47.99	0	2553921..2554466	-	181	21228253	-	MM_2151	-	carbonic anhydrase
2152	 47.50	0	2555012..2555632	+	206	21228254	-	MM_2152	-	hypothetical protein
2153	 46.33	0	2555644..2556174	+	176	21228255	-	MM_2153	-	cytidylate kinase
2154	 51.92	+1	2556353..2557369	+	338	21228256	-	MM_2154	-	H/ACA RNA-protein complex component Cbf5p
2155	 51.33	+1	2557860..2558348	+	162	21228257	rps13p	MM_2155	-	30S ribosomal protein S13P
2156	 50.61	+1	2558370..2559029	+	219	21228258	rps4p	MM_2156	-	30S ribosomal protein S4
2157	 52.49	+1	2559032..2559412	+	126	21228259	rps11p	MM_2157	-	30S ribosomal protein S11P
2158	 49.56	+1	2559485..2560285	+	266	21228260	-	MM_2158	-	DNA-directed RNA polymerase subunit D
2159	 37.99	-1	2561438..2562898	-	486	21228261	-	MM_2159	-	hypothetical protein
2160	 34.26	-1	2563737..2564168	+	143	21228262	-	MM_2160	-	hypothetical protein
2161	 46.34	0	2564772..2565317	-	181	21228263	-	MM_2161	-	hypothetical protein
2162	 39.66	0	2565457..2565804	-	115	21228264	-	MM_2162	-	hypothetical protein
2163	 44.54	0	2566275..2566961	-	228	21228265	hypB	MM_2163	-	hydrogenase expression/formation protein
2164	 43.30	0	2567172..2567432	-	86	21228266	hypC	MM_2164	-	hydrogenase expression/formation protein
2165	 34.91	-1	2567938..2568444	+	168	21228267	-	MM_2165	-	transposase
2166	 29.52	-2	2568410..2568724	+	104	21228268	-	MM_2166	-	hypothetical protein
2167	 32.68	-2	2568799..2570025	+	408	21228269	-	MM_2167	-	transposase
2168	 34.50	-1	2570318..2570575	+	85	21228270	-	MM_2168	-	transposase
2169	 48.41	0	2571365..2572525	+	386	21228271	vhtG	MM_2169	-	F420-nonreducing hydrogenase II precursor
2170	 47.35	0	2572533..2574308	+	591	21228272	vhtA	MM_2170	-	F420-nonreducing hydrogenase II, large subunit
2171	 44.77	0	2574334..2575146	+	270	21228273	vhtC	MM_2171	-	F420-nonreducing hydrogenase II, subunit cytochrome B
2172	 45.47	0	2575265..2575750	+	161	21228274	vhtD	MM_2172	-	hydrogenase expression/formation protein
2173	 43.97	0	2576273..2576554	+	93	21228275	-	MM_2173	-	hypothetical protein
2174	 47.53	0	2576580..2577509	-	309	21228276	-	MM_2174	-	hypothetical protein
2175	 47.44	0	2577889..2579100	+	403	21228277	-	MM_2175	-	F420-nonreducing hydrogenase III precursor, small subunit
2176	 47.68	0	2579100..2580890	+	596	21228278	-	MM_2176	-	F420-nonreducing hydrogenase III, large subunit
2177	 42.56	0	2580905..2581717	+	270	21228279	-	MM_2177	-	F420-nonreducing hydrogenase III, subunit cytochrome B
2178	 41.89	0	2582321..2584762	-	813	21228280	-	MM_2178	-	two component system histidine kinase
2179	 43.81	0	2585093..2585617	+	174	21228281	-	MM_2179	-	hypothetical protein
2180	 45.23	0	2585728..2586450	-	240	21228282	-	MM_2180	-	GMP synthase [glutamine-hydrolyzing]
2181	 50.78	+1	2586726..2587814	+	362	21228283	glpX	MM_2181	-	fructose 1,6-bisphosphatase II
2182	 47.32	0	2588166..2589473	+	435	21228284	-	MM_2182	-	hypothetical protein
2183	 34.11	-1	2589664..2589921	-	85	21228285	-	MM_2183	-	hypothetical protein
2184	 43.91	0	2590004..2590561	-	185	21228286	-	MM_2184	-	transcription factor
2185	 44.31	0	2590758..2594903	+	1381	21228287	-	MM_2185	-	hypothetical protein
2186	 33.00	-2	2594906..2595514	+	202	21228288	-	MM_2186	-	hypothetical protein
2187	 42.18	0	2595591..2596370	+	259	21228289	-	MM_2187	-	hypothetical protein
2188	 39.33	0	2596377..2596976	+	199	21228290	-	MM_2188	-	hypothetical protein
2189	 45.54	0	2597135..2597683	-	182	21228291	-	MM_2189	-	rubrerythrin
2190	 39.23	0	2598268..2599098	-	276	21228292	-	MM_2190	-	hypothetical protein
2191	 32.92	-2	2599509..2599991	+	160	21228293	-	MM_2191	-	hypothetical protein
2192	 35.49	-1	2600181..2601665	+	494	21228294	-	MM_2192	-	transposase
2193	 48.33	0	2601848..2603701	+	617	21228295	-	MM_2193	-	DNA repair protein
2194	 45.50	0	2603698..2606910	+	1070	21228296	-	MM_2194	-	chromosome segregation protein
2195	 46.95	0	2607117..2608115	-	332	21228297	-	MM_2195	-	F420-dependent glucose-6-phosphate dehydrogenase
2196	 44.98	0	2608535..2609350	-	271	21228298	-	MM_2196	-	hypothetical protein
2197	 44.99	0	2609707..2610504	-	265	21228299	-	MM_2197	-	hypothetical protein
2198	 47.69	0	2611111..2612628	+	505	21228300	-	MM_2198	-	type I restriction-modification system specificity subunit
2199	 39.65	0	2612756..2613910	+	384	21228301	-	MM_2199	-	type I restriction-modification system specificity subunit
2200	 26.21	-2	2614093..2614527	+	144	21228302	-	MM_2200	-	hypothetical protein
2201	 26.56	-2	2614484..2615443	+	319	21228303	-	MM_2201	-	hypothetical protein
2202	 43.94	0	2615446..2615775	+	109	21228304	-	MM_2202	-	hypothetical protein
2203	 46.57	0	2615782..2616816	+	344	21228305	-	MM_2203	-	hypothetical protein
2204	 43.56	0	2616803..2620048	+	1081	21228306	-	MM_2204	-	hypothetical protein
2205	 49.10	+1	2620308..2621195	-	295	21228307	-	MM_2205	-	ribose-phosphate pyrophosphokinase
2206	 47.05	0	2621265..2621738	-	157	21228308	moaC	MM_2206	-	putative molybdenum cofactor biosynthesis protein C
2207	 42.47	0	2621941..2622126	-	61	21228309	-	MM_2207	-	hypothetical protein
2208	 49.57	+1	2622323..2623825	-	500	21228310	-	MM_2208	-	putative sugar kinase
2209	 47.58	0	2624641..2626107	+	488	21228311	-	MM_2209	-	hypothetical protein
2210	 43.18	0	2626426..2628924	-	832	21228312	-	MM_2210	-	oligosaccharyl transferase
2211	 33.04	-2	2630338..2632047	+	569	21228313	-	MM_2211	-	hypothetical protein
2212	 25.35	-2	2632447..2633598	+	383	21228314	-	MM_2212	-	hypothetical protein
2213	 33.55	-2	2634042..2638184	-	1380	21228315	-	MM_2213	-	putative glycosyltransferase
2214	 36.24	-1	2638189..2639703	-	504	21228316	-	MM_2214	-	polysaccharide ABC transporter ATP-binding protein
2215	 37.53	-1	2639707..2640468	-	253	21228317	-	MM_2215	-	polysaccharide ABC transporter permease
2216	 41.23	0	2640482..2641228	-	248	21228318	-	MM_2216	-	glucose-1-phosphate thymidylyltransferase
2217	 37.99	-1	2642360..2643304	+	314	21228319	-	MM_2217	-	hypothetical protein
2218	 37.67	-1	2643372..2644478	-	368	21228320	-	MM_2218	-	transposase
2219	 40.48	0	2644938..2645525	-	195	21228321	-	MM_2219	-	hypothetical protein
2220	 38.37	-1	2645883..2646776	-	297	21228322	-	MM_2220	-	hypothetical protein
2221	 36.62	-1	2646754..2647695	-	313	21228323	-	MM_2221	-	glycosyltransferase
2222	 43.90	0	2648169..2649341	-	390	21228324	-	MM_2222	-	galactosyltransferase
2223	 45.81	0	2649351..2650496	-	381	21228325	-	MM_2223	-	dolichyl-phosphate glucose synthetase
2224	 49.52	+1	2650713..2651342	+	209	21228326	-	MM_2224	-	TrpR binding protein WrbA
2225	 47.82	0	2652173..2653711	+	512	21228327	-	MM_2225	-	glucoamylase
2226	 50.75	+1	2653471..2654199	+	242	21228328	-	MM_2226	-	glucoamylase
2227	 42.92	0	2654349..2654786	-	145	21228329	-	MM_2227	-	acetyltransferase
2228	 48.02	0	2654828..2656114	-	428	21228330	-	MM_2228	-	putative amidohydrolase
2229	 47.56	0	2656499..2657440	+	313	21228331	-	MM_2229	-	hypothetical protein
2230	 38.94	0	2657472..2658095	-	207	21228332	-	MM_2230	-	transposase
2231	 38.53	-1	2658305..2658997	-	230	21228333	-	MM_2231	-	transposase
43.57	MEAN

4.98	STD DEV
