IslandPathversion 1.0

IslandPath Analysis: Methanosarcina mazei Go1

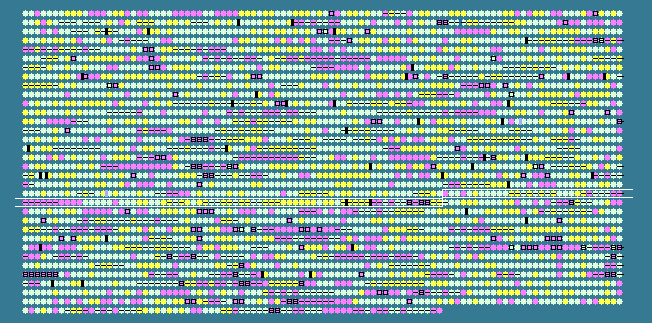

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2071	 39.92	0	2466804..2469413	-	869	21228173	-	MM_2071	-	hypothetical protein
2072	 45.26	0	2470547..2471200	+	217	21228174	-	MM_2072	-	putative dinucleotide-utilizing enzyme
2073	 46.67	0	2471811..2472725	+	304	21228175	-	MM_2073	-	quinolinate synthetase
2074	 39.84	0	2473128..2473772	-	214	21228176	-	MM_2074	-	hypothetical protein
2075	 43.95	0	2475006..2475890	+	294	21228177	ubiA	MM_2075	-	prenyltransferase
2076	 48.09	0	2476039..2477271	-	410	21228178	-	MM_2076	-	S-adenosylmethionine synthetase
2077	 45.30	0	2477548..2478291	-	247	21228179	-	MM_2077	-	hypothetical protein
2078	 40.41	0	2478733..2479170	+	145	21228180	-	MM_2078	-	hypothetical protein
2079	 44.78	0	2479613..2480005	+	130	21228181	-	MM_2079	-	thioredoxin
2080	 44.78	0	2480108..2480911	-	267	21228182	-	MM_2080	-	ABC transporter, ATP-binding protein
2081	 43.88	0	2481066..2481719	-	217	21228183	-	MM_2081	-	ABC transporter, ATP-binding protein
2082	 49.27	+1	2482032..2482985	+	317	21228184	-	MM_2082	-	putative deoxyhypusine synthase
2083	 49.32	+1	2482990..2483652	+	220	21228185	-	MM_2083	-	orotidine 5'-phosphate decarboxylase
2084	 46.85	0	2483969..2485381	-	470	21228186	-	MM_2084	-	acetyl-CoA decarbonylase/synthase complex subunit gamma
2085	 50.19	+1	2485385..2486695	-	436	21228187	-	MM_2085	-	acetyl-CoA decarbonylase/synthase complex subunit delta
2086	 44.36	0	2487034..2487795	-	253	21228188	-	MM_2086	-	nitrogenase iron protein
2087	 48.27	0	2487851..2489263	-	470	21228189	-	MM_2087	-	acetyl-CoA decarbonylase/synthase complex subunit beta
2088	 46.20	0	2489289..2489801	-	170	21228190	-	MM_2088	-	acetyl-CoA decarbonylase/synthase complex subunit epsilon
2089	 51.22	+1	2489804..2492224	-	806	21228191	-	MM_2089	-	acetyl-CoA decarbonylase/synthase complex subunit alpha
2090	 44.97	0	2494808..2495374	+	188	21228192	-	MM_2090	-	HTH DNA-binding protein
2091	 44.67	0	2495440..2496612	-	390	21228193	-	MM_2091	-	putative transport channel protein
2092	 45.72	0	2496904..2497767	+	287	21228194	-	MM_2092	-	CODH nickel-insertion accessory protein
2093	 50.08	+1	2498379..2500181	+	600	21228195	iorA	MM_2093	-	indolepyruvate oxidoreductase, subunit
2094	 49.25	+1	2500178..2500780	+	200	21228196	iorB	MM_2094	-	indolepyruvate oxidoreductase subunit B
2095	 39.81	0	2500871..2501410	-	179	21228197	-	MM_2095	-	hypothetical protein
2096	 41.62	0	2501719..2502696	+	325	21228198	-	MM_2096	-	UDP-N-acetylglucosamine-1-phosphate transferase
2097	 44.33	0	2502799..2503362	-	187	21228199	-	MM_2097	-	hypothetical protein
2098	 45.80	0	2503554..2504564	-	336	21228200	-	MM_2098	-	hypothetical protein
2099	 27.12	-2	2507953..2509110	-	385	21228201	-	MM_2099	-	hypothetical protein
2100	 32.45	-2	2510270..2511058	-	262	21228202	-	MM_2100	-	hypothetical protein
2101	 31.55	-2	2511149..2512609	-	486	21228203	-	MM_2101	-	heteropolysaccharide repeat-containing protein
2102	 32.01	-2	2512591..2513574	-	327	21228204	-	MM_2102	-	glycosyltransferase
2103	 38.37	-1	2513776..2514510	-	244	21228205	-	MM_2103	-	putative methyltransferase
2104	 24.43	-2	2514931..2516019	-	362	21228206	-	MM_2104	-	hypothetical protein
2105	 28.29	-2	2516177..2517307	-	376	21228207	-	MM_2105	-	putative glycosyltransferase
2106	 33.42	-2	2517336..2518451	-	371	21228208	-	MM_2106	-	putative glycosyltransferase
2107	 30.37	-2	2518486..2519361	-	291	21228209	-	MM_2107	-	glycosyltransferase
2108	 33.01	-2	2519608..2521143	-	511	21228210	-	MM_2108	-	hypothetical protein
2109	 37.70	-1	2521184..2522077	-	297	21228211	-	MM_2109	-	glycosyltransferase
2110	 38.60	0	2522138..2523163	-	341	21228212	-	MM_2110	-	hypothetical protein
2111	 41.13	0	2523160..2523531	-	123	21228213	-	MM_2111	-	galactoside-O-acetyltransferase
2112	 42.67	0	2523676..2524692	-	338	21228214	-	MM_2112	-	hypothetical protein
2113	 43.03	0	2524694..2525518	-	274	21228215	-	MM_2113	-	hypothetical protein
2114	 41.73	0	2525927..2526772	+	281	21228216	-	MM_2114	-	hypothetical protein
2115	 43.16	0	2526897..2528087	-	396	21228217	-	MM_2115	-	protease HTPX-like protein
2116	 34.14	-1	2528368..2528616	+	82	21228218	-	MM_2116	-	hypothetical protein
2117	 43.36	0	2528662..2531085	+	807	21228219	-	MM_2117	-	hypothetical protein
2118	 46.83	0	2531905..2532393	+	162	21228220	-	MM_2118	-	hypothetical protein
2119	 44.93	0	2533190..2533672	+	160	21228221	-	MM_2119	-	hypothetical protein
2120	 47.74	0	2534493..2535068	+	191	21228222	-	MM_2120	-	hypothetical protein
2121	 48.15	0	2535233..2535637	+	134	21228223	-	MM_2121	-	hypothetical protein
2122	 46.35	0	2536074..2537264	+	396	21228224	-	MM_2122	-	putative serine/threonine protein kinase
2123	 43.56	0	2537280..2537543	+	87	21228225	-	MM_2123	-	hypothetical protein
2124	 51.38	+1	2538501..2539514	+	337	21228226	rpl3p	MM_2124	-	50S ribosomal protein L3P
2125	 52.36	+1	2539521..2540282	+	253	21228227	rpl4lp	MM_2125	-	50S ribosomal protein L4P
2126	 42.97	0	2540279..2540527	+	82	21228228	rplW	MM_2126	-	50S ribosomal protein L23
2127	 53.00	+1	2540538..2541254	+	238	21228229	rpl2p	MM_2127	-	50S ribosomal protein L2P
2128	 49.15	+1	2541270..2541680	+	136	21228230	rps19p	MM_2128	-	30S ribosomal protein S19P
2129	 46.71	0	2541692..2542147	+	151	21228231	rpl22p	MM_2129	-	50S ribosomal protein L22P
2130	 50.32	+1	2542148..2543071	+	307	21228232	rps3p	MM_2130	-	30S ribosomal protein S3P
2131	 48.53	0	2543071..2543274	+	67	21228233	rpmC	MM_2131	-	50S ribosomal protein L29
2132	 43.24	0	2543264..2543596	+	110	21228234	-	MM_2132	-	ribonuclease P protein component 1
2133	 44.55	0	2543601..2543930	+	109	161485670	rps17p	MM_2133	-	30S ribosomal protein S17P
2134	 50.38	+1	2543927..2544325	+	132	161485669	rpl14p	MM_2134	-	50S ribosomal protein L14P
2135	 50.14	+1	2544318..2544686	+	122	21228237	rpl24p	MM_2135	-	50S ribosomal protein L24P
2136	 46.33	0	2544700..2545407	+	235	21228238	-	MM_2136	-	30S ribosomal protein S4e
2137	 49.80	+1	2545400..2545909	+	169	21228239	rpl5p	MM_2137	-	50S ribosomal protein L5P
2138	 48.37	0	2545910..2546062	+	50	21228240	rps14P	MM_2138	-	30S ribosomal protein S14P
2139	 46.56	0	2546073..2546465	+	130	21228241	rps8p	MM_2139	-	30S ribosomal protein S8P
2140	 45.57	0	2546480..2547010	+	176	21228242	rpl6p	MM_2140	-	50S ribosomal protein L6P
2141	 47.82	0	2547021..2547455	+	144	21228243	rpl32e	MM_2141	-	50S ribosomal protein L32e
2142	 48.92	+1	2547448..2547909	+	153	21228244	rpl19e	MM_2142	-	50S ribosomal protein L19e
2143	 48.19	0	2547926..2548450	+	174	161485668	rpl18p	MM_2143	-	50S ribosomal protein L18P
2144	 50.95	+1	2548460..2549089	+	209	21228246	rps5p	MM_2144	-	30S ribosomal protein S5P
2145	 48.48	0	2549091..2549552	+	153	21228247	rpl30p	MM_2145	-	50S ribosomal protein L30P
2146	 49.65	+1	2549563..2549985	+	140	21228248	rpl15p	MM_2146	-	50S ribosomal protein L15P
2147	 47.56	0	2550126..2551601	+	491	21228249	-	MM_2147	-	preprotein translocase subunit SecY
2148	 47.84	0	2551694..2552341	+	215	21228250	adk	MM_2148	-	adenylate kinase
2149	 48.04	0	2552548..2553057	+	169	21228251	-	MM_2149	-	phosphoribosylaminoimidazole carboxylase
2150	 41.94	0	2553465..2553743	+	92	21228252	-	MM_2150	-	hypothetical protein
2151	 47.99	0	2553921..2554466	-	181	21228253	-	MM_2151	-	carbonic anhydrase
2152	 47.50	0	2555012..2555632	+	206	21228254	-	MM_2152	-	hypothetical protein
2153	 46.33	0	2555644..2556174	+	176	21228255	-	MM_2153	-	cytidylate kinase
2154	 51.92	+1	2556353..2557369	+	338	21228256	-	MM_2154	-	H/ACA RNA-protein complex component Cbf5p
2155	 51.33	+1	2557860..2558348	+	162	21228257	rps13p	MM_2155	-	30S ribosomal protein S13P
2156	 50.61	+1	2558370..2559029	+	219	21228258	rps4p	MM_2156	-	30S ribosomal protein S4
2157	 52.49	+1	2559032..2559412	+	126	21228259	rps11p	MM_2157	-	30S ribosomal protein S11P
2158	 49.56	+1	2559485..2560285	+	266	21228260	-	MM_2158	-	DNA-directed RNA polymerase subunit D
2159	 37.99	-1	2561438..2562898	-	486	21228261	-	MM_2159	-	hypothetical protein
2160	 34.26	-1	2563737..2564168	+	143	21228262	-	MM_2160	-	hypothetical protein
2161	 46.34	0	2564772..2565317	-	181	21228263	-	MM_2161	-	hypothetical protein
2162	 39.66	0	2565457..2565804	-	115	21228264	-	MM_2162	-	hypothetical protein
2163	 44.54	0	2566275..2566961	-	228	21228265	hypB	MM_2163	-	hydrogenase expression/formation protein
2164	 43.30	0	2567172..2567432	-	86	21228266	hypC	MM_2164	-	hydrogenase expression/formation protein
2165	 34.91	-1	2567938..2568444	+	168	21228267	-	MM_2165	-	transposase
2166	 29.52	-2	2568410..2568724	+	104	21228268	-	MM_2166	-	hypothetical protein
2167	 32.68	-2	2568799..2570025	+	408	21228269	-	MM_2167	-	transposase
2168	 34.50	-1	2570318..2570575	+	85	21228270	-	MM_2168	-	transposase
2169	 48.41	0	2571365..2572525	+	386	21228271	vhtG	MM_2169	-	F420-nonreducing hydrogenase II precursor
2170	 47.35	0	2572533..2574308	+	591	21228272	vhtA	MM_2170	-	F420-nonreducing hydrogenase II, large subunit
43.57	MEAN

4.98	STD DEV
