IslandPath Analysis: Methanosarcina mazei Go1

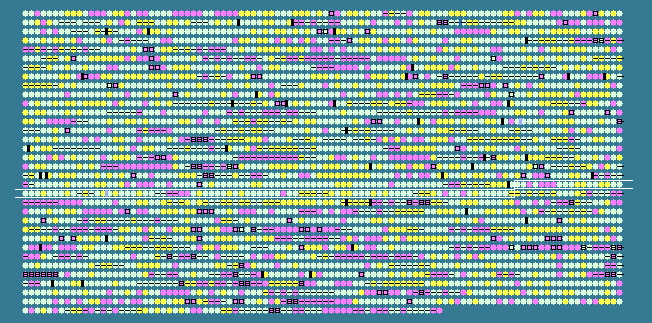

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1983	 43.40	0	2358769..2363595	+	1608	21228085	-	MM_1983	-	hypothetical protein
1984	 40.94	0	2364161..2364607	+	148	21228086	-	MM_1984	-	putative cytoplasmic protein
1985	 39.96	0	2364814..2365281	+	155	21228087	-	MM_1985	-	putative cytoplasmic protein
1986	 46.33	0	2365683..2366636	+	317	21228088	-	MM_1986	-	putative regulatory protein
1987	 33.33	-2	2366957..2367346	-	129	21228089	-	MM_1987	-	hypothetical protein
1988	 32.21	-2	2367655..2368101	-	148	21228090	-	MM_1988	-	hypothetical protein
1989	 38.69	0	2368291..2368626	-	111	21228091	-	MM_1989	-	hypothetical protein
1990	 45.31	0	2368610..2369536	-	308	21228092	-	MM_1990	-	hypothetical protein
1991	 43.22	0	2369634..2370422	-	262	21228093	-	MM_1991	-	hypothetical protein
1992	 46.19	0	2370712..2370921	-	69	21228094	-	MM_1992	-	hypothetical protein
1993	 47.19	0	2370977..2371705	-	242	21228095	-	MM_1993	-	ABC transporter, permease protein
1994	 47.79	0	2371702..2372469	-	255	21228096	-	MM_1994	-	ABC transporter, ATP-binding protein
1995	 46.09	0	2372466..2373359	-	297	21228097	cbiQ	MM_1995	-	cobalt transport protein
1996	 46.79	0	2373468..2375213	-	581	21228098	cbiO	MM_1996	-	cobalt transport ATP-binding protein
1997	 47.24	0	2375266..2376840	-	524	21228099	-	MM_1997	-	hypothetical protein
1998	 47.31	0	2376852..2380766	-	1304	21228100	cobN	MM_1998	-	cobaltochelatase
1999	 46.77	0	2380776..2382494	-	572	21228101	-	MM_1999	-	hypothetical protein
2000	 44.71	0	2382499..2384019	-	506	21228102	-	MM_2000	-	hypothetical protein
2001	 44.44	0	2384073..2384666	-	197	21228103	-	MM_2001	-	hypothetical protein
2002	 45.07	0	2385083..2386777	+	564	21228104	-	MM_2002	-	hypothetical protein
2003	 46.85	0	2386798..2388876	+	692	21228105	chlD	MM_2003	-	magnesium-chelatase subunit
2004	 47.07	0	2388985..2391786	+	933	21228106	-	MM_2004	-	DNA polymerase delta catalytic subunit
2005	 46.75	0	2392304..2393212	+	302	21228107	-	MM_2005	-	phosphate-binding protein
2006	 46.58	0	2393259..2394149	+	296	21228108	pstC	MM_2006	-	phosphate ABC transporter permease
2007	 45.11	0	2394152..2394652	+	166	21228109	pstA	MM_2007	-	phosphate ABC transporter permease
2008	 48.04	0	2394769..2395074	+	101	21228110	pstA	MM_2008	-	phosphate ABC transporter permease
2009	 44.02	0	2395150..2395926	+	258	21228111	pstB	MM_2009	-	phosphate ABC transporter ATP-binding protein
2010	 42.12	0	2395923..2396582	+	219	21228112	phoU	MM_2010	-	phosphate transporter PhoU
2011	 48.07	0	2396738..2398108	+	456	21228113	-	MM_2011	-	dihydroorotase
2012	 44.81	0	2398181..2398729	-	182	21228114	-	MM_2012	-	putative RNA-processing protein
2013	 43.60	0	2398726..2399514	-	262	21228115	-	MM_2013	-	Serine/threonine protein kinase
2014	 48.91	+1	2399517..2399792	-	91	21228116	-	MM_2014	-	translation initiation factor IF-1A
2015	 46.56	0	2406271..2406633	-	120	21228117	nac	MM_2015	-	nascent polypeptide-associated complex protein
2016	 48.29	0	2406712..2407032	-	106	21228118	-	MM_2016	-	HesB protein
2017	 42.11	0	2407322..2408461	-	379	21228119	-	MM_2017	-	hypothetical protein
2018	 44.65	0	2408623..2410602	+	659	21228120	-	MM_2018	-	hypothetical protein
2019	 46.28	0	2410777..2411139	+	120	21228121	-	MM_2019	-	phosphoribosyl-AMP cyclohydrolase
2020	 48.59	+1	2411349..2413268	+	639	21228122	-	MM_2020	-	ATPase
2021	 44.17	0	2413393..2414250	+	285	21228123	-	MM_2021	-	hypothetical protein
2022	 44.34	0	2414777..2415394	+	205	21228124	-	MM_2022	-	amino acid transporter LysE
2023	 42.89	0	2415603..2416052	-	149	21228125	-	MM_2023	-	hypothetical protein
2024	 42.44	0	2416103..2416585	-	160	21228126	-	MM_2024	-	hypothetical protein
2025	 28.28	-2	2418771..2419166	+	131	21228127	-	MM_2025	-	hypothetical protein
2026	 35.20	-1	2419617..2420204	+	195	21228128	-	MM_2026	-	hypothetical protein
2027	 27.46	-2	2420223..2420648	-	141	21228129	-	MM_2027	-	hypothetical protein
2028	 36.96	-1	2421736..2424741	-	1001	21228130	-	MM_2028	-	hypothetical protein
2029	 42.59	0	2425620..2425835	+	71	21228131	-	MM_2029	-	hypothetical protein
2030	 47.12	0	2425954..2426577	+	207	21228132	hisH	MM_2030	-	imidazole glycerol phosphate synthase subunit HisH
2031	 46.58	0	2426798..2428141	+	447	21228133	hypE	MM_2031	-	hydrogenase expression/formation protein
2032	 43.98	0	2428197..2429501	-	434	21228134	nfeD	MM_2032	-	nodulation protein
2033	 44.06	0	2429562..2430344	-	260	21228135	-	MM_2033	-	stomatin-like protein
2034	 46.93	0	2430902..2433034	+	710	21228136	-	MM_2034	-	hypothetical protein
2035	 48.62	+1	2433231..2433845	-	204	21228137	-	MM_2035	-	orotate phosphoribosyltransferase
2036	 45.09	0	2434009..2434578	-	189	21228138	-	MM_2036	-	hypothetical protein
2037	 48.03	0	2434953..2435639	-	228	21228139	-	MM_2037	-	hypothetical protein
2038	 42.81	0	2435921..2436247	-	108	21228140	-	MM_2038	-	hypothetical protein
2039	 46.83	0	2436779..2437156	+	125	21228141	-	MM_2039	-	30S ribosomal protein S8e
2040	 46.51	0	2437218..2437718	+	166	21228142	-	MM_2040	-	AsnC family transcriptional regulator
2041	 46.53	0	2437800..2438981	+	393	21228143	-	MM_2041	-	aspartate aminotransferase
2042	 43.31	0	2439122..2439532	-	136	21228144	-	MM_2042	-	transcriptional regulator
2043	 42.09	0	2439798..2440631	+	277	21228145	-	MM_2043	-	hypothetical protein
2044	 36.98	-1	2440808..2441356	-	182	21228146	-	MM_2044	-	hypothetical protein
2045	 44.11	0	2442058..2442354	-	98	21228147	-	MM_2045	-	hypothetical protein
2046	 46.86	0	2442361..2443410	-	349	21228148	-	MM_2046	-	trimethylamine permease
2047	 49.16	+1	2443493..2444149	-	218	21228149	mttC	MM_2047	-	dimethylamine corrinoid protein
2048	 48.98	+1	2444168..2444608	-	146	21228150	mttB	MM_2048	-	trimethylamine:corrinoid methyltransferase
2049	 49.80	+1	2444654..2445655	-	333	21228151	mttB	MM_2049	-	trimethylamine:corrinoid methyltransferase
2050	 41.27	0	2446279..2446593	-	104	21228152	mtbB	MM_2050	-	dimethylamine:corrinoid methyltransferase
2051	 51.12	+1	2446618..2447685	-	355	21228153	mtbB	MM_2051	-	dimethylamine:corrinoid methyltransferase
2052	 48.58	+1	2447692..2448360	-	222	21228154	mtbC	MM_2052	-	dimethylamine corrinoid protein
2053	 40.22	0	2448845..2449207	-	120	21228155	-	MM_2053	-	hypothetical protein
2054	 47.46	0	2449326..2450288	-	320	21228156	-	MM_2054	-	ABC transporter, ATP-binding protein
2055	 49.01	+1	2450292..2450999	-	235	21228157	-	MM_2055	-	ABC transporter, ATP-binding protein
2056	 45.26	0	2451045..2451656	-	203	21228158	-	MM_2056	-	putative nucleotidyltransferase
2057	 44.84	0	2451641..2452483	-	280	21228159	-	MM_2057	-	cobalamin [5'-phosphate] synthase
2058	 45.49	0	2452501..2453043	-	180	21228160	-	MM_2058	-	hypothetical protein
2059	 47.32	0	2453386..2454372	-	328	21228161	-	MM_2059	-	CbiB protein
2060	 46.55	0	2454369..2455859	-	496	21228162	-	MM_2060	-	histidinol-phosphate aminotransferase
2061	 49.43	+1	2456360..2457595	+	411	21228163	hisS	MM_2061	-	histidyl-tRNA synthetase
2062	 45.47	0	2457786..2458403	+	205	21228164	-	MM_2062	-	hypothetical protein
2063	 43.02	0	2458408..2459037	+	209	21228165	-	MM_2063	-	hypothetical protein
2064	 43.21	0	2459012..2459578	+	188	21228166	-	MM_2064	-	hypothetical protein
2065	 44.20	0	2459679..2460920	+	413	21228167	-	MM_2065	-	hypothetical protein
2066	 46.19	0	2461208..2461666	+	152	21228168	rps15p	MM_2066	-	30S ribosomal protein S15P
2067	 49.63	+1	2461882..2462691	-	269	21228169	-	MM_2067	-	Iron(III) dicitrate transport ATP-binding protein
2068	 48.27	0	2462688..2463758	-	356	21228170	fecD	MM_2068	-	Iron(III) dicitrate transport system permease protein
2069	 49.63	+1	2463777..2464991	-	404	21228171	-	MM_2069	-	Iron(III) dicitrate-binding protein
2070	 45.08	0	2465579..2466412	-	277	21228172	-	MM_2070	-	nicotinate-nucleotide pyrophosphate carboxylating
2071	 39.92	0	2466804..2469413	-	869	21228173	-	MM_2071	-	hypothetical protein
2072	 45.26	0	2470547..2471200	+	217	21228174	-	MM_2072	-	putative dinucleotide-utilizing enzyme
2073	 46.67	0	2471811..2472725	+	304	21228175	-	MM_2073	-	quinolinate synthetase
2074	 39.84	0	2473128..2473772	-	214	21228176	-	MM_2074	-	hypothetical protein
2075	 43.95	0	2475006..2475890	+	294	21228177	ubiA	MM_2075	-	prenyltransferase
2076	 48.09	0	2476039..2477271	-	410	21228178	-	MM_2076	-	S-adenosylmethionine synthetase
2077	 45.30	0	2477548..2478291	-	247	21228179	-	MM_2077	-	hypothetical protein
2078	 40.41	0	2478733..2479170	+	145	21228180	-	MM_2078	-	hypothetical protein
2079	 44.78	0	2479613..2480005	+	130	21228181	-	MM_2079	-	thioredoxin
2080	 44.78	0	2480108..2480911	-	267	21228182	-	MM_2080	-	ABC transporter, ATP-binding protein
2081	 43.88	0	2481066..2481719	-	217	21228183	-	MM_2081	-	ABC transporter, ATP-binding protein
2082	 49.27	+1	2482032..2482985	+	317	21228184	-	MM_2082	-	putative deoxyhypusine synthase
43.57	MEAN

4.98	STD DEV
