IslandPath Analysis: Methanosarcina mazei Go1

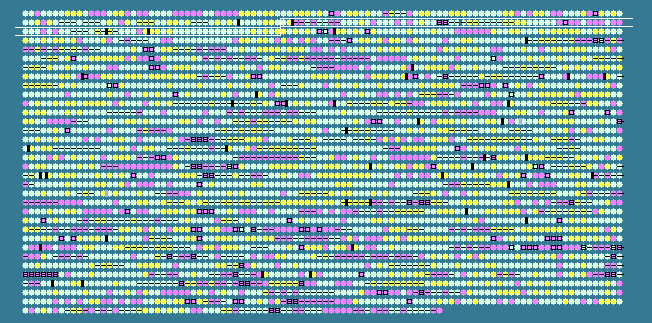

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
144	 46.94	0	178642..179949	+	435	21226246	-	MM_0144	-	phosphoribosylamine--glycine ligase
145	 49.39	+1	180118..181026	+	302	161485684	-	MM_0145	-	ornithine carbamoyltransferase
146	 33.84	-1	182613..183398	+	261	21226248	-	MM_0146	-	transcriptional regulator
147	 38.96	0	183717..184427	+	236	21226249	-	MM_0147	-	iron-sulfur flavoprotein
148	 46.87	0	184446..185243	+	265	21226250	-	MM_0148	-	hypothetical protein
149	 37.09	-1	185332..185544	+	70	21226251	-	MM_0149	-	hypothetical protein
150	 44.14	0	185898..186767	+	289	21226252	-	MM_0150	-	putative nucleoside-diphosphate-sugar epimerase
151	 40.38	0	189183..191069	-	628	21226253	-	MM_0151	-	hypothetical protein
152	 39.14	0	191930..193066	-	378	21226254	-	MM_0152	-	DNA integration/recombination/invertion protein
153	 37.70	-1	193892..194464	+	190	21226255	-	MM_0153	-	hypothetical protein
154	 43.12	0	194588..198226	+	1212	21226256	-	MM_0154	-	hypothetical protein
155	 43.58	0	198317..200122	-	601	21226257	-	MM_0155	-	hypothetical protein
156	 40.94	0	200894..204391	+	1165	21226258	-	MM_0156	-	type IIS restriction enzyme
157	 48.57	+1	204707..205369	+	220	21226259	-	MM_0157	-	ATP-dependent DNA helicase
158	 44.00	0	205604..205978	+	124	21226260	-	MM_0158	-	ATP-dependent DNA helicase
159	 37.48	-1	206782..207456	+	224	21226261	-	MM_0159	-	hypothetical protein
160	 46.05	0	207711..207938	-	75	21226262	-	MM_0160	-	hypothetical protein
161	 45.56	0	208063..208152	-	29	21226263	-	MM_0161	-	hypothetical protein
162	 42.50	0	208431..209816	+	461	21226264	-	MM_0162	-	hypothetical protein
163	 39.66	0	210040..212742	+	900	21226265	rad2	MM_0163	-	DNA repair protein
164	 44.56	0	212816..214864	+	682	21226266	-	MM_0164	-	ATP-dependent protease La
165	 38.32	-1	215010..215330	-	106	21226267	-	MM_0165	-	hypothetical protein
166	 46.24	0	215609..217057	+	482	21226268	-	MM_0166	-	homospermidine synthase
167	 47.44	0	217859..218950	+	363	21226269	czcD	MM_0167	-	cobalt-zinc-cadmium resistance protein
168	 45.36	0	219154..223908	-	1584	21226270	-	MM_0168	-	sensory transduction histidine kinase
169	 44.78	0	223959..226247	-	762	21226271	-	MM_0169	-	sensory transduction histidine kinase
170	 37.73	-1	226258..226917	-	219	21226272	-	MM_0170	-	transposase
171	 38.19	-1	226923..227354	-	143	21226273	-	MM_0171	-	transposase
172	 44.92	0	227390..229150	-	586	21226274	-	MM_0172	-	sensory transduction histidine kinase
173	 42.79	0	230669..231271	+	200	21226275	-	MM_0173	-	transporter
174	 43.30	0	238003..238785	+	260	21226276	mtaC	MM_0174	-	methanol corrinoid protein
175	 48.88	+1	238799..240187	+	462	21226277	mtaB	MM_0175	-	methanol:corrinoid methyltransferase
176	 48.33	0	240526..241545	-	339	21226278	mtaA	MM_0176	-	methylcobalamin:coenzyme M methyltransferase
177	 43.44	0	242044..242607	+	187	21226279	-	MM_0177	-	hypothetical protein
178	 45.44	0	243509..248644	+	1711	21226280	-	MM_0178	-	hypothetical protein
179	 45.43	0	249399..249803	+	134	21226281	-	MM_0179	-	hypothetical protein
180	 44.44	0	249857..250423	-	188	21226282	-	MM_0180	-	diamine acetyltransferase
181	 48.51	0	250785..251759	+	324	21226283	-	MM_0181	-	hypothetical protein
182	 51.20	+1	251926..253212	-	428	161485683	thiC	MM_0182	-	thiamine biosynthesis protein ThiC
183	 47.98	0	254024..256522	+	832	21226285	-	MM_0183	-	DNA topoisomerase III
184	 51.87	+1	257036..257650	-	204	21226286	-	MM_0184	-	30S ribosomal protein S3Ae
185	 44.92	0	258697..259464	+	255	21226287	-	MM_0185	-	Short chain dehydrogenase/reductase
186	 44.14	0	259621..259953	-	110	21226288	-	MM_0186	-	hypothetical protein
187	 41.35	0	260231..260542	+	103	21226289	-	MM_0187	-	nucleotidyltransferase
188	 41.67	0	260539..260886	+	115	21226290	-	MM_0188	-	nucleotidyltransferase
189	 44.55	0	260890..261219	-	109	21226291	-	MM_0189	-	hypothetical protein
190	 38.58	-1	261351..264077	+	908	21226292	-	MM_0190	-	DNA helicase II
191	 37.08	-1	264380..266008	-	542	21226293	-	MM_0191	-	transposase
192	 33.33	-2	266170..266589	+	139	21226294	-	MM_0192	-	hypothetical protein
193	 35.46	-1	266939..270094	+	1051	21226295	-	MM_0193	-	type III restriction-modification system methylation subunit
194	 41.08	0	270155..270451	+	98	21226296	-	MM_0194	-	hypothetical protein
195	 38.72	0	270598..272454	+	618	21226297	-	MM_0195	-	hypothetical protein
196	 29.67	-2	272451..273323	+	290	21226298	-	MM_0196	-	hypothetical protein
197	 32.44	-2	273320..274666	+	448	21226299	-	MM_0197	-	hypothetical protein
198	 40.15	0	275374..276738	-	454	21226300	-	MM_0198	-	ATP-dependent DNA helicase
199	 39.39	0	277046..277177	-	43	21226301	-	MM_0199	-	hypothetical protein
200	 34.81	-1	277460..277798	+	112	21226302	-	MM_0200	-	hypothetical protein
201	 40.86	0	277773..278144	+	123	21226303	-	MM_0201	-	hypothetical protein
202	 46.38	0	278172..278378	-	68	21226304	-	MM_0202	-	hypothetical protein
203	 40.49	0	278848..279867	+	339	21226305	-	MM_0203	-	hypothetical protein
204	 33.33	-2	280555..281289	+	244	21226306	-	MM_0204	-	hypothetical protein
205	 46.41	0	281636..281872	+	78	21226307	-	MM_0205	-	hypothetical protein
206	 35.28	-1	281900..282310	+	136	21226308	-	MM_0206	-	hypothetical protein
207	 44.87	0	282909..283532	-	207	21226309	-	MM_0207	-	hypothetical protein
208	 44.89	0	283525..283896	-	123	21226310	-	MM_0208	-	hypothetical protein
209	 45.32	0	284316..284774	-	152	21226311	-	MM_0209	-	hypothetical protein
210	 41.54	0	285039..285233	-	64	21226312	-	MM_0210	-	hypothetical protein
211	 44.14	0	286021..288195	+	724	21226313	-	MM_0211	-	cysteine proteinase
212	 44.17	0	288319..288558	-	79	21226314	-	MM_0212	-	hypothetical protein
213	 48.13	0	288722..290059	-	445	21226315	recJ	MM_0213	-	putative single-stranded-DNA-specific exonuclease
214	 44.37	0	290422..291807	-	461	21226316	-	MM_0214	-	hypothetical protein
215	 47.49	0	292853..293968	-	371	21226317	-	MM_0215	-	hypothetical protein
216	 43.14	0	293965..294780	-	271	21226318	-	MM_0216	-	hypothetical protein
217	 44.33	0	294833..295441	-	202	21226319	-	MM_0217	-	hypothetical protein
218	 46.23	0	295621..297837	-	738	21226320	-	MM_0218	-	hypothetical protein
219	 41.27	0	298722..299855	+	377	21226321	-	MM_0219	-	hypothetical protein
220	 38.62	0	299981..300226	-	81	21226322	-	MM_0220	-	hypothetical protein
221	 49.33	+1	300659..302383	-	574	21226323	-	MM_0221	-	Fe-S oxidoreductase
222	 52.11	+1	302788..303570	-	260	21226324	-	MM_0222	-	ribulose-1,5-biphosphate synthetase
223	 48.55	+1	304125..304814	-	229	21226325	-	MM_0223	-	hypothetical protein
224	 42.86	0	305497..305706	+	69	21226326	-	MM_0224	-	molybdenum-pterin-binding-protein
225	 47.77	0	306104..306664	+	186	21226327	-	MM_0225	-	hypothetical protein
226	 45.48	0	306684..307037	+	117	21226328	-	MM_0226	-	hypothetical protein
227	 46.48	0	307252..307464	-	70	21226329	-	MM_0227	-	hypothetical protein
228	 43.39	0	308202..308390	-	62	21226330	-	MM_0228	-	hypothetical protein
229	 44.30	0	308473..308700	-	75	21226331	-	MM_0229	-	hypothetical protein
230	 41.33	0	309343..310392	+	349	21226332	-	MM_0230	-	sodium-calcium exchanger
231	 42.11	0	311027..311698	-	223	21226333	-	MM_0231	-	hypothetical protein
232	 44.89	0	312030..312401	+	123	21226334	-	MM_0232	-	hypothetical protein
233	 45.26	0	312628..313440	-	270	21226335	-	MM_0233	-	alanyl-tRNA synthetase
234	 46.89	0	313694..315154	-	486	21226336	-	MM_0234	-	hypothetical protein
235	 45.54	0	317354..318631	-	425	21226337	-	MM_0235	-	hypothetical protein
236	 44.48	0	318992..319879	+	295	21226338	-	MM_0236	-	putative mechanosensitive ion channel
237	 41.87	0	320091..320453	-	120	21226339	-	MM_0237	-	hypothetical protein
238	 45.73	0	320656..321381	+	241	21226340	-	MM_0238	-	hypothetical protein
239	 49.45	+1	321496..322308	-	270	21226341	-	MM_0239	-	hypothetical protein
240	 45.48	0	322783..323169	-	128	21226342	-	MM_0240	-	ferredoxin
241	 47.17	0	323172..324674	-	500	21226343	-	MM_0241	-	hypothetical protein
242	 46.71	0	325004..325459	+	151	21226344	-	MM_0242	-	glycerol-3-phosphate cytidylyltransferase
243	 48.82	+1	325483..326625	-	380	21226345	-	MM_0243	-	aspartate aminotransferase
43.57	MEAN

4.98	STD DEV
