IslandPath Analysis: Methanosarcina mazei Go1

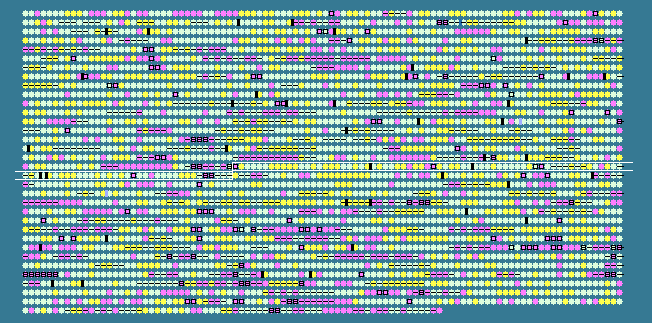

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1736	 36.33	-1	2076810..2077943	+	377	21227838	-	MM_1736	-	transposase
1737	 51.62	+1	2078638..2079687	+	349	21227839	nirJ	MM_1737	-	Heme biosynthesis protein
1738	 45.01	0	2079699..2080229	+	176	21227840	nirD	MM_1738	-	Heme biosynthesis protein
1739	 44.03	0	2080233..2080709	+	158	21227841	nirH	MM_1739	-	Heme biosynthesis protein
1740	 46.73	0	2080921..2081592	+	223	21227842	-	MM_1740	-	siroheme synthase
1741	 46.03	0	2081770..2083116	+	448	21227843	hemA	MM_1741	-	glutamyl-tRNA reductase
1742	 49.13	+1	2083290..2084264	+	324	21227844	-	MM_1742	-	delta-aminolevulinic acid dehydratase
1743	 49.10	+1	2084644..2085918	+	424	21227845	-	MM_1743	-	glutamate-1-semialdehyde aminotransferase
1744	 51.95	+1	2085981..2086931	+	316	21227846	hemC	MM_1744	-	porphobilinogen deaminase
1745	 51.88	+1	2086970..2087875	+	301	161485673	-	MM_1745	-	dihydroorotate dehydrogenase 1B
1746	 48.33	0	2087875..2088654	+	259	21227848	-	MM_1746	-	dihydroorotate dehydrogenase electron transfer subunit
1747	 46.80	0	2088732..2089466	+	244	21227849	-	MM_1747	-	fumarylacetoacetate hydrolase family protein
1748	 45.75	0	2089466..2089771	+	101	21227850	-	MM_1748	-	hypothetical protein
1749	 48.31	0	2090005..2091720	+	571	21227851	gltX	MM_1749	-	glutamyl-tRNA synthetase
1750	 45.92	0	2091794..2092897	-	367	21227852	-	MM_1750	-	hypothetical protein
1751	 48.46	0	2093339..2094700	+	453	21227853	-	MM_1751	-	replication factor A
1752	 48.28	0	2094693..2095562	+	289	21227854	-	MM_1752	-	hypothetical protein
1753	 48.18	0	2095657..2097279	+	540	21227855	-	MM_1753	-	D-3-phosphoglycerate dehydrogenase
1754	 44.12	0	2097514..2098032	+	172	21227856	-	MM_1754	-	hypothetical protein
1755	 46.72	0	2098200..2098580	+	126	21227857	-	MM_1755	-	50S ribosomal protein L18e
1756	 49.41	+1	2098591..2099013	+	140	161485672	rpl13p	MM_1756	-	50S ribosomal protein L13P
1757	 45.68	0	2099027..2099431	+	134	21227859	rps9p	MM_1757	-	30S ribosomal protein S9P
1758	 49.74	+1	2099440..2099628	+	62	21227860	-	MM_1758	-	DNA-directed RNA polymerase subunit N
1759	 46.03	0	2099746..2099997	+	83	21227861	-	MM_1759	-	DNA-directed RNA polymerase subunit K
1760	 47.85	0	2100135..2100809	+	224	21227862	rps2P	MM_1760	-	30S ribosomal protein S2
1761	 46.77	0	2100878..2101681	+	267	21227863	-	MM_1761	-	hypothetical protein
1762	 46.91	0	2101873..2102778	+	301	21227864	-	MM_1762	-	mevalonate kinase
1763	 49.43	+1	2102912..2103694	+	260	21227865	-	MM_1763	-	kinase
1764	 50.18	+1	2103698..2104795	+	365	21227866	-	MM_1764	-	isopentenyl pyrophosphate isomerase
1765	 21.65	-2	2105598..2105828	+	76	21227867	-	MM_1765	-	hypothetical protein
1766	 49.78	+1	2106303..2107646	+	447	21227868	-	MM_1766	-	Zn-dependent hydrolase
1767	 48.41	0	2107673..2108647	+	324	21227869	-	MM_1767	-	dimethylallyltransferase
1768	 38.99	0	2109332..2110126	-	264	21227870	-	MM_1768	-	hypothetical protein
1769	 36.13	-1	2110825..2111289	+	154	21227871	-	MM_1769	-	transposase
1770	 47.98	0	2111826..2114480	-	884	21227872	-	MM_1770	-	pyruvate phosphate dikinase
1771	 43.33	0	2115291..2115560	+	89	21227873	-	MM_1771	-	H/ACA RNA-protein complex component Gar1
1772	 50.00	+1	2115751..2116764	+	337	21227874	tfb	MM_1772	-	transcription initiation factor IIB
1773	 47.40	0	2117165..2117818	+	217	21227875	-	MM_1773	-	hypothetical protein
1774	 43.09	0	2117844..2118089	-	81	21227876	-	MM_1774	-	hypothetical protein
1775	 45.20	0	2118302..2119312	+	336	21227877	-	MM_1775	-	methyltransferase
1776	 41.51	0	2119785..2120249	-	154	21227878	-	MM_1776	-	Thiol-specific antioxidant protein
1777	 40.35	0	2120683..2122620	+	645	21227879	-	MM_1777	-	sensory transduction histidine kinase
1778	 46.19	0	2122691..2123662	-	323	21227880	czcD	MM_1778	-	cobalt-zinc-cadmium resistance protein
1779	 48.90	+1	2123942..2124622	-	226	21227881	-	MM_1779	-	hypothetical protein
1780	 46.40	0	2124654..2125319	-	221	21227882	-	MM_1780	-	hypothetical protein
1781	 42.04	0	2126112..2128052	+	646	21227883	-	MM_1781	-	sensory transduction histidine kinase
1782	 46.04	0	2128309..2129733	+	474	21227884	-	MM_1782	-	Sodium/glutamate symport carrier protein
1783	 44.62	0	2130124..2130309	-	61	21227885	-	MM_1783	-	hypothetical protein
1784	 45.23	0	2131138..2132700	+	520	21227886	-	MM_1784	-	hypothetical protein
1785	 48.66	+1	2132766..2133959	+	397	21227887	-	MM_1785	-	hypothetical protein
1786	 40.70	0	2134345..2134629	+	94	21227888	-	MM_1786	-	transposase
1787	 36.60	-1	2134645..2135778	+	377	21227889	-	MM_1787	-	transposase
1788	 44.87	0	2135879..2136736	+	285	21227890	-	MM_1788	-	HTH DNA-binding protein
1789	 44.12	0	2136998..2137915	-	305	21227891	-	MM_1789	-	hypothetical protein
1790	 41.40	0	2138403..2139245	+	280	21227892	-	MM_1790	-	hypothetical protein
1791	 42.81	0	2139329..2139940	+	203	21227893	-	MM_1791	-	hypothetical protein
1792	 56.37	+2	2140063..2140266	-	67	21227894	-	MM_1792	-	hypothetical protein
1793	 44.12	0	2140854..2141261	+	135	21227895	-	MM_1793	-	hypothetical protein
1794	 47.69	0	2141417..2143972	+	851	21227896	-	MM_1794	-	hypothetical protein
1795	 49.39	+1	2144051..2145190	-	379	21227897	-	MM_1795	-	Iron-sulfur cluster-binding protein
1796	 43.38	0	2145308..2145715	-	135	21227898	-	MM_1796	-	hypothetical protein
1797	 39.43	0	2145972..2146250	+	92	21227899	groES	MM_1797	-	co-chaperonin GroES
1798	 48.36	0	2146398..2148008	+	536	21227900	groEL	MM_1798	-	chaperonin GroEL
1799	 44.32	0	2148274..2149101	+	275	21227901	-	MM_1799	-	hypothetical protein
1800	 44.20	0	2149409..2150098	+	229	21227902	-	MM_1800	-	transporter
1801	 42.06	0	2150204..2150845	+	213	21227903	-	MM_1801	-	hypothetical protein
1802	 49.96	+1	2151057..2152241	+	394	21227904	-	MM_1802	-	aspartate aminotransferase
1803	 45.58	0	2152397..2153221	-	274	21227905	-	MM_1803	-	hypothetical protein
1804	 45.90	0	2153891..2154415	-	174	21227906	-	MM_1804	-	rubrerythrin
1805	 47.29	0	2154932..2156335	-	467	21227907	-	MM_1805	-	hypothetical protein
1806	 46.17	0	2156439..2157209	-	256	21227908	-	MM_1806	-	hypothetical protein
1807	 47.92	0	2157380..2158195	-	271	21227909	-	MM_1807	-	translation initiation factor IF-2 subunit alpha
1808	 47.62	0	2158259..2158447	-	62	21227910	rps27e	MM_1808	-	30S ribosomal protein S27e
1809	 49.82	+1	2158454..2158732	-	92	21227911	rpl44e	MM_1809	-	50S ribosomal protein L44e
1810	 43.66	0	2159120..2159845	-	241	21227912	-	MM_1810	-	hypothetical protein
1811	 44.10	0	2159811..2161055	-	414	21227913	-	MM_1811	-	DNA primase small subunit
1812	 46.26	0	2161400..2162227	+	275	21227914	-	MM_1812	-	hypothetical protein
1813	 49.18	+1	2162571..2163794	+	407	21227915	-	MM_1813	-	hypothetical protein
1814	 45.93	0	2163879..2164910	+	343	21227916	-	MM_1814	-	hypothetical protein
1815	 48.81	+1	2164907..2165959	+	350	21227917	-	MM_1815	-	cell division protein
1816	 44.76	0	2166356..2167633	+	425	21227918	-	MM_1816	-	hypothetical protein
1817	 47.22	0	2168258..2168977	-	239	21227919	-	MM_1817	-	hypothetical protein
1818	 46.00	0	2169138..2170013	-	291	21227920	-	MM_1818	-	hypothetical protein
1819	 32.49	-2	2170157..2171461	+	434	21227921	-	MM_1819	-	transposase
1820	 41.04	0	2172057..2172614	+	185	21227922	-	MM_1820	-	tRNA nucleotidyltransferase
1821	 46.31	0	2172935..2173951	+	338	21227923	rfc	MM_1821	-	replication factor C small subunit
1822	 21.35	-2	2173948..2174139	+	63	21227924	-	MM_1822	-	hypothetical protein
1823	 46.20	0	2174204..2174716	+	170	21227925	-	MM_1823	-	putative small multi-drug export protein
1824	 45.42	0	2174919..2175191	+	90	21227926	-	MM_1824	-	ferredoxin
1825	 46.01	0	2175267..2175479	-	70	21227927	hmf1	MM_1825	-	DNA binding protein
1826	 44.72	0	2175835..2176800	+	321	21227928	-	MM_1826	-	methyltransferase
1827	 49.30	+1	2177306..2179027	+	573	21227929	-	MM_1827	-	pyruvate carboxylase subunit B
1828	 48.72	+1	2179050..2180531	+	493	161485671	-	MM_1828	-	pyruvate carboxylase subunit A
1829	 47.14	0	2180649..2181626	+	325	21227931	-	MM_1829	-	biotin operon repressor
1830	 42.49	0	2181652..2182230	+	192	21227932	-	MM_1830	-	hypothetical protein
1831	 40.00	0	2182865..2183149	+	94	21227933	-	MM_1831	-	transposase
1832	 36.95	-1	2183165..2184298	+	377	21227934	-	MM_1832	-	transposase
1833	 41.85	0	2184313..2185275	-	320	21227935	-	MM_1833	-	phosphoserine phosphatase
1834	 42.15	0	2185306..2185929	-	207	21227936	-	MM_1834	-	hypothetical protein
1835	 42.96	0	2186060..2186350	-	96	21227937	-	MM_1835	-	hypothetical protein
43.57	MEAN

4.98	STD DEV
