IslandPath Analysis: Methanosarcina mazei Go1

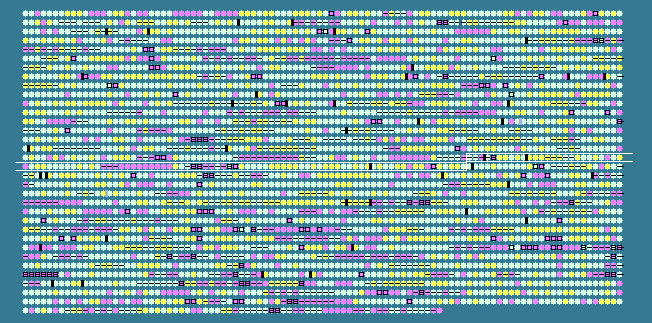

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1675	 44.10	0	2007971..2008648	+	225	21227777	-	MM_1675	-	hypothetical protein
1676	 41.79	0	2009304..2011112	+	602	21227778	-	MM_1676	-	hypothetical protein
1677	 38.66	0	2011505..2014696	+	1063	21227779	-	MM_1677	-	hypothetical protein
1678	 43.24	0	2015514..2016290	+	258	21227780	-	MM_1678	-	hypothetical protein
1679	 35.58	-1	2016426..2017670	-	414	21227781	-	MM_1679	-	transposase
1680	 47.96	0	2017916..2018503	-	195	21227782	-	MM_1680	-	cobalt-precorrin-6Y C(5)-methyltransferase
1681	 49.90	+1	2018546..2019565	-	339	21227783	cbiD	MM_1681	-	cobalt-precorrin-6A synthase
1682	 46.38	0	2020241..2022310	-	689	21227784	mutL	MM_1682	-	DNA mismatch repair protein
1683	 47.72	0	2022530..2025232	-	900	21227785	mutS	MM_1683	-	DNA mismatch repair protein
1684	 41.86	0	2025964..2027136	-	390	21227786	-	MM_1684	-	O-acetyl transferase
1685	 53.80	+2	2027752..2028264	-	170	21227787	-	MM_1685	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1686	 47.87	0	2028602..2029750	+	382	21227788	-	MM_1686	-	Iron-sulfur binding reductase
1687	 48.21	0	2030838..2031341	+	167	21227789	mtbC	MM_1687	-	dimethylamine corrinoid protein
1688	 50.10	+1	2031368..2032369	+	333	21227790	mttB	MM_1688	-	trimethylamine:corrinoid methyltransferase
1689	 49.43	+1	2032415..2032855	+	146	21227791	mttB	MM_1689	-	trimethylamine:corrinoid methyltransferase MttB
1690	 49.62	+1	2032885..2033535	+	216	21227792	mttC	MM_1690	-	dimethylamine corrinoid protein
1691	 46.80	0	2034036..2035097	+	353	21227793	-	MM_1691	-	trimethylamine permease
1692	 43.54	0	2035099..2035392	+	97	21227794	-	MM_1692	-	hypothetical protein
1693	 53.37	+1	2035616..2036683	+	355	21227795	mtbB	MM_1693	-	dimethylamine:corrinoid methyltransferase
1694	 45.83	0	2036708..2037019	+	103	21227796	mtbB	MM_1694	-	dimethylamine:corrinoid methyltransferase MtbB
1695	 42.52	0	2037622..2038263	+	213	21227797	-	MM_1695	-	hypothetical protein
1696	 48.61	+1	2038955..2040577	+	540	21227798	lysK	MM_1696	-	lysyl-tRNA synthetase
1697	 43.69	0	2040610..2041314	+	234	21227799	-	MM_1697	-	hypothetical protein
1698	 39.30	0	2041342..2041542	-	66	21227800	-	MM_1698	-	hypothetical protein
1699	 45.68	0	2041751..2042236	-	161	21227801	-	MM_1699	-	hypothetical protein
1700	 47.19	0	2042226..2044874	-	882	21227802	-	MM_1700	-	protease
1701	 39.55	0	2045020..2045904	+	294	21227803	-	MM_1701	-	putative nucleoside-diphosphate-sugar epimerase
1702	 41.04	0	2046547..2046948	-	133	21227804	-	MM_1702	-	hypothetical protein
1703	 47.57	0	2047222..2047509	-	95	21227805	-	MM_1703	-	hypothetical protein
1704	 49.03	+1	2047680..2048501	-	273	21227806	hisF	MM_1704	-	imidazole glycerol phosphate synthase subunit HisF
1705	 42.80	0	2048734..2049198	-	154	21227807	-	MM_1705	-	hypothetical protein
1706	 45.36	0	2049308..2050039	-	243	21227808	-	MM_1706	-	protein-L-isoaspartate O-methyltransferase
1707	 44.65	0	2049981..2050616	-	211	21227809	-	MM_1707	-	hypothetical protein
1708	 43.21	0	2050835..2051239	-	134	21227810	-	MM_1708	-	hypothetical protein
1709	 45.43	0	2051522..2052199	+	225	21227811	-	MM_1709	-	hypothetical protein
1710	 48.92	+1	2052196..2052939	+	247	21227812	ribB	MM_1710	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
1711	 46.25	0	2053311..2054231	+	306	21227813	czcD	MM_1711	-	cobalt-zinc-cadmium resistance protein
1712	 54.19	+2	2054237..2055334	+	365	21227814	-	MM_1712	-	chorismate synthase
1713	 41.63	0	2055906..2058182	+	758	21227815	-	MM_1713	-	hypothetical protein
1714	 39.08	0	2058351..2058872	+	173	21227816	-	MM_1714	-	hypothetical protein
1715	 34.55	-1	2059333..2059743	+	136	21227817	-	MM_1715	-	hypothetical protein
1716	 38.11	-1	2059782..2060597	-	271	21227818	-	MM_1716	-	ArsR family transcriptional regulator
1717	 37.49	-1	2061719..2062897	+	392	21227819	-	MM_1717	-	hypothetical protein
1718	 38.22	-1	2063025..2063699	+	224	21227820	-	MM_1718	-	hypothetical protein
1719	 38.73	0	2064289..2064714	+	141	21227821	-	MM_1719	-	hypothetical protein
1720	 37.28	-1	2064721..2064948	+	75	21227822	-	MM_1720	-	hypothetical protein
1721	 39.22	0	2064988..2065803	-	271	21227823	-	MM_1721	-	ArsR family transcriptional regulator
1722	 39.60	0	2066302..2067339	+	345	21227824	-	MM_1722	-	hypothetical protein
1723	 33.49	-2	2067511..2068158	+	215	21227825	-	MM_1723	-	hypothetical protein
1724	 36.83	-1	2068242..2068670	+	142	21227826	-	MM_1724	-	hypothetical protein
1725	 38.15	-1	2068960..2069208	+	82	21227827	-	MM_1725	-	hypothetical protein
1726	 49.34	+1	2069622..2070689	+	355	21227828	nirJ	MM_1726	-	Heme biosynthesis protein
1727	 44.09	0	2070673..2071230	+	185	21227829	nirD	MM_1727	-	Heme biosynthesis protein
1728	 44.03	0	2071217..2071693	+	158	21227830	nirH	MM_1728	-	Heme biosynthesis protein
1729	 34.31	-1	2071863..2072273	+	136	21227831	-	MM_1729	-	transposase
1730	 36.63	-1	2072274..2073395	+	373	21227832	-	MM_1730	-	transposase
1731	 35.77	-1	2073444..2073854	+	136	21227833	-	MM_1731	-	hypothetical protein
1732	 38.73	0	2073894..2074709	-	271	21227834	-	MM_1732	-	ArsR family transcriptional regulator
1733	 41.31	0	2075197..2075685	+	162	21227835	-	MM_1733	-	metalloproteinase
1734	 38.16	-1	2075699..2076319	+	206	21227836	-	MM_1734	-	hypothetical protein
1735	 40.45	0	2076486..2076794	+	102	21227837	-	MM_1735	-	transposase
1736	 36.33	-1	2076810..2077943	+	377	21227838	-	MM_1736	-	transposase
1737	 51.62	+1	2078638..2079687	+	349	21227839	nirJ	MM_1737	-	Heme biosynthesis protein
1738	 45.01	0	2079699..2080229	+	176	21227840	nirD	MM_1738	-	Heme biosynthesis protein
1739	 44.03	0	2080233..2080709	+	158	21227841	nirH	MM_1739	-	Heme biosynthesis protein
1740	 46.73	0	2080921..2081592	+	223	21227842	-	MM_1740	-	siroheme synthase
1741	 46.03	0	2081770..2083116	+	448	21227843	hemA	MM_1741	-	glutamyl-tRNA reductase
1742	 49.13	+1	2083290..2084264	+	324	21227844	-	MM_1742	-	delta-aminolevulinic acid dehydratase
1743	 49.10	+1	2084644..2085918	+	424	21227845	-	MM_1743	-	glutamate-1-semialdehyde aminotransferase
1744	 51.95	+1	2085981..2086931	+	316	21227846	hemC	MM_1744	-	porphobilinogen deaminase
1745	 51.88	+1	2086970..2087875	+	301	161485673	-	MM_1745	-	dihydroorotate dehydrogenase 1B
1746	 48.33	0	2087875..2088654	+	259	21227848	-	MM_1746	-	dihydroorotate dehydrogenase electron transfer subunit
1747	 46.80	0	2088732..2089466	+	244	21227849	-	MM_1747	-	fumarylacetoacetate hydrolase family protein
1748	 45.75	0	2089466..2089771	+	101	21227850	-	MM_1748	-	hypothetical protein
1749	 48.31	0	2090005..2091720	+	571	21227851	gltX	MM_1749	-	glutamyl-tRNA synthetase
1750	 45.92	0	2091794..2092897	-	367	21227852	-	MM_1750	-	hypothetical protein
1751	 48.46	0	2093339..2094700	+	453	21227853	-	MM_1751	-	replication factor A
1752	 48.28	0	2094693..2095562	+	289	21227854	-	MM_1752	-	hypothetical protein
1753	 48.18	0	2095657..2097279	+	540	21227855	-	MM_1753	-	D-3-phosphoglycerate dehydrogenase
1754	 44.12	0	2097514..2098032	+	172	21227856	-	MM_1754	-	hypothetical protein
1755	 46.72	0	2098200..2098580	+	126	21227857	-	MM_1755	-	50S ribosomal protein L18e
1756	 49.41	+1	2098591..2099013	+	140	161485672	rpl13p	MM_1756	-	50S ribosomal protein L13P
1757	 45.68	0	2099027..2099431	+	134	21227859	rps9p	MM_1757	-	30S ribosomal protein S9P
1758	 49.74	+1	2099440..2099628	+	62	21227860	-	MM_1758	-	DNA-directed RNA polymerase subunit N
1759	 46.03	0	2099746..2099997	+	83	21227861	-	MM_1759	-	DNA-directed RNA polymerase subunit K
1760	 47.85	0	2100135..2100809	+	224	21227862	rps2P	MM_1760	-	30S ribosomal protein S2
1761	 46.77	0	2100878..2101681	+	267	21227863	-	MM_1761	-	hypothetical protein
1762	 46.91	0	2101873..2102778	+	301	21227864	-	MM_1762	-	mevalonate kinase
1763	 49.43	+1	2102912..2103694	+	260	21227865	-	MM_1763	-	kinase
1764	 50.18	+1	2103698..2104795	+	365	21227866	-	MM_1764	-	isopentenyl pyrophosphate isomerase
1765	 21.65	-2	2105598..2105828	+	76	21227867	-	MM_1765	-	hypothetical protein
1766	 49.78	+1	2106303..2107646	+	447	21227868	-	MM_1766	-	Zn-dependent hydrolase
1767	 48.41	0	2107673..2108647	+	324	21227869	-	MM_1767	-	dimethylallyltransferase
1768	 38.99	0	2109332..2110126	-	264	21227870	-	MM_1768	-	hypothetical protein
1769	 36.13	-1	2110825..2111289	+	154	21227871	-	MM_1769	-	transposase
1770	 47.98	0	2111826..2114480	-	884	21227872	-	MM_1770	-	pyruvate phosphate dikinase
1771	 43.33	0	2115291..2115560	+	89	21227873	-	MM_1771	-	H/ACA RNA-protein complex component Gar1
1772	 50.00	+1	2115751..2116764	+	337	21227874	tfb	MM_1772	-	transcription initiation factor IIB
1773	 47.40	0	2117165..2117818	+	217	21227875	-	MM_1773	-	hypothetical protein
1774	 43.09	0	2117844..2118089	-	81	21227876	-	MM_1774	-	hypothetical protein
43.57	MEAN

4.98	STD DEV
