IslandPath Analysis: Methanosarcina mazei Go1

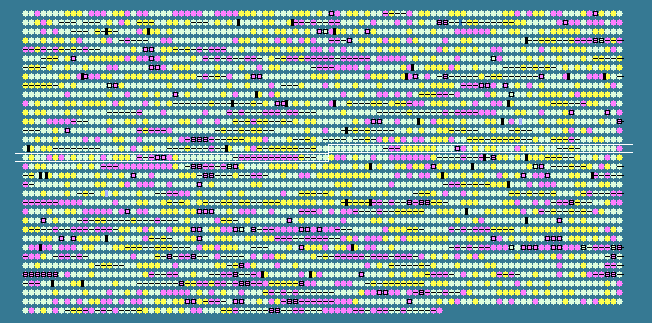

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1552	 42.37	0	1851420..1852559	-	379	21227654	-	MM_1552	-	hypothetical protein
1553	 43.73	0	1852556..1854922	-	788	21227655	-	MM_1553	-	RND superfamily protein
1554	 42.05	0	1855125..1855904	+	259	21227656	-	MM_1554	-	transcriptional regulator
1555	 43.64	0	1856032..1856691	+	219	21227657	-	MM_1555	-	putative metal dependent hydrolase
1556	 42.59	0	1856756..1857079	+	107	21227658	-	MM_1556	-	hypothetical protein
1557	 46.08	0	1857287..1857592	-	101	21227659	-	MM_1557	-	signal recognition particle protein Srp19
1558	 40.31	0	1857908..1858165	+	85	21227660	-	MM_1558	-	hypothetical protein
1559	 42.68	0	1858409..1859275	+	288	21227661	-	MM_1559	-	hypothetical protein
1560	 41.63	0	1859477..1860163	+	228	21227662	-	MM_1560	-	hypothetical protein
1561	 43.19	0	1860503..1861405	+	300	21227663	-	MM_1561	-	ABC transporter tungsten-binding protein
1562	 38.70	0	1861506..1862195	+	229	21227664	-	MM_1562	-	tungsten transporter, permease protein
1563	 39.45	0	1862224..1863285	+	353	21227665	-	MM_1563	-	tungsten transporter, ATP binding protein
1564	 47.93	0	1863884..1864486	+	200	21227666	-	MM_1564	-	molybdenum-containing formylmethanofuran dehydrogenase isoenzyme I subunit E
1565	 49.86	+1	1864505..1865545	+	346	21227667	fmdF	MM_1565	-	molybdenum formylmethanofuran dehydrogenase subunit
1566	 49.29	+1	1865546..1867300	+	584	21227668	fmdA	MM_1566	-	molybdenum formylmethanofuran dehydrogenase subunit
1567	 49.37	+1	1867305..1868171	+	288	21227669	fmdC	MM_1567	-	molybdenum formylmethanofuran dehydrogenase subunit
1568	 48.84	+1	1868140..1868571	+	143	21227670	fmdD	MM_1568	-	molybdenum-containing formylmethanofuran dehydrogenase
1569	 52.68	+1	1868568..1869875	+	435	21227671	fmdB	MM_1569	-	molybdenum formylmethanofuran dehydrogenase subunit
1570	 45.10	0	1870179..1870586	-	135	21227672	-	MM_1570	-	hypothetical protein
1571	 43.73	0	1871428..1872177	+	249	21227673	-	MM_1571	-	hypothetical protein
1572	 42.96	0	1872472..1873479	-	335	21227674	-	MM_1572	-	hypothetical protein
1573	 32.49	-2	1873661..1874965	+	434	21227675	-	MM_1573	-	transposase
1574	 36.42	-1	1875269..1876045	-	258	21227676	-	MM_1574	-	hypothetical protein
1575	 40.51	0	1876669..1877658	+	329	21227677	-	MM_1575	-	hypothetical protein
1576	 47.16	0	1877840..1878685	-	281	21227678	-	MM_1576	-	hypothetical protein
1577	 45.82	0	1878709..1879581	-	290	21227679	-	MM_1577	-	nicotinate-nucleotide pyrophosphorylase
1578	 48.96	+1	1879672..1880733	-	353	21227680	-	MM_1578	-	molybdate ABC transporter ATP-binding protein
1579	 47.46	0	1880730..1881536	-	268	21227681	-	MM_1579	-	molybdate ABC transporter permease
1580	 46.03	0	1881524..1882342	-	272	21227682	-	MM_1580	-	molybdate-binding protein
1581	 43.30	0	1882528..1883169	-	213	21227683	-	MM_1581	-	putative NAD(P)H oxidoreductase[quinone]
1582	 44.27	0	1883264..1883839	-	191	21227684	-	MM_1582	-	iron-sulfur flavoprotein
1583	 35.74	-1	1883921..1884211	-	96	21227685	-	MM_1583	-	hypothetical protein
1584	 50.86	+1	1884259..1884783	-	174	21227686	-	MM_1584	-	NADPH-flavin oxidoreductase
1585	 45.70	0	1884935..1885492	-	185	21227687	-	MM_1585	-	iron-sulfur flavoprotein
1586	 44.96	0	1885649..1886035	+	128	21227688	-	MM_1586	-	MarR family transcriptional regulator
1587	 47.22	0	1886322..1888661	+	779	21227689	-	MM_1587	-	DNA repair helicase
1588	 43.97	0	1888827..1890782	-	651	21227690	-	MM_1588	-	surface layer protein B
1589	 45.00	0	1891556..1894195	-	879	21227691	-	MM_1589	-	surface layer protein B
1590	 46.76	0	1894880..1895326	+	148	21227692	-	MM_1590	-	hypothetical protein
1591	 40.84	0	1895432..1896337	+	301	21227693	-	MM_1591	-	hypothetical protein
1592	 49.39	+1	1896354..1897337	+	327	21227694	-	MM_1592	-	hypothetical protein
1593	 46.98	0	1897334..1898344	+	336	21227695	-	MM_1593	-	putative RNA processing protein
1594	 44.74	0	1898345..1899028	+	227	21227696	-	MM_1594	-	fibrillarin
1595	 40.84	0	1899191..1899736	-	181	21227697	-	MM_1595	-	hypothetical protein
1596	 45.45	0	1900175..1900867	+	230	21227698	-	MM_1596	-	hypothetical protein
1597	 45.79	0	1900894..1901487	+	197	21227699	-	MM_1597	-	integral membrane protein
1598	 46.57	0	1901520..1901927	+	135	21227700	-	MM_1598	-	hypothetical protein
1599	 45.05	0	1902064..1902831	+	255	21227701	-	MM_1599	-	zinc transporter ZupT
1600	 31.77	-2	1903390..1903773	-	127	21227702	-	MM_1600	-	hypothetical protein
1601	 46.80	0	1904236..1908585	+	1449	21227703	cobN	MM_1601	-	cobalamin biosynthesis protein
1602	 49.59	+1	1909189..1913661	+	1490	21227704	cobN	MM_1602	-	cobaltochelatase
1603	 43.61	0	1913761..1914198	-	145	21227705	-	MM_1603	-	hypothetical protein
1604	 46.44	0	1914191..1914709	-	172	21227706	-	MM_1604	-	tungsten formylmethanofuran dehydrogenase, subunit E
1605	 39.29	0	1916206..1916994	+	262	21227707	-	MM_1605	-	hypothetical protein
1606	 47.62	0	1917092..1918015	+	307	21227708	-	MM_1606	-	translation initiation factor IF-2B subunit delta
1607	 31.18	-2	1918075..1918539	+	154	21227709	-	MM_1607	-	acetyltransferase
1608	 46.41	0	1918608..1919318	-	236	21227710	-	MM_1608	-	ABC transporter, ATP-binding protein
1609	 47.49	0	1919311..1920426	-	371	21227711	-	MM_1609	-	ABC transporter, permease protein
1610	 42.34	0	1920482..1921669	-	395	21227712	-	MM_1610	-	hypothetical protein
1611	 46.72	0	1921843..1922544	-	233	21227713	pyrH	MM_1611	-	uridylate kinase
1612	 49.13	+1	1922845..1924635	+	596	21227714	-	MM_1612	-	hypothetical protein
1613	 42.30	0	1924782..1925372	+	196	21227715	-	MM_1613	-	hypothetical protein
1614	 39.72	0	1925640..1926218	+	192	21227716	-	MM_1614	-	TetR family transcriptional regulator
1615	 46.95	0	1926295..1927491	+	398	21227717	-	MM_1615	-	aldo/keto reductase family oxidoreductase
1616	 50.68	+1	1927818..1928630	+	270	21227718	-	MM_1616	-	phosphoribosylaminoimidazole carboxylase
1617	 49.03	+1	1928691..1929881	+	396	21227719	-	MM_1617	-	hypothetical protein
1618	 51.90	+1	1930096..1931124	-	342	21227720	-	MM_1618	-	aspartate-semialdehyde dehydrogenase
1619	 46.45	0	1931221..1931403	-	60	21227721	-	MM_1619	-	ferredoxin
1620	 39.48	0	1932439..1932747	-	102	21227722	-	MM_1620	-	hypothetical protein
1621	 44.56	0	1932888..1934009	-	373	21227723	-	MM_1621	-	divalent cation transport protein
1622	 37.25	-1	1934213..1934518	-	101	21227724	-	MM_1622	-	hypothetical protein
1623	 40.00	0	1935523..1935807	+	94	21227725	-	MM_1623	-	transposase
1624	 36.95	-1	1935823..1936956	+	377	21227726	-	MM_1624	-	transposase
1625	 40.00	0	1937056..1937385	-	109	21227727	-	MM_1625	-	hypothetical protein
1626	 47.99	0	1937814..1938809	+	331	21227728	-	MM_1626	-	hypothetical protein
1627	 46.77	0	1939867..1940670	-	267	21227729	-	MM_1627	-	fructose-bisphosphate aldolase
1628	 42.44	0	1941048..1941563	-	171	21227730	-	MM_1628	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1629	 42.83	0	1942010..1944073	+	687	21227731	-	MM_1629	-	hypothetical protein
1630	 46.45	0	1944780..1945511	+	243	21227732	-	MM_1630	-	hypothetical protein
1631	 46.47	0	1945708..1946331	+	207	21227733	-	MM_1631	-	iron-sulfur flavoprotein
1632	 44.97	0	1946470..1947036	+	188	21227734	-	MM_1632	-	iron-sulfur flavoprotein
1633	 44.39	0	1947491..1948702	+	403	21227735	-	MM_1633	-	ABC transporter, ATP-binding protein
1634	 45.86	0	1948868..1949290	+	140	21227736	-	MM_1634	-	methionine sulfoxide reductase B
1635	 43.84	0	1949661..1950317	+	218	21227737	-	MM_1635	-	Beta-phosphoglucomutase
1636	 43.60	0	1950408..1951547	-	379	21227738	-	MM_1636	-	glycosyltransferase
1637	 38.46	-1	1952060..1952644	-	194	21227739	-	MM_1637	-	hypothetical protein
1638	 38.55	-1	1953402..1954322	+	306	21227740	-	MM_1638	-	glycosyltransferase
1639	 39.96	0	1954521..1954973	+	150	21227741	-	MM_1639	-	putative acetyltransferase
1640	 34.27	-1	1954989..1955840	+	283	21227742	-	MM_1640	-	putative polysaccharide deacetylase
1641	 33.79	-1	1956060..1957145	+	361	21227743	-	MM_1641	-	glycosyltransferase
1642	 29.47	-2	1957242..1959467	+	741	21227744	-	MM_1642	-	transmembrane protein
1643	 34.04	-1	1959544..1960815	+	423	21227745	-	MM_1643	-	oligosaccharide repeat-containing polymerase
1644	 32.59	-2	1961700..1962638	+	312	21227746	-	MM_1644	-	methyltransferase
1645	 37.10	-1	1963247..1964653	+	468	21227747	-	MM_1645	-	hypothetical protein
1646	 33.84	-1	1965190..1965387	+	65	21227748	-	MM_1646	-	hypothetical protein
1647	 52.67	+1	1966065..1967450	-	461	21227749	-	MM_1647	-	methanol:corrinoid methyltransferase MtaB
1648	 46.96	0	1967461..1968267	-	268	21227750	mtaC	MM_1648	-	methanol corrinoid protein MtaC
1649	 42.41	0	1969213..1969983	+	256	21227751	-	MM_1649	-	hypothetical protein
1650	 43.56	0	1970267..1971058	+	263	21227752	-	MM_1650	-	hypothetical protein
1651	 44.44	0	1971206..1971682	+	158	21227753	-	MM_1651	-	hypothetical protein
43.57	MEAN

4.98	STD DEV
