IslandPathversion 1.0

IslandPath Analysis: Methanosarcina mazei Go1

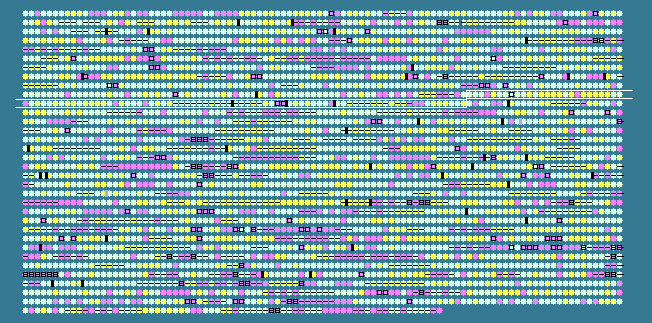

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.57 STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
975	 44.26	0	1155475..1156014	+	179	21227077	-	MM_0975	-	hypothetical protein
976	 45.44	0	1156103..1157836	-	577	21227078	-	MM_0976	-	putative protease
977	 44.77	0	1158274..1158981	+	235	21227079	-	MM_0977	-	F420-dependent NADP reductase
978	 34.63	-1	1159051..1159281	+	76	21227080	-	MM_0978	-	hypothetical protein
979	 53.09	+1	1159538..1160023	+	161	21227081	-	MM_0979	-	heterodisulfide reductase subunit HDRC
980	 46.65	0	1160001..1160939	+	312	21227082	-	MM_0980	-	heterodisulfide reductase subunit HDRB
981	 45.69	0	1160983..1161411	-	142	21227083	-	MM_0981	-	Iron-sulfur binding protein
982	 40.45	0	1161542..1161850	-	102	21227084	-	MM_0982	-	transposase
983	 41.71	0	1161959..1162567	-	202	21227085	-	MM_0983	-	hypothetical protein
984	 46.41	0	1162682..1163377	-	231	21227086	-	MM_0984	-	hypothetical protein
985	 48.04	0	1163586..1164530	-	314	21227087	-	MM_0985	-	hypothetical protein
986	 46.20	0	1164527..1165381	-	284	21227088	-	MM_0986	-	hypothetical protein
987	 47.27	0	1165427..1165792	-	121	21227089	-	MM_0987	-	hypothetical protein
988	 49.18	+1	1165887..1166252	-	121	21227090	-	MM_0988	-	hypothetical protein
989	 47.11	0	1166462..1166824	+	120	21227091	-	MM_0989	-	HTH DNA-binding protein
990	 49.17	+1	1166808..1167716	+	302	21227092	-	MM_0990	-	nucleotide-binding protein
991	 44.78	0	1168022..1168519	+	165	21227093	-	MM_0991	-	Thiol-disulfide isomerase/thioredoxin
992	 47.31	0	1168801..1169451	+	216	21227094	-	MM_0992	-	cytochrome c-type biogenesis protein
993	 33.11	-2	1169524..1169967	-	147	21227095	-	MM_0993	-	hypothetical protein
994	 47.81	0	1170174..1170905	-	243	21227096	-	MM_0994	-	precorrin-8X methylmutase
995	 48.37	0	1170895..1171692	-	265	21227097	-	MM_0995	-	precorrin-3B C17-methyltransferase
996	 48.66	+1	1171661..1172032	-	123	21227098	-	MM_0996	-	cobalamin biosynthesis protein G
997	 49.62	+1	1172097..1172489	-	130	21227099	-	MM_0997	-	cobalamin biosynthesis protein CbiG
998	 48.29	0	1172630..1173358	-	242	21227100	-	MM_0998	-	precorrin-4 C11-methyltransferase
999	 44.01	0	1173537..1174145	-	202	21227101	-	MM_0999	-	cobalt-precorrin-2 C(20)-methyltransferase
1000	 46.13	0	1174236..1174790	-	184	21227102	-	MM_1000	-	precorrin-6Y C5,15-methyltransferase [decarboxylating]
1001	 34.70	-1	1175368..1175586	-	72	21227103	-	MM_1001	-	hypothetical protein
1002	 44.97	0	1175568..1176890	+	440	21227104	-	MM_1002	-	2-isopropylmalate synthase
1003	 48.98	+1	1177056..1178084	-	342	21227105	-	MM_1003	-	isocitrate dehydrogenase [NADP]
1004	 46.14	0	1178389..1179231	+	280	21227106	-	MM_1004	-	putative molybdenum cofactor biosynthesis protein
1005	 45.47	0	1179579..1180064	-	161	21227107	-	MM_1005	-	Zinc finger protein
1006	 47.54	0	1180095..1181417	+	440	21227108	-	MM_1006	-	proteasome-activating nucleotidase
1007	 43.82	0	1181553..1182143	+	196	21227109	-	MM_1007	-	hypothetical protein
1008	 49.24	+1	1182688..1183812	+	374	21227110	ftsZ	MM_1008	-	cell division protein FtsZ
1009	 47.69	0	1184237..1184452	+	71	21227111	secE	MM_1009	-	preprotein translocase subunit SecE
1010	 45.65	0	1184437..1184907	+	156	21227112	nusG	MM_1010	-	transcription antitermination protein NusG
1011	 47.94	0	1185028..1185513	+	161	21227113	rpl11p	MM_1011	-	50S ribosomal protein L11P
1012	 47.35	0	1185755..1186396	+	213	21227114	rpl1P	MM_1012	-	50S ribosomal protein L1P
1013	 51.15	+1	1186397..1187440	+	347	21227115	rplP0	MM_1013	-	acidic ribosomal protein P0
1014	 55.56	+2	1187483..1187797	+	104	21227116	rpl12p	MM_1014	-	50S ribosomal protein L12P
1015	 43.30	0	1188086..1189219	+	377	21227117	-	MM_1015	-	molybdenum cofactor biosynthesis protein
1016	 37.65	-1	1190055..1190471	+	138	21227118	-	MM_1016	-	putative ribosomal-protein-alanine acetyltransferase
1017	 47.28	0	1190663..1191451	-	262	21227119	-	MM_1017	-	hypothetical protein
1018	 40.24	0	1191574..1192080	+	168	21227120	-	MM_1018	-	hypothetical protein
1019	 46.64	0	1192183..1192926	-	247	21227121	-	MM_1019	-	Iron-sulfur cluster-binding protein
1020	 41.72	0	1193212..1193688	-	158	21227122	-	MM_1020	-	methylated-DNA--protein-cysteine methyltransferase
1021	 32.57	-2	1193677..1194201	+	174	21227123	-	MM_1021	-	hypothetical protein
1022	 46.58	0	1194690..1195361	+	223	21227124	-	MM_1022	-	hypothetical protein
1023	 49.32	+1	1195438..1195656	+	72	21227125	-	MM_1023	-	hypothetical protein
1024	 42.12	0	1195815..1196918	+	367	21227126	-	MM_1024	-	hypothetical protein
1025	 52.68	+1	1197056..1198342	-	428	161485678	thiC	MM_1025	-	thiamine biosynthesis protein ThiC
1026	 43.14	0	1198756..1199673	-	305	21227128	-	MM_1026	-	dolichol-phosphate mannosyltransferase
1027	 44.75	0	1199798..1200349	-	183	21227129	-	MM_1027	-	transcription factor
1028	 45.47	0	1200429..1200980	-	183	21227130	-	MM_1028	-	transcription factor
1029	 44.89	0	1201175..1202290	-	371	21227131	-	MM_1029	-	hypothetical protein
1030	 46.67	0	1202335..1203339	-	334	21227132	-	MM_1030	-	hypothetical protein
1031	 46.40	0	1203332..1206859	-	1175	21227133	-	MM_1031	-	chromosome partition protein
1032	 47.57	0	1206911..1207879	-	322	21227134	-	MM_1032	-	hypothetical protein
1033	 46.85	0	1209101..1211098	-	665	21227135	-	MM_1033	-	ferrous iron transport protein B
1034	 42.97	0	1211159..1211812	-	217	21227136	-	MM_1034	-	transcriptional repressor
1035	 45.62	0	1212049..1212528	-	159	21227137	-	MM_1035	-	acetyltransferase
1036	 46.63	0	1213256..1213819	+	187	21227138	-	MM_1036	-	BioY protein
1037	 46.42	0	1213905..1214729	+	274	21227139	cbiO	MM_1037	-	cobalt transporter ATP-binding subunit
1038	 43.71	0	1214663..1215568	+	301	21227140	cbiO	MM_1038	-	cobalt transporter, ATP-binding protein
1039	 48.06	0	1215639..1216412	+	257	21227141	cbiQ	MM_1039	-	cobalt transport protein
1040	 45.69	0	1216520..1216867	+	115	21227142	-	MM_1040	-	putative transcriptional regulator
1041	 47.51	0	1216864..1218231	+	455	21227143	-	MM_1041	-	transporter
1042	 43.59	0	1218324..1218830	+	168	21227144	-	MM_1042	-	transcriptional regulator
1043	 37.37	-1	1219177..1219671	+	164	21227145	-	MM_1043	-	transposase
1044	 38.94	0	1219685..1220308	+	207	21227146	-	MM_1044	-	transposase
1045	 45.99	0	1220896..1221780	+	294	21227147	-	MM_1045	-	branched-chain amino acid aminotransferase
1046	 47.42	0	1222217..1224211	+	664	21227148	moeA	MM_1046	-	molybdopterin biosynthesis protein
1047	 47.03	0	1224590..1225684	+	364	21227149	-	MM_1047	-	GTP-binding protein
1048	 47.74	0	1225914..1228016	-	700	21227150	-	MM_1048	-	D-alanine-D-alanine ligase related protein
1049	 46.16	0	1228207..1229469	-	420	21227151	-	MM_1049	-	arsenite permease
1050	 40.10	0	1229654..1229845	+	63	21227152	-	MM_1050	-	hypothetical protein
1051	 42.11	0	1230098..1230382	-	94	21227153	mc1	MM_1051	-	chromosomal protein
1052	 38.04	-1	1230607..1230861	+	84	21227154	-	MM_1052	-	hypothetical protein
1053	 43.83	0	1232967..1234538	+	523	21227155	-	MM_1053	-	putative sensory protein
1054	 41.86	0	1235168..1237090	+	640	21227156	-	MM_1054	-	surface layer protein B
1055	 47.75	0	1237168..1237701	+	177	21227157	mttC	MM_1055	-	trimethylamine corrinoid protein
1056	 46.40	0	1238465..1239742	-	425	21227158	-	MM_1056	-	putative ATP-dependent Na+ efflux pump
1057	 42.54	0	1239711..1240622	-	303	21227159	-	MM_1057	-	ABC transporter, ATP-binding protein
1058	 43.45	0	1240733..1241404	+	223	21227160	-	MM_1058	-	5-amino-6-(5-phosphoribosylamino)uracil reductase
1059	 47.36	0	1242273..1244204	+	643	21227161	-	MM_1059	-	hydrogenase membrane subunit
1060	 48.41	0	1244201..1245142	+	313	21227162	-	MM_1060	-	formate hydrogenlyase subunit 4
1061	 46.87	0	1245139..1245825	+	228	21227163	-	MM_1061	-	hydrogenase-4 component E
1062	 49.90	+1	1245822..1247360	+	512	21227164	-	MM_1062	-	hydrogenase membrane subunit
1063	 48.65	+1	1247405..1248997	+	530	21227165	-	MM_1063	-	formate hydrogenlyase subunit 5 precursor
1064	 47.17	0	1249083..1249595	+	170	21227166	-	MM_1064	-	formate hydrogenlyase subunit 7
1065	 30.43	-2	1249657..1250001	+	114	21227167	-	MM_1065	-	hypothetical protein
1066	 35.65	-1	1249980..1250195	+	71	21227168	-	MM_1066	-	hypothetical protein
1067	 39.19	0	1250650..1251435	+	261	21227169	-	MM_1067	-	hypothetical protein
1068	 41.67	0	1251832..1252203	-	123	21227170	-	MM_1068	-	two-component response regulator
1069	 47.32	0	1252439..1255306	-	955	21227171	-	MM_1069	-	cation-transporting ATPase
1070	 51.02	+1	1255824..1256852	+	342	21227172	mtaA	MM_1070	-	methylcobalamin:coenzyme M methyltransferase
1071	 48.09	0	1257153..1258772	+	539	21227173	-	MM_1071	-	hypothetical protein
1072	 43.18	0	1259208..1260365	+	385	21227174	-	MM_1072	-	hypothetical protein
1073	 46.72	0	1262243..1263019	+	258	21227175	mtaC	MM_1073	-	methanol corrinoid protein
1074	 49.93	+1	1263032..1264417	+	461	21227176	mtaB	MM_1074	-	methanol:corrinoid methyltransferase
43.57	MEAN

4.98	STD DEV
