IslandPath Analysis: Methanococcus maripaludis C6

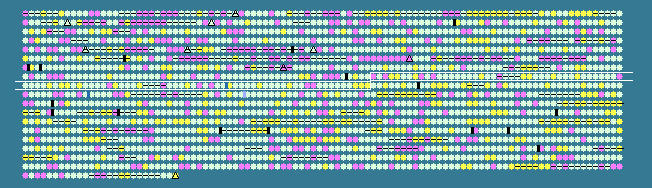

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.79
Methanococcus maripaludis C6, complete genome - 1..1744193
1826 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
759	 30.47	0	711115..711498	+	127	159905155	-	MmarC6_0768	-	hypothetical protein
760	 37.10	0	711619..712362	+	247	159905156	-	MmarC6_0769	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
761	 30.05	-1	712533..712745	+	70	159905157	-	MmarC6_0770	-	hypothetical protein
762	 40.13	+1	712890..713360	+	156	159905158	-	MmarC6_0771	-	riboflavin synthase
763	 37.44	0	713534..716503	+	989	159905159	-	MmarC6_0772	-	phosphoribosylformylglycinamidine synthase
764	 35.06	0	716513..717322	+	269	159905160	-	MmarC6_0773	-	phosphoribosylformylglycinamidine synthase I
765	 35.00	0	717457..717816	+	119	159905161	-	MmarC6_0774	-	hypothetical protein
766	 38.79	+1	717932..720277	+	781	159905162	-	MmarC6_0775	-	AAA family ATPase, CDC48 subfamily protein
767	 28.10	-1	720313..720771	-	152	159905163	-	MmarC6_0776	-	hypothetical protein
768	 33.41	0	720914..722290	+	458	159905164	-	MmarC6_0777	-	metal dependent phosphohydrolase
769	 27.93	-1	722287..723489	-	400	159905165	-	MmarC6_0778	-	Mur ligase middle domain-containing protein
770	 34.27	0	723654..724397	-	247	159905166	-	MmarC6_0779	-	hypothetical protein
771	 35.55	0	724401..725258	-	285	159905167	-	MmarC6_0780	-	alpha-L-glutamate ligase
772	 34.75	0	725278..726405	-	375	159905168	-	MmarC6_0781	-	peptidase M50
773	 31.37	0	726530..726988	+	152	159905169	-	MmarC6_0782	-	PadR-like family transcriptional regulator
774	 33.74	0	726990..727964	+	324	159905170	-	MmarC6_0783	-	daunorubicin resistance ABC transporter ATPase subunit
775	 37.09	0	727965..729347	+	460	159905171	-	MmarC6_0784	-	MATE efflux family protein
776	 37.14	0	729357..730118	+	253	159905172	-	MmarC6_0785	-	daunorubicin resistance ABC transporter, inner membrane subunit B
777	 39.23	+1	730209..730649	+	146	159905173	-	MmarC6_0786	-	sirohydrochlorin cobaltochelatase
778	 37.29	0	730698..731732	-	344	159905174	-	MmarC6_0787	-	arsenite-activated ATPase ArsA
779	 31.94	0	731793..732437	-	214	159905175	-	MmarC6_0788	-	hypothetical protein
780	 29.87	-1	732456..733205	+	249	159905176	-	MmarC6_0789	-	2-phosphosulfolactate phosphatase
781	 37.10	0	733346..734647	+	433	159905177	-	MmarC6_0790	-	phenylacetate--CoA ligase
782	 35.26	0	734707..734862	-	51	159905178	-	MmarC6_0791	-	50S ribosomal protein L39e
783	 35.54	0	734879..735466	-	195	159905179	-	MmarC6_0792	-	hypothetical protein
784	 40.06	+1	735476..735832	-	118	159905180	-	MmarC6_0793	-	hypothetical protein
785	 40.61	+1	735857..736282	-	141	159905181	-	MmarC6_0794	-	30S ribosomal protein S19e
786	 34.90	0	736523..736906	-	127	159905182	-	MmarC6_0795	-	hypothetical protein
787	 33.00	0	737144..738649	+	501	159905183	-	MmarC6_0796	-	hypothetical protein
788	 37.04	0	738700..739860	+	386	159905184	-	MmarC6_0797	-	trans-homoaconitate synthase
789	 40.49	+1	740299..741639	-	446	159905185	-	MmarC6_0798	-	citrate transporter
790	 31.94	0	742019..742162	-	47	159905186	-	MmarC6_0799	-	50S ribosomal protein L40e
791	 34.50	0	742167..742682	-	171	159905187	-	MmarC6_0800	-	hypothetical protein
792	 32.01	0	742749..743804	+	351	159905188	-	MmarC6_0801	-	putative RNA methylase
793	 38.83	+1	743828..745738	-	636	159905189	-	MmarC6_0802	-	acetate--CoA ligase
794	 36.63	0	746038..746916	+	292	159905190	-	MmarC6_0803	-	nitrogenase reductase-like protein
795	 33.62	0	746932..748338	+	468	159905191	-	MmarC6_0804	-	hypothetical protein
796	 37.28	0	748363..748920	+	185	159905192	-	MmarC6_0805	-	adenine phosphoribosyltransferase
797	 32.18	0	748935..749543	+	202	159905193	-	MmarC6_0806	-	5-oxopent-3-ene-1,2,5-tricarboxylate decarboxylase
798	 32.97	0	749571..750686	+	371	159905194	-	MmarC6_0807	-	hypothetical protein
799	 31.11	0	750731..750910	+	59	159905195	-	MmarC6_0808	-	hypothetical protein
800	 27.31	-1	750921..751136	+	71	159905196	-	MmarC6_0809	-	hypothetical protein
801	 32.40	0	751155..752660	+	501	159905197	-	MmarC6_0810	-	thiamine pyrophosphate binding domain-containing protein
802	 33.22	0	752690..753562	+	290	159905198	-	MmarC6_0811	-	DNA topoisomerase type IA Zn finger domain-containing protein
803	 32.81	0	753608..755917	+	769	159905199	-	MmarC6_0812	-	(NiFe) hydrogenase maturation protein HypF
804	 36.70	0	755965..757092	-	375	159905200	-	MmarC6_0813	-	coenzyme F420 hydrogenase/dehydrogenase beta subunit
805	 39.14	+1	757116..759146	-	676	159905201	-	MmarC6_0814	-	formate dehydrogenase, alpha subunit
806	 35.42	0	759781..760788	-	335	159905202	-	MmarC6_0815	-	putative deoxyhypusine synthase
807	 38.10	+1	760844..761347	-	167	159905203	-	MmarC6_0816	-	3-isopropylmalate dehydratase, small subunit
808	 38.35	+1	761366..762580	-	404	159905204	-	MmarC6_0817	-	threonine synthase
809	 30.97	0	762852..763190	-	112	159905205	-	MmarC6_0818	-	hypothetical protein
810	 39.92	+1	763240..764742	+	500	159905206	-	MmarC6_0819	-	inosine-5'-monophosphate dehydrogenase
811	 35.42	0	764816..765679	-	287	159905207	-	MmarC6_0820	-	branched-chain amino acid aminotransferase
812	 34.72	0	765729..766883	-	384	159905208	-	MmarC6_0821	-	L-tyrosine decarboxylase
813	 34.28	0	767007..767852	-	281	159905209	-	MmarC6_0822	-	fumarate hydratase
814	 35.42	0	767867..768586	-	239	159905210	-	MmarC6_0823	-	hypothetical protein
815	 27.89	-1	768598..769167	+	189	159905211	-	MmarC6_0824	-	cyclase family protein
816	 40.00	+1	769468..770532	+	354	159905212	-	MmarC6_0825	-	H(2)-dependent methylenetetrahydromethanopterin dehydrogenase
817	 34.70	0	770591..771616	+	341	159905213	-	MmarC6_0826	-	biotin synthase
818	 36.53	0	771647..773179	+	510	159905214	-	MmarC6_0827	-	fibrillarin-like protein
819	 32.74	0	773219..773893	+	224	159905215	-	MmarC6_0828	-	membrane-bound metal-dependent hydrolase
820	 39.07	+1	773923..775089	-	388	159905216	-	MmarC6_0829	-	phosphoribosylglycinamide formyltransferase 2
821	 30.67	0	775273..776172	+	299	159905217	-	MmarC6_0830	-	hypothetical protein
822	 31.13	0	776176..776493	+	105	159905218	-	MmarC6_0831	-	nucleic acid binding OB-fold tRNA/helicase-type
823	 34.11	0	776506..776892	+	128	159905219	-	MmarC6_0832	-	nucleic acid binding OB-fold tRNA/helicase-type
824	 28.10	-1	776873..777598	+	241	159905220	-	MmarC6_0833	-	biotin--acetyl-CoA-carboxylase ligase
825	 34.95	0	777611..778228	+	205	159905221	-	MmarC6_0834	-	beta-lactamase domain-containing protein
826	 31.09	0	778275..778943	+	222	159905222	-	MmarC6_0835	-	hypothetical protein
827	 37.40	0	778965..779996	-	343	159905223	-	MmarC6_0836	-	N-acetyl-gamma-glutamyl-phosphate reductase
828	 41.76	+2	780121..780642	-	173	159905224	-	MmarC6_0837	-	nitroreductase
829	 32.42	0	780812..781468	+	218	159905225	-	MmarC6_0838	-	xylose isomerase domain-containing protein
830	 30.37	0	781501..782310	+	269	159905226	-	MmarC6_0839	-	hypothetical protein
831	 31.77	0	782321..783601	+	426	159905227	-	MmarC6_0840	-	phosphonopyruvate decarboxylase-related protein
832	 23.02	-2	783610..784191	+	193	159905228	-	MmarC6_0841	-	hypothetical protein
833	 35.29	0	784133..784693	-	186	159905229	-	MmarC6_0842	-	hypothetical protein
834	 30.76	0	784772..785392	-	206	159905230	-	MmarC6_0843	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
835	 41.44	+1	786423..787322	-	299	159905231	-	MmarC6_0844	-	pyridoxine biosynthesis protein
836	 36.93	0	787443..788081	-	212	159905232	-	MmarC6_0845	-	protein-L-isoaspartate O-methyltransferase
837	 33.33	0	788162..788644	+	160	159905233	-	MmarC6_0846	-	CBS domain-containing protein
838	 36.39	0	788663..789841	+	392	159905234	-	MmarC6_0847	-	sodium/hydrogen exchanger
839	 34.29	0	789850..791001	-	383	159905235	-	MmarC6_0848	-	major facilitator transporter
840	 43.50	+2	791143..791319	+	58	159905236	-	MmarC6_0849	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
841	 31.51	0	791368..791916	-	182	159905237	-	MmarC6_0850	-	XRE family transcriptional regulator
842	 34.26	0	792041..793228	+	395	159905238	-	MmarC6_0851	-	GntR family transcriptional regulator
843	 35.11	0	793231..794415	-	394	159905239	-	MmarC6_0852	-	phosphotransferase domain-containing protein
844	 35.74	0	794437..795849	+	470	159905240	-	MmarC6_0853	-	THUMP domain-containing protein
845	 37.76	+1	795935..796228	+	97	159905241	-	MmarC6_0854	-	50S ribosomal protein L21e
846	 33.02	0	796276..796599	+	107	159905242	-	MmarC6_0855	-	RNA polymerase Rpb4
847	 34.87	0	796701..797285	+	194	159905243	-	MmarC6_0856	-	hypothetical protein
848	 28.93	-1	797307..798374	+	355	159905244	-	MmarC6_0857	-	glycosyl transferase group 1
849	 27.89	-1	798389..798994	+	201	159905245	-	MmarC6_0858	-	siroheme synthase
850	 33.68	0	798999..800147	+	382	159905246	-	MmarC6_0859	-	glutamyl-tRNA reductase
851	 36.76	0	800137..801363	+	408	159905247	-	MmarC6_0860	-	3-hydroxy-3-methylglutaryl coenzyme A reductase
852	 34.01	0	801482..801925	+	147	159905248	-	MmarC6_0861	-	putative transcriptional regulator
853	 32.66	0	801947..802993	+	348	159905249	-	MmarC6_0862	-	translation factor pelota
854	 31.17	0	803002..803742	+	246	159905250	-	MmarC6_0863	-	hypothetical protein
855	 35.93	0	806416..807495	-	359	159905251	-	MmarC6_0866	-	coenzyme F420 hydrogenase/dehydrogenase beta subunit
856	 37.74	+1	807527..808297	-	256	159905252	-	MmarC6_0867	-	glutamate synthase alpha subunit
857	 41.10	+1	808318..809850	-	510	159905253	-	MmarC6_0868	-	glutamate synthase (NADPH)
858	 39.29	+1	809878..810969	-	363	159905254	-	MmarC6_0869	-	glutamine amidotransferase class-II
33.95	MEAN

3.79	STD DEV
