IslandPathversion 1.0

IslandPath Analysis: Methanococcus maripaludis C6

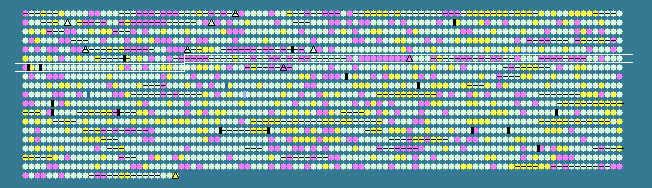

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.79
Methanococcus maripaludis C6, complete genome - 1..1744193
1826 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
528	 25.46	-2	498422..499069	+	215	159904924	-	MmarC6_0537	-	hypothetical protein
529	 26.06	-2	499093..499257	+	54	159904925	-	MmarC6_0538	-	hypothetical protein
530	 25.72	-2	499283..499558	+	91	159904926	-	MmarC6_0539	-	hypothetical protein
531	 25.64	-2	499582..499737	+	51	159904927	-	MmarC6_0540	-	hypothetical protein
532	 34.86	0	500243..502273	-	676	159904928	-	MmarC6_0541	-	hypothetical protein
533	 32.80	0	502270..504534	-	754	159904929	-	MmarC6_0542	-	hypothetical protein
534	 32.21	0	504550..505260	-	236	159904930	-	MmarC6_0543	-	hypothetical protein
535	 33.86	0	505273..505653	-	126	159904931	-	MmarC6_0544	-	hypothetical protein
536	 41.55	+2	505657..506070	-	137	159904932	-	MmarC6_0545	-	hypothetical protein
537	 31.94	0	506071..506358	-	95	159904933	-	MmarC6_0546	-	hypothetical protein
538	 30.52	0	506522..507160	-	212	159904934	-	MmarC6_0547	-	hypothetical protein
539	 30.43	0	507153..507428	-	91	159904935	-	MmarC6_0548	-	hypothetical protein
540	 32.02	0	507418..508863	-	481	159904936	-	MmarC6_0549	-	hypothetical protein
541	 30.72	0	508853..509197	-	114	159904937	-	MmarC6_0550	-	hypothetical protein
542	 26.25	-2	509202..509540	-	112	159904938	-	MmarC6_0551	-	hypothetical protein
543	 27.86	-1	509550..509750	-	66	159904939	-	MmarC6_0552	-	hypothetical protein
544	 31.97	0	509751..510116	-	121	159904940	-	MmarC6_0553	-	hypothetical protein
545	 29.43	-1	510117..510500	-	127	159904941	-	MmarC6_0554	-	hypothetical protein
546	 31.03	0	510501..510761	-	86	159904942	-	MmarC6_0555	-	hypothetical protein
547	 26.95	-1	510801..510941	-	46	159904943	-	MmarC6_0556	-	hypothetical protein
548	 29.54	-1	510944..511180	-	78	159904944	-	MmarC6_0557	-	hypothetical protein
549	 37.14	0	511347..511556	-	69	159904945	-	MmarC6_0558	-	hypothetical protein
550	 30.89	0	511743..512069	-	108	159904946	-	MmarC6_0559	-	hypothetical protein
551	 34.09	0	512084..514207	-	707	159904947	-	MmarC6_0560	-	DEAD/DEAH box helicase domain-containing protein
552	 35.41	0	514204..515553	-	449	159904948	-	MmarC6_0561	-	hypothetical protein
553	 36.69	0	515554..515970	-	138	159904949	-	MmarC6_0562	-	hypothetical protein
554	 34.01	0	515972..516412	-	146	159904950	-	MmarC6_0563	-	hypothetical protein
555	 29.86	-1	516390..516677	-	95	159904951	-	MmarC6_0564	-	hypothetical protein
556	 33.33	0	516678..516806	-	42	159904952	-	MmarC6_0565	-	hypothetical protein
557	 28.14	-1	517027..517392	+	121	159904953	-	MmarC6_0566	-	ArsR family transcriptional regulator
558	 26.55	-1	517508..518833	+	441	159904954	-	MmarC6_0567	-	hypothetical protein
559	 26.21	-2	518941..519867	-	308	159904955	-	MmarC6_0568	-	hypothetical protein
560	 30.06	-1	520036..521166	+	376	159904956	-	MmarC6_0569	-	hypothetical protein
561	 30.35	0	521209..521610	+	133	159904957	-	MmarC6_0570	-	hypothetical protein
562	 27.97	-1	521699..523543	+	614	159904958	-	MmarC6_0571	-	ATP-dependent OLD family endonuclease
563	 28.73	-1	523607..524410	-	267	159904959	-	MmarC6_0572	-	hypothetical protein
564	 28.21	-1	524373..525113	-	246	159904960	-	MmarC6_0573	-	hypothetical protein
565	 28.04	-1	525341..526228	-	295	159904961	-	MmarC6_0574	-	integrase family protein
566	 31.33	0	526237..526785	-	182	159904962	-	MmarC6_0575	-	hypothetical protein
567	 33.41	0	527001..528374	-	457	159904963	-	MmarC6_0576	-	radical SAM domain-containing protein
568	 33.52	0	528459..528989	+	176	159904964	-	MmarC6_0577	-	hypothetical protein
569	 28.92	-1	529020..529268	-	82	159904965	-	MmarC6_0578	-	hypothetical protein
570	 39.45	+1	529471..530304	+	277	159904966	-	MmarC6_0579	-	F420-dependent methylenetetrahydromethanopterin dehydrogenase
571	 33.83	0	530388..530987	-	199	159904967	-	MmarC6_0580	-	hypothetical protein
572	 31.00	0	531161..531847	+	228	159904968	-	MmarC6_0581	-	glycosyl transferase family protein
573	 28.53	-1	531869..532993	+	374	159904969	-	MmarC6_0582	-	glycosyl transferase group 1
574	 26.73	-1	533005..535170	+	721	159904970	-	MmarC6_0583	-	hypothetical protein
575	 27.20	-1	535167..536210	-	347	159904971	-	MmarC6_0584	-	glycosyl transferase family protein
576	 31.14	0	536215..537402	-	395	159904972	-	MmarC6_0585	-	coenzyme F420 hydrogenase/dehydrogenase beta subunit
577	 28.54	-1	537392..538579	-	395	159904973	-	MmarC6_0586	-	polysaccharide pyruvyl transferase
578	 31.06	0	538572..539231	-	219	159904974	-	MmarC6_0587	-	acetyltransferase
579	 27.01	-1	539236..540468	-	410	159904975	-	MmarC6_0588	-	polysaccharide biosynthesis protein
580	 29.60	-1	540440..541297	-	285	159904976	-	MmarC6_0589	-	dTDP-4-dehydrorhamnose reductase
581	 33.12	0	541306..542229	-	307	159904977	-	MmarC6_0590	-	dTDP-glucose 4,6-dehydratase
582	 31.51	0	542242..543117	-	291	159904978	-	MmarC6_0591	-	glucose-1-phosphate thymidylyltransferase
583	 30.32	0	543117..543680	-	187	159904979	-	MmarC6_0592	-	dTDP-4-dehydrorhamnose 3,5-epimerase
584	 31.40	0	543766..545163	-	465	159904980	-	MmarC6_0593	-	hypothetical protein
585	 36.50	0	545214..547205	-	663	159904981	-	MmarC6_0594	-	hypothetical protein
586	 32.23	0	547290..547835	-	181	159904982	-	MmarC6_0595	-	hypothetical protein
587	 26.25	-2	547845..548084	-	79	159904983	-	MmarC6_0596	-	hypothetical protein
588	 27.87	-1	548104..548799	-	231	159904984	-	MmarC6_0597	-	hypothetical protein
589	 25.76	-2	548875..550710	+	611	159904985	-	MmarC6_0598	-	hypothetical protein
590	 27.03	-1	550710..551708	+	332	159904986	-	MmarC6_0599	-	hypothetical protein
591	 32.37	0	551683..552612	+	309	159904987	-	MmarC6_0600	-	ATPase
592	 26.11	-2	552627..553928	+	433	159904988	-	MmarC6_0601	-	hypothetical protein
593	 23.19	-2	553925..554476	+	183	159904989	-	MmarC6_0602	-	hypothetical protein
594	 30.09	-1	554473..555798	+	441	159904990	-	MmarC6_0603	-	nucleotide sugar dehydrogenase
595	 32.52	0	555834..556574	+	246	159904991	-	MmarC6_0604	-	CoA-substrate-specific enzyme activase
596	 34.18	0	556714..557307	+	197	159904992	-	MmarC6_0605	-	GPR1/FUN34/yaaH family protein
597	 30.26	0	557461..557688	+	75	159904993	-	MmarC6_0606	-	hypothetical protein
598	 35.12	0	557943..559064	+	373	159904994	-	MmarC6_0607	-	2-hydroxyglutaryl-CoA dehydratase D-component
599	 34.92	0	559192..560073	+	293	159904995	-	MmarC6_0608	-	hypothetical protein
600	 32.89	0	560126..560797	+	223	159904996	-	MmarC6_0609	-	ATP binding protein
601	 29.37	-1	560794..561222	-	142	159904997	-	MmarC6_0610	-	flagella protein F
602	 38.22	+1	561531..563024	-	497	159904998	-	MmarC6_0611	-	pyruvate carboxylase subunit A
603	 36.55	0	563070..564779	-	569	159904999	-	MmarC6_0612	-	pyruvate carboxylase subunit B
604	 30.81	0	565282..565797	-	171	159905000	-	MmarC6_0613	-	NUDIX hydrolase
605	 34.80	0	565882..566970	+	362	159905001	-	MmarC6_0614	-	hypothetical protein
606	 32.89	0	567002..567448	+	148	159905002	-	MmarC6_0615	-	hypothetical protein
607	 32.35	0	567465..567872	+	135	159905003	-	MmarC6_0616	-	resolvase, Holliday junction-type
608	 32.37	0	567920..568333	-	137	159905004	-	MmarC6_0617	-	hypothetical protein
609	 32.91	0	568405..569109	-	234	159905005	-	MmarC6_0618	-	RNA methyltransferase
610	 34.73	0	569280..569993	-	237	159905006	-	MmarC6_0619	-	hypothetical protein
611	 33.59	0	570432..570824	+	130	159905007	-	MmarC6_0620	-	histidine triad (HIT) protein
612	 34.76	0	570865..571497	-	210	159905008	-	MmarC6_0621	-	precorrin-8X methylmutase
613	 37.11	0	571512..571802	-	96	159905009	-	MmarC6_0622	-	hypothetical protein
614	 33.33	0	571820..572626	-	268	159905010	-	MmarC6_0623	-	hypothetical protein
615	 37.09	0	572722..574239	-	505	159905011	-	MmarC6_0624	-	thymidine phosphorylase
616	 36.14	0	574375..576366	-	663	159905012	-	MmarC6_0625	-	methionyl-tRNA synthetase
617	 38.42	+1	576575..577597	+	340	159905013	-	MmarC6_0626	-	glyceraldehyde-3-phosphate dehydrogenase
618	 28.61	-1	577667..578047	+	126	159905014	-	MmarC6_0627	-	hypothetical protein
619	 30.81	0	578098..579126	+	342	159905015	-	MmarC6_0628	-	protein of unknown function Met10
620	 36.15	0	579139..580593	-	484	159905016	-	MmarC6_0629	-	replication factor C large subunit
621	 30.22	0	580594..581139	-	181	159905017	-	MmarC6_0630	-	hypothetical protein
622	 33.92	0	581259..582110	+	283	159905018	-	MmarC6_0631	-	shikimate kinase
623	 31.73	0	582130..582816	+	228	159905019	-	MmarC6_0632	-	precorrin-2 C20-methyltransferase
624	 38.05	+1	582895..584547	+	550	159905020	-	MmarC6_0633	-	dihydroxy-acid dehydratase
625	 39.50	+1	584624..585775	-	383	159905021	-	MmarC6_0634	-	hypothetical protein
626	 34.37	0	586144..587982	+	612	159905022	-	MmarC6_0635	-	indolepyruvate ferredoxin oxidoreductase, alpha subunit
627	 33.00	0	587979..588587	+	202	159905023	-	MmarC6_0636	-	indolepyruvate oxidoreductase subunit B
33.95	MEAN

3.79	STD DEV
