IslandPathversion 1.0

IslandPath Analysis: Methanococcus maripaludis C6

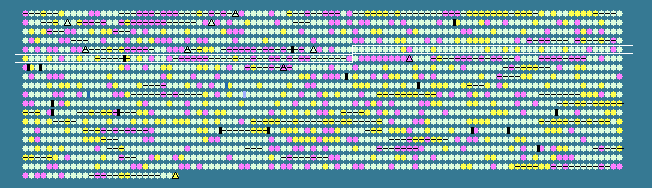

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.79
Methanococcus maripaludis C6, complete genome - 1..1744193
1826 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
456	 36.14	0	425955..426239	+	94	159904852	-	MmarC6_0464	-	hypothetical protein
457	 36.75	0	426270..426620	+	116	159904853	-	MmarC6_0465	-	dinitrogenase iron-molybdenum cofactor biosynthesis protein
458	 31.65	0	426839..427075	+	78	159904854	-	MmarC6_0466	-	hypothetical protein
459	 34.80	0	427167..427370	-	67	159904855	-	MmarC6_0467	-	30S ribosomal protein S27ae
460	 34.29	0	427372..427683	-	103	159904856	-	MmarC6_0468	-	30S ribosomal protein S24e
461	 34.80	0	427691..428167	-	158	159904857	-	MmarC6_0469	-	hypothetical protein
462	 33.90	0	428201..428377	-	58	159904858	-	MmarC6_0470	-	DNA-directed RNA polymerase subunit E, RpoE2
463	 37.23	0	428416..428979	-	187	159904859	-	MmarC6_0471	-	DNA-directed RNA polymerase subunit E'
464	 38.47	+1	429135..430049	-	304	159904860	-	MmarC6_0472	-	dihydroorotate dehydrogenase 1B
465	 29.26	-1	430143..430928	+	261	159904861	-	MmarC6_0473	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
466	 30.98	0	430938..432041	-	367	159904862	-	MmarC6_0474	-	glutamate--cysteine ligase GCS2
467	 34.38	0	432028..432978	-	316	159904863	-	MmarC6_0475	-	RimK domain-containing protein ATP-grasp
468	 31.19	0	432979..433584	-	201	159904864	-	MmarC6_0476	-	hypothetical protein
469	 40.16	+1	433851..434099	+	82	159904865	-	MmarC6_0477	-	hypothetical protein
470	 32.12	0	434137..434631	-	164	159904866	-	MmarC6_0478	-	putative flavodoxin
471	 33.60	0	434652..435413	-	253	159904867	-	MmarC6_0479	-	TatD-related deoxyribonuclease
472	 36.94	0	435593..436894	+	433	159904868	-	MmarC6_0480	-	beta-lactamase domain-containing protein
473	 30.76	0	436937..437635	-	232	159904869	-	MmarC6_0481	-	ribonuclease P
474	 34.98	0	437691..437993	-	100	159904870	-	MmarC6_0482	-	hypothetical protein
475	 35.51	0	438230..439330	+	366	159904871	-	MmarC6_0483	-	vanadium nitrogenase-associated related protein N
476	 35.55	0	439421..440368	+	315	159904872	-	MmarC6_0484	-	replication factor C small subunit
477	 34.21	0	440416..440985	-	189	159904873	-	MmarC6_0485	-	nitroreductase
478	 38.26	+1	441000..441642	-	213	159904874	-	MmarC6_0486	-	hypothetical protein
479	 34.77	0	441965..442729	-	254	159904875	-	MmarC6_0487	-	parallel beta-helix repeat-containing protein
480	 36.24	0	443060..443506	-	148	159904876	-	MmarC6_0488	-	hypothetical protein
481	 37.94	+1	443538..444449	-	303	159904877	-	MmarC6_0489	-	hypothetical protein
482	 32.40	0	444469..445434	-	321	159904878	-	MmarC6_0490	-	CBS domain-containing protein
483	 37.83	+1	445798..447309	-	503	159904879	-	MmarC6_0491	-	sodium:neurotransmitter symporter
484	 35.86	0	447446..448354	-	302	159904880	-	MmarC6_0492	-	ribokinase-like domain-containing protein
485	 37.24	0	448381..449097	-	238	159904881	-	MmarC6_0493	-	phosphoribosylformimino-5-aminoimidazole carboxamide ribotide isomerase
486	 34.93	0	449314..450945	-	543	159904882	-	MmarC6_0494	-	O-sialoglycoprotein endopeptidase/protein kinase
487	 37.56	0	451120..452988	+	622	159904883	-	MmarC6_0495	-	threonyl-tRNA synthetase
488	 35.43	0	453046..455241	-	731	159904884	-	MmarC6_0496	-	methyl-accepting chemotaxis sensory transducer
489	 32.32	0	457653..458930	-	425	159904885	-	MmarC6_0498	-	MiaB-like tRNA modifying enzyme
490	 34.92	0	458964..459467	+	167	159904886	-	MmarC6_0499	-	sulfopyruvate decarboxylase subunit alpha
491	 38.66	+1	459538..460401	-	287	159904887	-	MmarC6_0500	-	ribose-phosphate pyrophosphokinase
492	 32.99	0	460531..461691	+	386	159904888	-	MmarC6_0501	-	glucose-methanol-choline oxidoreductase
493	 33.98	0	461718..462638	-	306	159904889	-	MmarC6_0502	-	H+-transporting two-sector ATPase, A subunit
494	 34.30	0	462797..463210	+	137	159904890	-	MmarC6_0503	-	signal transduction protein
495	 28.22	-1	463214..463996	-	260	159904891	-	MmarC6_0504	-	TIM-barrel protein
496	 37.20	0	464024..464824	-	266	159904892	-	MmarC6_0505	-	GTP cyclohydrolase III
497	 32.47	0	464930..465859	-	309	159904893	-	MmarC6_0506	-	LPPG:FO 2-phospho-L-lactate transferase
498	 32.50	0	465874..466959	-	361	159904894	-	MmarC6_0507	-	glycosyltransferase family 28 protein
499	 30.32	0	467245..468606	-	453	159904895	-	MmarC6_0508	-	MarR family transcriptional regulator
500	 31.52	0	468626..469564	-	312	159904896	-	MmarC6_0509	-	methionine synthase
501	 38.23	+1	469601..470254	-	217	159904897	-	MmarC6_0510	-	amino acid-binding ACT domain-containing protein
502	 35.55	0	470264..471121	-	285	159904898	-	MmarC6_0511	-	peptidase M48 Ste24p
503	 33.90	0	471132..472007	-	291	159904899	-	MmarC6_0512	-	GHMP kinase
504	 36.88	0	472050..474728	-	892	159904900	-	MmarC6_0513	-	alanyl-tRNA synthetase
505	 38.98	+1	474927..476219	-	430	159904901	-	MmarC6_0514	-	phosphopyruvate hydratase
506	 31.18	0	476463..476741	+	92	159904902	-	MmarC6_0515	-	hypothetical protein
507	 30.20	0	476758..477492	+	244	159904903	-	MmarC6_0516	-	uroporphyrinogen III synthase HEM4
508	 36.05	0	477550..478065	+	171	159904904	-	MmarC6_0517	-	phosphodiesterase
509	 34.83	0	478257..479591	+	444	159904905	-	MmarC6_0518	-	phosphoribosylamine--glycine ligase
510	 37.86	+1	479689..480837	+	382	159904906	-	MmarC6_0519	-	alanine--glyoxylate transaminase
511	 35.45	0	480906..481565	+	219	159904907	-	MmarC6_0520	-	hypothetical protein
512	 35.76	0	481652..481816	+	54	159904908	-	MmarC6_0521	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
513	 37.68	0	481819..482991	+	390	159904909	-	MmarC6_0522	-	geranylgeranyl reductase
514	 35.59	0	482993..483568	-	191	159904910	-	MmarC6_0523	-	microsomal signal peptidase 21 KD subunit
515	 34.80	0	483822..484025	+	67	159904911	-	MmarC6_0524	-	transcription factor CBF/NF-Y/histone domain-containing protein
516	 37.17	0	484265..484942	+	225	159904912	-	MmarC6_0525	-	uridylate kinase
517	 32.79	0	485161..485343	+	60	159904913	-	MmarC6_0526	-	hypothetical protein
518	 40.79	+1	486044..487720	-	558	159904914	-	MmarC6_0527	-	S-layer protein
519	 37.11	0	488162..489934	-	590	159904915	-	MmarC6_0528	-	putative ATPase RIL
520	 37.86	+1	489976..490461	-	161	159904916	-	MmarC6_0529	-	3-isopropylmalate dehydratase, small subunit
521	 32.05	0	490632..492977	+	781	159904917	-	MmarC6_0530	-	DNA polymerase Pol2
522	 26.85	-1	492982..493305	+	107	159904918	-	MmarC6_0531	-	hypothetical protein
523	 31.70	0	493311..494594	+	427	159904919	-	MmarC6_0532	-	amidohydrolase
524	 35.81	0	494625..495269	+	214	159904920	-	MmarC6_0533	-	phosphotransferase domain-containing protein
525	 29.79	-1	495275..496459	+	394	159904921	-	MmarC6_0534	-	ATP dependent DNA ligase
526	 33.76	0	496896..497129	+	77	159904922	-	MmarC6_0535	-	hypothetical protein
527	 30.26	0	497237..497464	+	75	159904923	-	MmarC6_0536	-	hypothetical protein
528	 25.46	-2	498422..499069	+	215	159904924	-	MmarC6_0537	-	hypothetical protein
529	 26.06	-2	499093..499257	+	54	159904925	-	MmarC6_0538	-	hypothetical protein
530	 25.72	-2	499283..499558	+	91	159904926	-	MmarC6_0539	-	hypothetical protein
531	 25.64	-2	499582..499737	+	51	159904927	-	MmarC6_0540	-	hypothetical protein
532	 34.86	0	500243..502273	-	676	159904928	-	MmarC6_0541	-	hypothetical protein
533	 32.80	0	502270..504534	-	754	159904929	-	MmarC6_0542	-	hypothetical protein
534	 32.21	0	504550..505260	-	236	159904930	-	MmarC6_0543	-	hypothetical protein
535	 33.86	0	505273..505653	-	126	159904931	-	MmarC6_0544	-	hypothetical protein
536	 41.55	+2	505657..506070	-	137	159904932	-	MmarC6_0545	-	hypothetical protein
537	 31.94	0	506071..506358	-	95	159904933	-	MmarC6_0546	-	hypothetical protein
538	 30.52	0	506522..507160	-	212	159904934	-	MmarC6_0547	-	hypothetical protein
539	 30.43	0	507153..507428	-	91	159904935	-	MmarC6_0548	-	hypothetical protein
540	 32.02	0	507418..508863	-	481	159904936	-	MmarC6_0549	-	hypothetical protein
541	 30.72	0	508853..509197	-	114	159904937	-	MmarC6_0550	-	hypothetical protein
542	 26.25	-2	509202..509540	-	112	159904938	-	MmarC6_0551	-	hypothetical protein
543	 27.86	-1	509550..509750	-	66	159904939	-	MmarC6_0552	-	hypothetical protein
544	 31.97	0	509751..510116	-	121	159904940	-	MmarC6_0553	-	hypothetical protein
545	 29.43	-1	510117..510500	-	127	159904941	-	MmarC6_0554	-	hypothetical protein
546	 31.03	0	510501..510761	-	86	159904942	-	MmarC6_0555	-	hypothetical protein
547	 26.95	-1	510801..510941	-	46	159904943	-	MmarC6_0556	-	hypothetical protein
548	 29.54	-1	510944..511180	-	78	159904944	-	MmarC6_0557	-	hypothetical protein
549	 37.14	0	511347..511556	-	69	159904945	-	MmarC6_0558	-	hypothetical protein
550	 30.89	0	511743..512069	-	108	159904946	-	MmarC6_0559	-	hypothetical protein
551	 34.09	0	512084..514207	-	707	159904947	-	MmarC6_0560	-	DEAD/DEAH box helicase domain-containing protein
552	 35.41	0	514204..515553	-	449	159904948	-	MmarC6_0561	-	hypothetical protein
553	 36.69	0	515554..515970	-	138	159904949	-	MmarC6_0562	-	hypothetical protein
554	 34.01	0	515972..516412	-	146	159904950	-	MmarC6_0563	-	hypothetical protein
555	 29.86	-1	516390..516677	-	95	159904951	-	MmarC6_0564	-	hypothetical protein
33.95	MEAN

3.79	STD DEV
