IslandPath Analysis: Methanococcus maripaludis C6

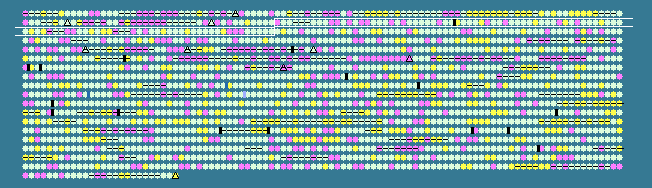

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.79
Methanococcus maripaludis C6, complete genome - 1..1744193
1826 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
143	 29.72	-1	124501..125994	+	497	159904539	-	MmarC6_0146	-	hypothetical protein
144	 34.73	0	126194..127123	+	309	159904540	-	MmarC6_0147	-	elongation factor Tu domain-containing protein
145	 36.19	0	127177..127980	-	267	159904541	-	MmarC6_0148	-	L-aspartate dehydrogenase
146	 32.16	0	128005..128259	-	84	159904542	-	MmarC6_0149	-	PRC-barrel domain-containing protein
147	 33.33	0	128383..128553	+	56	159904543	-	MmarC6_0150	-	hypothetical protein
148	 31.49	0	128573..129493	-	306	159904544	-	MmarC6_0151	-	DNA adenine methylase
149	 30.82	0	129568..129885	-	105	159904545	-	MmarC6_0152	-	hypothetical protein
150	 32.59	0	130020..131363	+	447	159904546	-	MmarC6_0153	-	MATE efflux family protein
151	 30.56	0	131457..132680	+	407	159904547	-	MmarC6_0154	-	exodeoxyribonuclease VII large subunit
152	 29.90	-1	132701..132904	+	67	159904548	-	MmarC6_0155	-	exodeoxyribonuclease VII small subunit
153	 29.05	-1	132914..133333	+	139	159904549	-	MmarC6_0156	-	hypothetical protein
154	 35.46	0	133451..136315	+	954	159904550	-	MmarC6_0157	-	excinuclease ABC, A subunit
155	 29.99	-1	136323..137906	+	527	159904551	-	MmarC6_0158	-	excinuclease ABC subunit C
156	 35.09	0	137903..139843	+	646	159904552	-	MmarC6_0159	-	excinuclease ABC subunit B
157	 30.47	0	139939..140496	+	185	159904553	-	MmarC6_0160	-	hypothetical protein
158	 25.62	-2	140505..140906	-	133	159904554	-	MmarC6_0161	-	hypothetical protein
159	 31.01	0	141075..141419	-	114	159904555	-	MmarC6_0162	-	hypothetical protein
160	 35.68	0	141475..142155	-	226	159904556	-	MmarC6_0163	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
161	 35.04	0	142259..143899	-	546	159904557	-	MmarC6_0164	-	hydroxylamine reductase
162	 30.15	-1	144156..144563	-	135	159904558	-	MmarC6_0165	-	CopG family transcriptional regulator
163	 35.04	0	144605..144955	-	116	159904559	-	MmarC6_0166	-	hypothetical protein
164	 27.93	-1	145340..145876	+	178	159904560	-	MmarC6_0167	-	hypothetical protein
165	 33.10	0	145879..146304	-	141	159904561	-	MmarC6_0168	-	amino acid-binding ACT domain-containing protein
166	 36.80	0	146318..147616	-	432	159904562	-	MmarC6_0169	-	phenylacetate--CoA ligase
167	 35.63	0	147627..148193	-	188	159904563	-	MmarC6_0170	-	indolepyruvate oxidoreductase subunit B
168	 36.33	0	148193..149929	-	578	159904564	-	MmarC6_0171	-	indolepyruvate ferredoxin oxidoreductase, alpha subunit
169	 30.66	0	150405..151151	-	248	159904565	-	MmarC6_0172	-	extracellular solute-binding protein
170	 29.65	-1	151240..152298	-	352	159904566	-	MmarC6_0173	-	magnesium and cobalt transport protein CorA
171	 34.05	0	152308..155088	-	926	159904567	-	MmarC6_0174	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
172	 35.10	0	155246..155869	-	207	159904568	-	MmarC6_0175	-	hypothetical protein
173	 39.24	+1	156270..156980	-	236	159904569	-	MmarC6_0176	-	hypothetical protein
174	 37.00	0	157185..158438	+	417	159904570	-	MmarC6_0177	-	sodium/hydrogen exchanger
175	 35.12	0	158451..159734	+	427	159904571	-	MmarC6_0178	-	nucleotide sugar dehydrogenase
176	 30.52	0	159739..160839	+	366	159904572	-	MmarC6_0179	-	UDP-N-acetylglucosamine 2-epimerase
177	 38.16	+1	160933..161802	+	289	159904573	-	MmarC6_0180	-	cobyrinic acid ac-diamide synthase
178	 28.25	-1	161842..162864	+	340	159904574	-	MmarC6_0181	-	hypothetical protein
179	 35.04	0	162861..163739	-	292	159904575	-	MmarC6_0182	-	alpha-L-glutamate ligase
180	 34.02	0	163781..164215	-	144	159904576	-	MmarC6_0183	-	hypothetical protein
181	 28.89	-1	164423..164962	+	179	159904577	-	MmarC6_0184	-	PadR-like family transcriptional regulator
182	 34.81	0	164985..166334	+	449	159904578	-	MmarC6_0185	-	MATE efflux family protein
183	 32.08	0	166395..166712	-	105	159904579	-	MmarC6_0186	-	hypothetical protein
184	 34.59	0	166739..169606	-	955	159904580	-	MmarC6_0187	-	leucyl-tRNA synthetase
185	 34.56	0	169858..171240	+	460	159904581	-	MmarC6_0188	-	prolyl-tRNA synthetase
186	 38.48	+1	171338..171997	+	219	159904582	-	MmarC6_0189	-	proteasome endopeptidase complex
187	 36.43	0	172134..174041	+	635	159904583	-	MmarC6_0190	-	beta-lactamase domain-containing protein
188	 35.79	0	174609..175502	+	297	159904584	-	MmarC6_0192	-	cell wall binding repeat 2-containing protein
189	 32.23	0	175590..176132	+	180	159904585	-	MmarC6_0193	-	hypothetical protein
190	 28.49	-1	176138..176839	+	233	159904586	-	MmarC6_0194	-	ferredoxin-type protein (NapH)
191	 39.55	+1	176900..178201	-	433	159904587	-	MmarC6_0195	-	xanthine/uracil/vitamin C permease
192	 32.71	0	178297..179910	+	537	159904588	-	MmarC6_0196	-	O-phosphoseryl-tRNA synthetase
193	 30.43	0	179920..180126	-	68	159904589	-	MmarC6_0197	-	hypothetical protein
194	 33.85	0	180185..182122	-	645	159904590	-	MmarC6_0198	-	ferrous iron transport protein B
195	 36.23	0	182266..182472	-	68	159904591	-	MmarC6_0199	-	FeoA family protein
196	 37.43	0	182952..183635	-	227	159904592	-	MmarC6_0200	-	triosephosphate isomerase
197	 39.68	+1	183697..184515	-	272	159904593	-	MmarC6_0201	-	fructose-bisphosphate aldolase
198	 31.46	0	184918..185559	-	213	159904594	-	MmarC6_0202	-	methyltransferase small
199	 37.42	0	185667..186131	-	154	159904595	-	MmarC6_0203	-	heat shock protein Hsp20
200	 32.72	0	186287..187426	+	379	159904596	-	MmarC6_0204	-	signal recognition particle-docking protein FtsY
201	 34.57	0	187527..188093	+	188	159904597	-	MmarC6_0205	-	hypothetical protein
202	 39.21	+1	188396..189637	+	413	159904598	-	MmarC6_0206	-	uracil-xanthine permease
203	 36.06	0	189674..190369	+	231	159904599	-	MmarC6_0207	-	uracil phosphoribosyltransferase
204	 38.58	+1	190460..192061	+	533	159904600	-	MmarC6_0208	-	Na+/H+ antiporter NhaC
205	 24.61	-2	192099..192545	-	148	159904601	-	MmarC6_0209	-	hypothetical protein
206	 32.52	0	192592..193575	-	327	159904602	-	MmarC6_0210	-	hypothetical protein
207	 32.70	0	193699..194175	+	158	159904603	-	MmarC6_0211	-	hypothetical protein
208	 30.19	0	194258..195655	+	465	159904604	-	MmarC6_0212	-	hypothetical protein
209	 28.13	-1	195997..197226	+	409	159904605	-	MmarC6_0213	-	TPR repeat-containing protein
210	 32.31	0	198255..198449	-	64	159904606	-	MmarC6_0215	-	hypothetical protein
211	 30.75	0	198459..199349	-	296	159904607	-	MmarC6_0216	-	hypothetical protein
212	 37.91	+1	199437..200114	-	225	159904608	-	MmarC6_0217	-	30S ribosomal protein S3Ae
213	 33.33	0	200127..200735	-	202	159904609	-	MmarC6_0218	-	hypothetical protein
214	 39.04	+1	200765..201430	-	221	159904610	-	MmarC6_0219	-	30S ribosomal protein S2
215	 37.52	0	201805..203430	+	541	159904611	-	MmarC6_0220	-	Na/Pi-cotransporter II-related protein
216	 29.04	-1	203488..203976	-	162	159904612	-	MmarC6_0221	-	hypothetical protein
217	 36.36	0	204025..204585	-	186	159904613	-	MmarC6_0222	-	hypothetical protein
218	 36.60	0	204613..206232	-	539	159904614	-	MmarC6_0223	-	sulphate transporter
219	 24.24	-2	206282..206512	-	76	159904615	-	MmarC6_0224	-	hypothetical protein
220	 35.62	0	206509..207384	-	291	159904616	-	MmarC6_0225	-	putative ATP binding related protein
221	 28.60	-1	207587..208768	+	393	159904617	-	MmarC6_0226	-	hypothetical protein
222	 36.80	0	208970..209488	+	172	159904618	-	MmarC6_0227	-	adenine phosphoribosyltransferase
223	 34.32	0	209530..210741	+	403	159904619	-	MmarC6_0228	-	peptidase U32
224	 37.70	0	210834..211727	+	297	159904620	-	MmarC6_0229	-	radical SAM domain-containing protein
225	 36.26	0	211828..212100	+	90	159904621	-	MmarC6_0230	-	hypothetical protein
226	 34.78	0	212162..212713	-	183	159904622	-	MmarC6_0231	-	hypothetical protein
227	 34.36	0	212789..212983	-	64	159904623	-	MmarC6_0232	-	thiamineS protein
228	 37.56	0	213041..214033	-	330	159904624	-	MmarC6_0233	-	ketol-acid reductoisomerase
229	 32.84	0	214534..215145	+	203	159904625	-	MmarC6_0234	-	hypothetical protein
230	 33.46	0	215361..216170	+	269	159904626	-	MmarC6_0235	-	hypothetical protein
231	 34.68	0	216533..217498	+	321	159904627	-	MmarC6_0236	-	bile acid:sodium symporter
232	 31.94	0	217583..217870	-	95	159904628	-	MmarC6_0237	-	hypothetical protein
233	 35.69	0	218237..218746	-	169	159904629	-	MmarC6_0238	-	acetolactate synthase 3 regulatory subunit
234	 39.74	+1	218760..220523	-	587	159904630	-	MmarC6_0239	-	acetolactate synthase catalytic subunit
235	 30.07	-1	220685..222214	+	509	159904631	-	MmarC6_0240	-	carbamoyltransferase
236	 30.08	-1	222225..223238	+	337	159904632	-	MmarC6_0241	-	RNA 3'-terminal-phosphate cyclase
237	 29.74	-1	223242..223658	+	138	159904633	-	MmarC6_0242	-	hypothetical protein
238	 30.48	0	223661..223870	-	69	159904634	-	MmarC6_0243	-	hypothetical protein
239	 35.66	0	224075..225019	+	314	159904635	-	MmarC6_0244	-	malate dehydrogenase
240	 32.31	0	225036..225911	+	291	159904636	-	MmarC6_0245	-	cation diffusion facilitator family transporter
241	 33.53	0	225916..226929	-	337	159904637	-	MmarC6_0246	-	hypothetical protein
242	 32.41	0	227069..228046	+	325	159904638	-	MmarC6_0247	-	hypothetical protein
33.95	MEAN

3.79	STD DEV
