IslandPath Analysis: Methanococcus maripaludis C6

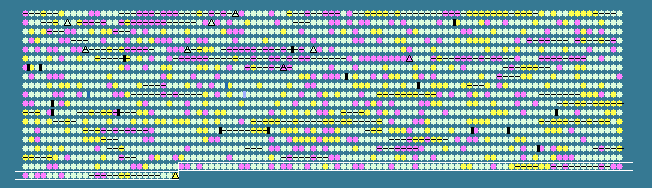

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.79
Methanococcus maripaludis C6, complete genome - 1..1744193
1826 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1727	 30.42	0	1637513..1637890	+	125	159906123	-	MmarC6_1742	-	hypothetical protein
1728	 30.26	0	1637925..1638119	+	64	159906124	-	MmarC6_1743	-	4-oxalocrotonate tautomerase
1729	 34.71	0	1638194..1638775	+	193	159906125	-	MmarC6_1744	-	NADPH-dependent FMN reductase
1730	 29.60	-1	1638817..1639245	+	142	159906126	-	MmarC6_1745	-	hypothetical protein
1731	 36.44	0	1639274..1639756	-	160	159906127	-	MmarC6_1746	-	SNARE associated Golgi protein
1732	 34.12	0	1639772..1640152	-	126	159906128	-	MmarC6_1747	-	signal transduction protein
1733	 33.59	0	1640332..1640724	+	130	159906129	-	MmarC6_1748	-	transcriptional regulator, TrmB
1734	 33.55	0	1640751..1641677	+	308	159906130	-	MmarC6_1749	-	ribonuclease Z
1735	 36.79	0	1641693..1642271	+	192	159906131	-	MmarC6_1750	-	hypothetical protein
1736	 36.69	0	1642317..1643360	+	347	159906132	-	MmarC6_1751	-	selenophosphate synthetase
1737	 28.30	-1	1643396..1643554	-	52	159906133	-	MmarC6_1752	-	hypothetical protein
1738	 29.39	-1	1643641..1643868	+	75	159906134	-	MmarC6_1753	-	hypothetical protein
1739	 34.86	0	1643880..1644272	+	130	159906135	-	MmarC6_1754	-	hypothetical protein
1740	 34.49	0	1644336..1645376	+	346	159906136	-	MmarC6_1755	-	small GTP-binding protein
1741	 30.58	0	1645410..1646063	-	217	159906137	-	MmarC6_1756	-	rhodanese domain-containing protein
1742	 29.39	-1	1646073..1646732	-	219	159906138	-	MmarC6_1757	-	ATP/GTP-binding motif-containing protein
1743	 36.92	0	1646859..1648085	-	408	159906139	-	MmarC6_1758	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1744	 29.25	-1	1648189..1649460	-	423	159906140	-	MmarC6_1759	-	polysaccharide biosynthesis protein
1745	 29.63	-1	1649482..1650075	-	197	159906141	-	MmarC6_1760	-	TPR repeat-containing protein
1746	 36.55	0	1650199..1651131	-	310	159906142	-	MmarC6_1761	-	GMP synthase subunit B
1747	 35.89	0	1651154..1652755	-	533	159906143	-	MmarC6_1762	-	CTP synthetase
1748	 25.60	-2	1652923..1653465	+	180	159906144	-	MmarC6_1763	-	GCN5-related N-acetyltransferase
1749	 33.85	0	1653482..1654057	-	191	159906145	-	MmarC6_1764	-	exonuclease RNase T and DNA polymerase III
1750	 31.06	0	1654269..1656512	-	747	159906146	-	MmarC6_1765	-	DEAD/DEAH box helicase domain-containing protein
1751	 40.85	+1	1656709..1657347	+	212	159906147	-	MmarC6_1766	-	cobalt transport protein CbiM
1752	 35.19	0	1657340..1657663	+	107	159906148	-	MmarC6_1767	-	cobalt transport protein CbiN
1753	 25.41	-2	1657775..1658077	+	100	159906149	-	MmarC6_1768	-	stress responsive alpha-beta barrel domain-containing protein
1754	 30.87	0	1658219..1658989	+	256	159906150	-	MmarC6_1769	-	cobalt ABC transporter, inner membrane subunit CbiQ
1755	 31.73	0	1659174..1660355	+	393	159906151	-	MmarC6_1770	-	TPR repeat-containing protein
1756	 29.32	-1	1660447..1660944	+	165	159906152	-	MmarC6_1771	-	hypothetical protein
1757	 30.33	0	1660976..1661941	+	321	159906153	-	MmarC6_1772	-	hypothetical protein
1758	 36.17	0	1661968..1662849	-	293	159906154	-	MmarC6_1773	-	AIR synthase-like protein
1759	 31.37	0	1663040..1663396	+	118	159906155	-	MmarC6_1774	-	hypothetical protein
1760	 33.73	0	1663513..1664532	+	339	159906156	-	MmarC6_1775	-	isopropylmalate/isohomocitrate dehydrogenase
1761	 35.47	0	1664596..1666140	+	514	159906157	-	MmarC6_1776	-	seryl-tRNA synthetase
1762	 30.28	0	1666413..1666805	-	130	159906158	-	MmarC6_1777	-	ribonuclease P-related
1763	 31.90	0	1666894..1667733	+	279	159906159	-	MmarC6_1778	-	nicotinate-nucleotide pyrophosphorylase
1764	 31.82	0	1667753..1668811	+	352	159906160	-	MmarC6_1779	-	FO synthase subunit 1
1765	 35.33	0	1668821..1670422	-	533	159906161	-	MmarC6_1780	-	S-layer protein
1766	 30.31	0	1670608..1671468	+	286	159906162	-	MmarC6_1781	-	SAM (and some other nucleotide) binding motif
1767	 30.51	0	1671479..1673107	-	542	159906163	-	MmarC6_1782	-	TPR repeat-containing protein
1768	 36.28	0	1673197..1674111	-	304	159906164	-	MmarC6_1783	-	porphobilinogen deaminase
1769	 36.26	0	1674239..1675432	-	397	159906165	-	MmarC6_1784	-	hypothetical protein
1770	 31.34	0	1675472..1676425	-	317	159906166	-	MmarC6_1785	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
1771	 36.30	0	1676456..1676893	-	145	159906167	-	MmarC6_1786	-	CMP/dCMP deaminase zinc-binding
1772	 33.39	0	1677096..1678727	+	543	159906168	-	MmarC6_1787	-	TPR repeat-containing protein
1773	 33.50	0	1679066..1680235	+	389	159906169	-	MmarC6_1788	-	glycine betaine/L-proline ABC transporter, ATPase subunit
1774	 40.29	+1	1680249..1681082	+	277	159906170	-	MmarC6_1789	-	binding-protein-dependent transport systems inner membrane component
1775	 39.64	+1	1681098..1681985	+	295	159906171	-	MmarC6_1790	-	substrate-binding region of ABC-type glycine betaine transport system
1776	 34.69	0	1682150..1683553	+	467	159906172	-	MmarC6_1791	-	aminotransferase class-III
1777	 33.50	0	1683608..1684774	-	388	159906173	-	MmarC6_1792	-	sodium/hydrogen exchanger
1778	 35.43	0	1684784..1685260	-	158	159906174	-	MmarC6_1793	-	signal transduction protein
1779	 28.42	-1	1685382..1686215	-	277	159906175	-	MmarC6_1794	-	GCN5-related N-acetyltransferase
1780	 35.48	0	1686208..1687509	-	433	159906176	-	MmarC6_1795	-	lysine 2,3-aminomutase YodO family protein
1781	 36.14	0	1688092..1688412	-	106	159906177	-	MmarC6_1796	-	dinitrogenase iron-molybdenum cofactor biosynthesis protein
1782	 38.85	+1	1688378..1689754	-	458	159906178	-	MmarC6_1797	-	nitrogenase
1783	 38.60	+1	1689772..1691214	-	480	159906179	-	MmarC6_1798	-	nitrogenase MoFe cofactor biosynthesis protein NifE
1784	 38.08	+1	1691238..1692626	-	462	159906180	-	MmarC6_1799	-	nitrogenase
1785	 38.35	+1	1692619..1694052	-	477	159906181	-	MmarC6_1800	-	nitrogenase alpha chain
1786	 37.98	+1	1694103..1694468	-	121	159906182	-	MmarC6_1801	-	nitrogen regulatory protein P-II
1787	 39.62	+1	1694478..1694795	-	105	159906183	-	MmarC6_1802	-	nitrogen regulatory protein P-II
1788	 40.22	+1	1694838..1695665	-	275	159906184	-	MmarC6_1803	-	nitrogenase reductase
1789	 26.85	-1	1695986..1696309	+	107	159906185	-	MmarC6_1804	-	hypothetical protein
1790	 30.63	0	1696359..1696988	+	209	159906186	-	MmarC6_1805	-	hypothetical protein
1791	 29.87	-1	1697033..1698391	+	452	159906187	-	MmarC6_1806	-	hypothetical protein
1792	 32.06	0	1698438..1699694	-	418	159906188	-	MmarC6_1807	-	amino acid permease-associated region
1793	 33.01	0	1699719..1700342	-	207	159906189	-	MmarC6_1808	-	lysine exporter protein LysE/YggA
1794	 32.70	0	1700621..1701094	+	157	159906190	-	MmarC6_1809	-	peptide methionine sulfoxide reductase
1795	 31.50	0	1701135..1701734	+	199	159906191	-	MmarC6_1810	-	hypothetical protein
1796	 33.33	0	1701762..1702031	-	89	159906192	-	MmarC6_1811	-	hypothetical protein
1797	 25.14	-2	1702343..1702696	+	117	159906193	-	MmarC6_1812	-	hypothetical protein
1798	 34.29	0	1702723..1703454	-	243	159906194	-	MmarC6_1813	-	hypothetical protein
1799	 30.26	0	1703567..1703794	-	75	159906195	-	MmarC6_1814	-	hypothetical protein
1800	 27.32	-1	1703899..1704297	-	132	159906196	-	MmarC6_1815	-	hypothetical protein
1801	 29.20	-1	1704380..1705201	-	273	159906197	-	MmarC6_1816	-	hypothetical protein
1802	 30.95	0	1706076..1706663	+	195	159906198	-	MmarC6_1817	-	TetR family transcriptional regulator
1803	 28.87	-1	1706731..1707201	+	156	159906199	-	MmarC6_1818	-	hypothetical protein
1804	 26.31	-2	1707214..1707882	-	222	159906200	-	MmarC6_1819	-	hypothetical protein
1805	 30.86	0	1708243..1708848	+	201	159906201	-	MmarC6_1820	-	ribonuclease H
1806	 34.22	0	1708866..1709987	-	373	159906202	-	MmarC6_1821	-	2-hydroxyglutaryl-CoA dehydratase D-component
1807	 29.17	-1	1711581..1712444	+	287	159906203	-	MmarC6_1823	-	uroporphyrinogen decarboxylase
1808	 32.66	0	1712577..1714355	-	592	159906204	-	MmarC6_1824	-	ferredoxin
1809	 36.83	0	1714356..1715384	-	342	159906205	-	MmarC6_1825	-	methylcobalamin:coenzyme M methyltransferase
1810	 37.27	0	1715507..1716598	-	363	159906206	-	MmarC6_1826	-	uroporphyrinogen decarboxylase
1811	 36.21	0	1716623..1717282	-	219	159906207	-	MmarC6_1827	-	cobalamin B12-binding domain-containing protein
1812	 37.17	0	1717504..1717842	+	112	159906208	-	MmarC6_1828	-	hypothetical protein
1813	 26.82	-1	1718026..1718547	+	173	159906209	-	MmarC6_1829	-	hypothetical protein
1814	 29.94	-1	1718663..1718986	+	107	159906210	-	MmarC6_1830	-	hypothetical protein
1815	 36.78	0	1720181..1720528	+	115	159906211	-	MmarC6_1831	-	hypothetical protein
1816	 35.93	0	1720591..1720821	+	76	159906212	-	MmarC6_1832	-	hypothetical protein
1817	 41.08	+1	1722098..1722394	+	98	159906213	-	MmarC6_1833	-	hypothetical protein
1818	 39.83	+1	1726351..1727427	+	358	159906214	-	MmarC6_1834	-	hypothetical protein
1819	 36.48	0	1727436..1728197	-	253	159906215	-	MmarC6_1835	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1820	 36.13	0	1728768..1729160	-	130	159906216	-	MmarC6_1836	-	hypothetical protein
1821	 37.12	0	1730221..1732254	+	677	159906217	-	MmarC6_1837	-	MCM family protein
1822	 35.56	0	1732631..1733125	+	164	159906218	-	MmarC6_1838	-	hypothetical protein
1823	 33.36	0	1733482..1736670	-	1062	159906219	-	MmarC6_1839	-	type III restriction protein res subunit
1824	 32.48	0	1736672..1739731	-	1019	159906220	-	MmarC6_1840	-	DNA methylase N-4/N-6 domain-containing protein
1825	 35.62	0	1739721..1742561	-	946	159906221	-	MmarC6_1841	-	UvrD/REP helicase
1826	 39.30	+1	1742931..1743953	+	340	159906222	-	MmarC6_1842	-	integrase family protein
33.95	MEAN

3.79	STD DEV
