IslandPath Analysis: Methanococcus maripaludis C6

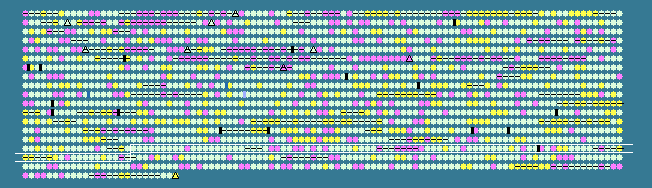

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.79
Methanococcus maripaludis C6, complete genome - 1..1744193
1826 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1519	 35.00	0	1431100..1431519	-	139	159905915	-	MmarC6_1532	-	rubrerythrin
1520	 34.67	0	1433599..1434642	-	347	159905916	-	MmarC6_1534	-	malate/L-lactate dehydrogenase
1521	 32.58	0	1434661..1435191	-	176	159905917	-	MmarC6_1535	-	tRNA-splicing endonuclease subunit alpha
1522	 36.43	0	1435381..1436640	+	419	159905918	-	MmarC6_1536	-	peptide chain release factor 1
1523	 31.58	0	1436703..1437101	+	132	159905919	-	MmarC6_1537	-	hypothetical protein
1524	 35.77	0	1437211..1437702	+	163	159905920	-	MmarC6_1538	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
1525	 34.66	0	1437739..1438341	+	200	159905921	-	MmarC6_1539	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
1526	 32.87	0	1438383..1440524	-	713	159905922	-	MmarC6_1540	-	RNA-binding S1 domain-containing protein
1527	 32.73	0	1440575..1441402	-	275	159905923	-	MmarC6_1541	-	RNA methylase
1528	 26.18	-2	1441422..1441910	-	162	159905924	-	MmarC6_1542	-	hypothetical protein
1529	 32.91	0	1441904..1442848	-	314	159905925	-	MmarC6_1543	-	thiamine-monophosphate kinase
1530	 33.18	0	1443181..1444497	+	438	159905926	-	MmarC6_1544	-	radical SAM domain-containing protein
1531	 33.67	0	1444541..1445719	+	392	159905927	-	MmarC6_1545	-	translation-associated GTPase
1532	 31.21	0	1445754..1446317	+	187	159905928	-	MmarC6_1546	-	metal dependent phophohydrolase
1533	 34.58	0	1446361..1448202	-	613	159905929	-	MmarC6_1547	-	integral membrane sensor signal transduction histidine kinase
1534	 33.86	0	1448329..1449273	-	314	159905930	-	MmarC6_1548	-	YjlA
1535	 34.01	0	1449415..1449711	+	98	159905931	-	MmarC6_1549	-	hypothetical protein
1536	 31.30	0	1449713..1450204	-	163	159905932	-	MmarC6_1550	-	hypothetical protein
1537	 36.94	0	1450286..1451338	-	350	159905933	-	MmarC6_1551	-	cellulase
1538	 35.51	0	1451670..1452497	+	275	159905934	-	MmarC6_1552	-	transketolase domain-containing protein
1539	 36.06	0	1452511..1453170	+	219	159905935	-	MmarC6_1553	-	ribulose-phosphate 3-epimerase
1540	 35.46	0	1453230..1454168	+	312	159905936	-	MmarC6_1554	-	transketolase central region
1541	 31.48	0	1454230..1454985	+	251	159905937	-	MmarC6_1555	-	hypothetical protein
1542	 30.45	0	1454990..1456063	+	357	159905938	-	MmarC6_1556	-	hypothetical protein
1543	 28.31	-1	1456050..1457204	+	384	159905939	-	MmarC6_1557	-	hypothetical protein
1544	 32.97	0	1457254..1458363	+	369	159905940	-	MmarC6_1558	-	hypothetical protein
1545	 31.65	0	1458375..1459325	+	316	159905941	-	MmarC6_1559	-	magnesium and cobalt transport protein CorA
1546	 26.30	-2	1459340..1459609	+	89	159905942	-	MmarC6_1560	-	ribonucleoprotein complex SRP, Srp19 component
1547	 25.08	-2	1459610..1459924	-	104	159905943	-	MmarC6_1561	-	hypothetical protein
1548	 34.71	0	1459937..1461025	-	362	159905944	-	MmarC6_1562	-	succinyl-CoA synthetase, beta subunit
1549	 30.43	0	1461078..1461524	-	148	159905945	-	MmarC6_1563	-	aspartate carbamoyltransferase regulatory subunit
1550	 32.09	0	1461574..1462218	-	214	159905946	-	MmarC6_1564	-	TfuA domain-containing protein
1551	 29.86	-1	1462215..1462790	-	191	159905947	-	MmarC6_1565	-	phospholipase D/transphosphatidylase
1552	 36.70	0	1462943..1464130	+	395	159905948	-	MmarC6_1566	-	acetylornithine aminotransferase
1553	 33.09	0	1464351..1464758	+	135	159905949	-	MmarC6_1567	-	transcriptional regulator, TrmB
1554	 31.62	0	1464755..1465456	-	233	159905950	-	MmarC6_1568	-	phosphate uptake regulator, PhoU
1555	 33.33	0	1465481..1466236	-	251	159905951	-	MmarC6_1569	-	phosphate ABC transporter, ATPase subunit
1556	 37.95	+1	1466255..1467121	-	288	159905952	-	MmarC6_1570	-	phosphate ABC transporter, inner membrane subunit PstA
1557	 34.82	0	1467134..1468009	-	291	159905953	-	MmarC6_1571	-	phosphate ABC transporter, inner membrane subunit PstC
1558	 36.41	0	1468079..1468924	-	281	159905954	-	MmarC6_1572	-	phosphate binding protein
1559	 36.23	0	1469170..1471446	+	758	159905955	-	MmarC6_1573	-	phosphoenolpyruvate synthase
1560	 28.19	-1	1471511..1471957	+	148	159905956	-	MmarC6_1574	-	phosphopantetheine adenylyltransferase
1561	 33.22	0	1471954..1472868	+	304	159905957	-	MmarC6_1575	-	auxin efflux carrier
1562	 33.69	0	1472951..1473799	+	282	159905958	-	MmarC6_1576	-	UTP-glucose-1-phosphate uridylyltransferase
1563	 30.03	-1	1473911..1474789	+	292	159905959	-	MmarC6_1577	-	NAD-dependent epimerase/dehydratase
1564	 25.84	-2	1474770..1475837	+	355	159905960	-	MmarC6_1578	-	hypothetical protein
1565	 25.39	-2	1475845..1476687	-	280	159905961	-	MmarC6_1579	-	glycosyl transferase family protein
1566	 30.43	0	1476668..1478044	-	458	159905962	-	MmarC6_1580	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
1567	 23.73	-2	1478047..1478994	-	315	159905963	-	MmarC6_1581	-	hypothetical protein
1568	 34.02	0	1479119..1480432	+	437	159905964	-	MmarC6_1582	-	phosphoglucosamine mutase
1569	 31.31	0	1480442..1481677	+	411	159905965	-	MmarC6_1583	-	nucleotidyl transferase
1570	 32.48	0	1481679..1482149	+	156	159905966	-	MmarC6_1584	-	dUTP diphosphatase
1571	 37.86	+1	1482219..1482461	-	80	159905967	-	MmarC6_1585	-	hypothetical protein
1572	 36.08	0	1482471..1482725	-	84	159905968	-	MmarC6_1586	-	putative monovalent cation/H+ antiporter subunit G
1573	 34.75	0	1482925..1484052	+	375	159905969	-	MmarC6_1587	-	aminotransferase class I and II
1574	 30.22	0	1484067..1484483	+	138	159905970	-	MmarC6_1588	-	hypothetical protein
1575	 32.20	0	1484577..1485194	+	205	159905971	-	MmarC6_1589	-	hypothetical protein
1576	 34.63	0	1485225..1486148	+	307	159905972	-	MmarC6_1590	-	signal peptide peptidase SppA, 36K type
1577	 34.17	0	1486192..1487148	+	318	159905973	-	MmarC6_1591	-	CaCA family Na(+)/Ca(+) antiporter
1578	 34.55	0	1487287..1488771	+	494	159905974	-	MmarC6_1592	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
1579	 32.25	0	1488789..1489250	-	153	159905975	-	MmarC6_1593	-	putative molybdenum cofactor biosynthesis protein C
1580	 31.95	0	1489349..1489783	+	144	159905976	-	MmarC6_1594	-	BadM/Rrf2 family transcriptional regulator
1581	 31.03	0	1489780..1490343	+	187	159905977	-	MmarC6_1595	-	adenylyl cyclase CyaB
1582	 37.73	0	1490448..1491992	-	514	159905978	-	MmarC6_1596	-	2-isopropylmalate synthase
1583	 32.41	0	1492061..1493905	-	614	159905979	-	MmarC6_1597	-	hypothetical protein
1584	 29.61	-1	1493939..1494556	-	205	159905980	-	MmarC6_1598	-	hypothetical protein
1585	 31.45	0	1494598..1496028	-	476	159905981	-	MmarC6_1599	-	cysteinyl-tRNA synthetase
1586	 35.06	0	1496039..1497490	-	483	159905982	-	MmarC6_1600	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1587	 29.41	-1	1497716..1498684	-	322	159905983	-	MmarC6_1601	-	hypothetical protein
1588	 35.08	0	1498726..1499928	-	400	159905984	-	MmarC6_1602	-	methanogenesis marker protein 1
1589	 24.84	-2	1499952..1500257	-	101	159905985	-	MmarC6_1603	-	hypothetical protein
1590	 38.20	+1	1500389..1500943	+	184	159905986	-	MmarC6_1604	-	CoB--CoM heterodisulfide reductase, subunit C
1591	 40.36	+1	1500978..1501859	+	293	159905987	-	MmarC6_1605	-	CoB--CoM heterodisulfide reductase, subunit B
1592	 34.57	0	1501901..1502710	-	269	159905988	-	MmarC6_1606	-	regulatory protein Crp
1593	 36.86	0	1503139..1503933	+	264	159905989	-	MmarC6_1607	-	stationary-phase survival protein SurE
1594	 34.41	0	1504009..1504656	+	215	159905990	-	MmarC6_1608	-	hypothetical protein
1595	 33.70	0	1504703..1504972	-	89	159905991	-	MmarC6_1609	-	multiple resistance and pH regulation protein F
1596	 30.51	0	1504986..1505162	-	58	159905992	-	MmarC6_1610	-	hypothetical protein
1597	 28.21	-1	1505170..1505559	-	129	159905993	-	MmarC6_1611	-	hypothetical protein
1598	 34.43	0	1505615..1505980	-	121	159905994	-	MmarC6_1612	-	hypothetical protein
1599	 35.35	0	1506002..1506646	-	214	159905995	-	MmarC6_1613	-	V-type ATP synthase subunit D
1600	 40.17	+1	1506693..1508081	-	462	159905996	-	MmarC6_1614	-	V-type ATP synthase subunit B
1601	 40.60	+1	1508116..1509876	-	586	159905997	-	MmarC6_1615	-	V-type ATP synthase subunit A
1602	 37.67	0	1509892..1510191	-	99	159905998	-	MmarC6_1616	-	V-type ATP synthase subunit F
1603	 34.78	0	1510213..1511388	-	391	159905999	-	MmarC6_1617	-	V-type ATP synthase subunit C
1604	 34.48	0	1511399..1512010	-	203	159906000	-	MmarC6_1618	-	H+transporting two-sector ATPase E subunit
1605	 44.54	+2	1512072..1512740	-	222	159906001	-	MmarC6_1619	-	V-type ATP synthase subunit K
1606	 37.65	0	1512794..1514854	-	686	159906002	-	MmarC6_1620	-	V-type ATP synthase subunit I
1607	 32.69	0	1514888..1515196	-	102	159906003	-	MmarC6_1621	-	A1A0 ATPase, subunit H
1608	 29.79	-1	1515451..1515930	-	159	159906004	-	MmarC6_1622	-	hypothetical protein
1609	 34.20	0	1516011..1516817	-	268	159906005	-	MmarC6_1623	-	band 7 protein
1610	 36.96	0	1516870..1517283	-	137	159906006	-	MmarC6_1624	-	hypothetical protein
1611	 31.83	0	1517357..1517956	-	199	159906007	-	MmarC6_1625	-	dTMP kinase
1612	 32.11	0	1517983..1520916	-	977	159906008	-	MmarC6_1626	-	hypothetical protein
1613	 33.44	0	1521077..1523005	+	642	159906009	-	MmarC6_1627	-	replication factor A
1614	 38.00	+1	1523123..1523701	+	192	159906010	-	MmarC6_1628	-	adenylate kinase
1615	 36.01	0	1523766..1524362	+	198	159906011	-	MmarC6_1629	-	hypothetical protein
1616	 32.66	0	1524528..1525271	+	247	159906012	-	MmarC6_1630	-	extracellular solute-binding protein
1617	 25.56	-2	1525278..1525637	-	119	159906013	-	MmarC6_1631	-	hypothetical protein
1618	 31.42	0	1525725..1527767	-	680	159906014	-	MmarC6_1632	-	hypothetical protein
33.95	MEAN

3.79	STD DEV
