IslandPathversion 1.0

IslandPath Analysis: Methanococcus maripaludis C6

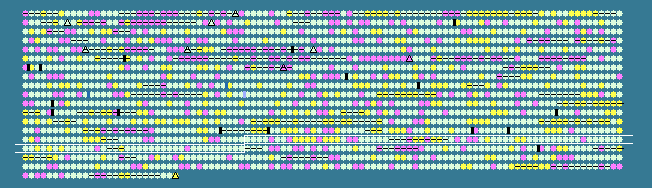

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.79
Methanococcus maripaludis C6, complete genome - 1..1744193
1826 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1438	 32.42	0	1350998..1351543	+	181	159905834	-	MmarC6_1451	-	precorrin-6Y C5,15-methyltransferase (decarboxylating), CbiT subunit
1439	 36.34	0	1351640..1353202	+	520	159905835	-	MmarC6_1452	-	alpha-glucan phosphorylase
1440	 32.79	0	1353329..1355338	+	669	159905836	-	MmarC6_1453	-	helicase c2
1441	 37.26	0	1355427..1356674	+	415	159905837	-	MmarC6_1454	-	LOR/SDH bifunctional protein
1442	 30.00	-1	1356692..1357351	+	219	159905838	-	MmarC6_1455	-	hypothetical protein
1443	 33.33	0	1357385..1358500	+	371	159905839	-	MmarC6_1456	-	histidinol-phosphate aminotransferase
1444	 33.67	0	1358648..1360126	+	492	159905840	-	MmarC6_1457	-	cobyric acid synthase
1445	 28.76	-1	1360228..1360905	+	225	159905841	-	MmarC6_1458	-	hypothetical protein
1446	 40.20	+1	1360920..1361312	-	130	159905842	-	MmarC6_1459	-	hypothetical protein
1447	 41.31	+1	1361350..1362528	-	392	159905843	-	MmarC6_1460	-	acetyl-CoA acetyltransferase
1448	 40.67	+1	1362547..1363596	-	349	159905844	-	MmarC6_1461	-	hypothetical protein
1449	 38.55	+1	1363658..1364347	-	229	159905845	-	MmarC6_1462	-	XRE family transcriptional regulator
1450	 28.45	-1	1364478..1365542	-	354	159905846	-	MmarC6_1463	-	hypothetical protein
1451	 39.01	+1	1365579..1366811	-	410	159905847	-	MmarC6_1464	-	translation initiation factor IF-2 subunit gamma
1452	 38.93	+1	1366972..1367346	-	124	159905848	-	MmarC6_1465	-	30S ribosomal protein S6e
1453	 39.82	+1	1367557..1368897	-	446	159905849	-	MmarC6_1466	-	glutamine synthetase, type I
1454	 34.81	0	1369066..1370355	+	429	159905850	-	MmarC6_1467	-	3-phosphoshikimate 1-carboxyvinyltransferase
1455	 30.20	0	1370421..1371440	+	339	159905851	-	MmarC6_1468	-	peptidase M24
1456	 29.54	-1	1371575..1372339	-	254	159905852	-	MmarC6_1469	-	hypothetical protein
1457	 32.79	0	1372422..1373519	+	365	159905853	-	MmarC6_1470	-	cobalt-precorrin-6A synthase
1458	 31.25	0	1373532..1373915	+	127	159905854	-	MmarC6_1471	-	hypothetical protein
1459	 32.97	0	1373923..1374474	+	183	159905855	-	MmarC6_1472	-	nuclease
1460	 36.61	0	1374732..1376042	-	436	159905856	-	MmarC6_1473	-	diaminopimelate decarboxylase
1461	 31.58	0	1376198..1377052	-	284	159905857	-	MmarC6_1474	-	phosphate uptake regulator, PhoU
1462	 34.38	0	1377158..1377922	-	254	159905858	-	MmarC6_1475	-	ABC transporter related
1463	 34.51	0	1377957..1378718	-	253	159905859	-	MmarC6_1476	-	binding-protein-dependent transport systems inner membrane component
1464	 30.62	0	1378886..1379437	-	183	159905860	-	MmarC6_1477	-	hypothetical protein
1465	 30.05	-1	1379516..1379881	-	121	159905861	-	MmarC6_1478	-	hypothetical protein
1466	 41.41	+1	1379998..1382151	-	717	159905862	-	MmarC6_1479	-	triple helix repeat-containing collagen
1467	 40.92	+1	1382210..1386730	-	1506	159905863	-	MmarC6_1480	-	hypothetical protein
1468	 29.84	-1	1387365..1388480	-	371	159905864	-	MmarC6_1481	-	radical SAM domain-containing protein
1469	 38.07	+1	1388581..1389552	-	323	159905865	-	MmarC6_1482	-	N(5),N(10)-methenyltetrahydromethanopterin cyclohydrolase
1470	 37.97	+1	1389743..1390195	+	150	159905866	-	MmarC6_1483	-	peptidylprolyl isomerase FKBP-type
1471	 36.94	0	1390273..1390992	+	239	159905867	-	MmarC6_1484	-	ribose 5-phosphate isomerase
1472	 36.96	0	1391138..1391413	+	91	159905868	-	MmarC6_1485	-	hypothetical protein
1473	 28.97	-1	1391445..1392017	-	190	159905869	-	MmarC6_1486	-	class II aldolase/adducin family protein
1474	 35.11	0	1392058..1394139	-	693	159905870	-	MmarC6_1487	-	peptidase S16, Lon-like protease
1475	 29.26	-1	1394153..1394692	-	179	159905871	-	MmarC6_1488	-	hydrogenase maturation protease HycI
1476	 26.70	-1	1394809..1395336	+	175	159905872	-	MmarC6_1489	-	GCN5-related N-acetyltransferase
1477	 32.81	0	1395337..1396098	-	253	159905873	-	MmarC6_1490	-	ABC transporter related
1478	 38.49	+1	1396116..1397162	-	348	159905874	-	MmarC6_1491	-	transport system permease protein
1479	 37.28	0	1397266..1398354	-	362	159905875	-	MmarC6_1492	-	periplasmic binding protein
1480	 35.14	0	1398550..1399710	-	386	159905876	-	MmarC6_1493	-	periplasmic binding protein
1481	 36.98	0	1399789..1400913	-	374	159905877	-	MmarC6_1494	-	periplasmic binding protein
1482	 30.64	0	1401064..1402212	-	382	159905878	-	MmarC6_1495	-	hypothetical protein
1483	 37.61	0	1402291..1402944	-	217	159905879	-	MmarC6_1496	-	peroxiredoxin
1484	 39.51	+1	1403169..1403978	+	269	159905880	-	MmarC6_1497	-	zinc/iron permease
1485	 36.78	0	1404100..1404651	+	183	159905881	-	MmarC6_1498	-	DNA protection protein DPS
1486	 35.96	0	1404884..1405492	+	202	159905882	-	MmarC6_1499	-	FMN-binding protein
1487	 32.36	0	1405551..1406165	-	204	159905883	-	MmarC6_1500	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1488	 33.19	0	1406177..1406869	-	230	159905884	-	MmarC6_1501	-	glycosyl transferase family protein
1489	 37.33	0	1407014..1408240	-	408	159905885	-	MmarC6_1502	-	SufBD protein
1490	 37.08	0	1408210..1408956	-	248	159905886	-	MmarC6_1503	-	ABC transporter related
1491	 34.23	0	1408957..1409511	-	184	159905887	-	MmarC6_1504	-	archaeoflavoprotein AfpA
1492	 35.35	0	1409514..1410107	-	197	159905888	-	MmarC6_1505	-	NADPH-dependent FMN reductase
1493	 33.61	0	1410272..1412443	-	723	159905889	-	MmarC6_1506	-	heavy metal translocating P-type ATPase
1494	 25.93	-2	1412462..1412677	-	71	159905890	-	MmarC6_1507	-	heavy metal transport/detoxification protein
1495	 31.11	0	1412805..1413119	-	104	159905891	-	MmarC6_1508	-	CutA1 divalent ion tolerance protein
1496	 33.68	0	1413137..1414300	-	387	159905892	-	MmarC6_1509	-	beta-lactamase domain-containing protein
1497	 32.76	0	1414329..1414679	-	116	159905893	-	MmarC6_1510	-	hypothetical protein
1498	 37.04	0	1414713..1414901	-	62	159905894	-	MmarC6_1511	-	hypothetical protein
1499	 35.23	0	1414912..1415439	-	175	159905895	-	MmarC6_1512	-	Ferritin Dps family protein
1500	 34.46	0	1415463..1415729	-	88	159905896	-	MmarC6_1513	-	hypothetical protein
1501	 33.61	0	1415751..1416107	-	118	159905897	-	MmarC6_1514	-	desulfoferrodoxin ferrous iron-binding region
1502	 33.97	0	1416120..1416434	-	104	159905898	-	MmarC6_1515	-	carboxymuconolactone decarboxylase
1503	 38.43	+1	1416475..1417377	-	300	159905899	-	MmarC6_1516	-	CoB--CoM heterodisulfide reductase, subunit B
1504	 36.96	0	1417390..1417968	-	192	159905900	-	MmarC6_1517	-	CoB--CoM heterodisulfide reductase, subunit C
1505	 38.21	+1	1418203..1419330	+	375	159905901	-	MmarC6_1518	-	NADH-ubiquinone oxidoreductase chain 49kDa
1506	 31.96	0	1419373..1419735	+	120	159905902	-	MmarC6_1519	-	CBS domain-containing protein
1507	 39.45	+1	1419796..1421070	-	424	159905903	-	MmarC6_1520	-	homoaconitate hydratase family protein
1508	 33.33	0	1421202..1421420	+	72	159905904	-	MmarC6_1521	-	like-Sm ribonucleoprotein core
1509	 35.90	0	1421498..1421692	+	64	159905905	-	MmarC6_1522	-	50S ribosomal protein L37e
1510	 35.29	0	1421865..1423244	+	459	159905906	-	MmarC6_1523	-	amidophosphoribosyltransferase
1511	 35.99	0	1423292..1424080	-	262	159905907	-	MmarC6_1524	-	cell division ATPase MinD
1512	 30.93	0	1424232..1424981	+	249	159905908	-	MmarC6_1525	-	bacitracin resistance protein BacA
1513	 29.82	-1	1425044..1425754	-	236	159905909	-	MmarC6_1526	-	metallophosphoesterase
1514	 35.50	0	1425757..1428381	-	874	159905910	-	MmarC6_1527	-	ATP-dependent helicase
1515	 32.58	0	1428563..1428829	-	88	159905911	-	MmarC6_1528	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1516	 33.97	0	1429004..1429627	-	207	159905912	-	MmarC6_1529	-	thiamine-phosphate pyrophosphorylase
1517	 38.08	+1	1429617..1430417	-	266	159905913	-	MmarC6_1530	-	hydroxyethylthiazole kinase
1518	 34.52	0	1430627..1431049	+	140	159905914	-	MmarC6_1531	-	AsnC family transcriptional regulator
1519	 35.00	0	1431100..1431519	-	139	159905915	-	MmarC6_1532	-	rubrerythrin
1520	 34.67	0	1433599..1434642	-	347	159905916	-	MmarC6_1534	-	malate/L-lactate dehydrogenase
1521	 32.58	0	1434661..1435191	-	176	159905917	-	MmarC6_1535	-	tRNA-splicing endonuclease subunit alpha
1522	 36.43	0	1435381..1436640	+	419	159905918	-	MmarC6_1536	-	peptide chain release factor 1
1523	 31.58	0	1436703..1437101	+	132	159905919	-	MmarC6_1537	-	hypothetical protein
1524	 35.77	0	1437211..1437702	+	163	159905920	-	MmarC6_1538	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
1525	 34.66	0	1437739..1438341	+	200	159905921	-	MmarC6_1539	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
1526	 32.87	0	1438383..1440524	-	713	159905922	-	MmarC6_1540	-	RNA-binding S1 domain-containing protein
1527	 32.73	0	1440575..1441402	-	275	159905923	-	MmarC6_1541	-	RNA methylase
1528	 26.18	-2	1441422..1441910	-	162	159905924	-	MmarC6_1542	-	hypothetical protein
1529	 32.91	0	1441904..1442848	-	314	159905925	-	MmarC6_1543	-	thiamine-monophosphate kinase
1530	 33.18	0	1443181..1444497	+	438	159905926	-	MmarC6_1544	-	radical SAM domain-containing protein
1531	 33.67	0	1444541..1445719	+	392	159905927	-	MmarC6_1545	-	translation-associated GTPase
1532	 31.21	0	1445754..1446317	+	187	159905928	-	MmarC6_1546	-	metal dependent phophohydrolase
1533	 34.58	0	1446361..1448202	-	613	159905929	-	MmarC6_1547	-	integral membrane sensor signal transduction histidine kinase
1534	 33.86	0	1448329..1449273	-	314	159905930	-	MmarC6_1548	-	YjlA
1535	 34.01	0	1449415..1449711	+	98	159905931	-	MmarC6_1549	-	hypothetical protein
1536	 31.30	0	1449713..1450204	-	163	159905932	-	MmarC6_1550	-	hypothetical protein
1537	 36.94	0	1450286..1451338	-	350	159905933	-	MmarC6_1551	-	cellulase
33.95	MEAN

3.79	STD DEV
