IslandPath Analysis: Methanococcus maripaludis C6

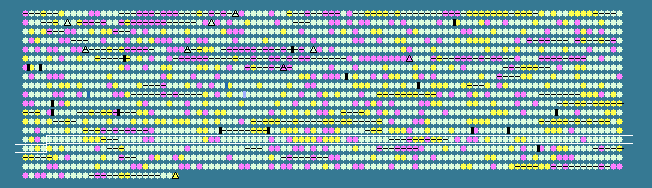

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.95 STD DEV: 3.79
Methanococcus maripaludis C6, complete genome - 1..1744193
1826 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1405	 34.11	0	1322911..1324575	-	554	159905801	-	MmarC6_1418	-	phenylalanyl-tRNA synthetase subunit beta
1406	 35.14	0	1324615..1325664	-	349	159905802	-	MmarC6_1419	-	phosphoribosylaminoimidazole synthetase
1407	 32.00	0	1325726..1326622	-	298	159905803	-	MmarC6_1420	-	hypothetical protein
1408	 34.17	0	1326731..1327570	-	279	159905804	-	MmarC6_1421	-	CBS domain-containing protein
1409	 37.25	0	1327593..1328153	-	186	159905805	-	MmarC6_1422	-	signal-transduction protein
1410	 35.91	0	1328244..1328747	-	167	159905806	-	MmarC6_1423	-	6-pyruvoyl tetrahydropterin synthase
1411	 38.83	+1	1328839..1329657	-	272	159905807	-	MmarC6_1424	-	formylmethanofuran dehydrogenase subunit C
1412	 39.79	+1	1329691..1331394	-	567	159905808	-	MmarC6_1425	-	formylmethanofuran dehydrogenase subunit A
1413	 39.79	+1	1331415..1331801	-	128	159905809	-	MmarC6_1426	-	molydopterin dinucleotide-binding region
1414	 41.56	+2	1331843..1332085	-	80	159905810	-	MmarC6_1427	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1415	 37.02	0	1332108..1333166	-	352	159905811	-	MmarC6_1428	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1416	 36.24	0	1333189..1333635	-	148	159905812	-	MmarC6_1429	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1417	 32.85	0	1333839..1334456	+	205	159905813	-	MmarC6_1430	-	UBA/THIF-type NAD/FAD binding protein
1418	 34.86	0	1334523..1335440	+	305	159905814	-	MmarC6_1431	-	quinolinate synthetase
1419	 33.89	0	1335450..1335809	-	119	159905815	-	MmarC6_1432	-	hypothetical protein
1420	 34.47	0	1335814..1336956	-	380	159905816	-	MmarC6_1433	-	Sep-tRNA:Cys-tRNA synthetase
1421	 28.70	-1	1336984..1337760	-	258	159905817	-	MmarC6_1434	-	ExsB family protein
1422	 29.67	-1	1337757..1338740	-	327	159905818	-	MmarC6_1435	-	biotin synthase
1423	 32.84	0	1338818..1339018	-	66	159905819	-	MmarC6_1436	-	hypothetical protein
1424	 32.80	0	1339047..1339790	-	247	159905820	-	MmarC6_1437	-	hypothetical protein
1425	 33.80	0	1339820..1340245	-	141	159905821	-	MmarC6_1438	-	molybdopterin biosynthesis MoaE protein
1426	 31.25	0	1340238..1340957	-	239	159905822	-	MmarC6_1439	-	UBA/THIF-type NAD/FAD binding protein
1427	 32.05	0	1341034..1341735	+	233	159905823	-	MmarC6_1440	-	formate dehydrogenase family accessory protein FdhD
1428	 30.98	0	1341788..1342678	+	296	159905824	-	MmarC6_1441	-	PP-loop domain-containing protein
1429	 32.58	0	1342704..1343099	-	131	159905825	-	MmarC6_1442	-	HAD family hydrolase
1430	 31.72	0	1343182..1344237	-	351	159905826	-	MmarC6_1443	-	DNA polymerase beta subunit
1431	 38.61	+1	1344295..1344597	-	100	159905827	-	MmarC6_1444	-	FUN14 family protein
1432	 27.80	-1	1344696..1345328	-	210	159905828	-	MmarC6_1445	-	hypothetical protein
1433	 28.07	-1	1345342..1345968	-	208	159905829	-	MmarC6_1446	-	cobalt-precorrin-6Y C(5)-methyltransferase
1434	 31.38	0	1346081..1347259	+	392	159905830	-	MmarC6_1447	-	geranylgeranyl reductase
1435	 35.42	0	1347271..1348035	-	254	159905831	-	MmarC6_1448	-	extracellular solute-binding protein
1436	 37.25	0	1348325..1349803	+	492	159905832	-	MmarC6_1449	-	hypothetical protein
1437	 37.25	0	1349881..1350849	-	322	159905833	-	MmarC6_1450	-	DNA repair and recombination protein RadA
1438	 32.42	0	1350998..1351543	+	181	159905834	-	MmarC6_1451	-	precorrin-6Y C5,15-methyltransferase (decarboxylating), CbiT subunit
1439	 36.34	0	1351640..1353202	+	520	159905835	-	MmarC6_1452	-	alpha-glucan phosphorylase
1440	 32.79	0	1353329..1355338	+	669	159905836	-	MmarC6_1453	-	helicase c2
1441	 37.26	0	1355427..1356674	+	415	159905837	-	MmarC6_1454	-	LOR/SDH bifunctional protein
1442	 30.00	-1	1356692..1357351	+	219	159905838	-	MmarC6_1455	-	hypothetical protein
1443	 33.33	0	1357385..1358500	+	371	159905839	-	MmarC6_1456	-	histidinol-phosphate aminotransferase
1444	 33.67	0	1358648..1360126	+	492	159905840	-	MmarC6_1457	-	cobyric acid synthase
1445	 28.76	-1	1360228..1360905	+	225	159905841	-	MmarC6_1458	-	hypothetical protein
1446	 40.20	+1	1360920..1361312	-	130	159905842	-	MmarC6_1459	-	hypothetical protein
1447	 41.31	+1	1361350..1362528	-	392	159905843	-	MmarC6_1460	-	acetyl-CoA acetyltransferase
1448	 40.67	+1	1362547..1363596	-	349	159905844	-	MmarC6_1461	-	hypothetical protein
1449	 38.55	+1	1363658..1364347	-	229	159905845	-	MmarC6_1462	-	XRE family transcriptional regulator
1450	 28.45	-1	1364478..1365542	-	354	159905846	-	MmarC6_1463	-	hypothetical protein
1451	 39.01	+1	1365579..1366811	-	410	159905847	-	MmarC6_1464	-	translation initiation factor IF-2 subunit gamma
1452	 38.93	+1	1366972..1367346	-	124	159905848	-	MmarC6_1465	-	30S ribosomal protein S6e
1453	 39.82	+1	1367557..1368897	-	446	159905849	-	MmarC6_1466	-	glutamine synthetase, type I
1454	 34.81	0	1369066..1370355	+	429	159905850	-	MmarC6_1467	-	3-phosphoshikimate 1-carboxyvinyltransferase
1455	 30.20	0	1370421..1371440	+	339	159905851	-	MmarC6_1468	-	peptidase M24
1456	 29.54	-1	1371575..1372339	-	254	159905852	-	MmarC6_1469	-	hypothetical protein
1457	 32.79	0	1372422..1373519	+	365	159905853	-	MmarC6_1470	-	cobalt-precorrin-6A synthase
1458	 31.25	0	1373532..1373915	+	127	159905854	-	MmarC6_1471	-	hypothetical protein
1459	 32.97	0	1373923..1374474	+	183	159905855	-	MmarC6_1472	-	nuclease
1460	 36.61	0	1374732..1376042	-	436	159905856	-	MmarC6_1473	-	diaminopimelate decarboxylase
1461	 31.58	0	1376198..1377052	-	284	159905857	-	MmarC6_1474	-	phosphate uptake regulator, PhoU
1462	 34.38	0	1377158..1377922	-	254	159905858	-	MmarC6_1475	-	ABC transporter related
1463	 34.51	0	1377957..1378718	-	253	159905859	-	MmarC6_1476	-	binding-protein-dependent transport systems inner membrane component
1464	 30.62	0	1378886..1379437	-	183	159905860	-	MmarC6_1477	-	hypothetical protein
1465	 30.05	-1	1379516..1379881	-	121	159905861	-	MmarC6_1478	-	hypothetical protein
1466	 41.41	+1	1379998..1382151	-	717	159905862	-	MmarC6_1479	-	triple helix repeat-containing collagen
1467	 40.92	+1	1382210..1386730	-	1506	159905863	-	MmarC6_1480	-	hypothetical protein
1468	 29.84	-1	1387365..1388480	-	371	159905864	-	MmarC6_1481	-	radical SAM domain-containing protein
1469	 38.07	+1	1388581..1389552	-	323	159905865	-	MmarC6_1482	-	N(5),N(10)-methenyltetrahydromethanopterin cyclohydrolase
1470	 37.97	+1	1389743..1390195	+	150	159905866	-	MmarC6_1483	-	peptidylprolyl isomerase FKBP-type
1471	 36.94	0	1390273..1390992	+	239	159905867	-	MmarC6_1484	-	ribose 5-phosphate isomerase
1472	 36.96	0	1391138..1391413	+	91	159905868	-	MmarC6_1485	-	hypothetical protein
1473	 28.97	-1	1391445..1392017	-	190	159905869	-	MmarC6_1486	-	class II aldolase/adducin family protein
1474	 35.11	0	1392058..1394139	-	693	159905870	-	MmarC6_1487	-	peptidase S16, Lon-like protease
1475	 29.26	-1	1394153..1394692	-	179	159905871	-	MmarC6_1488	-	hydrogenase maturation protease HycI
1476	 26.70	-1	1394809..1395336	+	175	159905872	-	MmarC6_1489	-	GCN5-related N-acetyltransferase
1477	 32.81	0	1395337..1396098	-	253	159905873	-	MmarC6_1490	-	ABC transporter related
1478	 38.49	+1	1396116..1397162	-	348	159905874	-	MmarC6_1491	-	transport system permease protein
1479	 37.28	0	1397266..1398354	-	362	159905875	-	MmarC6_1492	-	periplasmic binding protein
1480	 35.14	0	1398550..1399710	-	386	159905876	-	MmarC6_1493	-	periplasmic binding protein
1481	 36.98	0	1399789..1400913	-	374	159905877	-	MmarC6_1494	-	periplasmic binding protein
1482	 30.64	0	1401064..1402212	-	382	159905878	-	MmarC6_1495	-	hypothetical protein
1483	 37.61	0	1402291..1402944	-	217	159905879	-	MmarC6_1496	-	peroxiredoxin
1484	 39.51	+1	1403169..1403978	+	269	159905880	-	MmarC6_1497	-	zinc/iron permease
1485	 36.78	0	1404100..1404651	+	183	159905881	-	MmarC6_1498	-	DNA protection protein DPS
1486	 35.96	0	1404884..1405492	+	202	159905882	-	MmarC6_1499	-	FMN-binding protein
1487	 32.36	0	1405551..1406165	-	204	159905883	-	MmarC6_1500	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1488	 33.19	0	1406177..1406869	-	230	159905884	-	MmarC6_1501	-	glycosyl transferase family protein
1489	 37.33	0	1407014..1408240	-	408	159905885	-	MmarC6_1502	-	SufBD protein
1490	 37.08	0	1408210..1408956	-	248	159905886	-	MmarC6_1503	-	ABC transporter related
1491	 34.23	0	1408957..1409511	-	184	159905887	-	MmarC6_1504	-	archaeoflavoprotein AfpA
1492	 35.35	0	1409514..1410107	-	197	159905888	-	MmarC6_1505	-	NADPH-dependent FMN reductase
1493	 33.61	0	1410272..1412443	-	723	159905889	-	MmarC6_1506	-	heavy metal translocating P-type ATPase
1494	 25.93	-2	1412462..1412677	-	71	159905890	-	MmarC6_1507	-	heavy metal transport/detoxification protein
1495	 31.11	0	1412805..1413119	-	104	159905891	-	MmarC6_1508	-	CutA1 divalent ion tolerance protein
1496	 33.68	0	1413137..1414300	-	387	159905892	-	MmarC6_1509	-	beta-lactamase domain-containing protein
1497	 32.76	0	1414329..1414679	-	116	159905893	-	MmarC6_1510	-	hypothetical protein
1498	 37.04	0	1414713..1414901	-	62	159905894	-	MmarC6_1511	-	hypothetical protein
1499	 35.23	0	1414912..1415439	-	175	159905895	-	MmarC6_1512	-	Ferritin Dps family protein
1500	 34.46	0	1415463..1415729	-	88	159905896	-	MmarC6_1513	-	hypothetical protein
1501	 33.61	0	1415751..1416107	-	118	159905897	-	MmarC6_1514	-	desulfoferrodoxin ferrous iron-binding region
1502	 33.97	0	1416120..1416434	-	104	159905898	-	MmarC6_1515	-	carboxymuconolactone decarboxylase
1503	 38.43	+1	1416475..1417377	-	300	159905899	-	MmarC6_1516	-	CoB--CoM heterodisulfide reductase, subunit B
1504	 36.96	0	1417390..1417968	-	192	159905900	-	MmarC6_1517	-	CoB--CoM heterodisulfide reductase, subunit C
33.95	MEAN

3.79	STD DEV
